Standard Model
For use in non-hazardous locations
HL Model
For use in hazardous locations:
• Class I, Division 2, Groups A-D, T5
• Class I, Zone 2 IIC T5

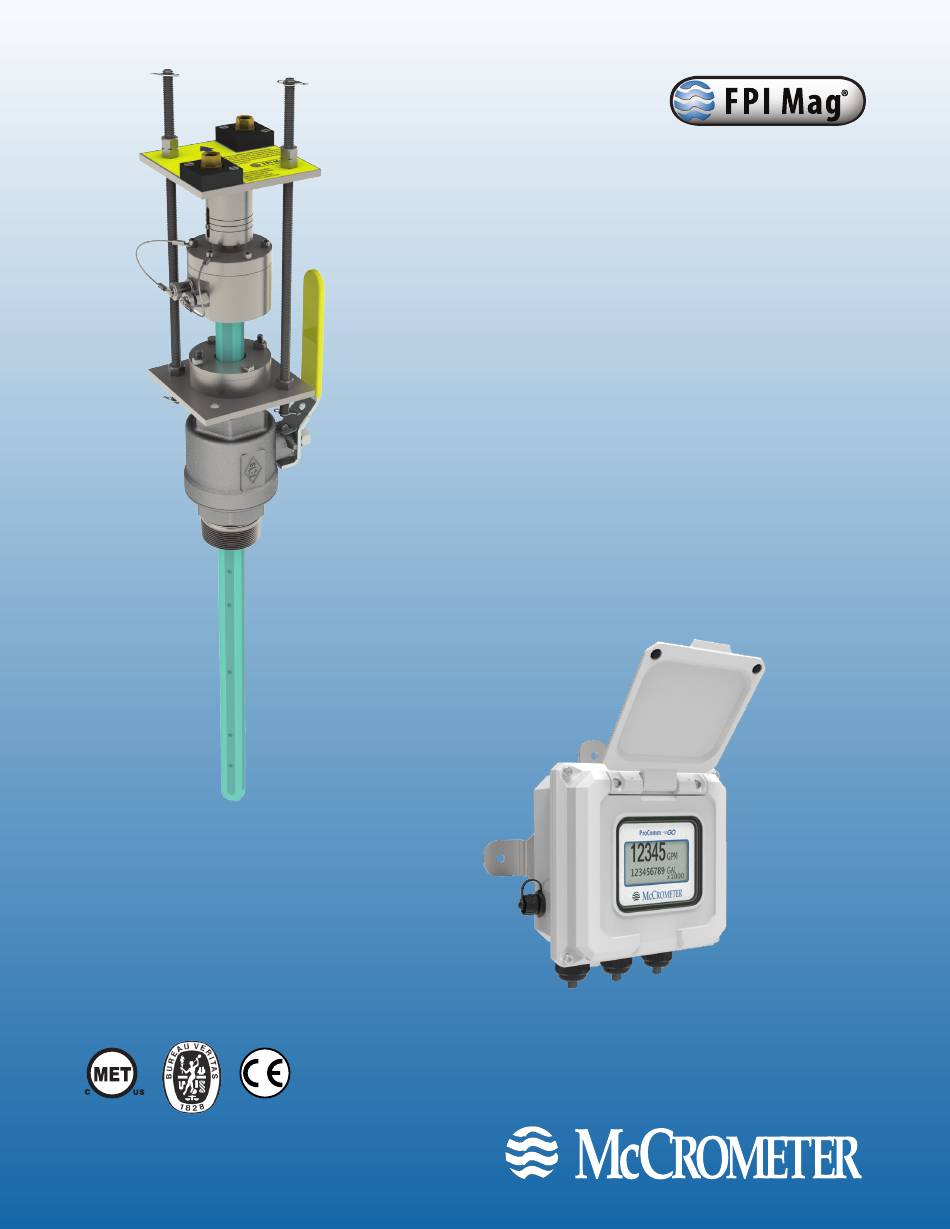

Full Profile Insertion
Electromagnetic Flow Meter
Models 394 and 395
Installation, Operation and
for use with Procomm GO Converter
Maintenance Manual
30125-73 Rev. 1.1
August 19, 2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for McCrometer FPI Mag 394
Summary of Contents for McCrometer FPI Mag 394
- Page 1 Full Profile Insertion Electromagnetic Flow Meter Models 394 and 395 Installation, Operation and Maintenance Manual for use with Procomm GO Converter 30125-73 Rev. 1.1 August 19, 2022 Standard Model For use in non-hazardous locations HL Model For use in hazardous locations: •...
-
Page 2: Table Of Contents
Contents SAFETY SYMBOLS AND WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Safety Symbols . -
Page 3: Safety Symbols And Warnings
Safety Warnings When installing, operating, and maintaining McCrometer equipment where hazards may be present, you must protect yourself by wearing Personal Protective Equipment (PPE) and be trained to enter confined spaces. Examples of confined spaces are manholes, pumping stations, pipelines, pits, septic tanks, sewage digesters, vaults, degreasers, storage tanks, boilers, and furnaces. -
Page 4: Description Of Flow Meter
DESCRIPTION OF FLOW METER 1 .0 DESCRIPTION OF FLOW METER The FPI Mag® (Full Profile Insertion) flow meter provides accurate flow measurement for full-pipe clean water applications. The electromagnetic sensor automatically senses and corrects for shifting velocity in the pipe by constantly obtaining an area weighted mean velocity. -
Page 5: Verify Serial Numbers
UNPACKING AND VERIFYING COMPONENTS 2 .1 Verify Serial Numbers The FPI Mag flow meter is comprised of two primary components: the sensor and the converter. The converter and sensor are supplied as a custom calibrated matched system. Verify the system serial numbers on both the converter and sensor match. -
Page 6: Verify Information On Cable Tags
SENSOR PROBE INSTALLATION 2 .2 Verify Information On Cable Tags Cable Tags converter cable has two tags located near where the cable enters converter as shown in Figure 3. Verify the following information is consistent with the specifications provided at the time of order: Tag 1 Tag 2 Meter Serial Number... -
Page 7: Step 1: Names Of Sensor Components
SENSOR PROBE INSTALLATION STEP 1: Names of sensor components This manual refers to the part names of the sensor. It is important to be familiar with the parts and their names as shown below in Figure 7 when following the installation instructions. For a full list of replaceable parts with part numbers, see Section 13.0. -
Page 8: Step 2: Detach The Cable Quick Connects
The upstream and downstream straight-pipe recommendations are conservative, based on research completed in the McCrometer NIST traceable calibration facility. In many cases, the installation distances suggested below can be shortened depending on flow conditions and piping layout. - Page 9 Filter Note: The table above is not inclusive of each possible installation scenario for the McCrometer FPI Mag. For installations not included in the table, the McCrometer Applications Team is available to review cases and make a determination as to the viability of the installation.
-
Page 10: Step 4: Verify Sufficient Installation Clearance From Obstructions
SENSOR PROBE INSTALLATION VALVE VALVE VALVE VALVE 1D DOWN- 1D DOWN- 20D UPSTREAM 20D UPSTREAM STREAM STREAM FLOW FLOW FLOW FLOW Figure 9 . FPI Mag Installation Orientation With A Gate Valve Or Elbow Rotational axis of a butterfly valve Butterfly Valve Install the FPI Mag perpendicular to the... -
Page 11: Step 5: Installing The Pipe Valve
SENSOR PROBE INSTALLATION STEP 5: Installing the pipe valve WARNING! Pressurized pipes should only be hot tapped, cut, or drilled by qualified personnel using high quality saddles, valves and stainless steel nipples. If possible, depressurize the pipe before attempting any installation. The sensor comes standard with a 2"... -
Page 12: Step 6: Ensure Sensor Will Be Installed Perpendicular To The Pipe
SENSOR PROBE INSTALLATION 90° 90° STEP 6: Ensure sensor will be installed perpendicular to the pipe The FPI should be installed perpendicular to the pipe as shown in Figure 14 for a vertical installation. The allowable tolerance for installation is ± 0.5°. A perpendicular installation is determined by the coupling that is mounted on the pipe. Prior to installing the FPI a level ruler should be used to check the coupling and ensure that it sits level. -
Page 13: Step 8: Connecting The Sensor Onto Pipe Valve
SENSOR PROBE INSTALLATION STEP 8: Connecting the sensor onto pipe valve The sensor assembly uses a compression seal, which keeps the sensor watertight when the pipe is under pressure. Care must be taken when installing the sensor to avoid leaks. Follow the steps below to install the sensor onto the pipe valve: Put a generous amount of the pipe sealant or Teflon tape on the compression seal threads. -
Page 14: Step 10: Insert The Sensor Probe Into The Pipe
(Figure 20) NOTE 3: Using the sensor insertion tool McCrometer recommends using a sensor insertion tool (see Figure 21) to rotate the captive nuts. This will ensure the top plate compresses evenly and will help avoid any damage to the sensor. - Page 15 SENSOR PROBE INSTALLATION Follow the steps below to insert the sensor probe into the pipe . If you disassembled and reassembled the compression seal, hand tighten the compression seal bolts and nuts. DO NOT FULLY TIGHTEN THE COMPRESSION SEAL BOLTS AND NUTS. If you did not disassemble the compression seal, proceed to step 2.
-
Page 16: Step 11: Apply A Compression Load To The Sensor
SENSOR PROBE INSTALLATION STEP 11: Apply a compression load to the sensor A compression load is required to be applied at the top of the sensor forcing the bottom of the sensor to seat firmly against the far wall of the pipe. The amount of load is indicated by the three lines etched into the top plate and the location of the set screw relative to the lines. -
Page 17: Step 12: Install The Retaining Rods
SENSOR PROBE INSTALLATION STEP 12: Install the retaining rods After the sensor has been inserted and the load adjusted, remove the insertion rods and install the shorter retaining rods. This will make the sensor assembly more compact. (Figure 27) If the short retaining rods are not used, run a 3/8" or 1/2" nut down against each captive nut to prevent the NOTE captive nut from rotating. -
Page 18: Step 13: Attaching The Ground Wire
INSTALLING THE CONVERTER AND CABLES STEP 13: Attaching the ground wire The FPI meter is electrically continuous to a conductive (non PVC) pipe through the retaining rods. Additional grounding may be required to a dedicated earth ground via ring terminal and 10 AWG wire (not provided). -
Page 19: Mounting The Converter
IMPORTANT: Do not cut or alter the cable length on power or signal cables! Connections to the sensor must be made with cable supplied by McCrometer specifically for that purpose. Do not substitute the supplied cable with other types of cable, even for short runs. For repairs or added lengths of cable, the entire cable between the sensor and the converter must be replaced. -
Page 20: Pulling Sensor Cable Through Electrical Conduit
INSTALLING THE CONVERTER AND CABLES 4 .4 Pulling Sensor Cable Through Electrical Conduit It is very important to protect the end of the sensor cable when pulling it through a conduit. Cable cover is Water can accumulate in low portions of conduit. Always use a cable cover, or similar method, NOTE not provided. -
Page 21: Internal Wire Connection
INTERNAL WIRE CONNECTION 5 .0 INTERNAL WIRE CONNECTION This section describes cable and wire harness connection inside the converter. Section 6.0 describes wire connection for all peripherals outside of the converter, including pulse output and external power options. 5 .1 Terminal Block Diagram and Grounding Lug Coils and electrodes Power... -
Page 22: Wiring Diagrams
INTERNAL WIRE CONNECTION 5 .2 Wiring Diagrams TERMINAL BLOCK ASSIGNMENTS ATTACHES TO Coils Harness BLACK CHASSIS LUG Terminal Port Wire Color YELLOW Green/Yellow Yellow Chassis Lug Black GREEN / YELLOW Electrodes Harness Terminal Port Wire Color PINK BLACK Green/Yellow BLUE Blue GREEN / YELLOW Black... -
Page 23: Optional Smart Output Hook Up
IMPORTANT Connections to the sensor must be made with cable supplied by McCrometer specifically for that purpose. Do not substitute the supplied cable with other types of cable, even for short runs. For repairs or added lengths of cable, the entire cable between the sensor and the converter must be replaced. -
Page 24: Power Options
IMPORTANT To connect sensor and converter via quick connect plugs and sockets, only use the supplied cable assemblies from McCrometer. IMPORTANT When not in use, always keep the attached cap firmly screwed into the connector to insure a water-tight seal. -
Page 25: Dc Power Cable (Optional)
EXTERNAL WIRE CONNECTION 6 .3 DC Power Cable (Optional) The cable contains wiring for both the optional 10-32VDC power to the meter, and the 4-20mA output from the meter. (Figure 41) Note: Input power is for the converter only if that option was selected at time of purchase. The 4-20mA loop requires its own power supplied to the loop, not be used with red/black wires. -
Page 26: Solar Panel Option
EXTERNAL WIRE CONNECTION ProComm EXTERNAL WIRE CONNECTION Solar Panel Option (for use with standard model only) 6 .6 Solar Panel Option The solar panel provides power to the converter by converting sunlight into electrical energy to recharge the solar panels' rechargeable battery. -
Page 27: Battery Installation And Replacement
BATTERY INSTALLATION AND REPLACEMENT ProComm GO Battery Installation and Replacement 7 .0 BATTERY INSTALLATION AND REPLACEMENT Battery Installation and Replacement Procedure for the ProComm GO Converter This procedure applies to all ow meters with the ProComm WARNING GO converter. It describes how to install batteries in a new EXPLOSION HAZARD. - Page 28 ProComm GO Battery Installation and Replacement BATTERY INSTALLATION AND REPLACEMENT II. Removing the batteries Unplug tall connectors to sensor, outputs, and Loosen the captive screws opposite of the hinge and power. lift the battery cover. Hinge Hinge screws Connectors Unplug the batteries. Cut the two zip ties securing the batteries.
- Page 29 ProComm GO Battery Installation and Replacement BATTERY INSTALLATION AND REPLACEMENT III. Installing the batteries and restoring the power Cut the zip tie holding the 10. Pass the new zip tie through the 11. Wrap the new zip tie around the dry pack to the hinge on the slots in the internal hinge.
- Page 30 Copyright © 2022 McCrometer, Inc. All printed material should not be changed or altered without permission of McCrometer. Any published pricing, technical data, and instructions are subject to change without notice. Contact your McCrometer representative for current pricing, technical data, and instructions.
-
Page 31: Operation
General The flow meter comes pre-configured from the factory based on the installation parameters provided to McCrometer at the time of order. Other than activating the display, there is nothing required of the user for the basic operation of the flow meter. -
Page 32: Converter Configuration
This is only a summary of the configuration tool’s functionality. The software has complete set-up and operation instructions included. The software can be downloaded from the McCrometer Web site. You must have your flow meter’s serial number before you begin. There are no installation files. -
Page 33: Error Messages For Troubleshooting
ERROR MESSAGES FOR TROUBLESHOOTING 10 .0 ERROR MESSAGES FOR TROUBLESHOOTING DISPLAY MESSAGE Troubleshooting BAT LOW Battery replacement Kit is needed to replace batteries. The batteries Should last approximately 6-9 months from the time the warning is shown. 420 ERR The 4-20 circuit is not wired correctly. Check the wiring diagram and ensure 9-30VDC power is supplied to the circuit. -
Page 34: Sensor Removal
SENSOR REMOVAL 11 .0 SENSOR REMOVAL WARNING! The pipe may be under pressure. Serious injury or death may result if proper procedures are not followed. Do not attempt to remove the short retaining rods without the long retaining rods properly installed. Do not attempt to remove the sensor with only the short retaining rods. -
Page 35: Specifications
Note: Damage to the sensor caused by allowing the sensor freeze in the pipe is not covered by the warranty. Sensor Cable Lengths Standard 25’/7.6 m McCrometer supplied submersible cable with each remote mount unit. Optional Up to 500’/152.4 m, or 25’/7.6 m max for battery powered. Quick Connect... - Page 36 • Sensor insertion tool • Stainless steel ID tag Note regarding cable length: McCrometer recommends minimizing cable length. Electromagnetic ow meters may have unfavorable signal strength to noise ratio in electrically noisy environments. Longer lengths of cable increase the likelihood of interference.
- Page 37 Speci cation Sheet SPECIFICATIONS FPI Mag Flow Meter with Converter FLOW METER PIPE SIZES AND FLOW RANGES WITH PROCOMM CONVERTER IMPERIAL UNITS Standard Flow Ranges Minimum Pipe ID Range Program Velocity (GPM Standard) Pipe Size Clearance Defaults Range (Nominal) Required During (f/s) Min Pipe 20mA...
- Page 38 SPECIFICATIONS SPECIFICATIONS ProComm PROCOMM GO CONVERTER SPECIFICATIONS 9.0 SPECIFICATIONS Physical Speci cations Electronic Housing Diecast aluminum, powder coated enclosure w/ tamper resistant seal, 6½” x 6½” x 43/8” tall Converter See page 21for meter mount and remote mount converter dimensions. Dimensions Battery: Standard: three 3.6V lithium-thionyl chloride (Li-SOCI2) D size...
- Page 39 SPECIFICATIONS SPECIFICATIONS ProComm Gallons Barrel (42G) MH1 Miners Inch Hour Cubic Feet Barrel (46G) (11.22G) Acre Feet Barrel (55G) MD1 Miners Inch Day (11.22G) CUM Cubic Meters Imperial Gallon MH9 Miners Inch Hour (9G) Totalizer Units Liters Acre Inch MD9 Miners Inch Day (9G) MML Megaliter Ton (Short) Kilo Gallons...
-
Page 40: Replacement Parts
REPLACEMENT PARTS 13 .0 REPLACEMENT PARTS Diagram Part Description Number Number Protective Cap FPI-002RP Captive Nut 42226 Captive Nut Bearing Retainer 42225 Captive Nut Bearing 92121 Top Plate for use with 3/8" retaining rods MIM043 Top Plate for use with 1/2" retaining rods MIM053 Set screw (2 ea.) 920001001... -
Page 41: Maintenance
Prior to calling for a return authorization number, determine the model number, serial number (located inside the front panel of the converter), and reason for return. • Contact McCrometer Customer Service Department and ask for a Return Authorization (RA) number. • Telephone: 1-800-220-2279 •... -
Page 42: Warranty
Current as of: 1/29/2021 WARRANTY FPI Mag warranty - EN McCrometer warrants that this product will be free from Purchaser’s sole remedy and manufacturer’s sole obligation defects in material and workmanship for a period 24 for alleged product failure, whether under warranty... - Page 43 Copyright © 2022 McCrometer, Inc. All printed material should not be changed or altered without permission of McCrometer. Any published pricing, technical Copyright © 2022 McCrometer, Inc. All printed material should not be changed or altered without permission of McCrometer. Any published pricing, technical data, data, and instructions are subject to change without notice.
