COMPONENT
®
NSF/ANSI/CAN 61
&
NSF/ANSI 372

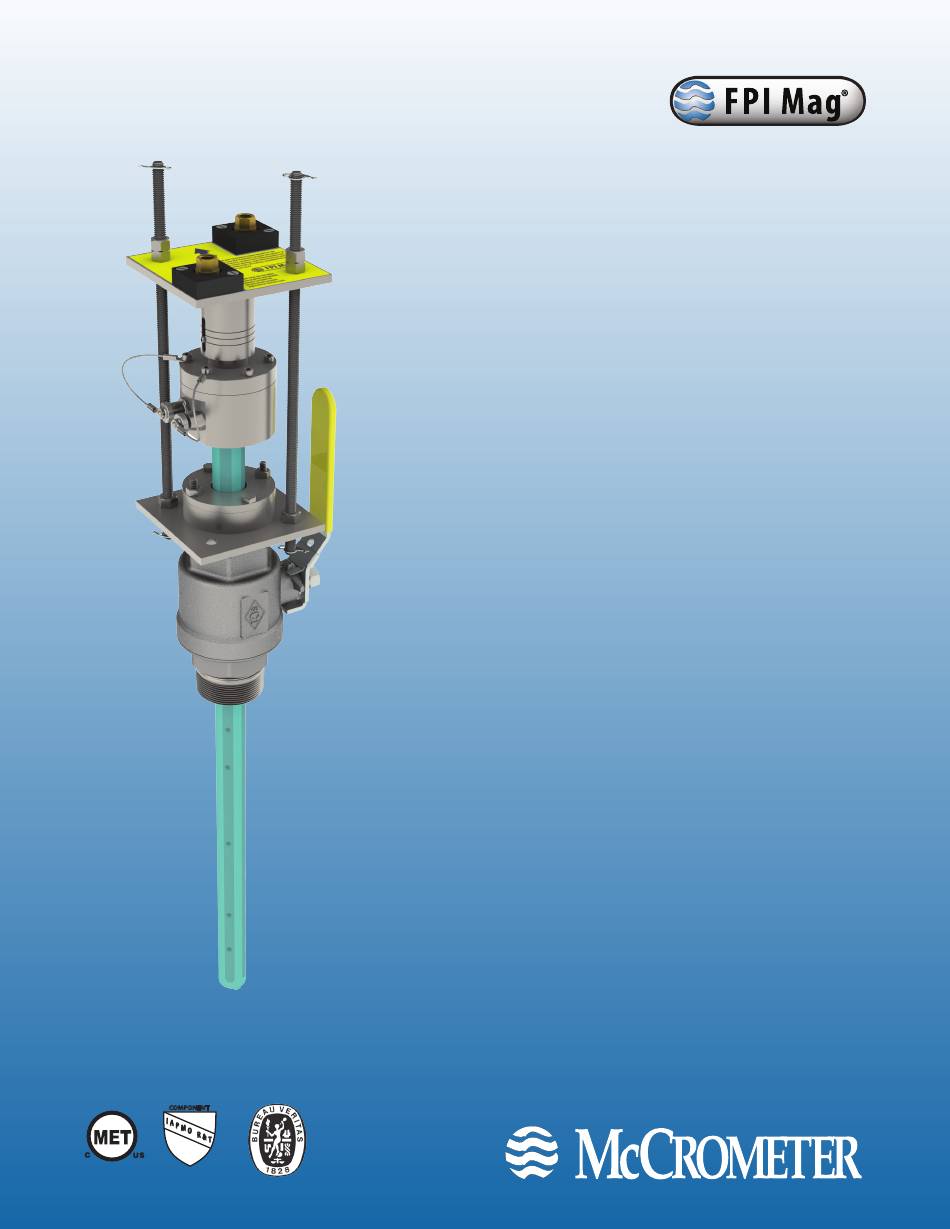

Full Profile Insertion
Electromagnetic Flow Meter
Models 394 and 395
Installation, Operation and
Maintenance Manual
30120-48 Rev. 2.6
August 30, 2019
Standard Model
For use in non-hazardous locations
HL Model
For use in hazardous locations:
• Class I, Division 2, Groups A-D, T5
• Class I, Zone 2 IIC T5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for McCrometer FPI Mag 394
Summary of Contents for McCrometer FPI Mag 394
- Page 1 Full Profile Insertion Electromagnetic Flow Meter Models 394 and 395 Installation, Operation and Maintenance Manual 30120-48 Rev. 2.6 August 30, 2019 Standard Model For use in non-hazardous locations HL Model For use in hazardous locations: • Class I, Division 2, Groups A-D, T5 •...
-
Page 2: Table Of Contents
Contents SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Safety Symbols . -
Page 3: Safety
Safety Warnings When installing, operating, and maintaining McCrometer equipment where hazards may be present, you must protect yourself by wearing Personal Protective Equipment (PPE) and be trained to enter confined spaces. Examples of confined spaces are manholes, pumping stations, pipelines, pits, septic tanks, sewage digesters, vaults, degreasers, storage tanks, boilers, and furnaces. -
Page 4: Unpacking And Verifying Components
Unpacking and Verifying Components 1 .0 UNPACKING AND VERIFYING COMPONENTS The FPI Mag® (Full Profile Insertion) flow meter provides accurate flow measurement for full-pipe clean water applications. The electromagnetic sensor automatically senses and corrects for shifting velocity in the pipe by constantly obtaining an area weighted mean velocity. -
Page 5: Verify Serial Numbers
Unpacking and Verifying Components 1 .2 Verify Serial Numbers The FPI Mag flow meter is comprised of two primary components: the sensor and the converter. The converter and sensor are supplied as a custom calibrated matched system. Verify the system serial numbers on both the converter and sensor match. -
Page 6: Tools Required For Installation
Sensor Probe Installation 1 .4 Tools Required for Installation Tools provided: Tools recommended for installation: 2 - 9/16" or 3/4" reversible ratchet wrenches. (Size is dependent 1 - pipe wrench 1 - 7/16" wrench on the size of the retaining rods capable of a 4"... -
Page 7: Step 1: Names Of Sensor Components
Sensor Probe Installation STEP 1: Names of sensor components This manual refers to the part names of the sensor. It is important to be familiar with the parts and their names as shown below in Figura 5 when following the installation instructions. For a full list of replaceable parts with part numbers, see Section 7.0. -
Page 8: Step 2: Detach The Cable Quick Connects
The upstream and downstream straight-pipe recommendations are conservative, based on research completed in the McCrometer NIST traceable calibration facility. In many cases, the installation distances suggested below can be shortened depending on flow conditions and piping layout. - Page 9 Filter Note: The table above is not inclusive of each possible installation scenario for the McCrometer FPI Mag. For installations not included in the table, the McCrometer Applications Team is available to review cases and make a determination as to the viability of the installation.
-
Page 10: Step 4: Verify Sufficient Installation Clearance From Obstructions
Sensor Probe Installation VALVE VALVE VALVE VALVE 1D DOWN- 1D DOWN- 20D UPSTREAM 20D UPSTREAM STREAM STREAM FLOW FLOW FLOW FLOW Figura 7 . FPI Mag Installation Orientation With A Gate Valve Or Elbow Rotational axis of a butterfly valve Butterfly Valve Install the FPI Mag perpendicular to the... -
Page 11: Step 5: Installing The Pipe Valve
Sensor Probe Installation STEP 5: Installing the pipe valve WARNING! Pressurized pipes should only be hot tapped, cut, or drilled by qualified personnel using high quality saddles, valves and stainless steel nipples. If possible, depressurize the pipe before attempting any installation. The sensor comes standard with a 2"... -
Page 12: Step 6: Ensure Sensor Will Be Installed Perpendicular To The Pipe
Sensor Probe Installation 90° 90° STEP 6: Ensure sensor will be installed perpendicular to the pipe The FPI should be installed perpendicular to the pipe as shown in Figura 12 for a vertical installation. The allowable tolerance for installation is ± 0.5°. A perpendicular installation is determined by the coupling that is mounted on the pipe. Prior to installing the FPI a level ruler should be used to check the coupling and ensure that it sits level. -
Page 13: Step 8: Connecting The Sensor Onto Pipe Valve
Sensor Probe Installation STEP 8: Connecting the sensor onto pipe valve The sensor assembly uses a compression seal, which keeps the sensor watertight when the pipe is under pressure. Care must be taken when installing the sensor to avoid leaks. Follow the steps below to install the sensor onto the pipe valve: Put a generous amount of the pipe sealant or Teflon tape on the compression seal threads. -
Page 14: Step 10: Insert The Sensor Probe Into The Pipe
(Figura 18) NOTE 3: Using the sensor insertion tool McCrometer recommends using a sensor insertion tool (see Figura 19) to rotate the captive nuts. This will ensure the top plate compresses evenly and will help avoid any damage to the sensor. - Page 15 Sensor Probe Installation Follow the steps below to insert the sensor probe into the pipe . If you disassembled and reassembled the compression seal, hand tighten the compression seal bolts and nuts. DO NOT FULLY TIGHTEN THE COMPRESSION SEAL BOLTS AND NUTS. If you did not disassemble the compression seal, proceed to step 2.
-
Page 16: Step 11: Apply A Compression Load To The Sensor
Sensor Probe Installation STEP 11: Apply a compression load to the sensor A compression load is required to be applied at the top of the sensor forcing the bottom of the sensor to seat firmly against the far wall of the pipe. The amount of load is indicated by the three lines etched into the top plate and the location of the set screw relative to the lines. -
Page 17: Step 12: Install The Retaining Rods
Sensor Probe Installation STEP 12: Install the retaining rods After the sensor has been inserted and the load adjusted, remove the insertion rods and install the shorter retaining rods. This will make the sensor assembly more compact. (Figura 25) NOTE If the short retaining rods are not used, run a 3/8"... -
Page 18: Step 13: Attaching The Ground Wire
Sensor Removal STEP 13: Attaching the ground wire The FPI meter is electrically continuous to a conductive (non PVC) pipe through the retaining rods. Additional grounding may be required to a dedicated earth ground via ring terminal and 10 AWG wire (not provided). -
Page 19: Electronics Installation
Electronics Installation Once both of the long retaining rods are securely in place, completely remove the short retaining rods. Loosen the compression seal bolts until the seal just begins to leak. This will relieve the pressure on the compression seal allowing the sensor to be removed. Draping a towel around the compression seal can reduce any spraying water. NOTE: The compression seal may prevent immediate leakage on sensors installed for a long period of time until the sensor begins to rise. -
Page 20: Specifications
Specifi cation Sheet Specifications FPI Mag Flow Meter with ProComm Converter 6 .0 SPECIFICATIONS FLOW METER SPECIFICATIONS The full pipe averaging fl ow meter comes complete with Mounting Hardware, AC Converter with Dual 4-20mA output, 25 Feet of Dual Submersible Cables with quick connects at sensor, Stainless Steel Body, 316 Stainless Steel Electrodes, NSF Approved Fusion Bonded Epoxy Coating, 2”... - Page 21 Specifi cation Sheet Specifications FPI Mag Flow Meter with ProComm Converter Certifi cations and Approvals Standard Model • ISO 9001:2015 certifi ed quality management system • NSF/ANSI/CAN 61 & NSF/ANSI 372 • Certifi ed by MET to UL 61010-1 COMPONENT HL Model •...
-
Page 22: Replacement Parts
Replacement Parts 7 .0 REPLACEMENT PARTS Diagram Part Description Number Number Protective Cap FPI-002RP Captive Nut 42226 Captive Nut Bearing Retainer 42225 Captive Nut Bearing 92121 Top Plate for use with 3/8" retaining rods MIM043 Top Plate for use with 1/2" retaining rods MIM053 Set screw (2 ea.) 920001001... -
Page 23: Returning A Unit For Repair
• Call the McCrometer Customer Service Department and ask for a Return Authorization (RA) number. • Ship the meter in the original packaging, if possible. Do not ship manuals, power cords, or other parts with your unit unless required for repair. -
Page 24: Warranty Statement
Warranty Statement WARRANTY STATEMENT McCrometer warrants that this product will be free from Purchaser’s sole remedy and manufacturer’s sole obligation defects in material and workmanship for a period 24 for alleged product failure, whether under warranty months from the date the equipment was first installed,... - Page 25 ™ Copyright © 2001-2019 McCrometer, Inc. All printed material should not be changed or altered without permission of McCrometer. Any published pricing, technical data, and instructions are subject to change without notice. Contact your McCrometer representative for current pricing, technical data, and instructions.
