Instructions for use

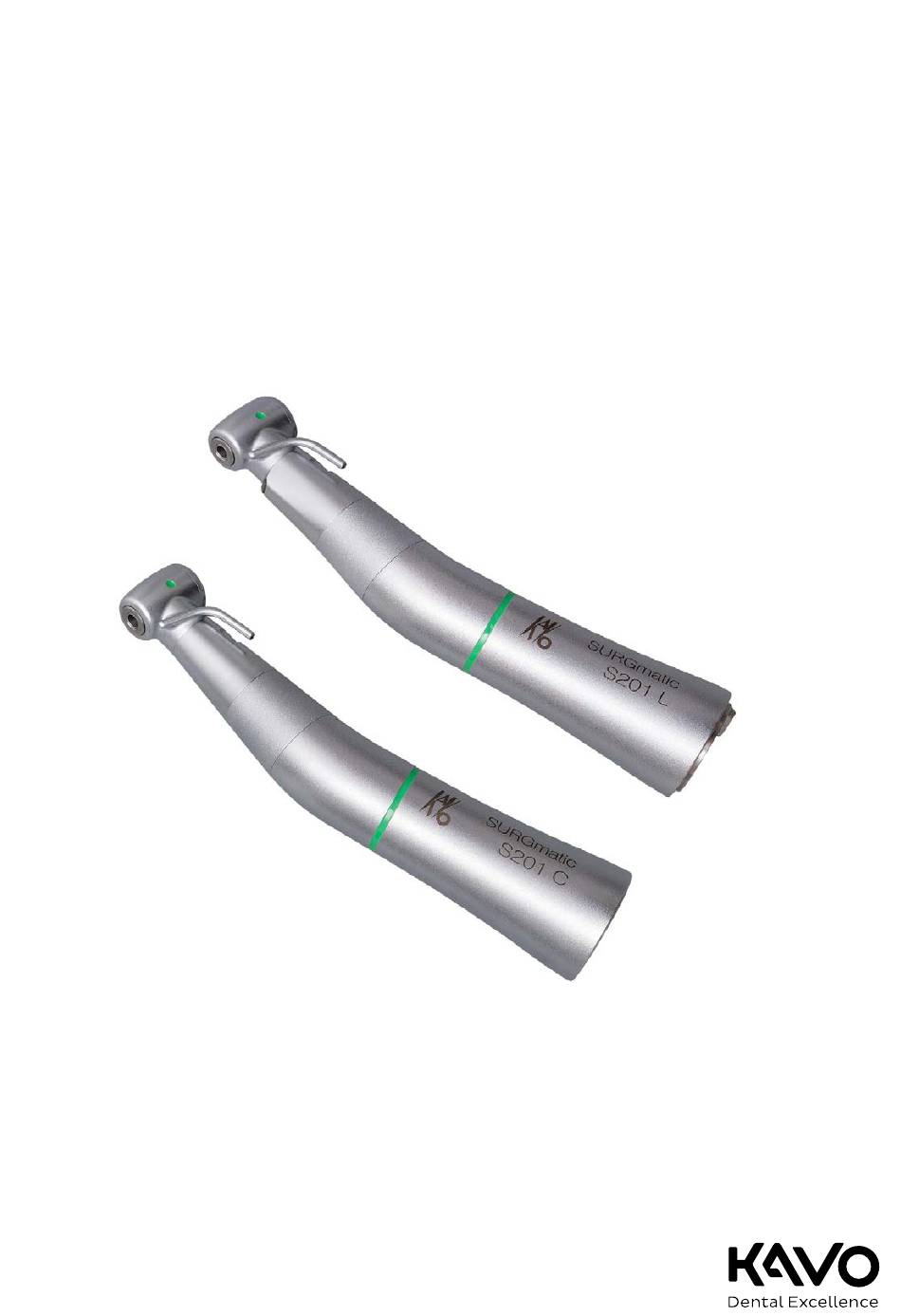

SURGmatic S201 L - 1.009.0470
SURGmatic S201 C - 1.009.1100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SURGmatic S201 C and is the answer not in the manual?

Questions and answers

Summary of Contents for KaVo SURGmatic S201 C

  • Page 1 Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100...
  • Page 2 Manufacturer: Distributed by: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 D-88400 Biberach D-88400 Biberach www.kavo.com Phone +49 7351 56-0 Fax +49 7351 56-1488...
  • Page 3: Table Of Contents

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 Table of contents Table of contents 1 User instructions ........................ 4 2 Safety..........................6 2.1 Infection hazard ......................6 2.2 Technical condition......................6 2.3 Accessories and combination with other equipment ............6 2.4 Qualification of personnel....................
  • Page 4: User Instructions

    © Copyright by KaVo Dental GmbH KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using www.ka- vobox.com. KaVo Technical Service...
  • Page 5 Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 1 User instructions Legal Manufacturer CE mark according to Medical Devices Directive EC 93/42 Please note the electronic instructions for use Note: observe accompanying documents EAC conformity mark (Eurasian Conformity)
  • Page 6: Safety

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 2 Safety | 2.1 Infection hazard 2 Safety The instructions for use are a component of the product and must be read care- fully prior to use and be accessible at all times.
  • Page 7: Qualification Of Personnel

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 2 Safety | 2.4 Qualification of personnel ▶ Only use accessories that have been approved for combination with the product by the manufacturer. ▶ Only use accessories that are equipped with standardised interfaces.
  • Page 8: Product Description

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 3 Product description | 3.1 Purpose – Proper use 3 Product description SURGmatic S201 L SURGmatic S201 L (Mat. no. 1.009.0470) SURGmatic S201 C SURGmatic S201 C (Mat. no. 1.009.1100) 3.1 Purpose –...
  • Page 9: Transportation And Storage Conditions

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 3 Product description | 3.3 Transportation and storage conditions Drive speed max. 40,000 rpm Identification 1 green ring Speed transmission 20 : 1 Torque max. 55 Ncm With press-button chuck.
  • Page 10: Start Up And Shut Down

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 4 Start up and shut down | 4.1 Checking the amount of water 4 Start up and shut down WARNING Hazard from contaminated products. Infection hazard for care provider and patient.
  • Page 11 Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 4 Start up and shut down | 4.1 Checking the amount of water ▶ Cool the dental bur or diamond grinder via the external and/or internal feed, if available. The supply can take place individually or via a coupling piece.
  • Page 12: Operation

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 5 Operation | 5.1 Inserting the head 5 Operation 5.1 Inserting the head WARNING Detachment of the medical device during treatment. If the head is not properly locked in place, it can become detached during treatment.
  • Page 13: Attaching The Contra-Angle Handpiece To Motor Coupling

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 5 Operation | 5.3 Attaching the contra-angle handpiece to motor coupling 5.3 Attaching the contra-angle handpiece to motor coupling WARNING Detachment of the medical device during treatment.
  • Page 14: Removing The Milling Tool Or Diamond Grinder

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 5 Operation | 5.6 Removing the milling tool or diamond grinder CAUTION Danger of injury from cutters or grinders. Infections or cuts. ▶ Wear gloves or finger stalls.
  • Page 15: Troubleshooting

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 6 Troubleshooting | 6.1 Check for malfunctions 6 Troubleshooting 6.1 Check for malfunctions CAUTION Heating of the product. Burns or product damage from overheating. ▶ Do not use the product if it is irregularly heated.
  • Page 16 Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 6 Troubleshooting | 6.2 Troubleshooting ▶ Use the nozzle pin (Mat. no. 0.410.0931) to free the water passage on the spray clip on both sides. 16 / 28...
  • Page 17: Reprocessing Steps In Accordance With Iso 17664

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 7 Reprocessing steps in accordance with ISO 17664 | 7.1 Preparation at the site of use 7 Reprocessing steps in accordance with ISO 17664 7.1 Preparation at the site of use WARNING Hazard from contaminated products.
  • Page 18: Manual Reprocessing

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 7 Reprocessing steps in accordance with ISO 17664 | 7.3 Manual reprocessing ▶ Brush the spray clip and spray tube under running tap water water for at least 20 seconds using a medium-hard toothbrush.
  • Page 19: Automated Internal And External Cleaning And Internal And External Disinfection

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 7 Reprocessing steps in accordance with ISO 17664 | 7.4 Automated reprocessing WARNING Sharp tool in the medical device. Injury hazard from sharp and/or pointed tool. ▶ Remove the tool.
  • Page 20: Care Products And Systems - Servicing

    ▶ Remove the tool from the medical device. ▶ Cover the medical device with the KaVo CLEANpac bag, and place it on the corresponding care adapter. ▶ Press the spray key for 1 to 2 seconds.
  • Page 21: Care With Kavo Sprayrotor

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 7 Reprocessing steps in accordance with ISO 17664 | 7.5 Care products and systems - Servicing KaVo recommends servicing the product as part of the reprocessing after each use, i.e.
  • Page 22: Servicing With Kavo Quattrocare

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 7 Reprocessing steps in accordance with ISO 17664 | 7.5 Care products and systems - Servicing KaVo recommends servicing the product as part of the reprocessing after each use, i.e.
  • Page 23: Packaging

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 7 Reprocessing steps in accordance with ISO 17664 | 7.6 Packaging 7.6 Packaging Note The sterile goods package must be large enough for the product so that the packaging is not stretched.
  • Page 24: Tools And Consumables

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 8 Tools and consumables 8 Tools and consumables Available from dental suppliers. Material summary Mat. No. Spray head INTRA (KaVo Spray) 0.411.9911 Service coupling for heads 0.411.7941...
  • Page 25: Terms And Conditions Of Warranty

    Instructions for use SURGmatic S201 L - 1.009.0470 SURGmatic S201 C - 1.009.1100 9 Terms and conditions of warranty 9 Terms and conditions of warranty The following warranty conditions apply to this KaVo medical device: KaVo provides the end customer with a warranty of proper function and guar-...

This manual is also suitable for:
