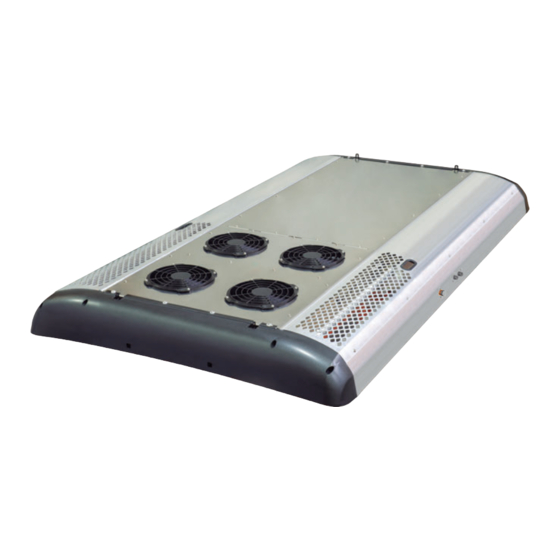

- Page 1 AIR CONDITIONER COACHBUS - CITY BUS CC 336 W - CC 356 W Owner’s Manual Warranty Certificate Rev.01/ November 2023 Code: 036-00353-001...
-
Page 2: Table Of Contents
INDEX CC 336 W - CC 356 W INTRODUCTION_____________________________________________________________ EQUIPMENT DESCRIPTION WARRANTY TERMS 2- Technical Data Sheet________________________________ Warrant Terms__________________________________________ 3- Condenser Components________________________________________ 3.1- Evaporator Components______________________________________ PREVENTIVE MAINTENANCE 3.2- TM 65 Compressor components_________________________________ Preventive Maintenance Frequency Check List_____________________________ 3.3- Electrics Components____________________________________... -
Page 3: Introduction
INTRODUCTION CC 336 W - CC 356 W VALEO Climatização do Brasil - Veículos Comerciais S/A offers a full line of equipment for bus air conditioning systems for vans, micro and midi buses, commuter, articulated, coaches and double-deckers. Air conditioning system that is modern and high quality, the products of VALEO Climatização do Brasil - Veículos Comerciais S/A have been... -
Page 4: Warranty Terms
If the installation or use of the product is not in accordance with the VALEO e) Loss or loss of profits caused by the stoppage of the vehicle due to Climatização do Brasil - Veículos Comerciais S/A technical recommendations. -
Page 5: Preventive Maintenance Frequency Check List
PREVENTIVE MAINTENANCE CC 336 W - CC 356 W - Preventive Maintenance Frequency Check List 1 - Clean or change the return air filter. WEEKLY 2 - Check out the belt stretchiness condition and compressor with alternator alignment, observing the wear and tear of them. -
Page 6: Refrigerant Gas R134A
- Refrigerant Gas R134a - Oil VALEO Climatização do Brasil - Veículos Comerciais S/A products apply for We recommend you that you shall preventively change the air system oil every R 134a. The se of different type of gas, low quality or from unknown brands will two years or 10.000 working hours, whatever becomes first. -
Page 7: Identification Tag
If a third party installs the equipment, VALEO Climatização do Brasil - Veículos Comerciais S/A, guarantees only the product, not the installation of it. Application information regarding to: series and bus body model, series and chassis model are very important to identify which parts the equipment carries. -
Page 8: 1- Operating The Air Conditioner
OPERATING THE AIR CONDITIONER CC 336 W - CC 356 W 1- Operating the Air Conditioner Note: illustrative drawing. - Page 9 AIR CONDITIONING OPERATION CC 336 W - CC 356 W Refrigerant Fluid Compressor Operation Air filter Air return filter retains impurities from air avoiding It is started up by the vehicle engine though a It is inside the air conditioning equipment, inside the...
-
Page 10: Sc2000 Controller Operation
AIR CONDITIONING OPERATION CC 336 W - CC 356 W 1.1- SC2000 Controller Operation SC2000 Controller This product aims to control the temperature of SD (Single Deck) vehicles. The intelligence of the system and charge activation is done by Smart ECU in conjunction with the relay board, while the panel is used for user interface only. -
Page 11: Off Mode
OPERATING THE AIR CONDITIONER CC 336 W - CC 356 W 1.3- Off Mode 1.4- Automatic Mode The controller can be started by the ON/OFF key or through the auto start function. To turn on the controller, a +15 signal (ignition) is required. With that, the standby light will be on, allowing the visualization of the temperatures if the panel is on. -
Page 12: 3- Automatic Heating
OPERATING THE AIR CONDITIONER CC 336 W - CC 356 W 1.4.3- Automatic Heating Note: the air conditioning compressor must be turned off for at least 1 minute The heating mode is controlled by the Set-Point and by parameters P62 and P63. -
Page 13: Failures
OPERATING THE AIR CONDITIONER CC 336 W - CC 356 W 1.7- Failures When an error occurs, an exclamation symbol will appear on the display in the The error table can be viewed when there is an exclamation mark on the screen and the Auto key is pressed. -
Page 14: Equipment Description
EQUIPMENT DESCRIPTION CC 336 W - CC 356 W 2- Technical Data Sheet Component Features CC336W CC356W Maximum Capacity 120.000 BTU/h (35 kW) 136.500 BTU/h (40 kW) AIR CONDITIONING Heating Capacity 136.500 BTU/h (40 kW) 136.500 BTU/h (40 kW) Type... -
Page 15: 3- Condenser Components
EQUIPMENT DESCRIPTION CC 336 W - CC 356 W 3- Condenser Components NOTE: visit https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO ITEM CODE DESCRIPTION QTY. SEE NOTE Condenser / Evaporator Module SEE NOTE Condenser / Evaporator Module w/ UV Purifier SEE NOTE Condenser Central Closing SEE NOTE... -
Page 16: Evaporator Components
EQUIPMENT DESCRIPTION CC 336 W - CC 356 W 3.1- Evaporator Components NOTE: visit https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO ITEM CODE DESCRIPTION QTY. SEE NOTE Central Evaporator Closing SEE NOTE Front Finish Cover SEE NOTE Air Renewal Set With Filter SEE NOTE Air Renewal Filter Set... -
Page 17: Tm 65 Compressor Components
EQUIPMENT DESCRIPTION CC 336 W - CC 356 W 3.2- TM 65 Compressor components NOTE: visit https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO ITEM CODE DESCRIPTION QTY. SEE NOTE TM 65 Compressor SEE NOTE 2A/2B Pulley SEE NOTE 8PK Pulley SEE NOTE Clutch Set without Pulley... -
Page 18: Electrics Components
EQUIPMENT DESCRIPTION CC 336 W - CC 356 W 3.3- Electrics Components NOTE: visit https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO ITEM CODE DESCRIPTION QTY. SEE NOTE SC2000 Controller SEE NOTE 2CP45-4 Temperature Sensor SEE NOTE 24V Water Pump SEE NOTE High Pressure Switch SEE NOTE... -
Page 19: Safety Precaution
SAFETY PRECAUTION CC 336 W - CC 356 W 4- Safety Precaution 5- Rotation Components: The fans, pulleys and belts are not visible under 1- Personal Protection: certain conditions. Special care must be taken when Air conditioning systems offers chemic, mechanic putting your hands near them. -
Page 20: Sustainability
CC 336 W - CC 356 W 5- Product Discard Concerned about sustainability at Valeo Climatização do Brasil - Veículos Comerciais S/A guides its customers and its authorized service network to discard products in an environmentally sound and safe manner. - Page 21 Valeo Climatização do Brasil - Veículos Comerciais S/A Av. Rio Branco, 4688 - Bairro São Cristóvão - CEP 95060-145 | Caxias do Sul - RS - Brasil | Tel. +55 (54) 2101.5700 www.valeo-thermalbus.com/br...
