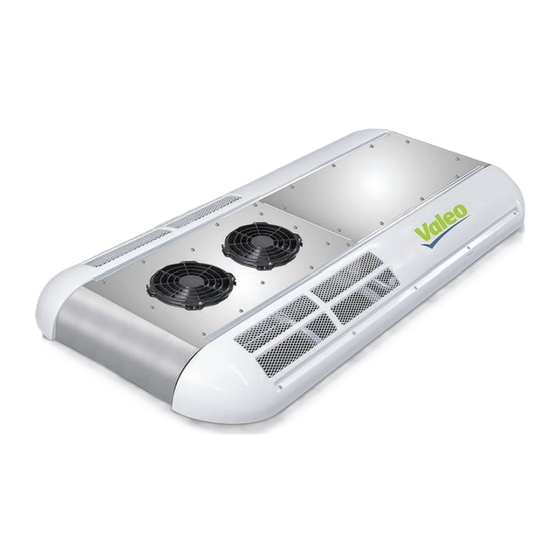

- Page 1 AIR CONDITIONER COACHBUS - MINIBUS CC 185T - CC 205T - CC 205W Owner’s Manual Warranty Certificate Rev.04 - March 2021 Code: 036-00234-001...
-
Page 2: Table Of Contents
INDEX CC 185T - CC 205T - CC 205W INTRODUCTION_____________________________________________________________ EQUIPMENT DESCRIPTION WARRANTY TERMS 2- Technical Data Sheets________________________________ Warrant Terms__________________________________________ 2.1- Evaporator Components CC185T - CC205T___________________________ 2.1.1- Evaporator Components CC205W________________________________ PREVENTIVE MAINTENANCE 2.2- Condenser Components CC185T - CC205T__________________________ Preventive Maintenance Frequency Check List________________________ 2.2.1- Condenser Components CC205W__________________________... -
Page 3: Introduction
INTRODUCTION CC 185T - CC 205T - CC 205W VALEO Climatização do Brasil - Veículos Comerciais S/A offers a full line of equipment for bus air conditioning systems for vans, micro and midi buses, commuter, articulated, coaches and double-deckers. Air conditioning system that is modern and high quality, the products of VALEO Climatização do Brasil - Veículos Comerciais S/A have been... -
Page 4: Warranty Terms
7 - The Warrant Loses its Validity specifications. a) If the installation or use of the product is not in accordance with the VALEO e) Loss or loss of profits caused by the stoppage of the vehicle due to Climatização do Brasil - Veículos Comerciais S/A technical recommendations. -
Page 5: Preventive Maintenance Frequency Check List
PREVENTIVE MAINTENANCE CC 185T - CC 205T - CC 205W - Preventive Maintenance Frequency Check List 1 - Clean or change the return air filter. WEEKLY 2 - Check out the belt stretchiness condition and compressor with alternator alignment, observing the wear and tear of them. -
Page 6: Refrigerant Gas R134A
- Refrigerant Gas R134a - Oil VALEO Climatização do Brasil - Veículos Comerciais S/A products apply for We recommend you that you shall preventively change the air system oil every R 134a. The se of different type of gas, low quality or from unknown brands will two years or 10.000 working hours, whatever becomes first. -
Page 7: Equipment Identification (Id)
If a third party installs the equipment, VALEO Climatização do Brasil - Veículos Comerciais S/A, guarantees only the product, not the installation of it. Application information regarding to: series and bus body model, series and chassis model are very important to identify which parts the equipment carries. -
Page 8: Operating The Air Conditioner
OPERATING THE AIR CONDITIONER CC 185T - CC 205T - CC 205W Operating the Air Conditioner Note: illustrative drawing. - Page 9 AIR CONDITIONING OPERATION CC 185T - CC 205T - CC 205W Condenser Fan Refrigerant Fluid Evaporators Condenser fan and the compressor will only work at It is inside the air conditioning equipment, inside Now at evaporators, the refrigerant fluid, at low “Cool Mode”.
-
Page 10: 1- Sbu 400-410 Controllers
CONTROLLERS CC 185T - CC 205T - CC 205W 1- SBU 400-410 Controllers 1.1- Control Panel Description The SBU400 and SBU410 controllers are systems designed to control HVAC The SBU400 and SBU410 AC controllers have basically the same components. components (heating, ventilation, cooling). In buses, for example, for ceiling air See below Functions and description. -
Page 11: Operation Instructions
CONTROLLER CC 185T - CC 205T - CC 205W 1.2- Operation Instructions 1.3- Auto Mode Note: when device is started up, auto starts ON (Its status light becomes ON). Note: SBU410 is shown to show several versions in general. • Enabling/Disabling Standby Mode •... -
Page 12: On/Off Air Conditioner Compressor
CONTROLLER CC 185T - CC 205T - CC 205W 1.4- ON/OFF Air Conditioner Compressor 1.5- Heating Mode Heating Mode is controlled by set-point and parameters P23 and P24, according to table below: Temperature Temperature Note: after product start up and at... -
Page 13: Evaporator Fan Speed Configuration
CONTROLLER CC 185T - CC 205T - CC 205W If the internal temperature is within the range, ventilation will remain cycling 1.7- Evaporator fan speed configuration between active and inactive, during the time gaps saved in P52 and P51, respectively, as shown in the table below. -
Page 14: Faults (Errors)
CONTROLLER CC 185T - CC 205T - CC 205W 1.9- Faults (errors) • Display Failure Note: if there is a fault, the display goes between Set point and the error codes. The desired F 0 0 temperature will be displayed for 5 seconds and the error series (s) occurring will be displayed for 2 seconds each. -
Page 15: Equipment Description
EQUIPMENT DESCRIPTION CC 185T - CC 205T - CC 205W 2- Technical Data Sheet Component Characteristics CC 185 CC 205 CC 205W Cooling capacity 70.000 BTU/h (20,5kW) 85.000 BTU/h (25kW) 85.000 BTU/h (25kW) AIR CONDITIONING Heating Capacity (Optional) 75.000 BTU/h (22kW) 75.000 BTU/h (22kW) -
Page 16: Evaporator Components Cc185T - Cc205T
EQUIPMENT DESCRIPTION CC 185T - CC 205T - CC 205W 2.1- Evaporator Components CC185T - CC205T NOTE: visit www.reparts.com.br to consult the complet parts catalog. Item Code Description Qty. 006-00159-000 Right Side Evaporator Coil 006-00160-000 Left Side Evaporator Coil 006-00161-000... -
Page 17: 1- Evaporator Components Cc205W
EQUIPMENT DESCRIPTION CC 185T - CC 205T - CC 205W 2.1.1- Evaporator Components CC205W NOTE: visit www.reparts.com.br to consult the complet parts catalog. Item Code Description Qty. 006-00159-000 Right Side Evaporator Coil 006-00160-000 Left Side Evaporator Coil 006-00161-000 Right Heating Coil... -
Page 18: Condenser Components Cc185T - Cc205T
EQUIPMENT DESCRIPTION CC 185T - CC 205T - CC 205W 2.2- Condenser Components CC185T - CC205T NOTE: visit www.reparts.com.br to consult the complet parts catalog. Item Code Description Qty. 006-00185-000 Condenser Coil 012-00117-000 Service Valve 017-00342-000 16mm Clamp Body 018-00039-000... -
Page 19: 1- Condenser Components Cc205W
EQUIPMENT DESCRIPTION CC 185T - CC 205T - CC 205W 2.2.1- Condenser Components CC205W NOTE: visit www.reparts.com.br to consult the complet parts catalog. Item Code Description Qty. 006-00185-000 Condenser Coil 012-00117-000 Service Valve 017-00342-000 16mm Clamp Body 018-00040-000 Maintenance Rod... -
Page 20: Compressor Components
EQUIPMENT DESCRIPTION CC 305 CC 185T - CC 205T - CC 205W 2.3- Compressor Components NOTE: visit www.reparts.com.br to consult the complet parts catalog. SP21 SP31 Reciprocating Compressor Axial Pistons VOLTAGE PULLEY MODEL TM21 215CM 014-00147-000 014-00133-000 014-00132-000 014-00137-000 TM31... -
Page 21: Electric Components
EQUIPMENT DESCRIPTION CC 185T - CC 205T - CC 205W 2.4- Electric Components NOTE: visit www.reparts.com.br to consult the complet parts catalog. Item Code Description Qty. See Note (*) SBU-400 Refrigeration Air Conditioning Controller SBU-410 Air Conditioning Controller With Heating... -
Page 22: Electrical System
ELECTRICAL SYSTEM CC 185T - CC 205T - CC 205W 3- Controller SBU400/410 + 30 SBU 400/410 SC410 Only with Air Renewal and / or Heating + 15 PBPM PAPM TEMP TEMP WATER VALVE Relay board for unique platform application... -
Page 23: Safety Precaution
SAFETY PRECAUTION CC 185T - CC 205T - CC 205W 4- Safety Precaution 5- Rotation Components: The fans, pulleys and belts are not visible under certain 1- Personal Protection: conditions. Special care must be taken when putting your hands Air conditioning systems offers chemic, mechanic and near them. -
Page 24: Sustainability
CC 185T - CC 205T - CC 205W 5- Product Discard Concerned about sustainability at Valeo Climatização do Brasil - Veículos Comerciais S/A guides its customers and its authorized service network to discard products in an environmentally sound and safe manner. - Page 25 Valeo Climatização do Brasil - Veículos Comerciais S/A Av. Rio Branco, 4688 - Bairro São Cristóvão - CEP 95060-145 | Caxias do Sul - RS - Brasil | Tel. +55 (54) 2101.5700 www.valeo-thermalbus.com/br...
