Summary of Contents for Valeo CC 336

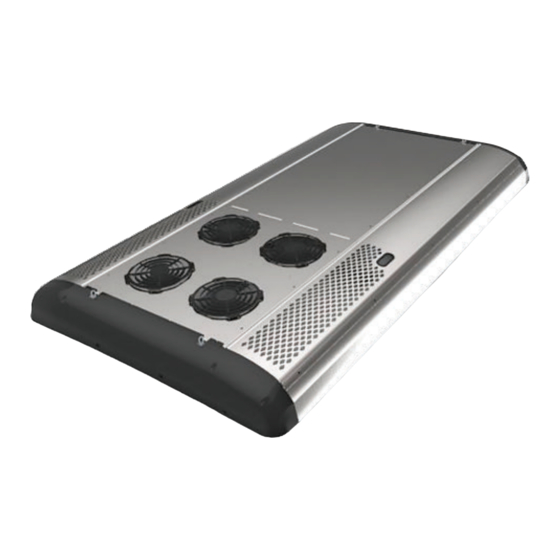

- Page 1 AIR CONDITIONER COACHBUS - CITY BUS CC 336 - CC 356 Owner’s Manual Warranty Certificate Rev.00/ December 2021 Code: 036-00359-002...
-
Page 2: Table Of Contents
INDEX CC 336 - CC 356 INTRODUCTION __________________________________________________________________________________________________________________________ EQUIPMENT DESCRIPTION WARRANTY TERMS 3- Technical Data Sheet________________________________________ Warrant Terms__________________________________________________ 3.1- Condenser Module______________________________________________ 3.2- Evaporator Module______________________________________________ PREVENTIVE MAINTENANCE 3.3- BOCK FKX 40 Compressor Components_______________________________ Preventive Maintenance Frequency Check List_________________________ 3.4- TM 65 Compressor Components____________________________________ Refrigerant Gas R134a_________________________________________ 3.5- Electric Components_____________________________________________... -
Page 3: Introduction
INTRODUCTION CC 336 - CC 356 VALEO Climatização do Brasil - Veículos Comerciais S/A offers a full line of equipment for bus air conditioning systems for vans, micro and midi buses, commuter, articulated, coaches and double-deckers. Air conditioning system that is modern and high quality, the products of VALEO Climatização do Brasil - Veículos Comerciais S/A have been... -
Page 4: Warranty Terms
7 - The Warrant Loses its Validity specifications. a) If the installation or use of the product is not in accordance with the VALEO e) Loss or loss of profits caused by the stoppage of the vehicle due to Climatização do Brasil - Veículos Comerciais S/A technical recommendations. -
Page 5: Preventive Maintenance
PREVENTIVE MAINTENANCE CC 336 - CC 356 - Preventive Maintenance Frequency Check List 1 - Clean or change the return air filter. WEEKLY 2 - Check out the belt stretchiness condition and compressor with alternator alignment, observing the wear and tear of them. -
Page 6: Refrigerant Gas R134A
- Refrigerant Gas R134a - Oil VALEO Climatização do Brasil - Veículos Comerciais S/A products apply for We recommend you that you shall preventively change the air system oil every R 134a. The se of different type of gas, low quality or from unknown brands will two years or 10.000 working hours, whatever becomes first. -
Page 7: Identification Tag
If a third party installs the equipment, VALEO Climatização do Brasil - Veículos Comerciais S/A, guarantees only the product, not the installation of it. Application information regarding to: series and bus body model, series and chassis model are very important to identify which parts the equipment carries. -
Page 8: Operating The Air Conditioner
OPERATING THE AIR CONDITIONER CC 336 - CC 356 1- Operating the Air Conditioner 16 14 Note: illustrative drawing. - Page 9 / room of the vehicle, at the evaporator, and then it process. goes to the condenser where the heat is thrown to Evaporator Fan the outside. VALEO Climatização do Brasil - Veículos Comerciais S/A, products apply refrigerant R134a, Air filter Evaporator fans are working at cool and fan modes, according to the Protection Environmental Law.
-
Page 10: 2- Sbu 400-410 Controllers
CONTROLLERS CC 336 - CC 356 2- SBU 400-410 Controllers 2.1- Control Panel Description The SBU400 and SBU410 controllers are systems designed to control HVAC The SBU400 and SBU410 AC controllers have basically the same components. components (heating, ventilation, cooling). In buses, for example, for ceiling air See below Functions and description. -
Page 11: Operation Instructions
CONTROLLER CC 336 - CC 356 2.2- Operation Instructions 2.3- Auto Mode Note: when device is started up, auto starts ON (Its status light becomes ON). Note: SBU410 is shown to show several versions in general. • Enabling/Disabling Standby Mode •... -
Page 12: On/Off Air Conditioner Compressor
CONTROLLER CC 336 - CC 356 2.4- ON/OFF Air Conditioner Compressor 2.5- Heating Mode Heating Mode is controlled by set-point and parameters P23 and P24, according to table below: Temperature Temperature Note: after product start up and at decreasing increasing... -
Page 13: Evaporator Fan Speed Configuration
CONTROLLER CC 336 - CC 356 If the internal temperature is within the range, ventilation will remain cycling 2.7- Evaporator fan speed configuration between active and inactive, during the time gaps saved in P52 and P51, respectively, as shown in the table below. -
Page 14: Faults (Errors)
CONTROLLER CC 336 - CC 356 2.9- Faults (errors) • Display Failure F 0 0 Note: if there is a fault, the display goes between Set point and the error codes. The desired F 0 0 temperature will be displayed for 5 seconds and the error series (s) occurring will be displayed for 2 seconds each. -
Page 15: Equipment Description
EQUIPMENT DESCRIPTION CC 336 - CC 356 3- Technical Data Sheet CC336 CC356 Components Highlights Maximum capacity 120.000 BTU/h (35kW) 136.500 BTU/h (40kW) AIR CONDITIONER Heating system (optional) 136.500 BTU/h (40 kW) 136.500 BTU/h (40 kW) Type R134a R134a REFRIGERANT GAS... -
Page 16: Condenser Module
EQUIPMENT DESCRIPTION CC 336 - CC 356 3.1- Condenser Module NOTE: access for consultation https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO ITEM CODE DESCRIPTION QTY. SEE NOTE Condenser Module / Evaporator CC336 or CC356 SEE NOTE Condenser Central Closing SEE NOTE Extruded Aluminum C Profile SEE NOTE... -
Page 17: Evaporator Module
EQUIPMENT DESCRIPTION CC 336 - CC 356 3.2- Evaporator Module NOTE: access for consultation https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO ÍTEM CODE DESCRIPTION QTY. SEE NOTE Central Evaporator Closing SEE NOTE Front Finish Cover SEE NOTE Air Renewal Set With Filter SEE NOTE Air Renewal Filter Set... -
Page 18: Bock Fkx 40 Compressor Components
EQUIPMENT DESCRIPTION CC 336 - CC 356 3.3- BOCK FKX 40 Compressor Components NOTE: access for consultation https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO ÍTEM CODE DESCRIPTION QTY. SEE NOTE BOCK FKX40/655K Compressor SEE NOTE Pulley 2A/2B SEE NOTE Compressor Valve Board Set SEE NOTE Compressor Oil Pump... -
Page 19: Tm 65 Compressor Components
EQUIPMENT DESCRIPTION CC 336 - CC 356 3.4- TM 65 Compressor Components NOTE: access for consultation https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO ÍTEM CODE DESCRIPTION QTY. SEE NOTE TM 65 Compressor SEE NOTE 2A/2B Pulley SEE NOTE 8PK Pulley SEE NOTE Clutch Kit without Pulley... -
Page 20: Electric Components
EQUIPMENT DESCRIPTION CC 336 - CC 356 3.5- Electric Components NOTE: access for consultation https://www.valeo-thermalbus.com/br_pt/PRODUTOS/PECAS-DE-REPOSICAO ÍT EM CODE DESCRIPT ION QT Y . SEE NOTE SBU-400 Refrigeration Air Conditioning Controller SBU-410 Air Conditioning Controller with Heating SEE NOTE SBU-410 Air Conditioning Controller with Renewal... -
Page 21: Electrical System
ELECTRICAL SYSTEM CC 336 - CC 356 Plant: 036-00308-000 4- Electric Diagram NOTE / Nota: THIS DIAGRAM IS GENARIC AND USED FOR ANY APPLICATION WITH SBU4X0 AND ONE RELAY BOARD SBF. THE QUANTITY OF VENTILATORS AND MODEL OF CONTROLLER AND Typical Electrical Diagram for Controller Units SBU410 and relay plate SBF264. -
Page 22: Safety Precaution
SAFETY PRECAUTION CC 336 - CC 356 5- Safety Precaution 5- Rotation Components: The fans, pulleys and belts are not visible under certain 1- Personal Protection: conditions. Special care must be taken when putting your hands Air conditioning systems offers chemic, mechanic and near them. -
Page 23: Sustainability
SUSTAINABILITY CC 336 - CC 356 6- Product Discard Concerned about sustainability at Valeo Climatização do Brasil - Veículos Comerciais S/A guides its customers and its authorized service network to discard products in an environmentally sound and safe manner. Proper disposal of the product or components at the end of their useful life will contribute with the preservation and pollutinon reduction of the environment, creating economic growth through the Reverse Logistics Program. - Page 24 Valeo Climatização do Brasil - Veículos Comerciais S/A Av. Rio Branco, 4688 - Bairro São Cristóvão - CEP 95060-145 | Caxias do Sul - RS - Brasil | Tel. +55 (54) 2101.5700 www.valeo-thermalbus.com/br...
