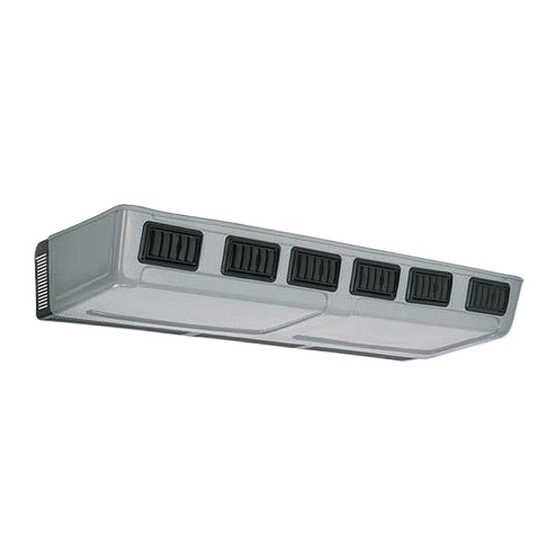

- Page 1 AIR CONDITIONER MINI BUS - MICRO-BUS CC 140S - CC 150S Owner’s Manual Warranty Certificate CC 160S - CC 160WCT MPHE CC 165W - CC 165WCT MPHE CC 175W - CC 175WCT MPHE Rev.05/March 2021 Code: 036-00041-001...
-
Page 2: Table Of Contents
INDEX CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE EQUIPMENT DESCRIPTION INTRODUCTION _______________________________________________________________________________________________________________________ 2- Technical Data Sheet________________________________________ WARRANTY TERMS Warrant Terms__________________________________________________ 2.1- Evaporator components CC140S - CC150S___________________________ 2.2- Evaporator components CC160S - CC165W - CC175W_____________... -
Page 3: Introduction
INTRODUCTION CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE VALEO Climatização do Brasil - Veículos Comerciais S/A offers a full line of equipment for bus air conditioning systems for vans, micro and midi buses, commuter, articulated, coaches and double-deckers. -
Page 4: Warranty Terms
WARRANTY TERMS CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE... -
Page 5: Preventive Maintenance
PREVENTIVE MAINTENANCE CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE - Preventive Maintenance Frequency Check List 1 - Clean or change the return air filter. -
Page 6: Refrigerant Gas R134A
PREVENTIVE MAINTENANCE CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE - Refrigerant Gas R134a - Oil VALEO Climatização do Brasil - Veículos Comerciais S/A products apply for We recommend you that you shall preventively change the air system oil every R 134a. -
Page 7: Equipment Identification (Id)
EQUIPMENT IDENTIFICATION (ID) CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE Identification Tag IMPORTANT: the vehicle owner must do preventive maintenance actions. -
Page 8: Operating The Air Conditioner
OPERATING THE AIR CONDITIONER CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE Operating the Air Conditioner - Skirt Condenser Note: illustrative drawing. -
Page 9: Operating The Air Conditioner - Roof Condenser
OPERATING THE AIR CONDITIONER CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE Operating the Air Conditioner - Roof Condenser Note: illustrative drawing. - Page 10 OPERATING THE AIR CONDITIONER CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE Condenser Fan Refrigerant Fluid Evaporators It is inside the air conditioning equipment, inside the...
-
Page 11: 1- Sbu 400-410 Controllers
CONTROLLERS CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 1- SBU 400-410 Controllers 1.1- Control Panel Description The SBU400 and SBU410 controllers are systems designed to control HVAC The SBU400 and SBU410 AC controllers have basically the same components. -
Page 12: Operation Instructions
CONTROLLER CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 1.2- Operation Instructions 1.3- Auto Mode Note: when device is started up, auto starts ON (Its status light becomes ON). -
Page 13: On/Off Air Conditioner Compressor
CONTROLLER CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 1.4- ON/OFF Air Conditioner Compressor 1.5- Heating Mode Heating Mode is controlled by set-point and parameters P23 and P24, according... -
Page 14: Evaporator Fan Speed Configuration
CONTROLLER CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE If the internal temperature is within the range, ventilation will remain cycling 1.7- Evaporator fan speed configuration between active and inactive, during the time gaps saved in P52 and P51, respectively, as shown in the table below. -
Page 15: Faults (Errors)
CONTROLLER CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 1.9- Faults (errors) • Display Failure Note: if there is a fault, the display goes between Set point and the error codes. The desired... -
Page 16: Equipment Description
EQUIPMENT DESCRIPTION CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 2- Technical data sheet Model CC140S CC150S CC160S CC165W CC175W CC160WCT MPHE... -
Page 17: Evaporator Components Cc140S - Cc150S
EQUIPMENT DESCRIPTION CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 2.1- Evaporator components CC140S - CC150S NOTE: visit www.reparts.com.br to consult the complet parts catalog. -
Page 18: Evaporator Components Cc160S - Cc165W - Cc175W
EQUIPMENT DESCRIPTION CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 2.2- Evaporator components CC160S - CC165W - CC175W NOTE: visit www.reparts.com.br to consult the complet parts catalog. -
Page 19: Lower Side Condenser Components Cc140S - Cc150S - Cc160S - Cc165W - Cc175W
EQUIPMENT DESCRIPTION CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 2.3- Lower side condenser components CC140S - CC150S - CC160S - CC165W - CC175W NOTE: visit www.reparts.com.br to consult the complet parts catalog. -
Page 20: Roof Condenser Components Cc 160Wct Mphe - Cc 165Wct Mphe - Cc 175Wct Mphe
EQUIPMENT DESCRIPTION CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 2.4- Roof condenser components CC 160WCT MPHE - CC 165WCT MPHE - CC 175WCT MPHE NOTE: visit www.reparts.com.br to consult the complet parts catalog. -
Page 21: Compressor Components
EQUIPMENT DESCRIPTION CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 2.5- Compressor components NOTE: visit www.reparts.com to consult the complet parts catalog. -
Page 22: Electric Components
EQUIPMENT DESCRIPTION CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 2.6- Electric components NOTE: visit www.reparts.com.br to consult the complet parts catalog. -
Page 23: Electrical System
ELECTRICAL SYSTEM CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 3- Controller SBU400/410 + 30 SBU 400/410 SC410 Only with Air Renewal and / or Heating... -
Page 24: Safety Precaution
SAFETY PRECAUTION CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 4- Safety Precaution 5- Rotation Components: The fans, pulleys and belts are not visible under certain 1- Personal Protection: conditions. -
Page 25: Sustainability
SUSTAINABILITY CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE 5- Product Discard Concerned about sustainability at Valeo Climatização do Brasil - Veículos Comerciais S/A guides its customers and its authorized service network to discard products in an environmentally sound and safe manner. - Page 26 Valeo Climatização do Brasil - Veículos Comerciais S/A Av. Rio Branco, 4688 - Bairro São Cristóvão - CEP 95060-145 | Caxias do Sul - RS - Brasil | Tel. +55 (54) 2101.5700 www.valeo-thermalbus.com/br...
