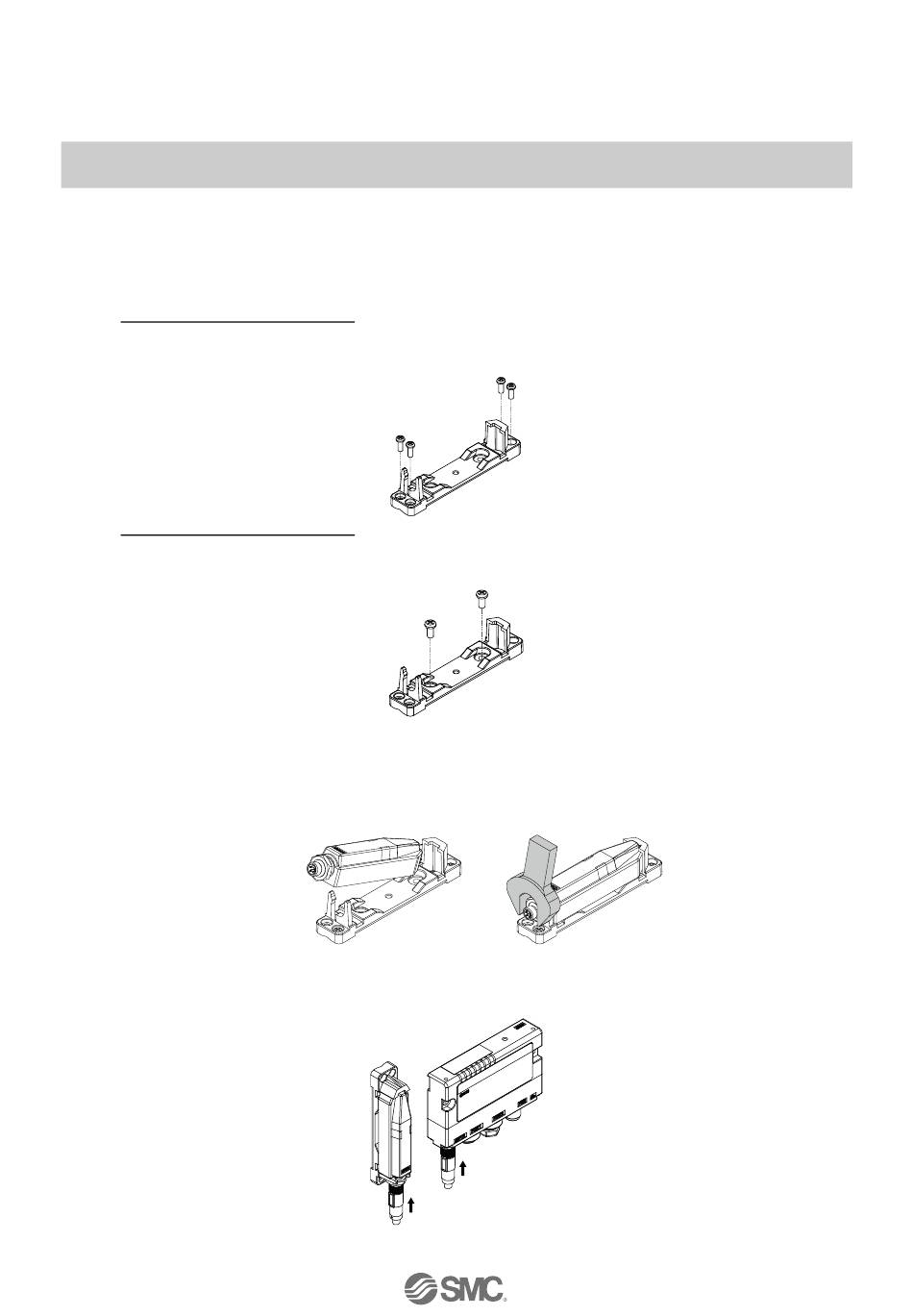

●Mounting on a flat surface
(1) Attachment of installation plate
Attach the installation plate to the target object by either of the following two methods.
Installation with M3 x 4 positions
The tightening torque should be 0.4 N•m±10%.
(Mounting screws are not included.)
Installation with M4 x 2 positions
The tightening torque should be 0.6 N•m±10%.
(Mounting screws are not included.)
(2)Installation of wireless adaptor
Clip the wireless adaptor onto the installation plate as shown below and secure the adaptor in place
using the M10 nut already fitted to the wireless adaptor.
The tightening torque should be 0.9 N•m±10%.
(3)Connection of the cable for wireless adaptor
Connect the cable to the base and the wireless adaptor.
