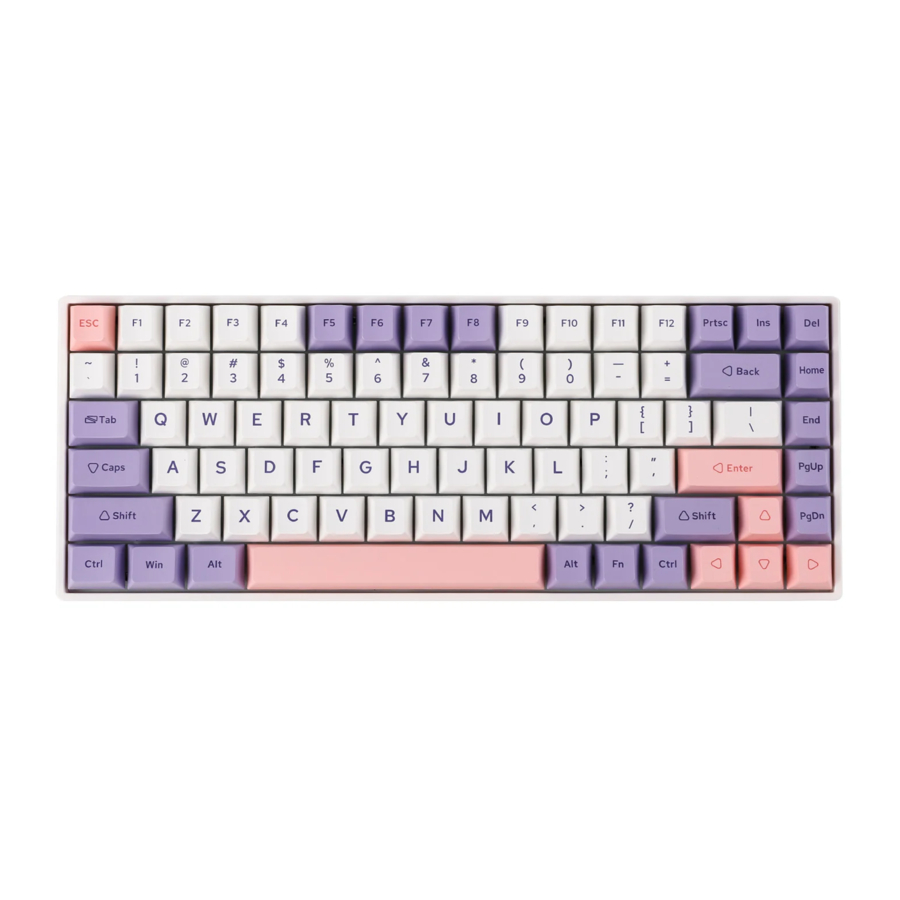

EPOMAKER EP84 PLUS - 75% Triple-mode Hot-swappable Mechanical Keyboard Quick Manual

WINDOWS SHORTCUT

MAC SHORTCUT

LIGHT EFFECTS

FN + BACKSPACE	Turn On/Off Backlights
FN + \|	Toggle RGB Effects
FN + -_	Change Backlight Direction
FN + =+	Change Backlight Colors
FN +	Backlights Brightness +
FN +	Backlights Brightness -
FN +	Backlights Speed +
FN +	Backlights Speed -

FUNCTION KEY COMBINATIONS

CHANGE RGB EFFECTS

Press Fn + \| to switch the RGB effects of your Epomaker EP84 Plus keyboard.

PAIRING BLUETOOTH

Toggle the switch in the back to ON to make sure that the keyboard is under the Wireless mode

1. Press Fn+1!/2@/3# and the whole keyboard flashes white 3 times, the keyboard is under the Bluetooth mode;
2. Hold Fn+1!/2@/3# for 3-5 seconds till the 1!/2@/3# indicators flashes fast in red/green/blue, the keyboard is ready to pair;
3. Turn on your Bluetooth device and find 'EP84 PLUS3.0' or 'EP84 PLUS 5.0', then connect. When the keyboard is connected to the Bluetooth device, the light on the 1!/2@/3# key stops flashing and the connection is done.
4. Press Fn+1!/2@/3# to toggle between the Bluetooth devices 1/2/3.

PAIRING WIRELESS 2.4GHZ

Toggle the switch in the back to ON to make sure that the keyboard is under the Wireless mode

1. Short press the FN + 4$ key combination, the backlight will flash blue 3 times, the keyboard will enter 2.4G mode
2. Long press the FN + 4$ key combination for 3-5 seconds to enter pairing mode, the 4$ indicator light will flash white, insert the receiver, after successful pairing, the 4$ indicator light will be on for 2 seconds and then turn off, the connection is successful

WIRED MODE

Press Fn+5%, the keyboard enters to the wired mode successfully.

CHECK BATTERY

Hold Fn+Spacebar, the keys from 1! to 0) lights up to show the battery percentage; for example, if the keys from 1! to 6^ light up when holding Fn+Spacebar, it means that the battery life is currently 60%; if keys of 1!-0) light up, battery life is 100%.

CHECK LAYER AND MODE

Press the key combination FN+V for 3 seconds, Z/X/C lights up to show the configuration level of the keyboard, e.g. the X key lights up, which means the keyboard is on level 2.

CHARGING INDICATOR LIGHT

CHARGING INDICATOR LIGHT (IN THE MIDDLE OF THE KEYBOARD)
Charging: Red light stays for 2 seconds then off
Charged: Green light stays for 2 seconds then off

SPECS

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser:
https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboardswitches

Included Tools

Remove Switches

Mechanical Switch
Example of a switch as seen from top after you remove the keycap to prepare for switch removal.
The Switch Puller tool aligns Vertically to the Switch to unclip the plastic securing the switch to the plate.

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

1. Check that all the switch metallic pins are perfectly straight and clean.

2. Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.

4. Inspect the switch to ensure it's properly attached to your keyboard, and test it.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.
Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

TECHNICAL ASSISTANCE

For technical assistance, please email to support@epomaker.com with your purchase order number and a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, pelase contact them directly for any additional help.

COMMUNITY FORUMS

Join our community and learn together with other keyboard enthusiasts.

https://discord.gg/2q3Z7C2

https://www.reddit.com/r/Epomaker/

Manufacturer: Shenzhen Changyun Technology Co., Ltd.
Address: Seventh Floor, Kai Daer Building, No.168 Tongsha Road, Xili Street, Nanshan Disctrict, Shenzhen, Guangdong, CN
Email: support@epomaker.com
Web: www.epomaker.com
