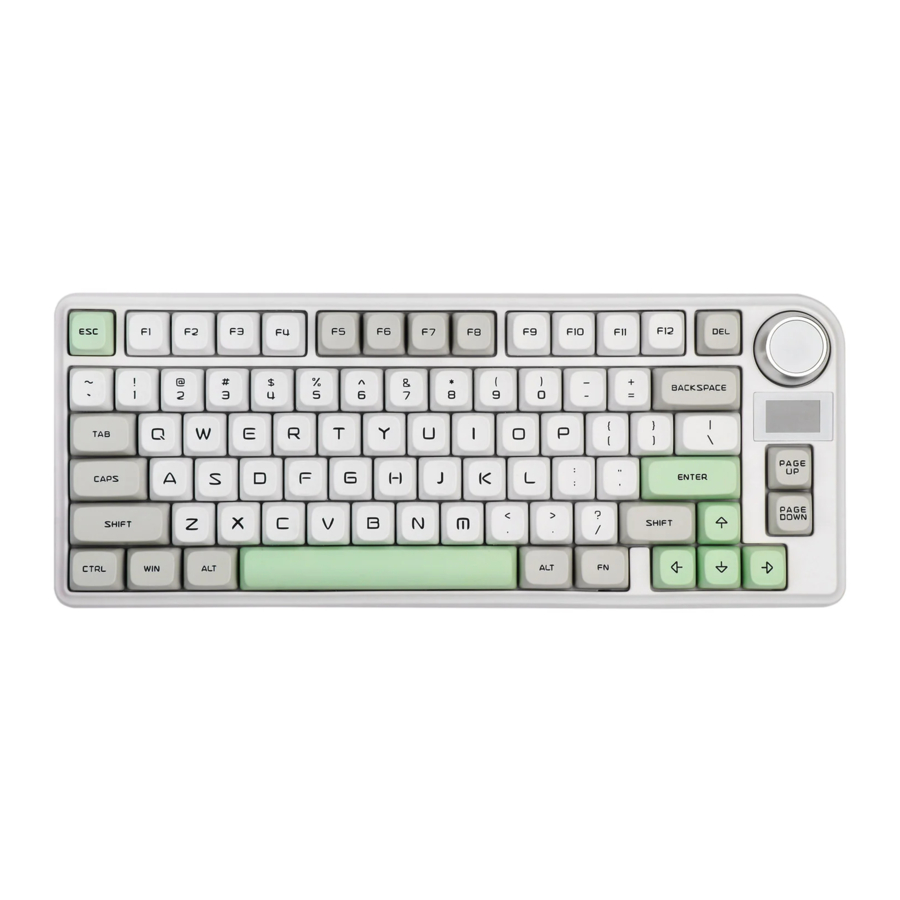

EPOMAKER TH80 X - Wireless RGB Mechanical Keyboard with An LED-Screen Quick Manual

WINDOWS SHORTCUTS

LIGHT EFFECTS

MACOS SHORTCUTS

FUNCTION KEY COMBINATIONS

PAIRING BLUETOOTH

Toggle the switch on the top-right corner to make sure that the keyboard is under the wireless mode:

1. Hold Fn+1/2/3 for 3-5 seconds till the LED screen displays pairing signals, the keyboard is ready to pair.
2. Turn on your Bluetooth device and find "TH80 X BT5.O" or "TH80 X BT3.O", then connect. When the keyboard is connected to the Bluetooth device, the LED screen displays that the connection is done.
3. Press Fn+1/2/3 to toggle between the Bluetooth devices 1/2/3.

PAIRING WIRELESS 2.4GHZ

Toggle the switch on the top-right corner to make sure that the keyboard is under the wireless mode:
Hold Fn+4 for for 3-5 seconds till the LED screen displays pairing signals, the keyboard is ready to pair.
Insert the 2.4G dongle to your device, the LED screen displays that the connection is done.

WIRED MODE

Toggle the switch to the wired mode, press Fn+5 till the the LED screen displays current status of the keyboard, and the keyboard enters to the wired mode successfully.

INTERACTION OF THE KNOB AND THE LED SCREEN

Step 1. Press Fn+Knob to set the main display on the screen. Rotate the knob among the static images, gif, or the keyboard status.

Step 2. Press the knob to confirm the main display and goes to the menu options.

*Step 3. Rotate the knob to choose the menu among "Photo/gif", "Lights", "RGB Color", "Brightness", "Speed", "OS Mode", "Layer", press the knob to enter the menu, rotate the knob to choose among the options, press the knob again to confirm and go back to the menu.

Step 4. Press Fn+knob again to exit the interaction. Rotate and press the knob resumes to volume & mute control.

*Note: if the knob is not pressed or rotated in 5 seconds in Step 3, the display will go back to the main display. Press the knob again to continue Step 3.

SPECS

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser: https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches

Remove Switches

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y -Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

1. Check that all the switch metallic pins are perfectly straight and clean.
2. Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
4. Inspect the switch to ensure it's properly attached to your keyboard, and test it.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.

Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

TECHNICAL ASSISTANCE

For technical assistance, please email to support@epomaker.com with your purchase order number and a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for any additional help.

COMMUNITY FORUMS

Join our community and learn together with other keyboard enthusiasts.

https://discord.gg/2q3Z7C2

https://www.reddit.com/r/Epomaker/

EPOMAKER.com
