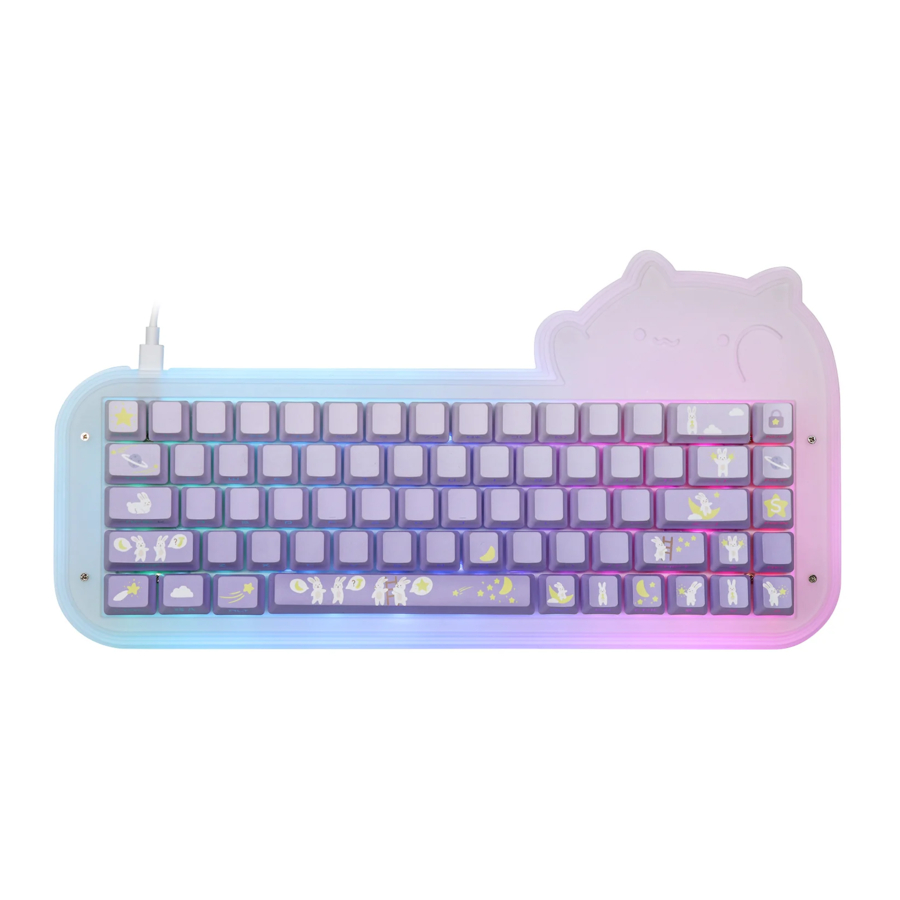

EPOMAKER Mini Cat 68 - Hot Swappable RGB Acrylic Keyboard Kit Quick Manual

SHORTCUTS

LIGHT EFFECTS

Fn + \|	Turn On/Off Backlights
Fn + ]}	Toggle RGB Effects
Fn + P	Hue +
Fn +;:	Hue -
Fn + [{	Sat +
F+'"	Sat -
Fn +	Backlights Brightness -
Fn +	Backlights Brightness +
Fn +	Backlights Speed -
Fn +	Backlights Speed +

FUNCTION KEY COMBINATIONS

HOW TO USE VIA

1. Please visit "https://github.com/WestBerryVIA/via-releases/releases" to download the latest VIA application for your computer's OS. Turn on the button of "Use V2 definitions (deprecated)"

2. Download Epomaker Mini Cat 68 json file via https://epomaker.com/blogs/qmk-via/epomaker-mini-cat-68-via-json and load the file.

3. When the loading is completed, the "Configure" Tab displays the layout and programmable functions.


SPECS

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser:
https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches

Included Tools

Remove Switches

Mechanical Switch
Example of a switch as seen from top after you remove the keycap to prepare for switch removal.
The Switch Puller tool aligns Vertically to the Switch to unclip the plastic securing the switch to the plate.

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

1. Check that all the switch metallic pins are perfectly straight and clean.

2. Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.

4. Inspect the switch to ensure it's properly attached to your keyboard, and test it.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.
Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

TECHNICAL ASSISTANCE

For technical assistance, please email to support@epomaker.com with your purchase order number and a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for any additional help.

COMMUNITY FORUMS

Join our community and learn together with other keyboard enthusiasts.

https://discord.gg/2q3Z7C2

https://www.reddit.com/r/Epomaker/

Manufacturer: Shenzhen Changyun Technology Co., Ltd.
Address: Seventh Floor, Kai Daer Building, No.168 Tongsha Road, Xili Street, Nanshan Disctrict, Shenzhen, Guangdong, CN
Email: support@epomaker.com
Web: www.epomaker.com
