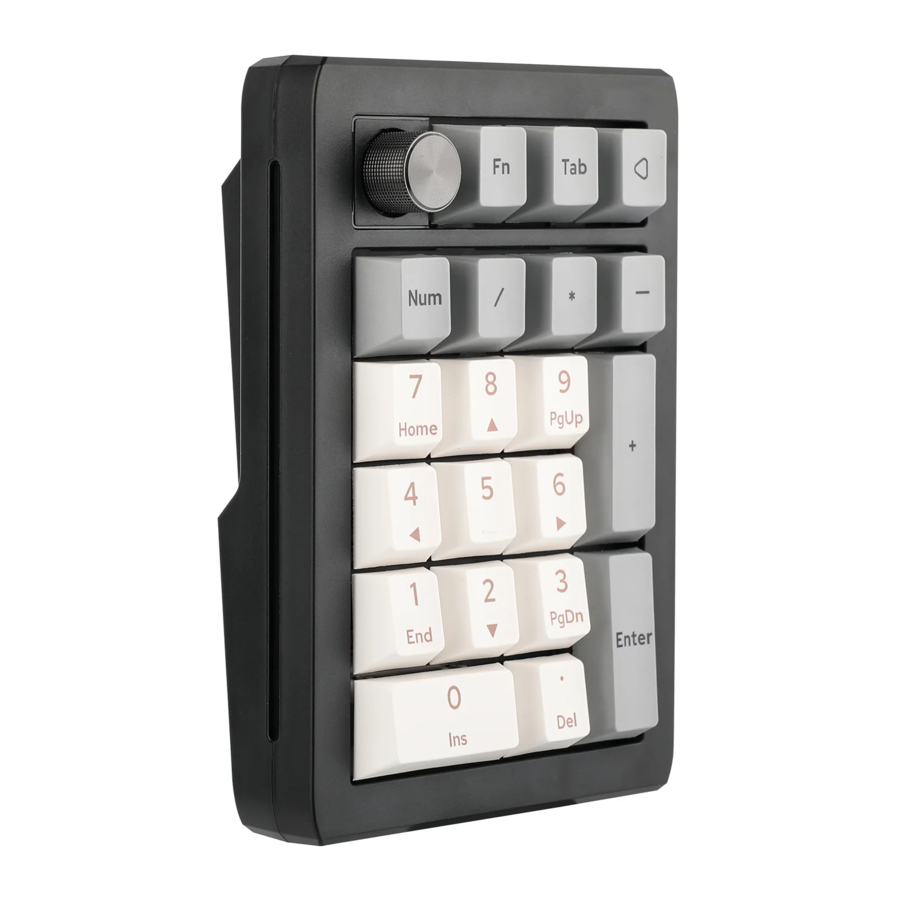

EPOMAKER EK21 VIA - RGB VIA-programmable Keyboard Quick Manual

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser: https://epomaker.com/blogs/guides/diy-guide-how-to-remove-andreplace-your-mechanical-keyboard-switches

Included Tools

Using the Switch Puller

The Switch Puller tool aligns Vertically to the mechanical switch to unclip the plastic securing the switch to the plate.

Remove Switches

Mechanical Switch
Example of a switch as seen from top after you remove the keycap to prepare for switch removal.

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

1. Check that all the switch metallic pins are perfectiy straight and clean.

2. Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.

4. Inspect the switch to ensure it's properly attached to your keyboard, and test it.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.

Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

FUNCTION KEY COMBINATIONS

Fn+Backspace
Turn on/off Backlights
(Numlock indicator stays on and cannot be off)

PAIRING BLUETOOTH

Toggle the switch to the left, make sure that the keyboard is under the wireless mode:

1. Hold Fn+1/2/3 for 3-5 seconds till the indicator flashes fast in blue, the numpad is ready to pair.
2. Turn on your Bluetooth device and find 'Epomaker EK21-1/2/3', then connect. When the numpad is connected to the Bluetooth device, the indicator stops flashing, the connection is done.
3. Press Fn+1/2/3 to toggle between the Bluetooth devices 1/2/3.

PAIRING WIRELESS 2.4GHZ

Toggle the switch to the right, make sure that the numpad is under the 2.4g wireless mode:

1. Hold Fn+4 for 3-5 seconds till the 4 key flashes fast in green, the keyboard is ready to pair.
2. Insert the 2.4G dongle to your device, the indicator stops flashing and the connection is done.

WIRED MODE

Toggle the switch to the middle, and the numpad enters to the wired mode successfully.

Note: The battery charges under either wireless or wired mode, as long as it is plugged.

BATTERY INDICATOR

Low battery: Fn indicator flashes red
Charging: Fn indicator stays in red
Fully charged: Fn indicator off

TECHNICAL ASSISTANCE

For technical assistance, please email to support@epomaker.com with your purchase order number and a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for any additional help.

HOW TO USE VIA

1. Please visit "https://github.com/WestBerryVIA/via-releases/releases" to download the latest VIA application for your computer's OS. Turn on the button of "Use V2 definitions (deprecated)"

2. Import the JSON File to VIA
   If the numpad is under the wired mode: download Epomaker EK21 USB json file via https://epomaker.com/blogs/qmk-via/epomaker-ek21-usb-via-json and load the file;
   If the numpad is under 2.4G mode, download Epomaker EK21 2.4G json file via https://epomaker.com/blogs/qmk-via/epomaker-ek21-24g-via-json and load the file.

3. When the loading is completed, the "Configure" Tab displays the layout and programmable functions.


Manufacturer: Shenzhen Changyun Technology Co., Ltd.
Address: Seventh Floor, Kai daer Building, No.168 Tongsha Road, Xili Street, Nanshan District, Shenzhen, Guangdong, CN
Email: support@epomaker.com
Web: www.epomaker.com
