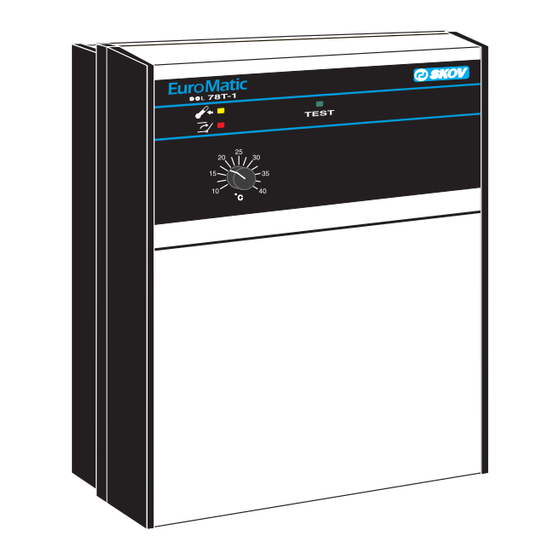

Skov DOL 78CT User Manual

Emergency opening, temperature controlled 24v dc 4a
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
605041
DOL 78CT Combi Tunnel
N
Emergency opening, temperature controlled 24V DC 4A
User's manual
SKOV A/S. HEDELUND 4, GLYNGØRE. DK-7870 ROSLEV. DENMARK
E-mail: skov@skov.com
+45 72 17 55 55 • TELEFAX +45 72 17 59 59 •
01.02.99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOL 78CT and is the answer not in the manual?

Questions and answers

Related Manuals for Skov DOL 78CT

Summary of Contents for Skov DOL 78CT

  • Page 1 605041 DOL 78CT Combi Tunnel Emergency opening, temperature controlled 24V DC 4A User’s manual SKOV A/S. HEDELUND 4, GLYNGØRE. DK-7870 ROSLEV. DENMARK E-mail: skov@skov.com +45 72 17 55 55 • TELEFAX +45 72 17 59 59 • 01.02.99...

  • Page 2: Table Of Contents

    4.1.5 Installation of temperature sensor in the house ..................9 4.1.6 Connection of DOL 78CT Emergency Opening and DOL 36CT Climate Computer........9 4.1.7 Connection of DOL 78CT Emergency Opening, AR-module and DOL 36CT Climate Computer ....10 4.1.8 Special ! Installation of Extension module and DOL 78M ................ 11 4.1.9 Wiring diagram:............................

  • Page 3: Product Description

    The DOL 36CT Climate Computer units have the following auxiliary functions: Automatic display of DOL 78CT’ preset emergency temperature and the Climate Computer unit set point (= required house temperature), when the emergency temperature is changed and when switches are made between normal operation and emergency operation.

  • Page 4: Functions

    Tunnel mode: The DOL 78CT will only go to emergency opening in case of power failure, or defect temperature sen- sors. This means when running in Tunnel mode the temperature dependent emergency opening is deactivated.

  • Page 5: Battery Monitoring

    2.2 Special ! Extension of the 24V supply capacity If the total motor current exceeds 4.25A the 24V supply capacity can be increased by supplementing DOL 78CT with a DOL 78M ON/OFF emergency opening unit and a DOL 78CT Extension module mounted in DOL 78M.

  • Page 6: Operation

    If the Climate Computer unit is in batch operation, where the house temperature is automatically lowered slightly every day, the DOL 78CT switch must be adjusted regularly in order to follow the temperature lowering of the climate computer. If the DOL 78CT emergency temperature is not lowered so that it is more than 6 higher than the climate computer set point, the warning “Emergency temperature too high”...

  • Page 7: Maintenance

    This is a realistic measure of how many times the battery can perform emer- gency opening. It should be possible to open the house at least twice with only a short interval by means of the battery when it is fully charged. A full recharge takes approx. 3 hours. 01.02.99 DOL 78CT MANUAL...

  • Page 8: Installation

    The lid and the panel can be removed for mounting and installation. DOL 78CT is mounted on the wall 50 mm from the DOL 36CT climate computer, so that the enclosed cable tubes can connect them. 01.02.99 DOL 78CT MANUAL...

  • Page 9: Installation Of Battery In Dol 78Ct

    Be sure that the holes is made in the correct side of both the DOL 36CT and the DOL 78CT. Mount the DOL 36CT and the DOL 78CT on the wall with a distance of 50 2 mm.

  • Page 10: Installation Of Test Mains Switch

    Place the TEST mains switch next to DOL 78CT so that unintentional activation is avoided. DOL 78CT detects power failure on its own mains supply. DOL 78CT must therefore be supplied from the same phase as DOL 36CT`s mains connection terminal 23.

  • Page 11: Connection Of Dol 78Ct Emergency Opening, Ar-Module And Dol 36Ct Climate Computer

    INSTALLATION PAGE 10 4.1.7 Connection of DOL 78CT Emergency Opening, AR-module and DOL 36CT Climate Computer The DOL 78CT-connector must now be inserted at the AR-module The short-circuit connector is not used, and shall be removed. Insert the AR-module connector at the DOL 36CT relay-panel.

  • Page 12: Special ! Installation Of Extension Module And Dol 78M

    4.1.8 Special ! Installation of Extension module and DOL 78M Only relevant if the total motor current exceeds 4.25A so that the 24V supply capacity must be doubled by supplementing DOL 78CT with a DOL 78M ON/OFF emergency opening unit and DOL 78CT Exten- sion module.

  • Page 13: Wiring Diagram

    4.1.9 Wiring diagram: Fig. 4.6 Wiring diagram, DOL 78CT Emergency opening and DOL 36CT Climate computer. Opening 1 zone. Wiring diagram, DOL 78CT Emergency opening and DOL 36CT Climate computer. Opening 2 zones. DOL 12 and DOL 14 should be placed in the middle of the To be placed on the north side of the house, pro- house, 1 metre above the animals.

  • Page 14: Electrical Installation

    Press . The display says (No) to change to (Yes) (Yes = DOL 78CT) Press ., and the change is stored. Press to leave the installation menu. 6. As regards the alarm switch the following functions can be changed. Refer to the folded set of user’s instructions or the manual for the climate computer: - Warning at too high emergency temp.

  • Page 15: Setting Of In/Out-Module And Ar-Module In Dol 36Ct Climate Computer

    The IN/OUT module, and eventually the AR-module, is placed in DOL 36CT climate computers. On the IN/OUT module some jumpers should be set, determining which relays, the DOL 78CT should control at emergency opening and which should not be controlled.
  • Page 16 (The battery should be charged for at least 10 minutes before the first test). Turn the temperature setting knob on DOL 78CT. The Climate Computer unit display must automatically show the setting of the setting knob and the set point of the house (= required house temperature).

  • Page 17: Notes Concerning The Fig. 4.8 Basic Electrical Diagram. Connection Of Climate Computer Loop Terminal Strip

    24V DC winch motors. The emergency opening function will not react to all forms of malfunctioning. During hot summer periods the system may activate the emergency opening function now and then al- though the house is already open. 01.02.99 DOL 78CT MANUAL...
  • Page 18 At MultiStep® +24V from terminal T3 and T5 should also be lead to some of the terminals: R7, R9, R11, R20, R22, R24, 20 and 31 according to the relevant wiring diagrams in DOL 34H/DOL 36 manual concerning MultiStep® air outlet. 01.02.99 DOL 78CT MANUAL...
  • Page 19 DOL 12 temperature sensor. This fixed resistor has a size of 33 k corre- sponding to 0 °C, this is blocking the DOL 78CT Emergency opening, in a way so that the side-inlets not is able to emergency open in Tunnel Mode.
  • Page 20 INSTALLATION PAGE 19 Fig. 4.10 Electrical diagram, connecting DOL 78CT Emergency opening, AR-module and DOL 36CT climate computer. 01.02.99 DOL 78CT MANUAL...
  • Page 21 INSTALLATION PAGE 20 Fig. 4.11 Electical diagram, DOL 78CT Emergency opening, EXTENSION of the 24V supply capacity. 01.02.99 DOL 78CT MANUAL...

  • Page 22: Service

    ƒ lamp is off, the winch motor DA 75 cannot be operated in MANual mode by means of the AUT/MAN switch on the winch motor. Manual operation is enabled, if the DOL 78CT temperature „ switch is turned below 10 C, so that the yellow lamp is constantly lit.

  • Page 23: Spare Parts

    132821 DOL 78T-1 Panel 132825 DOL 78CT Connection module 132826 DOL 78CT Relay with socket 132402 DOL 78M Emergency opening unit ON/OFF 132407 DOL 78CT Extension module 605041 DOL 78CT Manual (GB) 605061 DOL 78CT User instructions, folded (GB) 01.02.99 DOL 78CT MANUAL...

  • Page 24: Technical Data

    C excess temp. 5 sec.+/-30% Opening period at 5 C excess temp. 30 sec. +/-30% Max. DOL 78CT battery operating time (without motor operat.) 4 - 8 hours Temperature sensor inputs 1 x DOL 12 Relay outputs, +24V, time modulated 2 x +24V Fuse per 24V relay output (Brown “car type”...
