- Page 1 AUT1B OWNER'S MANUAL SERIES EXAMINATION LIGHTS Read this manual before operating this light! This information is necessary for the safe and efficient operation of the equipment. TEC-B-0138 REV2 06/20/2019...
- Page 2 The base language for this document is ENGLISH. Any translations must be from the base language document. Printed copies are not controlled documents. Although current at the time of publication, SKYTRON'S policy of continuous development makes this manual subject to change without notice. If current manuals are required, contact your local SKYTRON representative or contact SKYTRON directly at the distribution addresses listed above.
-
Page 3: Table Of Contents
Page 1 TABLE OF CONTENTS TITLE PAGE SECTION 1. SAFETY INFORMATION ....................3 1-1. Special User Attention ......................3 1-2. Safety Precautions ......................3 SECTION 2. EQUIPMENT SPECIFICATIONS.................. 5 2-1. Intended Use ........................5 2-2. Installation .......................... 5 2-3. Environmental Conditions ....................5 2-4. - Page 4 Page 2 Spectra Series AUT1B Operator • REV2...
-
Page 5: Section 1. Safety Information
Refer all service When operating the examination light, all hospital to a qualified SKYTRON service personnel should be aware that sensible care representative. must be taken to maintain patient safety and keep... - Page 6 Page 4 CAUTION (CONT'D) The design of the Spectra Series AUT1B lighting fixture does not utilize internal user serviceable parts. Service must be performed by SKYTRON authorized service technicians using SKYTRON authorized replacement parts and service techniques. Prior to replacing the fuse, make sure the facility circuit breaker is turned off on boom mounted light.
-
Page 7: Section 2. Equipment Specifications
Page 5 SECTION 2. EQUIPMENT SPECIFICATIONS 2-1. Intended Use 2-4. Certification SKYTRON Spectra Series AUT1B Examination Certified by ETL to these standards: Lights are intended to be used by medical personnel Medical electrical equipment - Part 1: General for examinations. requirements for basic safety and essential performance - ANSI/AAMI ES60601-1: 2005 / C1: 2-2. -
Page 8: Equipment Labels And Specifications
Page 6 2-5. Equipment Labels and Specifications The Data Labels contain the model number, fuse OTHER LABELS: type, electrical specifications, and product serial number. T1AH 250V LIGHTHEAD: GRAND RAPIDS, MI · 616.656.2900 CAUTION: CONSULT MANUAL FOR FURTHER INSTRUCTIONS LIGHTHEAD AVERTISSEMENT: AUT1 CAT. -

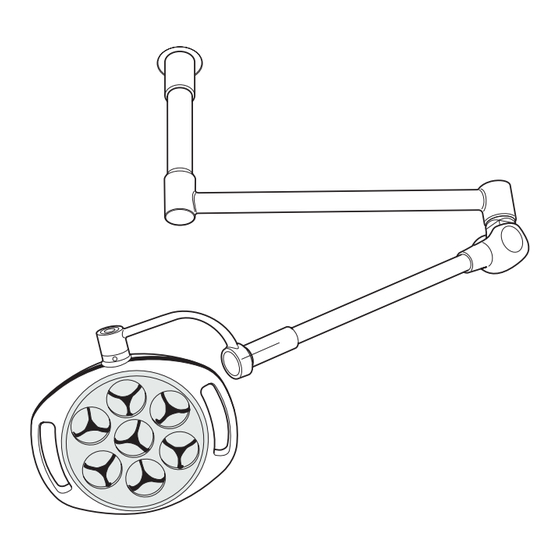

Page 9: Section 3. Boom Mounted Aut1B Light Fixture
Use the following instructions to operate the AUT1B 3-2. Electrical Requirements light fixture: SKYTRON Spectra Series AUT1B Lights require a. Position the lighthead as required by grasping that electrical connections are made by a licensed the positioning handles and moving the lighthead electrician in accordance with state, local and to the desired position (Figure 1). -
Page 10: Shutdown
DO NOT allow non-sterile will select the minimum intensity setting. personnel to touch the handle. • Pressing the Intensity ON/OFF button again SKYTRON products are guaranteed will turn off the light fixture. for proper performance with the use NOTICE of genuine SKYTRON HANDLES. After-market competitive handles and... -
Page 11: Section 4. Maintenance
DO NOT apply or spray cleaning agents directly on the lighthead, camerahead, The following disinfectant products have been or wall control. shown to be suitable for use on SKYTRON® Spectra Series Examination lights: In Between Case Disinfection CAUTION Country... -
Page 12: Sterilization
User performed inspections prior to and after each use should observe for the following conditions or Steam Sterilization: problems and report to the SKYTRON authorized 132°C (270°F) for 4 minutes representative. • Missing warning or usage labels... -
Page 13: Routine Inspections
CAUTION color temperature. If diminished light output is noticed with the light please contact your Skytron Prior to replacing the fuse, make sure representative immediately. the facility circuit breaker for the boom mounted light is turned off. Replace the... -
Page 14: End Of Useful Life And Disposal
Page 12 4-7. End of Useful Life and Disposal The end of useful life for the SKYTRON examination light is 10 years under normal operating conditions. Service parts are available for this period. Please contact your SKYTRON authorized representative for disposal of examination light products or parts in accordance with environmental regulations for medical products. -
Page 15: Section 5. Replacement Parts
To obtain mounted lightheads, make sure SKYTRON certified parts and authorized service, you have a good foothold and use contact your authorized SKYTRON representative. appropriate fall protection measures in accordance with OSHA standards. CAUTION Any parts or assemblies not listed in this... -
Page 16: Power Supply Assembly
Page 14 5-2. Power Supply Assembly Item Part No. Description Qty. B4-442-64 FUSE, 1A timelag ....................... 1 Spectra Series AUT1B Operator • REV2... -
Page 17: Section 6. Optical Characteristics
Page 15 SECTION 6. OPTICAL CHARACTERISTICS Lighthead Model AUT1 Color Temperature 4317K CRI R9 Central Illuminance E c 51,200 lux Total Irradiance 208.5 (watts/m UV Energy 0.0098 (watts/m Chromaticity 0.362 Coordinates 0.340 Spectra Series AUT1B Operator• REV2... -
Page 18: Section 7. Electromagnetic Emissions
Page 16 SECTION 7. ELECTROMAGNETIC EMISSIONS Electromagnetic Compatibility (EMC) Although this equipment conforms to the intent of the 2004/108/EC EMC Directive, all medical equipment may produce electromagnetic interference or be susceptible to electromagnetic interference. The following are guidance and manufacturer’s declarations regarding EMC for the Spectra Series AUT1B light. •... - Page 19 Page 17 Recommended Separation Distances Between Portable and Mobile RF Communications Equipment and Spectra AUT1B Lights The AUT1B light is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the AUT1B lights can help prevent electromagnetic interference by maintaining a minimum distance between the portable and mobile RF communications equipment (transmitters) and the AUT1B lights as recommended below, according to the maximum output power of the communications equipment.
- Page 20 Page 18 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The AUT1B light is intended for use in the electromagnetic environment specified below. The customer or the user of the AUT1B light should assure that it is used in such an environment. EN/IEC 60601 Intended Electromagnetic Immunity Test Compliance Level Environment Test Level Floors should be wood, concrete or Electromagnetic ±6 kV contact ±6 kV contact...
- Page 21 Page 19 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity (Cont'd) The AUT1B light is intended for use in the electromagnetic environment specified below. The customer or the user of the AUT1B light should assure that it is used in such an environment. EN/IEC 60601 Intended Electromagnetic Immunity Test Compliance Level Environment Test Level Portable and mobile RF communications equipment should be used no closer to any part of the AUT1B light, including cables, than the recommended...
- Page 22 Page 20 Spectra Series AUT1B Operator • REV2...
-
Page 23: Section 8. Revision History
Page 21 SECTION 8. REVISION HISTORY Date Revision Revision History 08/07/2015 Initial release. 04/13/2016 Revised Equipment Labels page 6 06/20/2019 Removed CE from cover. Added to inside cover, and Pg. 5 and 6, " Lights manufactured 1-1-2019 and after do not bear the CE mark and do not conform to the CE standard."... - Page 24 5085 Corporate Exchange Blvd. S.E. Grand Rapids, MI 49512 • 616.656.2900...
