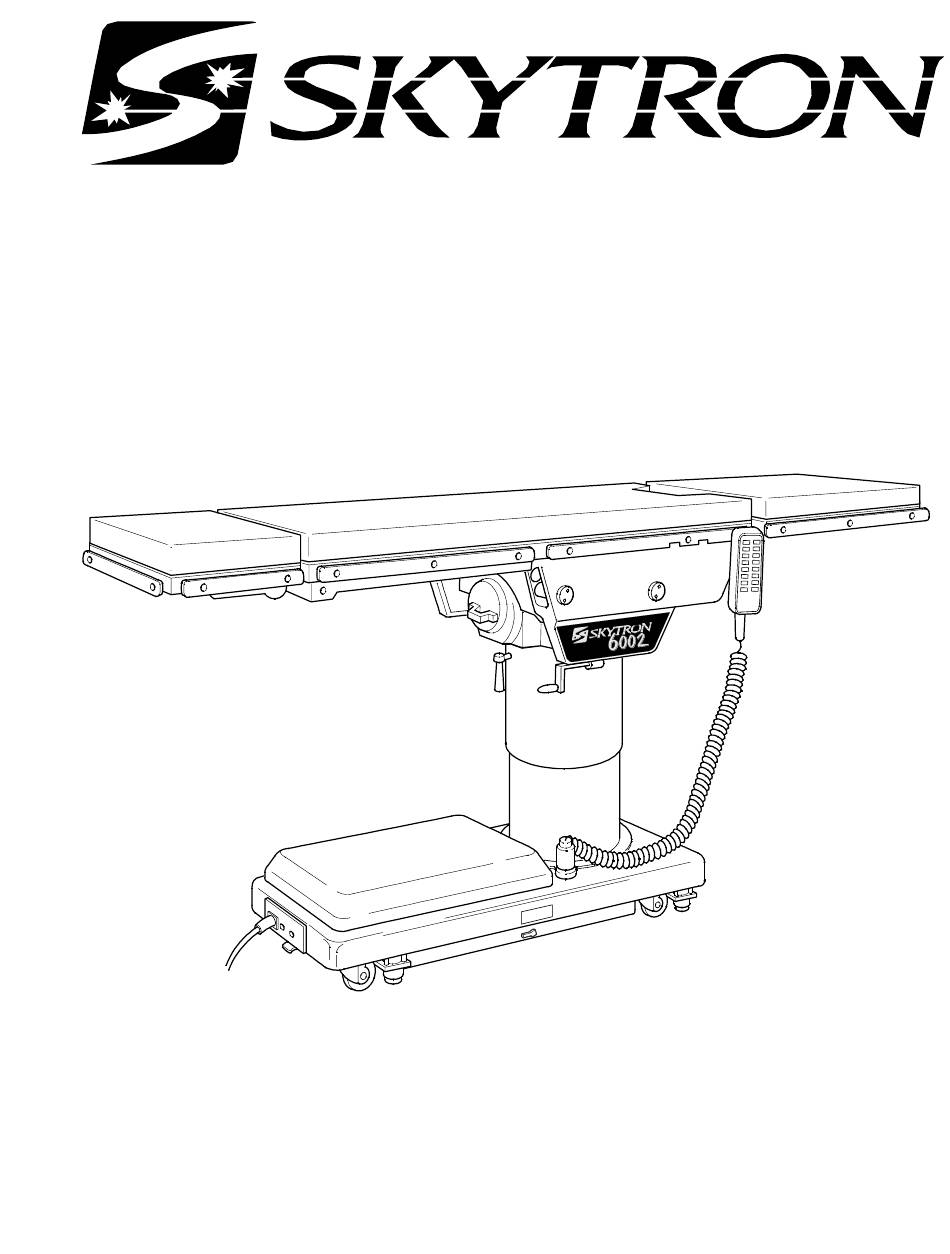

ELITE SERIES SURGICAL TABLES
OPERATORS MANUAL
MODEL 6002/6002B
INCLUDING BATTERY MODELS
27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE 6002 and is the answer not in the manual?

Questions and answers

Related Manuals for Skytron ELITE 6002

Summary of Contents for Skytron ELITE 6002

  • Page 1 ELITE SERIES SURGICAL TABLES OPERATORS MANUAL MODEL 6002/6002B INCLUDING BATTERY MODELS...
  • Page 2 SKYTRON STANDARD LIMITED WARRANTY SKYTRON, a Division of the KMW Group, Inc. (SKYTRON) warrants all new products sold by it directly or through a dealer or other authorized representative, with exception to replacement parts, spares, bulbs (surgical lights), pads, and accessory items (surgical tables) to be free from defects in material or workmanship, under normal use and service, for a period of two (2) years.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Title Page 6002 Series General Purpose Surgical Table Specifications ..............1 SPECIAL USER ATTENTION ........................ 2 SECTION I INTRODUCTION ......................... 5 1-1. General ............................5 1-2. Power Requirements ........................5 1-3. Pendant Control Unit ........................6 1-4. Floor Lock/Brake System ......................6 SECTION II BATTERY TABLE CONTROLS ..................

  • Page 4: 6002 Series General Purpose Surgical Table Specifications

    6002 Series General Purpose Surgical Table Specifications 15" 19-1/2" 21-1/2" 24" 10" 13" 20" 75" TOP VIEW 76" 60˚ 22" 5-3/4" 3" 90˚ 43" MAX. 28" MIN. 5-3/4" 8" 35-1/2" 19" SIDE VIEW END VIEW Electrical Specifications Power requirements 120 VAC, 60Hz, 300 Watts Current Leakage Less than 100 micro amps Power Cord...

  • Page 5: Special User Attention

    SPECIAL USER ATTENTION The extreme positioning capabilities of the 6002 Series Table requires special attention for possible WARNING interference points when using multiple function Risk of electrical shock. Make sure positioning. As with the operation of any surgical power cord is disconnected prior to table, a certain amount of care should be exercised accessing fuses.
  • Page 6 SPECIAL USER ATTENTION NOTE WARNING When the amber light starts to blink To maximize patient safety, utilize (indicating low power in battery) the table proper restraint methods during extreme will operate for approximately 5 continu- Trendelenburg positioning. ous minutes, typically long enough to use the table for the rest of the day.
  • Page 7 Moisture trapped between the pads and mating surfaces may cause distortion of table tops. WARNING Certain accessories may limit weight capacities, check with your SKYTRON representative. WARNING To ensure patient safety, certain posi- tioning techniques and some accesso- ries should NOT be used when a patient's weight exceeds 500 pounds.

  • Page 8: Section I Introduction

    COVER PLATE 1-2. Power Requirements The Elite 6002 Series Surgical Tables require a 120VAC, 60 Hz electrical power supply. The table is equipped with a 15 foot long power cord with a (2) FUSES standard three prong, hospital grade plug. The...

  • Page 9: Pendant Control Unit

    The function push buttons are identified with abbre- 1-3. Pendant Control Unit viated descriptions for all functions. See figure 1- 5. The Trendelenburg and table up buttons are red, The hand-held pendant control unit (figure 1-3) has the remaining buttons are all black. a non-slip rubber cover which assures a positive grip during use.

  • Page 10: Section Ii Battery Table Controls

    SECTION II BATTERY TABLE CONTROLS 2-1. Introduction TRENDELENBURG REVERSE The operation of the 6002B, Battery Model table is TRENDELENBURG REV. TREND identical to the line powered models except for the TREND LATERAL LATERAL functions required to operate on battery power. The TILT LEFT TILT TILT...

  • Page 11: Automatic Shut-Off

    2-4. Automatic Shut-Off b. To recharge the battery simply plug the power cord into a 120VAC wall outlet, if not a. To prevent unnecessary discharge of the already plugged in. Turn the main power ON/ battery, a timer is built into the battery circuit. This OFF switch ON by depressing it.

  • Page 12: Emergency Back-Up Controls

    2-6. Emergency Back-up Controls a. The emergency back-up control switches are located under the access door on the service access cover in the table base. See figure 2-3. FUNCTION CONTROL ACCESS DOOR Figure 2-3. Emergency Controls Location b. In the event of either a power failure or a problem with the hand-held pendant control, the table can be operated using the emergency back- up switches.

  • Page 13: Section Iii Operation

    SECTION III OPERATION 3-1. Electrical Power NOTE a. Check to be sure the power cord is plugged With an evenly distributed patient weight into a properly grounded, Hospital Grade, 120VAC load, all table positioning functions will outlet. Make sure the power cord is routed so as to operate smoothly and quietly with a prevent it from being in the way of the operating patient weight of up to 600 pounds.

  • Page 14: Lateral Tilt

    WARNING CAUTION To prevent damage to the kidney lift, To maximize patient safety, utilize make sure the kidney lift is completely proper restraint methods during ex- treme Trendelenburg positioning. down before raising the back section. d. Back Section. To raise the back section, REV.

  • Page 15: Leg Section

    g. Flex Positioning. To place the table top in a flex position from horizontal, press the FLEX button (figure 3-9). To return the table top to a horizontal position or into a reflex position, press the RE- TURN or REFLEX button. f.

  • Page 16: Pendant Control Storage

    ONLY. Do Not clockwise to release the brakes. See figure 3-12. reverse the patient on the table without first consulting with SKYTRON. Two locking knobs are located on SERVICE ACCESS COVER the inside of the leg section for securing the head section.

  • Page 17: 180 Degree Table Top Rotation

    3-5. 180 Degree Table Top Rotation. NOTE Normal table top position is with the head (and back) section over the power cord end of the base. a. The table top can be horizontally rotated 180° without having to rotate the entire table. To rotate SUPPORT the top, turn the TOP ROTATION LOCK HANDLE counterclockwise (figure 3-15), grasp the table by...

  • Page 18: Positioning

    The use of certain optional accessories available counterclockwise to lower it. from SKYTRON further extend the positioning capabilities of the 6002 Series Tables. Refer to the following "Positioning Guidelines" or contact your SKYTRON representative for further details.
  • Page 19 6002 Series Patient Positioning Guidelines Upper Body Imaging Accessories: "L" Type Anesthesia Lower Body Imaging Accessories: Multi-Task Armboard Screen (6-020-04-1), Standard Armboard (2-010-02) and with Pad (2-020-02), Snap Strap (6-010-42), 10" Foot 2" Pad (2-010-02-2P), Snap Strap (6-010-42), 10" foot Extension (4-030-13) and 2"...
  • Page 20 6002 Series Patient Positioning Guidelines Thoracic/Kidney Accessories: Standard Armboard (2- Neurosurgery Accessories: Multi-Task Armboard with 010-02), and 2" Pad (2-010-02-2P), Multi-Task Armboard Pad (2-020-02), Snap Strap (6-010-42), 10" Foot Extension with Pad (2-020-02), Snap Strap (6-010-42), Universal (4-030-13), and Pad (4-030-13-2P). Patient Positioners (3-010-03), 10"...

  • Page 21: Specialty Positioning

    3-8. Specialty Positioning WARNING To ensure patient safety, certain posi- tioning techniques and some accesso- ries should NOT be used when a patient's weight exceeds 500 pounds. •Do use patient restraints on all patients. •Do use "Positioning Guidelines" ONLY for pa- tients under 500 pounds.
  • Page 22 MODEL 6002 Positioning for Patient Weight Exceeding 500 Pounds Supine Basic Position Lateral Basic Position Prone Basic Position Lithotomy Basic Position Prone Supine Position Rotated 180°...

  • Page 23: Section Iv Maintenance

    SECTION IV MAINTENANCE 4-1. Preventive Maintenance The following preventive maintenance checks and services are recommended to ensure the service- ability and proper operation of your SKYTRON Place table top in level position prior to starting Surgical Table. cleaning procedure. a. During normal cleaning, a general visual...

  • Page 24: Service

    Before replacing pads on the table, make factory service or preventive maintenance con- sure the pads and all mating surfaces tracts, contact your nearest SKYTRON represen- are completely dry. Moisture trapped tative or write or call: between the pads and mating surfaces may cause distortion of table tops.
  • Page 25 5000 36th Street S.E., Grand Rapids, MI 49512 1-800-SKYTRON or 1-616-957-0500 • FAX 1-616-957-5053...
