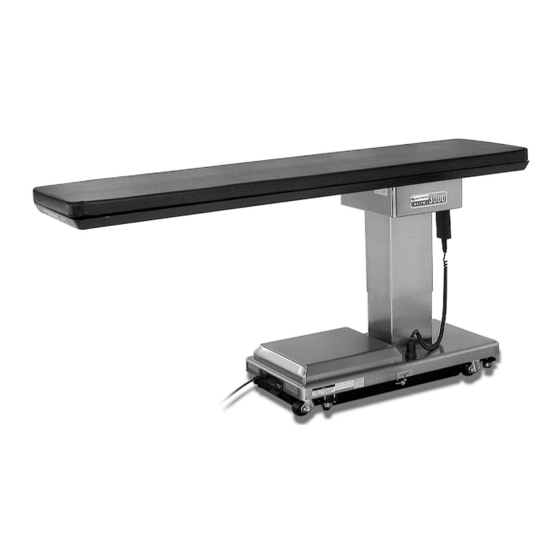

Skytron ELITE 3000 Series Operator's Manual

Surgical tables
Hide thumbs Also See for ELITE 3000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
ELITE SERIES SURGICAL TABLES
OPERATORS MANUAL
MODEL ELITE 3000
REV 8-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE 3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Skytron ELITE 3000 Series

Summary of Contents for Skytron ELITE 3000 Series

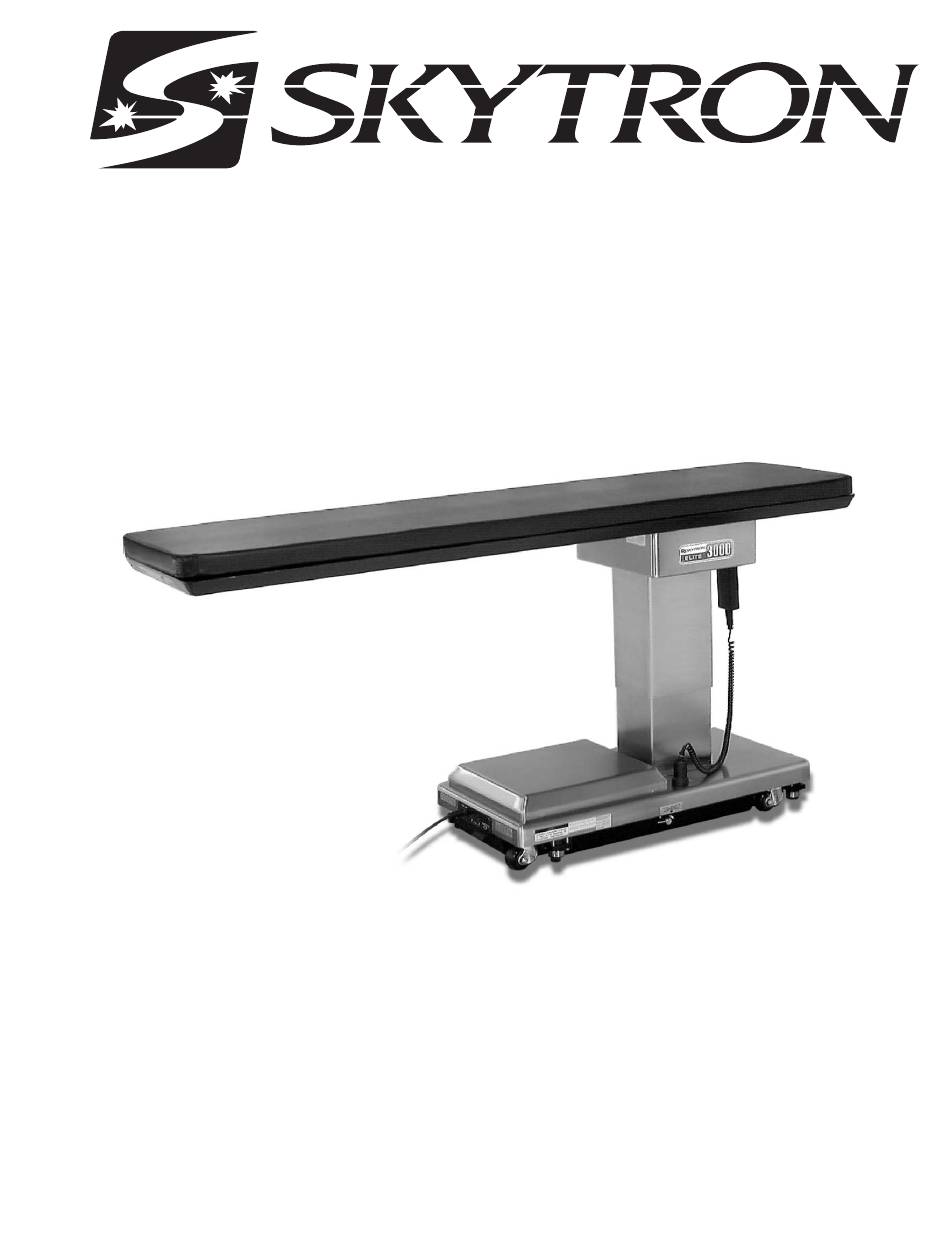

  • Page 1 ELITE SERIES SURGICAL TABLES OPERATORS MANUAL MODEL ELITE 3000 REV 8-04...
  • Page 3 SKYTRON STANDARD LIMITED WARRANTY SKYTRON, a Division of the KMW Group, Inc. (SKYTRON) warrants all new products sold by it directly or through a dealer or other authorized representative, with exception to replacement parts, spares, bulbs (surgical lights), pads, and accessory items (surgical tables) to be free from defects in material or workmanship, under normal use and service, for a period of two (2) years.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Title Page EQUIPMENT LABELS AND SPECIFICATONS ..................2 3000 Series Imaging Table Specifications ....................3 SPECIAL USER ATTENTION ........................ 4 SECTION I INTRODUCTION ......................... 6 1-1. General ............................6 1-2. Power Requirements ........................6 1-3. Pendant Control Unit ........................7 1-4.

  • Page 6: Equipment Labels And Specificatons

    EQUIPMENT LABELS AND SPECIFICATIONS FUSE TYPE 10 AMP, FAST ACTING (FA) INDICATES DANGEROUS VOLTAGE, 120 V, 60 Hz CLASS I DEFIBRILLATION PROOF, TYPE B EQUIPMENT- IPX4 RATED. INTERNALLY POWERED EQUIPMENT TYPE B EQUIPMENT PROTECTIVE GROUNDING. IN ORDER TO ENSURE PROPER GROUNDING RELIABILITY, THIS TABLE MUST BE CONNECTED TO A PROPERLY GROUNDED HOSPITAL GRADE OUTLET.

  • Page 7: 3000 Series Imaging Table Specifications

    3000 Series Imaging Table Specifications TOP VIEW 19.7" 65" 82.5" 39" MAX 28" MIN 5.75" 8.25" 40.5" 19" SIDE VIEW END VIEW Electrical Specifications Power requirements 120 VAC, 60Hz, 450 Watts Current Leakage Less than 100 micro amps Power Cord 15 feet w/hospital grade connector ENTELA CERTIFIED TO UL2601-1,...

  • Page 8: Special User Attention

    SPECIAL USER ATTENTION WARNING Certain accessories can be damaged when chang- ing the position of the table top. Always look first to Risk of electrical shock. Make sure see if a desired movement is going to interfere with power cord is disconnected prior to any accessories in use.
  • Page 9 WARNING NOTE Consult manufacturer's instructions Always follow current AORN Journal when using high frequency surgical Guidelines to ensure proper cleaning equipment, cardiac defibrillator and car- and disinfection procedure. diac defibrillator monitors. WARNING WARNING Always follow OSHA blood-borne patho- When an antistatic pathway is required, gens standards for protective clothing, the table has to be used on an antistatic including gloves, masks and eye pro-...

  • Page 10: Section I Introduction

    1-2. Power Requirements 1-1. General The Elite 3000 Surgical Table requires a 120VAC, SKYTRON’s Elite 3000 Series Imaging Tables are 60 Hz electrical power supply. The table is equipped electro-hydraulically operated. See figure 1-1. with a 15 foot long power cord with a standard three prong, hospital grade plug.

  • Page 11: Pendant Control Unit

    1-4. Floor Lock/Brake System ELECTRICAL POWER ENCLOSURE The floor lock/brake system consists of four self- CORD leveling, hydraulic brake cylinders which raise and support the table base off from the casters. Press MAIN POWER the ELEVATION-UP button on the pendant control SWITCH COVER to set the table’s brakes.

  • Page 12: Section Ii Operation

    SECTION II OPERATION 2-2. Positioning Functions 2-1. Electrical Power The hand-held pendant control unit (figure 2-2) a. Check to be sure the power cord is plugged activates the following table functions: into 120VAC outlet. POWER ELITE / 3000 WARNING INDICATOR POWER TRENDELENBURG Prior to operating the table, observe all...

  • Page 13: Trendelenburg

    Press the BRAKE-UNLOCK button on the pendant control to release the four self-leveling brake feet in order to move the table. See figure 2-3. The brake c. Lateral Tilt. To achieve lateral tilt right delay circuit automatically retracts the brake sys- positioning, press the appropriate LATERAL-TILT tem with just one press of the BRAKE-UNLOCK button (figure 2-5).

  • Page 14: Return To Level

    e. Return To Level. To return the table top to a level WARNING position, press the RETURN button (figure 2-7). Consult manufacturer's instructions ELITE / 3000 when using high frequency surgical POWER equipment, cardiac defibrillator and car- TRENDELENBURG diac defibrillator monitors. LATERAL TILT ELEVATION WARNING...
  • Page 15 STANDARD ARMBOARD (2) RESTRAINT STRAP DUAL ELEVATION CARBON FIBER COLUMN ARMBOARD 6" ACCESSORY RAIL CLAMP RESTRAINT STRAP 400 POUND CAPACITY Figure 3-1. ELEVATION 6" ACCESSORY COLUMN RAIL CLAMP 400 POUND CAPACITY SINGLE CARBON FIBER ARMBOARD (2) Figure 3-3. RESTRAINT ELEVATION STRAP COLUMN 6"...

  • Page 16: Section Iii Maintenance

    WARNING The following preventive maintenance checks and services are recommended to ensure the service- Always follow OSHA blood-borne patho- ability and proper operation of your SKYTRON gens standards for protective clothing, Surgical Table. including gloves, masks and eye pro- tection when cleaning the surgical table.

  • Page 17: Service

    Service instructions and parts are available from SKYTRON. To obtain service instructions, replacement parts, factory service or preventive maintenance con- tracts, contact the SKYTRON representative listed below. Or contact: SKYTRON 5000 - 36th Street S.E.
  • Page 19 5000 36th Street S.E., Grand Rapids, MI 49512 1-800-SKYTRON or 1-616-957-0500 • FAX 1-616-957-5053...
