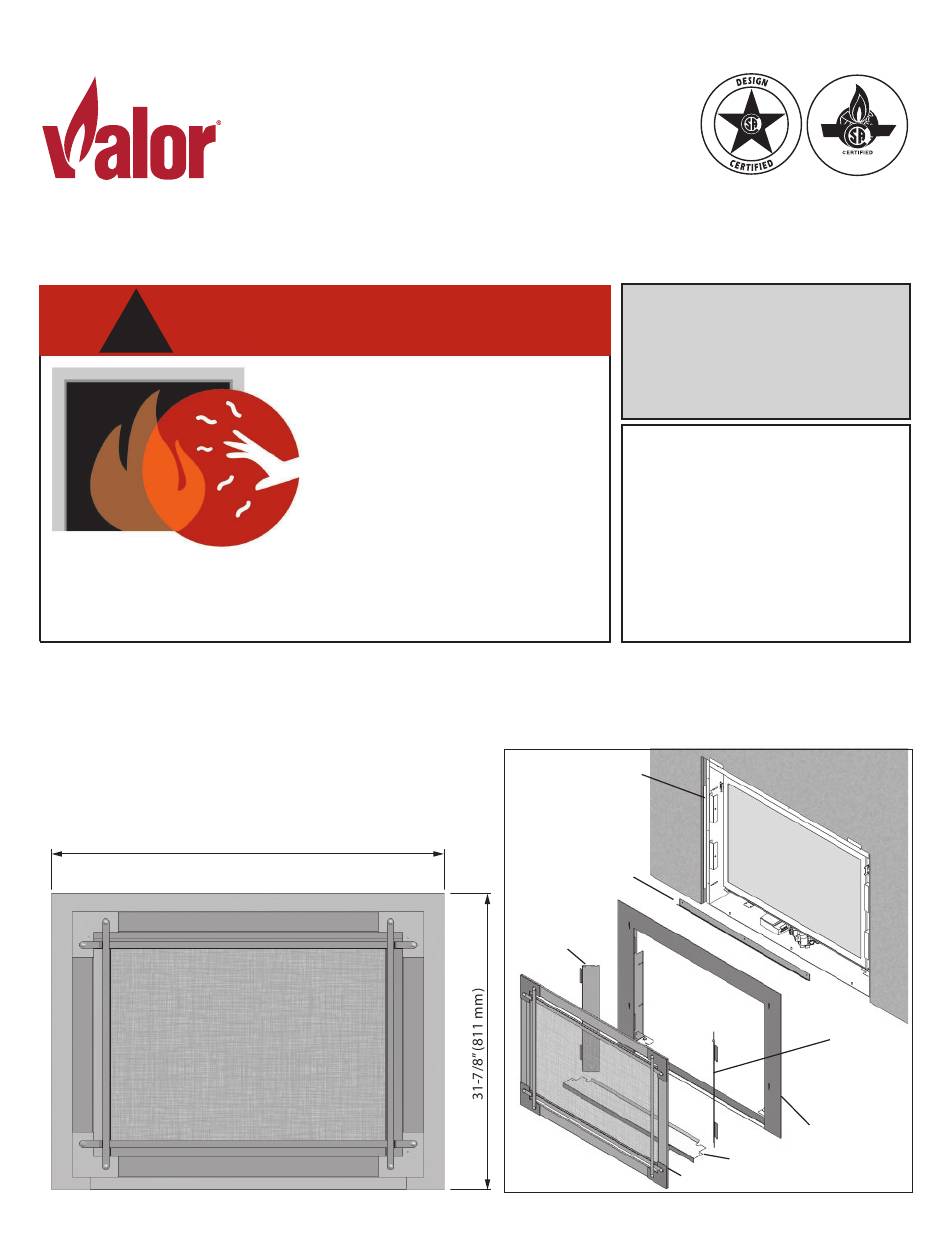

INSTALLATION MANUAL

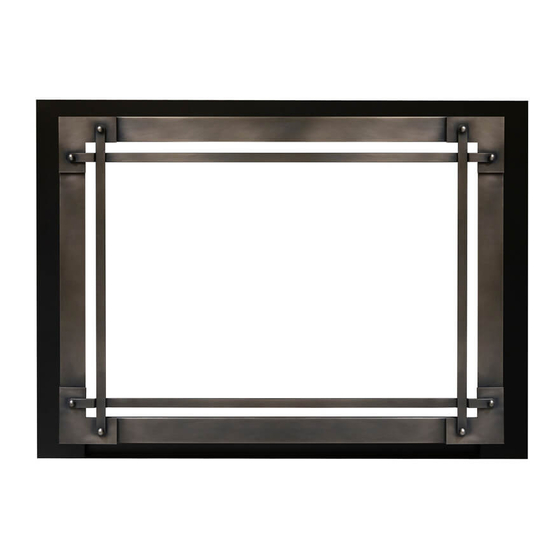

Edgemont Craftsman Fronts 1184ECAS / ECPW
Use with Valor H5 1100 and 1150 models ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
The 1184EC front is intended to be used on Valor
heaters models 1100 & 1150. Mounting of the 1184EC
does not affect clearances or other specifications listed
in the appliance installation manuals.
41-7/8" (1063 mm)
4009021-01
© Copyright Miles Industries Ltd., 2021
H5
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier. These
instructions are to be used
in conjunction with the main
installation instructions
for the above listed heater
model.
Note: Mounting of this trim allows for non-combustible
material up to 3/4" (19 mm) thick installed over top of
the required 1/2" (13 mm) cement board. For thicker
finishes, refer to appliance manual.
1100 or 1150 engine
Convection baffle
LH door
Overview
RH door
Backing plate
assembly
Removable panel
Edgemont Craftsman barrier screen
