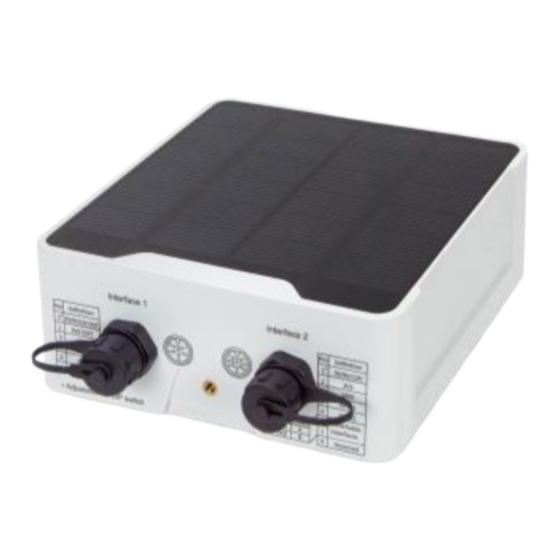

Planet LN501 Quick Installation Manual

Lora node controller
Hide thumbs Also See for LN501:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
LoRa Node Controller
LN501
Quick Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the LN501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet LN501

Summary of Contents for Planet LN501

  • Page 1 LoRa Node Controller LN501 Quick Installation Guide...

  • Page 2: Package Contents

    Quick Installation Guide 1. Package Contents Thank you for purchasing PLANET Industrial LoRa Node Controller, LN series. The description of this model is as follows: LN501 Outdoor IP67 LoRa Node Controller with Solar Panel “LoRa Node” is used as an alternative name in this Quick Installation Guide.

  • Page 3: Hardware Installation

    Refer to the illustration and follow the simple steps below to quickly install your LoRa Node. 3.1.1 Remove cover for setting analog input or power output When changing the analog input or power output of LN501 via DIP switch, follow the steps below: Step 1: Remove the screw caps and take off the bottom cover.
  • Page 4 Power Output Disable 4-20mA ADC Analog Input (default) 0-10V ADC Disable Add 120 Ω resistor between A and B RS485 Add 1k Ω pull-up resistor on A Add 1k Ω pull-down resistor on B - 4 - PLANET Technology Corp.2023 ©...
  • Page 5 1. Analog input is set to 4-20mA by default; power output is set to 12V by default. 2. Power output on interface 1 is used for powering serial port devices and power output on interface 2 is used for powering analog devices. - 5 - PLANET Technology Corp.2023 ©...
  • Page 6 *When both DC external power and batteries are connected, external power will be the preferred power supply option. Data Interface 2 Description 5V/9V/12V OUT (Switchable) (default) 3.3V OUT, max. 100mA GPIO1 GPIO2 RS232(Tx)/RS485(A) RS232(Rx)/RS485(B) SDI-12 - 6 - PLANET Technology Corp.2023 ©...
  • Page 7 Step 2: Place the device on the mounting bracket and put the small screw into the hole found on the bottom of the device and then tighten the screw to finish the job. - 7 - PLANET Technology Corp.2023 ©...
  • Page 8 Quick Installation Guide Please make sure the screws are tightly fixed. - 8 - PLANET Technology Corp.2023 ©...

  • Page 9: Customer Support

    Quick Installation Guide 5. Customer Support You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET support team.
