  • Page 1 Renewable Energy Management Controller NMS-360 Quick Installation Guide...

  • Page 2: Table Of Contents

    2.1 Hardware Interface Definition ............... 4 2.2 Physical Specifications ................5 2.3 Product Features ................. 6 2.4 Specifications ..................6 3. Deployed Devices Monitored via NMS-360 Controller ........9 4. Wired Network Configuration ..............11 5. Entering into the Web Management .............12 6. Setup Wizard ....................13...

  • Page 3: Package Contents

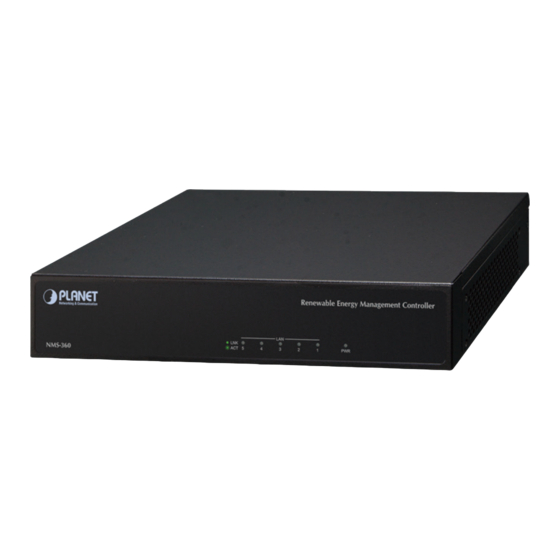

    Thank you for purchasing PLANET Universal Network Management Controller. The description of the model is shown below: NMS-360 Renewable Energy Management Controller “NMS-360 Controller” is used as an alternative name in this Quick Installation Guide. Package Contents: z The NMS-360 Controller x 1...

  • Page 4: Hardware Description

    2. Hardware Description Reset Button USB Port Power 12V DC IN Console Port LAN1~5 Ports Reset Button: < 5 sec: System reboot; > 5 sec: Factory default 2.1 Hardware Interface Definition Interface Description Power Switch Press the power switch to power on the device DC IN DC jack power input 12V, 5A Connect PC through the RS232 to RJ45 serial cable (115200, 8,...

  • Page 5: Physical Specifications

    2.2 Physical Specifications Dimensions (W x D x H) 232 x 153 x 44 mm Weight 1.15 kg Renewable Energy Management Controller NMS-360 Unit: mm...

  • Page 6: Product Features

    Allowing on-demand account creation and user-defined User Control access policy. Free system upgrade and BSP-360 firmware bulk upgrade Scalability capability. Maximum Scalability 1 site map, 512 nodes, 2048 managed IP cameras. 2.4 Specifications NMS-360 Product Renewable Energy Management Controller Platform Form Factor Desktop Physical Specifications Five 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X 2 USB 3.0 ports (They cannot be used at the same time.)
  • Page 7 Storage 8GB EMMC5.1, 15nm/2 eMLC Dimensions 232 x 153 x 44 mm (W x D x H) Weight 1.15 kg Enclosure Metal 60W adapter 12V 5A with DC jack Power Requirement AC 100~240V, 3~1.5A, 60~50Hz. Environment & Certification Operating: 0 ~ 40 degrees C Temperature Storage: -20 ~ 75 degrees C Operating: 10 ~ 85% (non-condensing)
  • Page 8 Supports on-demand account creation per user- User Account Management defined access policy Remarks: *1 BSP-360 Hardware version 2 is required and please also refer to the PLANET Web site for the latest firmware that supports NMS Control features. Network Services DDNS Supports PLANET DDNS/Easy DDNS...

  • Page 9: Deployed Devices Monitored Via Nms-360 Controller

    MQTT Protocol, SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility. Follow the steps below to set up the NMS-360 and BSP-360(V2) accordingly. Step 1. Connect the devices, NMS-360 Controller and your computer, to the same network. Managed AP 192.168.1.x...
  • Page 10  ...

  • Page 11: Wired Network Configuration

    4. Select “Use the following IP address” and then click the “OK” button twice to save the configuration. For example, the default IP address of the NMS-360 Controller is 192.168.1.100, then the manager PC should be set to 192.168.1.x (where x is a number between 1 and 254, except 100), and the...

  • Page 12: Entering Into The Web Management

    IP address “https://192.168.1.100:8888”. Then, enter the default username and password shown above to log on to the system. * The secure login with SSL (HTTPS) prefix is required. After logging on, connect the NMS-360 Controller to the managed network to centrally control PLANET managed devices.

  • Page 13: Setup Wizard

    6. Setup Wizard 1. Account Modification: Set a new account and password for security. 2. IP Configuration Setting: Set the NMS-360’s IP into the same local network segment.
  • Page 14 3. Devices Discovery: Search the managed devices and add to list. (Finish Wizard) 4. If added devices are successful, you can see them in Device List / Management page...

  • Page 15: Further Information

    Further Information The above steps introduce the simple installations and configurations of the NMS- 360 Controller. For further configurations of PLANET NMS-360, please refer to the user manual, which can be downloaded from the website. PLANET online FAQs: http://www.planet.com.tw/en/support/faq Support team mail address: support@planet.com.tw...
