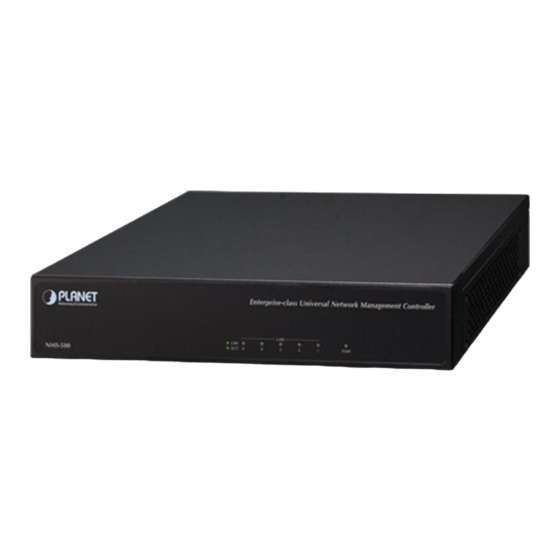

- Page 1 Enterprise-class Universal Network Management Controller NMS-500 Quick Installation Guide...
-
Page 2: Table Of Contents
2.1 Hardware Interface Definition ............... 4 2.2 Physical Specifications ................5 2.3 Product Features ................. 6 2.4 Specifications ..................7 3. Deployed Devices Monitored via NMS-500 Controller ........10 4. Wired Network Configuration ..............12 5. Entering into the Web Management .............13 6. Setup Wizard ....................14 Further Information ..................16... -
Page 3: Package Contents
Thank you for purchasing PLANET Universal Network Management Controller. The description of the model is shown below: NMS-500 Enterprise-class Universal Network Management Controller “NMS-500 Controller” is used as an alternative name in this Quick Installation Guide. Package Contents: z The NMS-500 Controller x 1... -
Page 4: Hardware Description
2. Hardware Description Reset Button Power USB Port Console Port LAN1~5 Ports 12V DC IN Reset Button: < 5 sec: System reboot; > 5 sec: Factory default 2.1 Hardware Interface Definition Interface Description Power Switch Press the power switch to power on the device DC IN DC jack power Input 12V 5A Connect PC through the RS232 to RJ45 serial cable (115200, 8,... -
Page 5: Physical Specifications
2.2 Physical Specifications Dimensions (W x D x H) 232 x 153 x 44 mm Weight 1.15 kg Enterprise-class Universal Network Management Controller NMS-500 Unit: mm... -
Page 6: Product Features
Dashboard: Providing the at-a-glance view of system and wireless network status. z Node Discovery: To detect PLANET managed devices available and allow AP grouping to accelerate AP management. z Topology Viewer: A topology of network devices compliant with SNMP, ONVIF, Smart Discovery and LLTD Protocol. -
Page 7: Specifications
2.4 Specifications NMS-500 Product Enterprise-class Universal Network Management Controller Platform Form Factor Desktop Physical Specifications Five10/100/1000BASE-T RJ45 ports with auto-MDI/ MDI-X 2 USB 3.0 ports (They cannot be used at the same time.) I/O Interface 1 RS232-to-RJ45 console port (115200, 8, N, 1) - Page 8 Supports PLANET devices auto discovery Summarized system overview includes online device Dashboard numbers, activated client number Device List Allows creation and maintenance of device profiles Provides visual topology view of connected PLANET Topology View devices Status Monitoring Real-time online/offline of devices Event and Syslog Report Real-time system event and syslog server supported...
- Page 9 Backup System backup and restore to local or USB HDD Provides system reboot manually or automatically Maintenance Reboot per power schedule Diagnostic Provides IPv4/IPv6 ping and trace route Standards Conformance Regulatory Compliance CE, FCC IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T Standards Compliance IEEE 802.3x Flow control and back pressure...
-
Page 10: Deployed Devices Monitored Via Nms-500 Controller
3. Deployed Devices Monitored via NMS-500 Controller The NMS-500 incorporated in a workstation or PC can monitor all the deployed wired or wireless PoE industrial–grade network devices, such as managed switches, media converters, routers, smart APs, VoIP phones, IP cameras, etc. compliant with the MQTT Protocol, SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility. -
Page 12: Wired Network Configuration
4. Select “Use the following IP address” and then click the “OK” button twice to save the configuration. For example, the default IP address of the NMS-500 Controller is 192.168.1.100, then the manager PC should be set to 192.168.1.x (where x is a number between 1 and 254, except 100), and the... -
Page 13: Entering Into The Web Management
IP address “https://192.168.1.100:8888”. Then, enter the default username and password shown above to log on to the system. The secure login with SSL (HTTPS) prefix is required. After logging on, connect the NMS-500 Controller to the managed network to centrally control PLANET managed devices. -
Page 14: Setup Wizard
6. Setup Wizard 1. Account Modification: Set a new account and password for security. 2. IP Configuration Setting: Set the NMS-500V’s IP into the same local network segment. 3. SNMP Preference Setting: Select region for AP Control (ETSI or FCC) and set up RO/RW community password. - Page 15 4. Devices Discovery: Search the managed devices and add to list. (Finish Wizard)
-
Page 16: Further Information
Further Information The above steps introduce the simple installations and configurations of the NMS- 500 Controller. For further configurations of PLANET UNI-NMS, please refer to the user manual, which can be downloaded from the website. PLANET online FAQs: http://www.planet.com.tw/en/support/faq Support team mail address: support@planet.com.tw...
