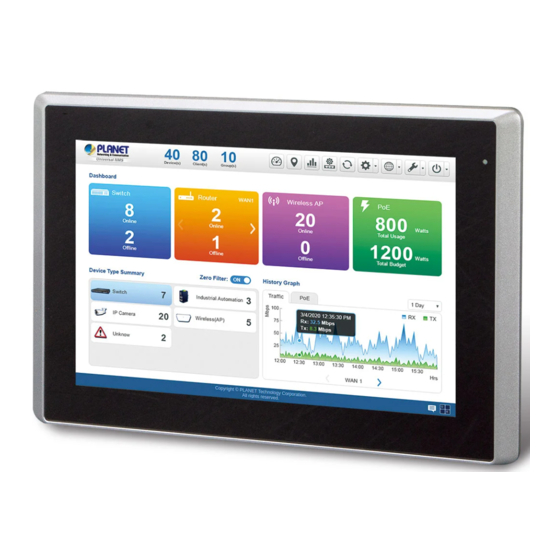

Universal Network Management Controller
with Touch LCD Screen
NMS-1000V
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NMS-1000V and is the answer not in the manual?

Questions and answers

Related Manuals for Planet NMS-1000V

Summary of Contents for Planet NMS-1000V

  • Page 1 Universal Network Management Controller with Touch LCD Screen NMS-1000V Quick Installation Guide...

  • Page 2: Table Of Contents

    1. Package Contents ..................3 2. Hardware Description .................. 4 2.1 Physical Specifications ................5 2.2 Product Features ................. 6 2.3 Specifications ..................8 3. Deployed Devices Monitored via NMS-1000V Controller .........11 4. Network Configuration ................13 5. Setup Wizard ....................14 6. Further Information ...................16...

  • Page 3: Package Contents

    1. Package Contents Thank you for purchasing PLANET Universal Network Management Controller. PLANET NMS-1000V comes in two sizes as described below: NMS-1000V-12 Universal Network Management Controller with 12" LCD Touch Screen NMS-1000V-10 Universal Network Management Controller with 10" LCD Touch...

  • Page 4: Hardware Description

    2. Hardware Description Audio Line Out USB Port COM 1 COM 2 HDMI LAN Port 9-36V DC IN Power Indicator...

  • Page 5: Physical Specifications

    2.1 Physical Specifications Model NMS-1000V-10 NMS-1000V-12 Dimensions (W x D x H) 285 x 49 x 189 mm 319 x 51.7 x 245 mm Weight 2 kg 2.9 kg NMS-1000V-10 (10” Panel) NMS-1000V-12 (12” Panel)

  • Page 6: Product Features

    Just carefully place the LCD stand on the back of the controller and tighten the given screws to secure the mounting. Panel Mounting There are eight holes located along the four sides of the NMS-1000V. Insert the clamp from the four sides and tighten them with the nuts provided. 2.2 Product Features z Network Devices Management  Dashboard: Providing the at-a-glance view of system, device summary,...
  • Page 7  Node Discovery: To detect PLANET managed devices available and allow AP grouping to accelerate AP management.  Topology Viewer: A topology of network devices compliant with SNMP, ONVIF, Smart Discovery and LLTD Protocol.  Event Reports: The status of a network can be reported via network alarm, and system log.

  • Page 8: Specifications

    2.3 Specifications NMS-1000V-10 NMS-1000V-12 Product Universal Network Management Controller with LCD Touch Screen Platform Form Factor Panel Mount, VESA 100 x 100 ® ® Processor Intel Celeron N2930 up to 1.8 GHz Memory Onboard 4GB DDR3L 1333MHz Physical Specifications 2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports 2 USB 3.0 ports...
  • Page 9 Auto Discovery Supports PLANET devices Providing the at-a-glance view of system, device Dashboard summary, traffic, and PoE network status Device List Allows creation and maintenance of device profiles Provides visual topology view of connected PLANET Topology View devices Status Monitoring Real-time online/offline devices Event and Syslog Report Real-time system event and syslog server supported...
  • Page 10 Console; Telnet; SSL; Network Management Web browser (Chrome is recommended); SNMP v1, v2c, v3 Discovery Supports SNMP, ONVIF and PLANET Smart Discovery Backup System backup and restore to local or USB HDD Provides system reboot manually or automatically Maintenance Reboot...

  • Page 11: Deployed Devices Monitored Via Nms-1000V Controller

    3. Deployed Devices Monitored via NMS-1000V Controller The NMS-1000V can monitor all the deployed wired or wireless PoE industrial– grade network devices, such as managed switches, media converters, routers, smart APs, VoIP phones, IP cameras, etc. compliant with the SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility.
  • Page 12 For more information on the configuration of Managed Devices by using PLANET NMS-1000V Controller, refer to the user manual of the NMS-1000V Controller.

  • Page 13: Network Configuration

    Managed PoE Switch IP Address: 192.168.1.100 Default IP Address: 192.168.1.100 Default Management Port: 8888 (for remote login) Default Username: admin Default Password: admin After logging on, connect the NMS-1000V Controller to the managed network to centrally control PLANET managed devices.

  • Page 14: Setup Wizard

    5. Setup Wizard 1. Account Modification: Set a new account and password for security. 2. IP Configuration Setting: Set the NMS-1000V’s IP into the same local network segment. 3. SNMP Preference Setting: Select region for AP Control (ETSI or FCC) and set...
  • Page 15 4. Devices Discovery: Search the managed devices and add to list. (Finish Wizard)

  • Page 16: Further Information

    6. Further Information The above steps introduce the simple installations and configurations of the NMS- 1000V Controller. For further configurations of PLANET NMS, please refer to the user manual, which can be downloaded from the website. PLANET online FAQs: http://www.planet.com.tw/en/support/faq Support team mail address: support@planet.com.tw...
