Installation quick-start guide
1.4.2

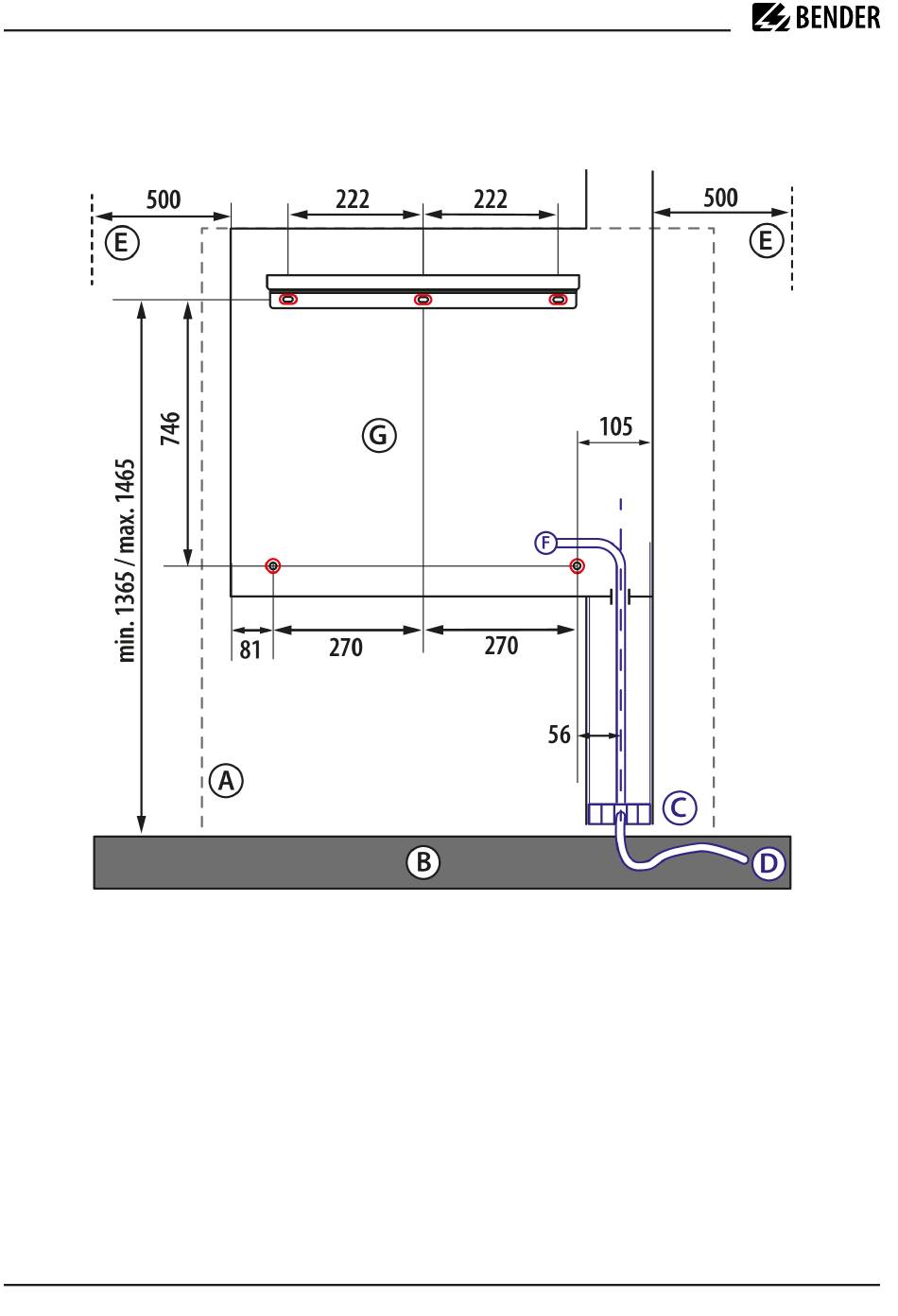

Mounting dimensions
Mounting dimensions
Dimensions in mm
A
Wall
B
Floor
C
Interface area
D
Infrastructure cable (cable length above ground at least 1000 mm)
E
Clearance of at least 500 mm on the left and right
F
Network connection
G
Outline of DC Wallbox with holding rail, cable cover and cut of upper status and lighting mast
Red Drilling holes (top)
Attachment points (bottom)
Blue Positioning area for the network connection
6
iONiX 25_DC-Wallbox_D00461_00_Q_XXEN/11.2023
View on mounting surface and mounting rail
