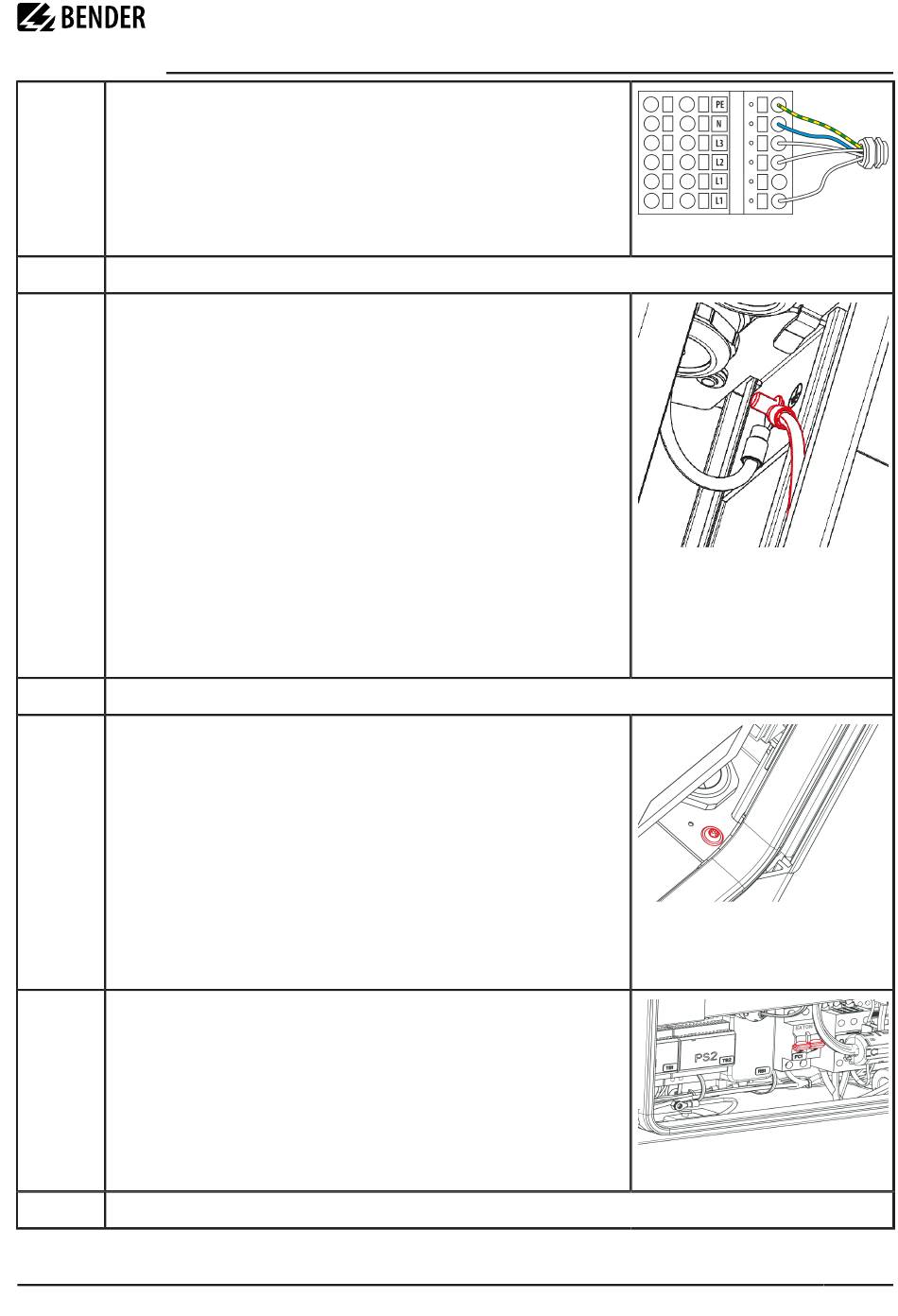

3. Connect the cables to the terminal strip according to the terminal
labelling
4. Check for secure contact in the terminals by pulling on the individual lines
5. Connect and secure the protective earthing
6. Use a washer and nut to connect the cable cover to the protective earthing
7. Slide the cable cover onto the enclosure and fix it with the screw
8. Activate the circuit breaker
9. Latch and lock the door
iONiX 25_DC-Wallbox_D00461_00_Q_XXEN/11.2023
iONiX Light 25 Wallbox
iONiX Medium 25 Wallbox
iONiX Supreme 25 Wallbox
Figure 1-3: Terminals
Figure 1-4: Position of the protective
earthing
View of the DC Wallbox from the
bottom rear
Figure 1-5: Position of the screw
View inside the DC Wallbox bottom
right
Figure 1-6: Circuit breaker position
