Installation quick-start guide
1.5.1
Tools
Tools needed
• Stripping tool
• Open-end spanners with width across flats 10 mm, 40 mm and 43 mm
1.5.2
Procedure
WARNING
Before starting work, make sure that the cables for the power supply of the DC Wallbox are dead and
secured against being switched on again. The five safety rules according to DIN VDE 0105-100 must
be observed!
ADVICE
Before installing the DC Wallbox, check that the connectors are correctly joined, as connectors can come
loose during transport. If a plug has come loose, press it in again to ensure the correct fit of the plug in the
plug tray.
1.
Strip the cables for L1, L2, L3, N and PE: 18 mm to 20 mm
2.
Insert the power cord from below into the DC Wallbox through the
rear cable gland and secure it; loosen with an open-ended spanner if
necessary.
10
iONiX 25_DC-Wallbox_D00461_00_Q_XXEN/11.2023

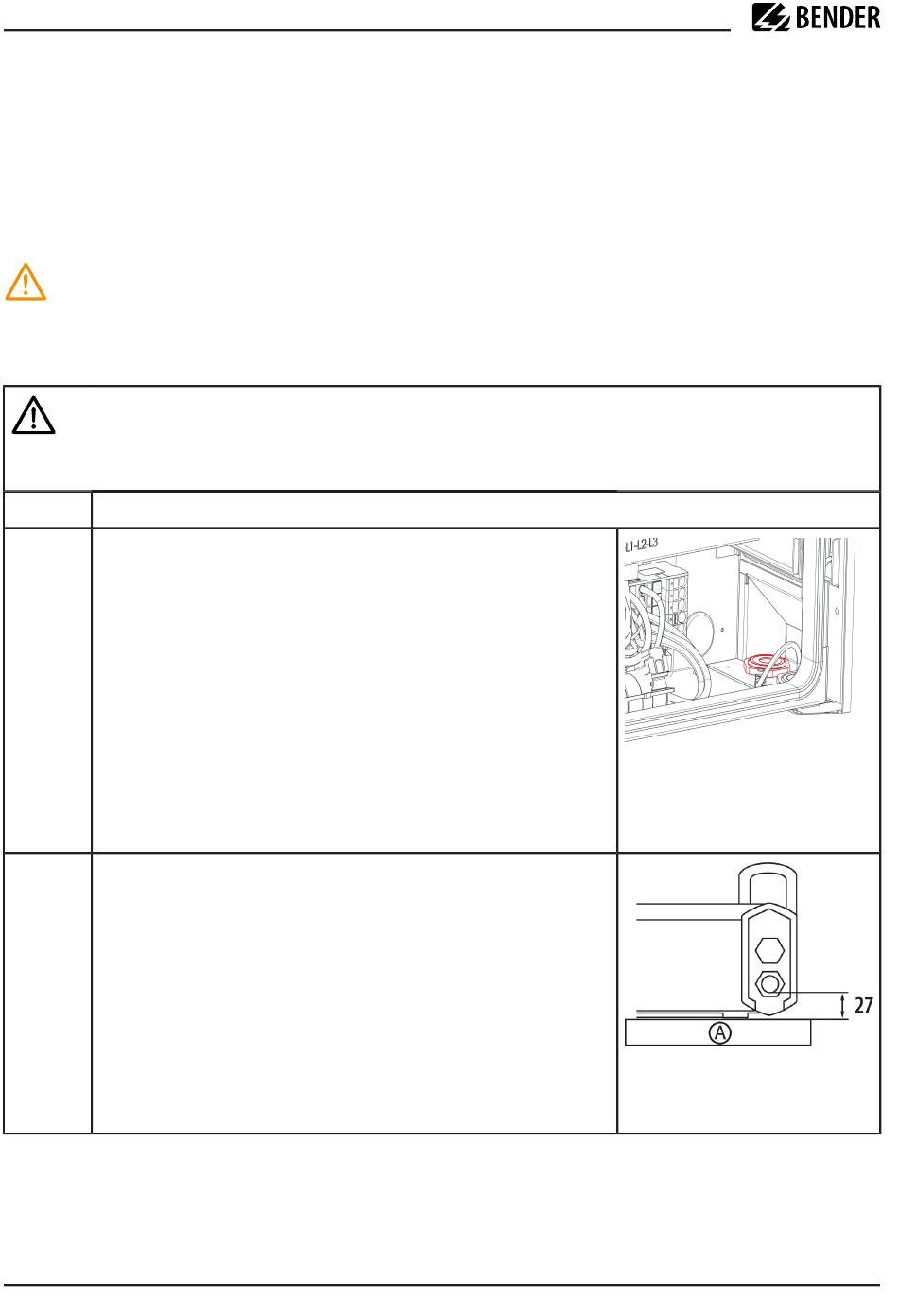

Figure 1-1: Cable gland position
View inside the DC Wallbox bottom
right
Figure 1-2: A: Wall
Network connection wiring / View
from below / Dimensions in mm
