Installation quick-start guide
1.2

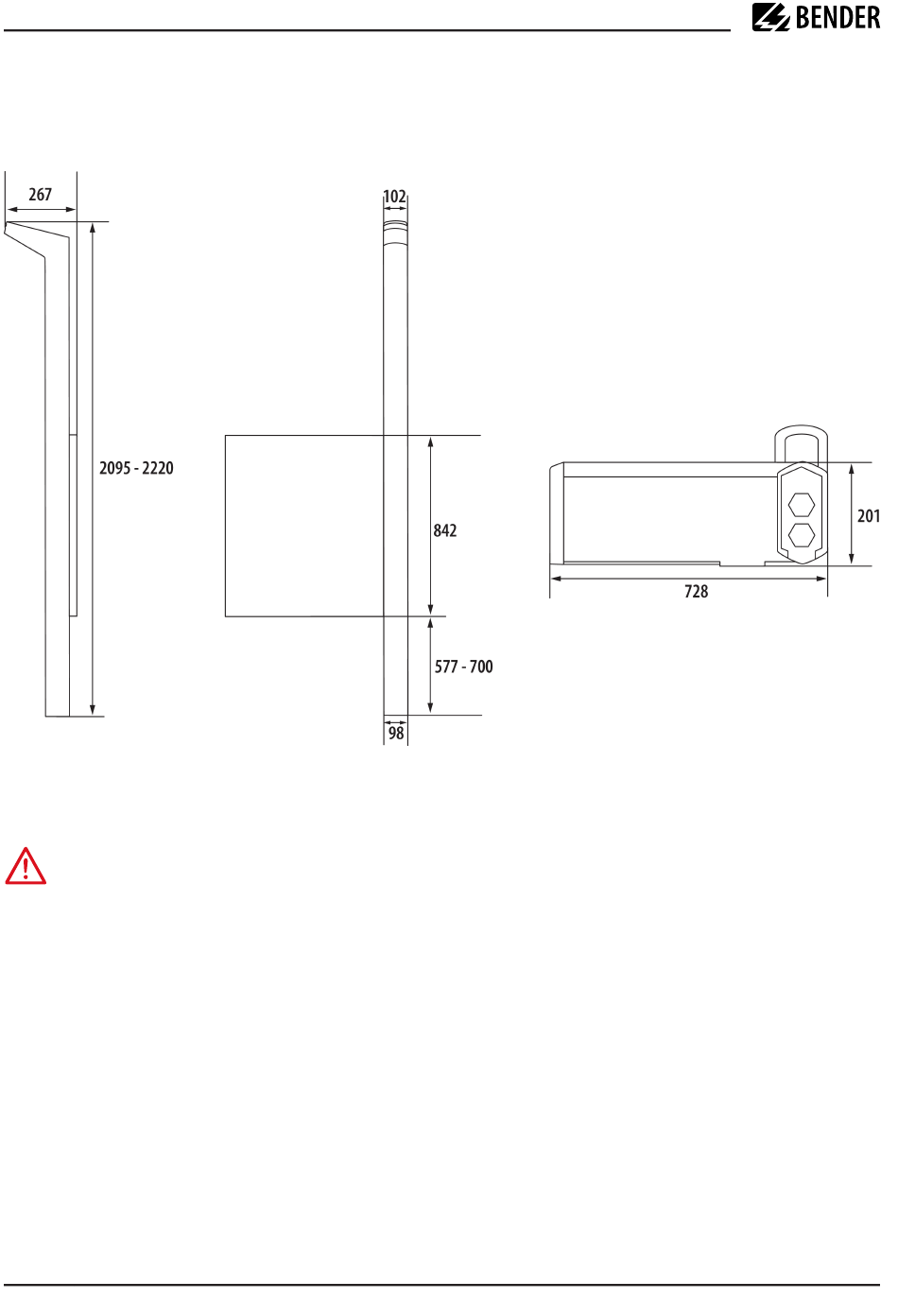

Dimensions
Device dimensions
Dimensions in mm
View from the right
1.3
Requirements
DANGER
Danger to life
The electrical supply line, which is supplied from the sub-distribution, must be de-energised during
the entire mechanical mounting process and electrical installation. The galvanic connection to the
low-voltage network may only be established after the mounting process and electrical installation
have been completed.
For proper and safe operation, the following conditions must be met:
• The wall on which the DC Wallbox is to be installed must be designed for its weight (see "Technical data",
page 12).
• To ensure good ventilation, clearance of at least 500 mm to the left and right of the DC Wallbox must be
planned.
• The installation site must be chosen in compliance with the locally applicable regulations for noise
emissions.
• Heating from external sources must be avoided.
4
iONiX 25_DC-Wallbox_D00461_00_Q_XXEN/11.2023
View from the front
Electric shock
Bottom view
