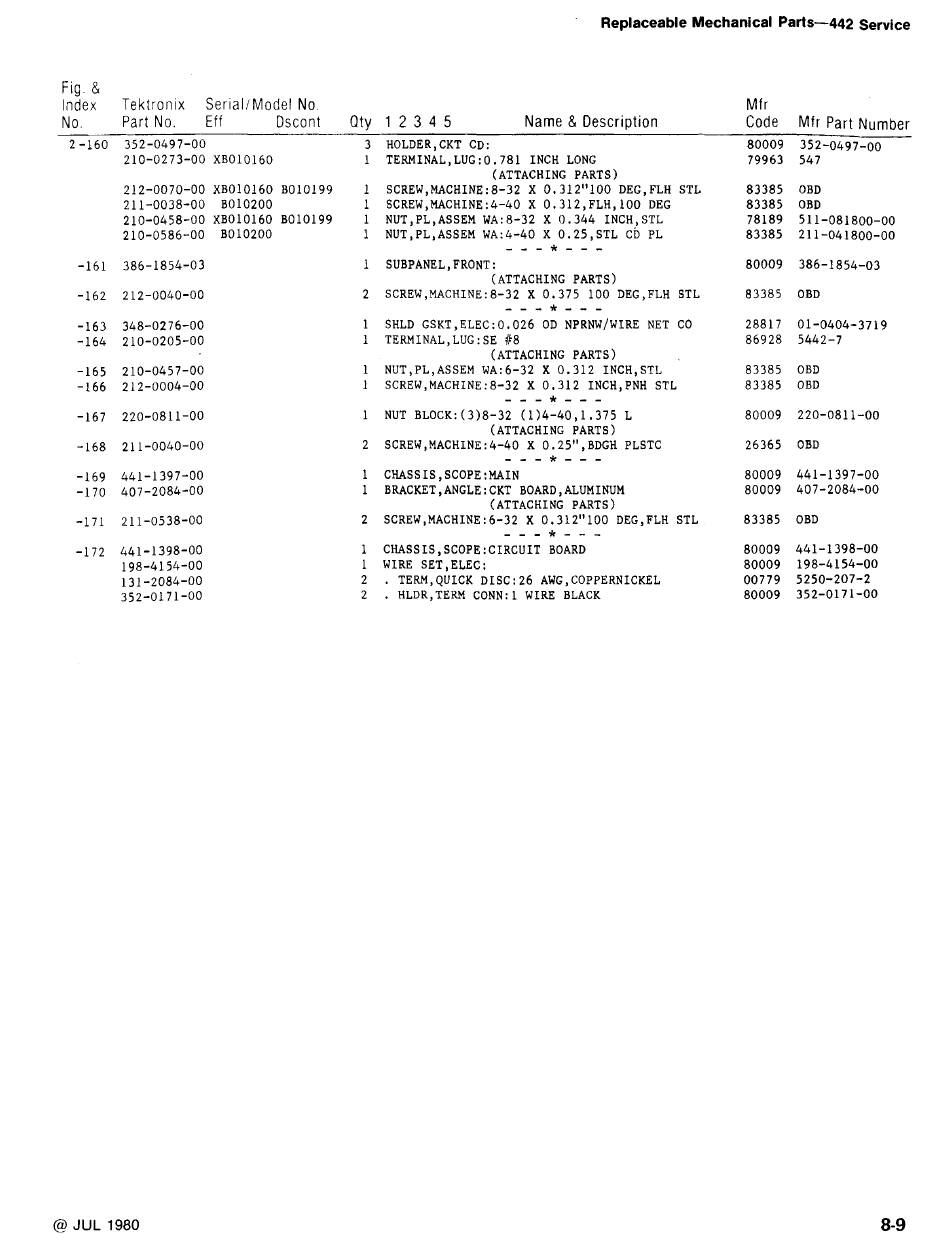

Tektronix 442 Service Manual page 327

Fig. &
Index Tektronix Serial/Model No.
Mfr
No. PartNo. Eff
Dscont Qty 12345 Name & Description
Code Mfr Part Number
2-160 352-0497-00
3 HOLDER,CKT CD: 80009
352-0497-00
210-0273-00 XB010160 1 TERMINAL,LUG:0,781 INCH LONG 79963 547
(ATTACHING PARTS)
212-0070-00 XBO10160 BO10199 1 SCREW,MACHINE: 8-32 X 0.312"100 DEG,FLH STL 83385 OBD
211-0038-00 B010200 1 SCREW,MACHINE:4-40 X 0,312,FLH,100 DEG 83385 OBD
210-0458-00 XBO10160 BO10199 1 NUT,PL,ASSEM WA:8-32 X 0.344 INCH,STL 78189 511-081800-00
210-0586-00 B010200 1 NUT,PL,ASSEM WA:4-40 X 0.25,STL CD PL 83385 211-041800-00
a
-161 386-1854-03 1 SUBPANEL, FRONT: 80009 386-1854-03
(ATTACHING PARTS)
-162 212-0040-00
2 SCREW,MACHINE:
8-32 X 0.375 100 DEG,FLH STL 83385 OBD
a
-163
348-0276-00 1
SHLD GSKT,ELEC:0.026 OD NPRNW/WIRE NET CO
28817 01-0404-3719
-164
210-0205-00 1 TERMINAL,LUG:SE
#8
86928 5442-7
.
(ATTACHING PARTS)
-165 210-0457-00
1 NUT,PL,ASSEM
WA:6-32 X 0.312 INCH,STL
83385 OBD
-166 212-0004-00
1 SCREW,MACHINE:
8-32 X 0,312 INCH,PNH STL 83385
OBD
=. = *& = = =
-167 220-0811-00
1 NUT BLOCK: (3)8-32 (1)4-40,1.375
L 80009 220-0811-00
(ATTACHING PARTS)
-168 211-0040-00
2 SCREW,MACHINE:4-40
X 0.25", BDGH PLSTC
26365 OBD
ee
-169 441-1397-00 1 CHASSIS,SCOPE:MAIN
80009 441-1397-00
-170 407-2084-00
1
BRACKET, ANGLE: CKT BOARD, ALUMINUM
80009 407-2084-00
(ATTACHING PARTS)
"171 211-0538-00
2 SCREW,MACHINE:
6-32 X 0.312"100 DEG,FLH
STL 83385 OBD
=--=--2 ® ee =
-172 441-1398-00
1 CHASSIS,SCOPE:CIRCUIT
BOARD
80009 441-1398-00
198-4154-00
1 WIRE SET,ELEC:
80009 198-4154-00
131-2084-00
2. TERM,QUICK DISC:26
AWG,COPPERNICKEL
00779 5250-207-2
352-0171-00 2. HLDR,TERM CONN:1 WIRE BLACK
80009 352-0171-00
