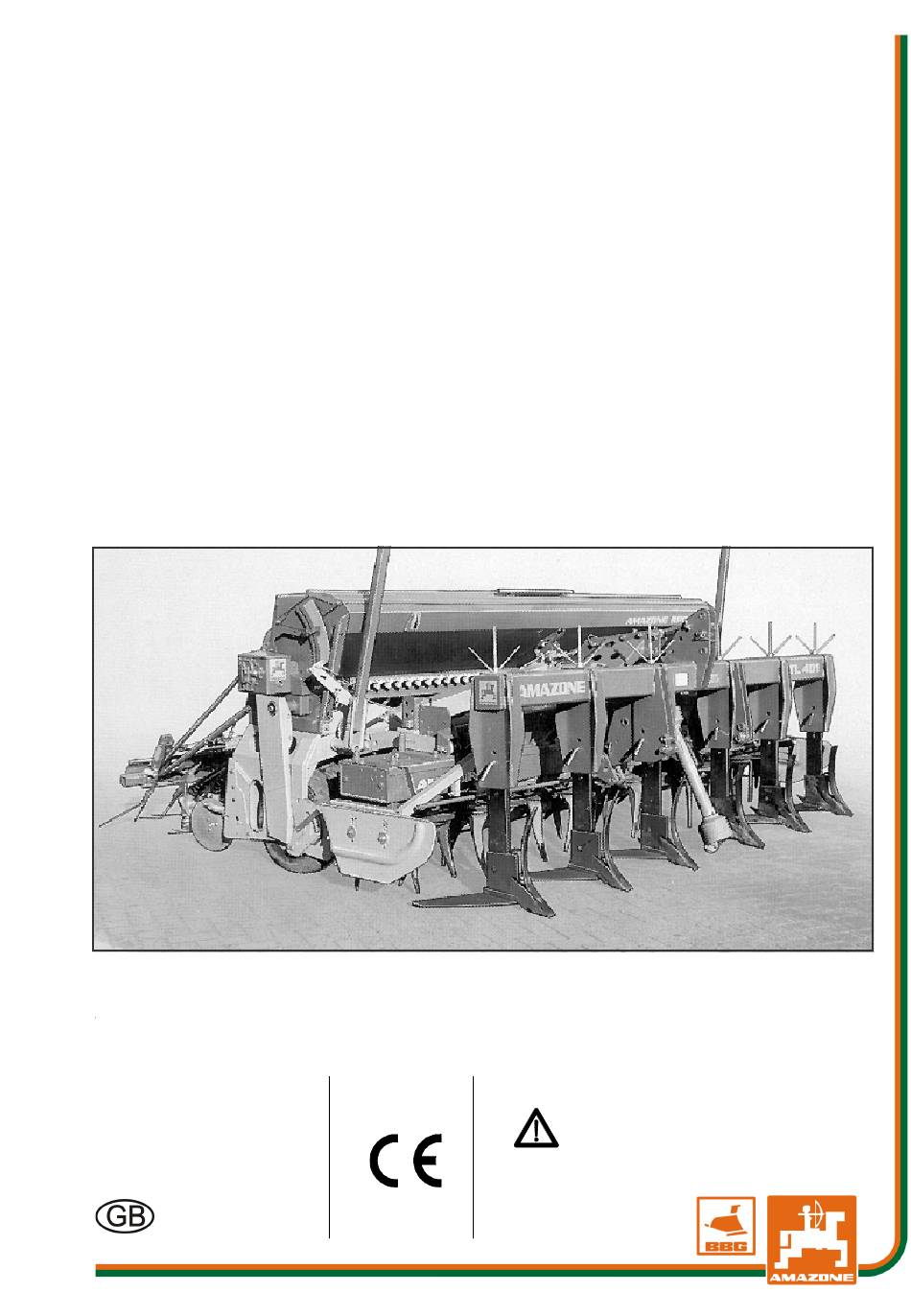

  • Page 1 Operator's manual TL Deep Loosener MG 1022 Before starting to operate, please carefully read and adhere B 312 GB 09.04 to this operator's manual and the Printed in Germany safety advice.
  • Page 2 Copyright © 2004 by AMAZONEN-Werke H. Dreyer GmbH & Co. KG D-49202 Hasbergen-Gaste All rights reserved...
  • Page 3 When ordering options or spare parts or in case of any queries, please always quote the type of your deep loosener and the serial number. AMAZONE-TL deep loosener ........ Serial No.: ..............Claims under warranty will only be accepted when in case of repair, original AMAZONE spare parts and wearing parts have been used.
  • Page 4: Table Of Contents

    AMAZONE-till and drill combination ..........9 Mounting to the tractor ............... 9 Setting the length of the deep loosening legs ........ 13 Attaching the deep loosener on to a PTO driven AMAZONE soil tillage implement ................17 The share ................... 19 Soil guide share ...................
  • Page 5: Important Hints

    Please make available all safety advice also to other users. Important hints The AMAZONE-TL deep loosener has been designed for the exclusive use in usual agricultural opration (intended use). Any use beyond this is no longer considered as intended use. The manufacturer does not accept any responsibility for damage resulting from non-compliance and therefore, the operator himself carries the full risk.
  • Page 7: Details About The Machine

    365 kg 525 kg t312GB01 please also refer to: Fig. 1: AMAZONE-TL 251 deep loosener Fig. 2: AMAZONE-TL 301 deep loosener Fig. 3: AMAZONE-TL 401 deep loosener Range of application AMAZONE-deep loosener Deep loosening and stubble tillage for the seed bed preparation...
  • Page 8: Safety Advice

    Safety advice Before starting to operate check the implement and the tractor for traffic and operational safety. The fitted warning- and advising decals give important hints for a safe operation; adhering to them protects your own safety. Put implement or combination into operation only when all guards are fixed in position.
  • Page 9: Safety Advice For Road Transport

    Safety advice for road transport When travelling on public roads observe the traffic regulations in force in your country. Check and fit equipment for road transport, like e.g. traffic lights, warning plates and, if existing, guards! Observe the permissible axle loads, total weights and transport dimensions. When driving on public roads with lifted implement the control lever has to be locked against unintended lowering.
  • Page 11: Amazone-Till And Drill Combination

    AMAZONE provides the right soil tillage implement for any kind of soil and any plant life. Combinations of AMAZONE deep looseners and PTO driven soil tillage implements are available for the following ranges of operation: AMAZONE-rotary cultivator (Fig.
  • Page 13: Mounting To The Tractor

    3.0 Mounting to the tractor Mount the deep loosener directly behind the tractor. In case the deep loosening legs (Fig. 5/1) protrude so far that a coupling to the tractor is not possible, re-adjust the legs as described under para. 4 in their retainers. For this, briefly lift the deep loosener, e.g.
  • Page 15: Setting The Length Of The Deep Loosening Legs

    4.0 Setting the length of the deep loosening legs The deep loosening legs (Fig. 6/1) of the deep loosener can be individually adjustet in their retainers, e.g. for setting the working depth. Prior to any setting slightly lift the deep loosener. Never ever adjust the deep loosening legs if the deep loosener – when coupled off till- and drill combination - is resting on its shares.
  • Page 19: Attaching The Deep Loosener On To A Pto Driven Amazone Soil Tillage Implement

    11/1) in such a way, that the soil tillage implement is in about horizontal operational position. The combination of deep loosener and AMAZONE rotary cultivator or rotary harrow requires a 760 mm long PTO shaft. Please only use the PTO shaft W 2500. The PTO shaft is equipped with an overload clutch.
  • Page 21: The Share

    6.0 The share Each share consists of several individual parts. In this way, wearing parts can be quickly exchanged. The shares consist of: Figure Description No.: Spring steel deep loosening leg (2 pieces) Leg shoe Expansion pin DIN 1481, 12 x 45 Expansion pin DIN 1481, 20 x 45 Share tip Fillister head bolt DIN 912 M 20 X 60 12.9...
  • Page 23: Soil Guide Share

    300 mm wide wing shares As standard the deep loosener is equipped with 600 mm wide wing shares (Fig. 15/ 1). Exception: the TL 251. Its outer shares are equipped with 300 mm wide wing shares. (Fig. 15/2). For stubble tilth or shallow working depth within a range of 5 and 10 cm the use of the 600 mm wide wing shares is recommended.
  • Page 25: Fields Where Much Straw Prevails On The Surface

    (Fig. 13/1). The straw is mulched by the rotary cultivator near to the surface. With this compact and easy to lift combination of deep loosener and AMAZONE rotary harrow no blockage problems will occur. With much straw, large working depths and high forward speeds, however, blockage problems in front of the rotary cultivator may arise.
  • Page 27: Putting Into Operation

    9.0 Putting into operation Before starting operation lower the till- and drill combination by using the tractor’s hydraulic system until the rotary cultivator’s tines are just over the soil but do not touch it. Bring the PTO shaft of the PTO driven soil tillage implement to the prescribed speed.
  • Page 29: When Having Finished The Operation

    10.0 When having finished the operation The deep loosener can be parked together with the coupled till- and drill combination. Usually the tools of the deep loosener and the PTO driven soil tillage implement are set in such a way that they work in different depths in the soil. For parking the entire combination align the shares of the deep loosener with the tines of the soil tillage implement.
  • Page 30: Maintenance And Cleaning Schedule

    Before conducting electric welding operations on tractor or on the mounted implement, remove cable from generator and battery. Any spare parts fitted must, in minimum, meet with the implement manufacturers’ fixed technical standard. This is, for example, ensured by using original AMAZONE spare parts.
