Zte VS2801SG User Manual

Zte VS2801SG User Manual

1ge dual mode onu
Hide thumbs
Table of Contents

Advertisement

Quick Links

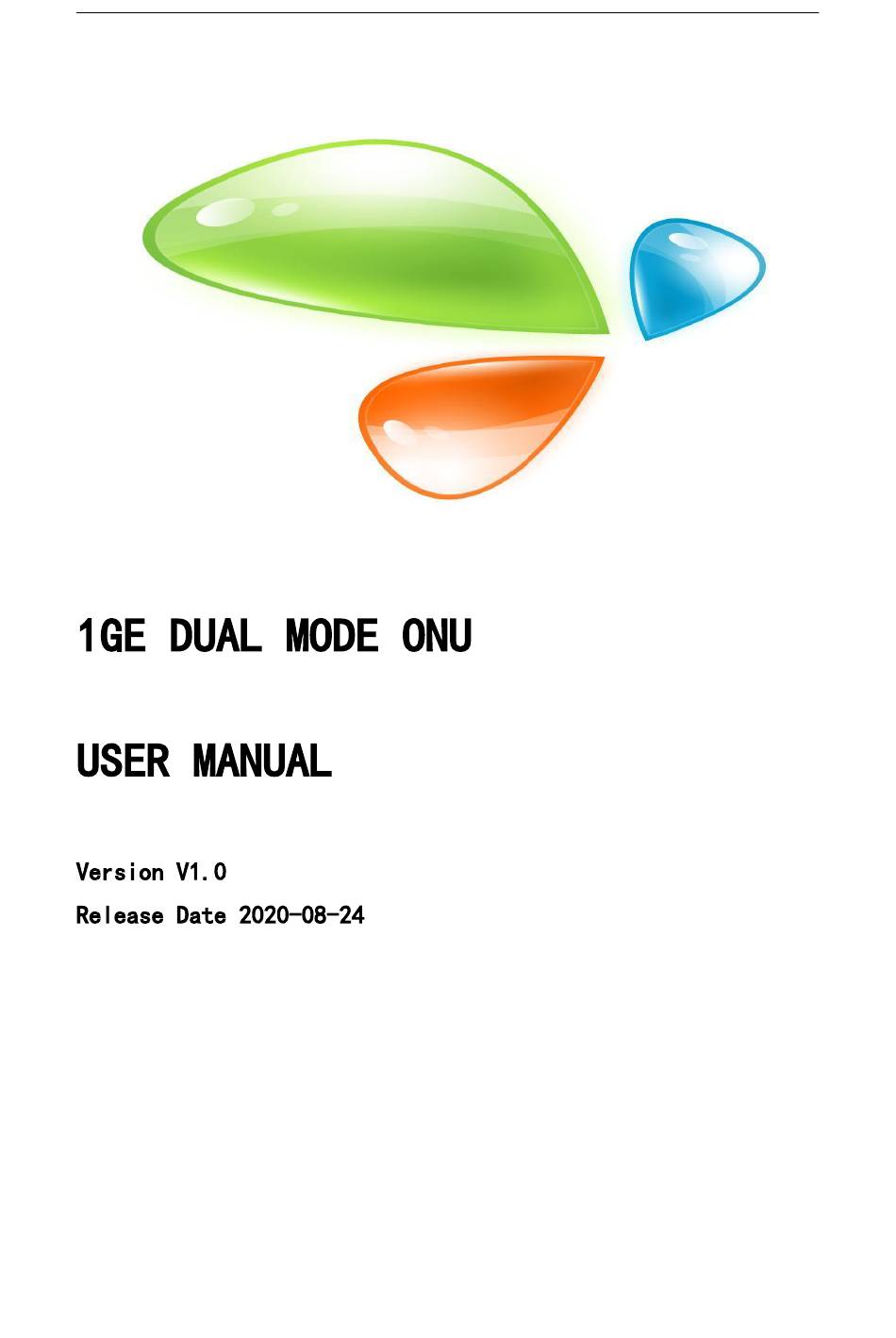

1GE DUAL MODE ONU
USER MANUAL
Version V1.0
Release Date 2020-08-24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS2801SG and is the answer not in the manual?

Questions and answers

Related Manuals for Zte VS2801SG

Summary of Contents for Zte VS2801SG

  • Page 1 1GE DUAL MODE ONU USER MANUAL Version V1.0 Release Date 2020-08-24...

  • Page 2: Table Of Contents

    1GE Dual Mode ONU User Manual Contents Chapter 1 Product Introduction 1.1 Product Description 1.2 Special features 1.3 Technical Parameter 1.4 Application chart 1.5 Panel description Chapter 2 Quick Installation 2.1 Standard Packing Contents 2.2 Quick Installation Chapter 3 Configuration 3.1 Login 3.2 Status 3.2.1 Device Information...
  • Page 3 1GE Dual Mode ONU User Manual 3.6.3 System Management 3.6.4 Diagnosis 3.6.5 Loopback Detection 3.6.6 LED Control 3.8 Help Page 2...

  • Page 4: Chapter 1 Product Introduction

    1GE Dual Mode ONU User Manual Chapter 1 Product Introduction 1.1 Product Description 1GE Dual mode ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design EPON/GPON Gigabit Ethernet products. It is based on mature and stable, cost-effective EPON/GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees.

  • Page 5: Application Chart

    1GE Dual Mode ONU User Manual Optical interface SC/PC connector 1* 10/100/1000Mbps auto adaptive Ethernet interfaces. Full /Half Interface Duplex, RJ45 connectors. Indicator 3 indicators, SYS, LINK/ACT, REG. Operating condition -5℃～55℃，10%～90%（non-condenseing） Storing condition -30℃～60℃，10%～90%（non-condenseing） Power supply DC 12V, 0.5A Power consumption ≤4W Dimension 82mm×82mm×25mm （L×W×H）...
  • Page 6 1GE Dual Mode ONU User Manual Figure 1-3: Interface/Button panel Name Function Connect to OLT by SC type fiber connector, single mode optical fiber cable. Connect PC or other devices with Ethernet port by Cat5 cable, RJ-45 connector. DC 12V Connect with power adapter.

  • Page 7: Chapter 2 Quick Installation

    1GE Dual Mode ONU User Manual Chapter 2 Quick Installation 2.1 Standard Packing Contents When you received our product, please check carefully to make sure that our products whether have some defects or not. If something wrong with shipping, please contact carrier; other damage or lack of some parts, please contact with dealer.
  • Page 8 1GE Dual Mode ONU User Manual and the distance between them must be 145mm. Reserved at least 6mm between the screw caps and the wall. b) Hang the ONU on the screws through the mounting holes. Page 5...

  • Page 9: Chapter 3 Configuration

    1GE Dual Mode ONU User Manual Chapter 3 Configuration After finishing the basic connection configuration, you can use its basic function. In order to satisfy individuation service requirements, this charter provides the user parameter modification and individuation configuration description. This model of ONU is designed as SFU(single family unit, bridge mode), there is no bridge mode WAN in ONU.

  • Page 10: Status

    1GE Dual Mode ONU User Manual Figure 3-2: Change Password 3.2 Status This part shows the main information of product. 3.2.1 Device Information This page shows the device basic information, such as Device Model, Hardware Version, Software Version, PON SN, PON mode and so on. Figure 3-3: Device Information 3.2.2 Network Interface 3.2.2.1 WAN Connection...

  • Page 11: User Interface

    1GE Dual Mode ONU User Manual Figure 3-4: WAN Connection 3.2.2.2 PON Inform This page shows the PON information, such as PON state, input power, output power, and optical module voltage, current, temperature. Figure 3-5: PON Information 3.2.3 User Interface This page shows the Ethernet port information, including port status, MAC address and statistics.

  • Page 12: Network

    1GE Dual Mode ONU User Manual Figure 3-6: Ethernet Information 3.3 Network 3.3.1 Internet This page allows user to configure router mode WAN connection. You can only configure route mode WAN connections here. The device default settings is bridge mode(without any WAN).
  • Page 13 1GE Dual Mode ONU User Manual Figure 3-7: WAN Connection Parameter Illustration The list of WAN connection name that has been created. If you want to create a new WAN connection, please select “Create WAN Connection” and input other Parameter at the same time and then click “Create”...

  • Page 14: Lan

    1GE Dual Mode ONU User Manual Username PPPoE account. Password PPPoE password. DMS name Server name. Authentication PPPoE authentication type, including Auto, PAP and CHAP. Type The trigger of PPPoE connection after disconnected. Always On: once PPPoE disconnected, ONU will connect again Connection automatically.
  • Page 15 1GE Dual Mode ONU User Manual Figure 3-8: LAN IPv4 Address Settings Parameter Illustration LAN IP Address LAN IPv4 address. Subnet Mask LAN IPv4 mask. Enable DHCP Server Switch of ONU DHCP server. Start IP Address The start IP address of DHCP IP pool. End IP Address The end IP address of DHCP IP pool.
  • Page 16 1GE Dual Mode ONU User Manual Figure 3-9: RA Configuration 3.3.2.3 DHCP Server(IPv6) This page contains LAN IPv6 address and LAN DHCP server configurations. Figure 3-10: LAN IPv6 Address Settings 3.3.2.4 Prefix Management This page is used to configure IPv6 prefix parameters. Page 13...

  • Page 17: Pon Settings

    1GE Dual Mode ONU User Manual Figure 3-11: Prefix Management 3.3.2.5 Port Service(Ipv6) This page is used to configure DHCPv6 and RA function of LAN port. Figure 3-12: Port Service(IPv6) 3.3.3 PON Settings 3.3.3.1 LOID This page allows user to configure LOID and password which are used for registering to OLT.
  • Page 18 1GE Dual Mode ONU User Manual Figure 3-13: LOID settings 3.3.3.2 SN This page allows user to configure GPON SN and password which are used for registering to OLT. Figure 3-14: GPON SN Settings 3.3.3.3 PON Mode This page allows user to configure PON mode when connected to corresponding system. AUTO: ONU will detect PON mode and shift to proper PON mode.

  • Page 19: Routing(Ipv4)

    1GE Dual Mode ONU User Manual Figure 3-15: PON Mode 3.3.4 Routing(Ipv4) 3.3.4.1 Default Gateway This page allows user to configure default gateway of ONU . Just need to specify the WAN connection that connected to the gateway. Figure 3-16: Default Gateway 3.3.4.2 Static Routing This page allows user to specify a WAN connection as the Route Interface, and then configure destination IP, mask and gateway.

  • Page 20: Security

    1GE Dual Mode ONU User Manual Figure 3-17: Static Routing Parameter Illustration WAN Connection Select WAN connection as static routing interface. Network Address Destination network address. Subnet Mask The Mask of destination network address. Gateway Gateway IP address of static routing. 3.3.4.3 Routing Table This page displays IP routing rules.

  • Page 21: Firewall

    1GE Dual Mode ONU User Manual 3.4.1 Firewall This page allows user to set anti-hacking protection and the level of the firewall (IPv4). User also can set custom firewall rules. Figure 3-19: Firewall Level Parameter Illustration Enable Anti-Hacking Anti-Hacking Protection switch. Protection Low: Allow all inner or outer hosts to access.
  • Page 22 1GE Dual Mode ONU User Manual Figure 3-20: Custom Firewall Rule Parameter Illustration IP Version Select IPv4 or IPv6. Name Firewall rule name. Enable Enable or disable the rule. Order Order of the rule. Select protocol which the rule used for. There are only several Protocol protocols can be selected.

  • Page 23: Service Control

    1GE Dual Mode ONU User Manual 3.4.2 Service Control This page allows user to set IP filter rules. Figure 3-21: Service Control Parameter Illustration IP Version Select IPv4 or IPv6. Enable Enable or disable IP filter rule. Ingress Ingress interface of data traffic. Start Source IP Address Start source IP address of data traffic.

  • Page 24: Mac Filter

    1GE Dual Mode ONU User Manual Figure 3-22: Remote Access Port 3.4.3 MAC Filter This page allows user to set the relevant parameters of the MAC filter function. The table will display the MAC Filter rules after setting completed. Figure 3-23: MAC Filter Parameter Illustration Enable...

  • Page 25: Application

    1GE Dual Mode ONU User Manual Source MAC Address Source MAC address of data traffic. Destination MAC Destination MAC address of data traffic. Address 3.5 Application 3.5.1 Multicast 3.5.1.1 IGMP Mode This page allows user to enable or disable IGMP snooping. Figure 3-24: IGMP Mode 3.5.1.2 Basic Configuration This page allows user to configure IGMP basic configuration, including multicast aging...
  • Page 26 1GE Dual Mode ONU User Manual Figure 3-25: IGMP Basic Configuration 3.5.1.3 VLAN Configuration This page allows user to configure multicast VLAN for the port. If WAN VLAN is not the same as LAN VLAN, it means multicast VLAN will be translated. Figure 3-26: Multicast VLAN 3.5.1.4 Tag Configuration This page allows user to configure multicast VLAN untag mode.

  • Page 27: Bpdu

    1GE Dual Mode ONU User Manual Figure 3-28: Maximum Address Configuration 3.5.2 BPDU This page allows user to enable or disable RSTP BPDU(Bridge Protocol Data Unit) forwarding. Figure 3-29: BPDU Forwarding 3.5.3 DNS Service 3.5.3.1 Domain Name This page allows user to configure domain name of ONU. Users can access ONU webpage by this domain name.

  • Page 28: Port Forwarding

    1GE Dual Mode ONU User Manual Figure 3-30: Domain Name 3.5.3.2 DNS This page allows user to configure DNS server. DNS request will be sent to these DNS servers. Figure 3-31: DNS 3.5.3 Port Forwarding This page allows user to configure port forwarding. Page 25...

  • Page 29: Administration

    1GE Dual Mode ONU User Manual Figure 3-32: Port Forwarding Parameter Illustration Enable Enable or disable port forwarding rule. Name Name of the port forwarding rule. Protocol Protocol of the port forwarding rule, including TCP and UDP. WAN Host Start/End IP Specify WAN host IP range for the port forwarding rule.

  • Page 30: User Management

    1GE Dual Mode ONU User Manual Figure 3-33: User Management 3.6.2 Login Timeout This page allows user to set webpage login timeout. If don’t operate the webpage for the time out, the account will logout automatically. Figure 3-34: Login Timeout 3.6.3 System Management 3.6.3.1 System Management This page allows user to reboot the device, restore factory default and restore backup...
  • Page 31 1GE Dual Mode ONU User Manual Figure 3-35: System Management 3.6.3.2 Software Upgrade This page allows user to update software of the device. Click the “Choose File” button to select the software and then click the “Update” button to update. Figure 3-36: Software Upgrade 3.6.3.3 Configuration Management This page allows user to backup and restore configuration.
  • Page 32 1GE Dual Mode ONU User Manual Figure 3-37: Configuration Management 3.6.4 Diagnosis 3.6.4.1 PING Diagnosis This page shows about the ping test. You can diagnose connection status between ONU and other devices. Figure 3-38: PING Diagnosis Parameter Illustration IP Address or Host Name Input the destination IP you want to ping.
  • Page 33 1GE Dual Mode ONU User Manual traffic of WAN connection will be copied and sent to LAN port. Figure 3-39: Port Mirror Parameter Illustration Source Select WAN connection as mirrored interface. Destination The LAN port is mirroring interface. 3.6.5 Loopback Detection 3.6.5.1 Basic Configuration This page allows user to set basic parameters of loopback detection.
  • Page 34 1GE Dual Mode ONU User Manual Ethernet Type Set the Ethernet type of loopback packet. Send Interval Set sending Interval time of loopback packet. Set how much time the port will be closed once detected Port Closing Time loopback. Loopback Recovery Time Set loopback recovery time.
  • Page 35 1GE Dual Mode ONU User Manual Figure 3-42: VLAN Configuration 3.6.6 LED Control This page allows user to turn off or turn on the LED indicators. Figure 3-43: LED Control 3.8 Help The Help information of ONU displays instruction and prompt of each web UI. Page 32...
  • Page 36 1GE Dual Mode ONU User Manual Figure 3-44: Help information Tento manuál je dostupný rovněž online na https://docs.netvia.cz/ DOVOZCE: NETVIA s.r.o. Stroupeč 33 438 01 Žiželice Česká Republika Web: www.netvia.cz E-mail: info@netvia.cz NETVIA s.r.o. prohlašuje, že výrobek V1600GS je navržen a vyroben ve shodě...
