4G/Wi-Fi hotspot "Beeline"
Internet at home and outdoor
Appearance and review of 4G/Wi-Fi hotspot
controls

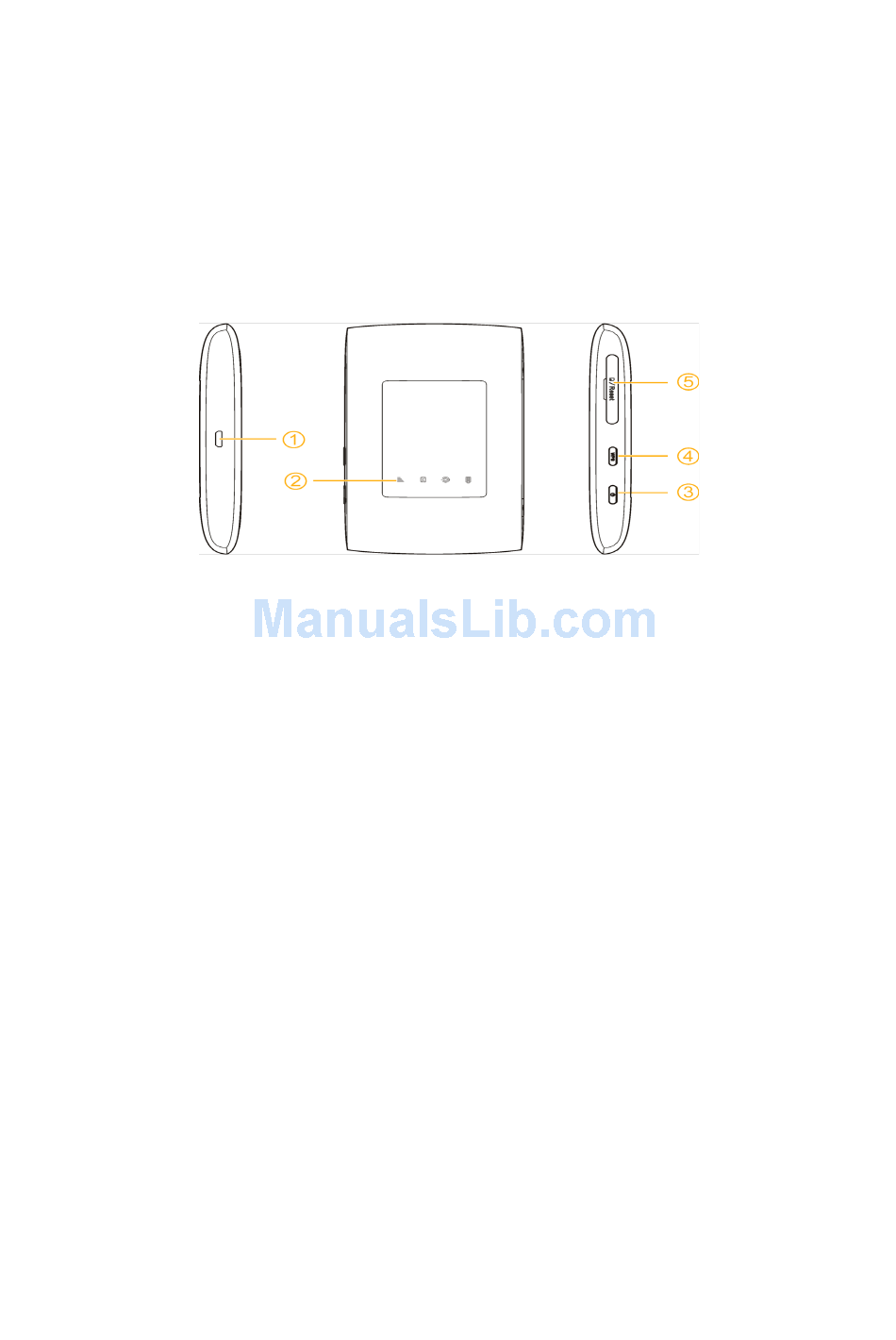

Appearance
1.
Micro USB connector for connection to computer or charger.
2.
LED indicators.
3.
Power button. Hold button to turn on/off the device.
4.
WPS button (Wi-Fi protected setup) and on/off Wi-Fi. Hold button for 5 seconds to activate
WPS. Short press to turn on/off Wi-Fi function.
5.
USIM card slot.Reset button to reset factory defaults.

Advertisement

loading

  Summary of Contents for Zte MF920

  • Page 1 4G/Wi-Fi hotspot “Beeline” Internet at home and outdoor Appearance and review of 4G/Wi-Fi hotspot controls Appearance Micro USB connector for connection to computer or charger. LED indicators. Power button. Hold button to turn on/off the device. WPS button (Wi-Fi protected setup) and on/off Wi-Fi. Hold button for 5 seconds to activate WPS.
  • Page 2 LED indicators status description Indicat Name Status Description Critical battery level. Please, connect Blinking red charger. Solid red Low battery. Blinking Charging battery. green Battery Middle battery level or battery is fully Solid green charged. Device is turned off, in stand by mode and not charging, or battery is removed.
  • Page 3 Getting started Step 1. Installation of USIM card Remove flip on side of the device. Insert USIM card into the router in right direction. Make sure that USIM card is tightly inserted. Attention: Correct work of router and software is guaranteed only with "Beeline" USIM. To reset MF 920 to factory defaults press button as per picture below.
  • Page 4 Step3. Connection router with other devices Connection via USB cable Connect USB cable to router, then connect USB jack to any free USB port of PC. Connection via Wi-Fi Make sure that your router is turned on. Start searching wireless networks on device, which you want connect to router. Note: you must set automatically obtain IP address in device settings, which you are going to connect with router.
  • Page 5 PC’s with Apple Mac OS X Open the disk Beeline, which appears on the desktop. If there is no any Beeline disk on the desktop, then press keyboard keys simultaneously and on the left side of the opened Devices window select Beeline disk.
  • Page 6 Error. No network or USIM card not Solid red inserted. Solid green Registered in 2G/3G network. Registered in 2G/3G network and Blinking gree connected to Internet. Data transfer is Network signal active. Solid blue Registered in 4G network. Registered in 4G network and Blinking blue connected to Internet.
  • Page 7 Note: You can write or remember network SSID and password of Wi-Fi network. It will be need it if you plan to connect to router via Wi-Fi. Step 2. Power on Hold power button on body of device and do not release, before LED indicators will be turned on. Step3.
  • Page 8 PC’s with Microsoft® Windows® OS Installation of the 4G/Wi-Fi hotspot "Beeline" application starts automatically after a time. Wait installation program starts and follow its prompts. During installation do not disconnect the router from PC. If automatic installation fails to start, install it manually: Open Computer.
  • Page 9 Name Description Status bar displays current USIM card status, current network type Status bar, and signal strength. language bar Language bar allows you to quickly switch WEB UI language. On click will open Wi-Fi settings section, which allows you configure Wi-Fi Info Wi-Fi, check current list of connected devices via Wi-Fi.
  • Page 10 Internal pages. All internal pages made using one template. Each page contain information and control elements according with section name. Name Descrption Displays current section title. On click will open Section header main menu, which allows you to move between main sections of WEB UI.
  • Page 11 data connection. Also displays current connection status and current upload/download rate. Access to the Internet Connection to the Internet 1. Open WEB UI in your WEB browser and click on Connection tile. In few seconds, your PC will connect to Internet. Note: in Settings section you can enable Autoconnect option to establish connection automatically.
  • Page 12 • The addressee will receive your SMS with the text: "This subscriber asks you to top-up his or her/his account". Regarding the request delivery you’ll be notified with SMS as well. Attention: You can ask for money from another subscriber maximum 5 times a day (a day refers to a time interval between 00:00 and 24:00, Moscow time).
  • Page 13 Advanced features This section briefly describes advanced features when using the 4G/Wi-Fi hotspot “Beeline”. SMS-communication To communicate with your friends use the services available in the 4G/Wi-Fi hotspot Beeline” “ program, Communication section. To open Communication section open WEB UI and click on Messages tile.
  • Page 14 In Wi-Fi Internet section you can set connection settings to other router, to use data connection of this device providing access to this data connection to all devices, which is connected to 4G/Wi-Fi hotspot “Beeline” via Wi-Fi or USB cable. In Information section you can see current information about network status, Internet connection, check USIM card status and current software version of device.
  • Page 15 Using the “Mobile payment” service No need to go out to pay. With the service of Mobile payment you can regularly pay any time through a convenient web-site menu. Now, it is possible for plastic cards owners of Alpha-bank, Russkii standard and VTB 24. If you have any of the cards above, first register it through a cash machine of your bank.
  • Page 16 Appendix 2. How to change APN profile 4G/Wi-Fi hotspot Beeline” is preconfigured for working in “Beeline” network. Do not change APN profile “ settings without necessity. If you want to change APN profile settings, make as follows: • Open WEB UI and click on Settings tile. In section menu choose Connection item. •...
  • Page 17 Battery Information Manufacturer: ZTE Model: Li3820T43P3h715345 Capacity: 2000 mAh(7.6 Wh) Type: Li-Ion Nominal Voltage: 3,8 V Limited charge voltage: 4,35 V Standard: GB / T 18287 • Battery is not removable; • Do not disassemble or short circuit the battery;...
  • Page 18 Router operation rules • Use router and USIM card with care, store them in clean places without dust, do not expose to fire. • Always keep it dry. • Do not drop, throw and bend the router. • Do not scratch or paint the router. •...
  • Page 19 Microsoft. Liability limitation PJSC VimpelCom and ZTE Corporation shall not be liable for any loss of profit, indirect or special damages, incidental or consequential damages arising out of or in connection with the use of the device no matter whether ZTE Corporation and PJSC VimpelCom were informed, knew or should have known about the possibility of such damages.
  • Page 20 Authorization. To access 4G/Wi-Fi hotspot settings you need to enter a password on the login page. Default password - admin. Enter your password and click "Login”. Main page. Contain links to all sections, and also information about current router status, network information etc.
  • Page 21 section for sending USSD Services tile commands, for checking current balance, phone number etc. On click will open Help section with Help tile information about device. Check balance Allows you to check your current tile balance. Internal pages. All internal pages made using one template. Each page contain information and control elements according with section name.
  • Page 22 subsection. Use this menu to switch between functions of current subsection. Display current Subsection content subsections content. On click allows you to connect/disconnect your data connection. Connection status tile Also displays current connection status and current upload/download rate. Access to the Internet Connection to the Internet 1.
  • Page 23 Asking for money from another subscriber • Open WEB UI and click on Manage services tile. • In drop-down menu choose Give me money item. • Enter phone number of the subscriber you want to ask for money to the Enter a phone number field.
  • Page 24 Service and tariff management To change your tariff, enable or disable any supplementary services, use Manage services section options. To change your tariff or enable/disable and additional services, make as follows: • Open WEB UI. Click on Manage Services tile. •...
  • Page 25 In Device section you can change current password to access WEB UI, modify SMS settings, make factory reset of device settings, reboot device, set power save mode, check for software update and change PIN code of USIM card. Be careful and cautious when setting up and entering PIN and PUK. If you enter incorrect PIN for 3 times, your USIM will be blocked.
  • Page 26 Appendix 1. Payment methods Trusted Payment service If your account balance has almost no money and you have no possibility to top-up your balance, you can request Trusted Payment. According to your request “Beeline” will temporarily top-up your account's balance and you will have up to 3 days to return this money back to “Beeline”! To get Trusted Payment: •...
  • Page 27 Note: Number of banks whose clients can free of charge replenish their balance using bank cards is increasing. For details and actual list of banks see Mobile telephony > How to pay at , and “Beeline” http://www.beeline.ru distribution offices. Payment with cash In shops, petrol stations, etc.
  • Page 28 Get credit Enter *100# and push [Send] Appendix 2. How to change APN profile 4G/Wi-Fi hotspot Beeline” is preconfigured for working in “Beeline” network. Do not change APN profile “ settings without necessity. If you want to change APN profile settings, make as follows: •...
  • Page 29 32/64 bit, 8 (8.1) 32/64 bit, 10 32/64 bit) and Apple Mac OS X (10.9, 10.10, 10.11). * - A stable operation of the router software is not guaranteed, due to the lack of general support for Windows XP, the operating system manufacturer. Battery Information Manufacturer: ZTE Model: Li3820T43P3h715345 Capacity: 2000 mAh(7.6 Wh) Type: Li-Ion...
  • Page 30 • Browser: Internet Explorer 9 or above; Mozilla Firefox 21.0 or above; Safari 5.0 or above; Opera 12.0 or above; Google Chrome 31.0 or above. • LAN or Wi-Fi network interface to establish connection with device. • Display resolution: 1024 x 768 or above (recommended —1280 x 1024). * - A stable operation of the router software is not guaranteed, due to the lack of general support for Windows XP, the operating system manufacturer.
  • Page 31 Microsoft. Liability limitation PJSC VimpelCom and ZTE Corporation shall not be liable for any loss of profit, indirect or special damages, incidental or consequential damages arising out of or in connection with the use of the device no matter whether ZTE Corporation and PJSC VimpelCom were informed, knew or should have known about the possibility of such damages.
