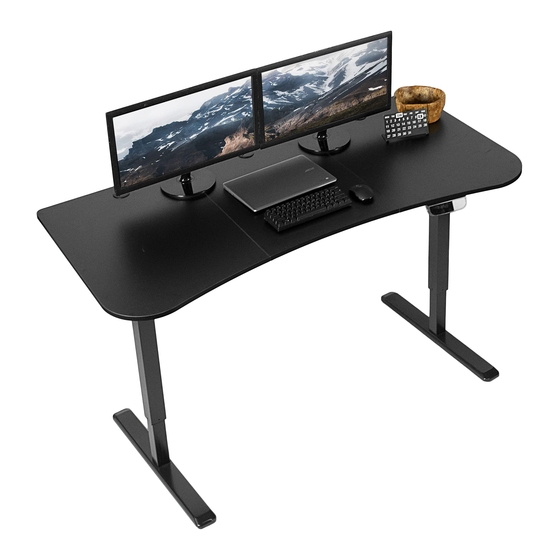

Black 63" x 32" Table Top
Instruction Manual
SKU: DESK-TOP1B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-top1b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!
Advertisement
Table of Contents
Related Manuals for Vivo DESK-KIT-2E1B Series
Summary of Contents for Vivo DESK-KIT-2E1B Series
- Page 1 Black 63” x 32” Table Top Instruction Manual SKU: DESK-TOP1B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-top1b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 ASSEMBLY STEPS STEP 1 Place Desktop Panels (A, B, C) upside down on a protective surface and insert Wooden Dowel Pins (S-B) into Middle Panel (B). Connect Left Panel (A) and Right Panel (C) to Middle Panel (B) using Wooden Dowel Pins (S-B).
- Page 4 STEP 2 Attach Support Bars (D) to desktop assembly using 5/8” Screws (S-A) and a phillips screwdriver.
- Page 5 Mount the control panel to mounting holes on left or right side of the desktop assembly using 5/8” Screws (S-A) included with the desktop. NOTE: If using a compatible VIVO desk frame, do NOT use the 3/4” screws included with the frame. Use only the 5/8” Screws (S-A) included with this desktop.
- Page 6 (S-A). Align crank support with mounting holes in desktop assembly and secure using 5/8” Screws (S-A). NOTE: If using a compatible VIVO desk frame, do NOT use the 7/8” screws included with the frame. Use only the 5/8” Screws (S-A) included with this desktop.
- Page 7 STEP 4 Insert Cable Management Covers (E) into the holes located on top of the desktop assembly.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
