Page 1
AP-270-MNT-V2 Mount Kit Installation Guide AP-270-MNT-V2 Mount Kit The AP-270-MNT-V2 mount kit can be used for mounting an outdoor AP to a wall or pole. Package Contents Table 1: Package Contents Item Quantity AP-270-MNT-V2 Mounting bracket M6 x 20 screw...
Page 2

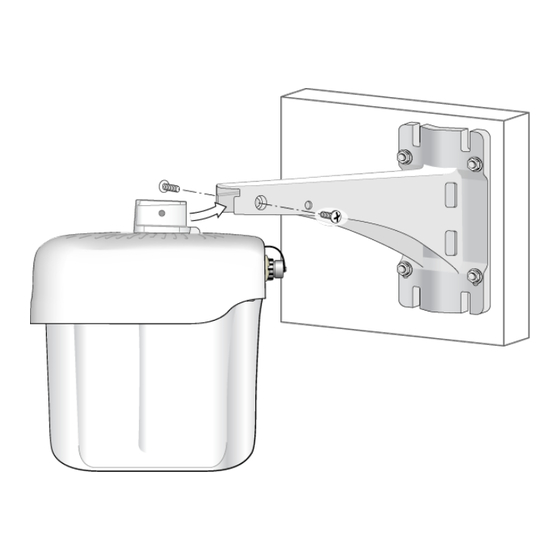

6. Slide the holder of the AP into the opening of the mounting holder and use the two M6 x 20 screws (included in the package) to attach the AP to the mounting bracket. Figure 2 Attaching the AP to the Mounting Bracket AP-270-MNT-V2 Mount Kit |...
Page 3
7. Use the cable tie to fasten the cables on the mounting bracket. Mounting the AP to a Corner The AP-270-MNT-V2 can be used with a Samsung corner mount adapter to mount an AP on a corner. The Samsung corner mount adapter must be purchased separately.
Page 4
Figure 6 Attaching the AP to the Mounting Bracket (Completed) 4. Use the cable tie to fasten the cables on the mounting bracket. Mounting the AP to a Pole To mount an access point to a pole, follow these steps: AP-270-MNT-V2 Mount Kit |...
Page 5
3. Slide the holder of the AP into the opening of the mounting bracket, and use the two M6 x 20 screws (included in the package) to attach the AP to the mounting bracket. AP-270-MNT-V2 Mount Kit | Installation Guide...
Page 6
Figure 9 Attaching the AP to the Mounting Bracket Figure 10 Attaching the AP to the Mounting Bracket (Completed) 4. Use the cable tie to fasten the cables on the mounting bracket. AP-270-MNT-V2 Mount Kit |...
