The AP-MNT-E is a low-profile mount kit for attaching APs or Bridges to the ceiling or wall. The low-profile design
means that there will be limited space between the back of the device (APs or Bridges) and the mount surface.
This mount kit is designed to work with the pre-assembled bracket on the back of the device.
The AP-MNT-E is one of multiple AP-MNT mount kits.
A #1 Phillips Head screwdriver is required for installation. Screws used for installation are not provided in this kit.
Use four (4) #6 or M3.5 screws to secure the mount kit to the wall box.

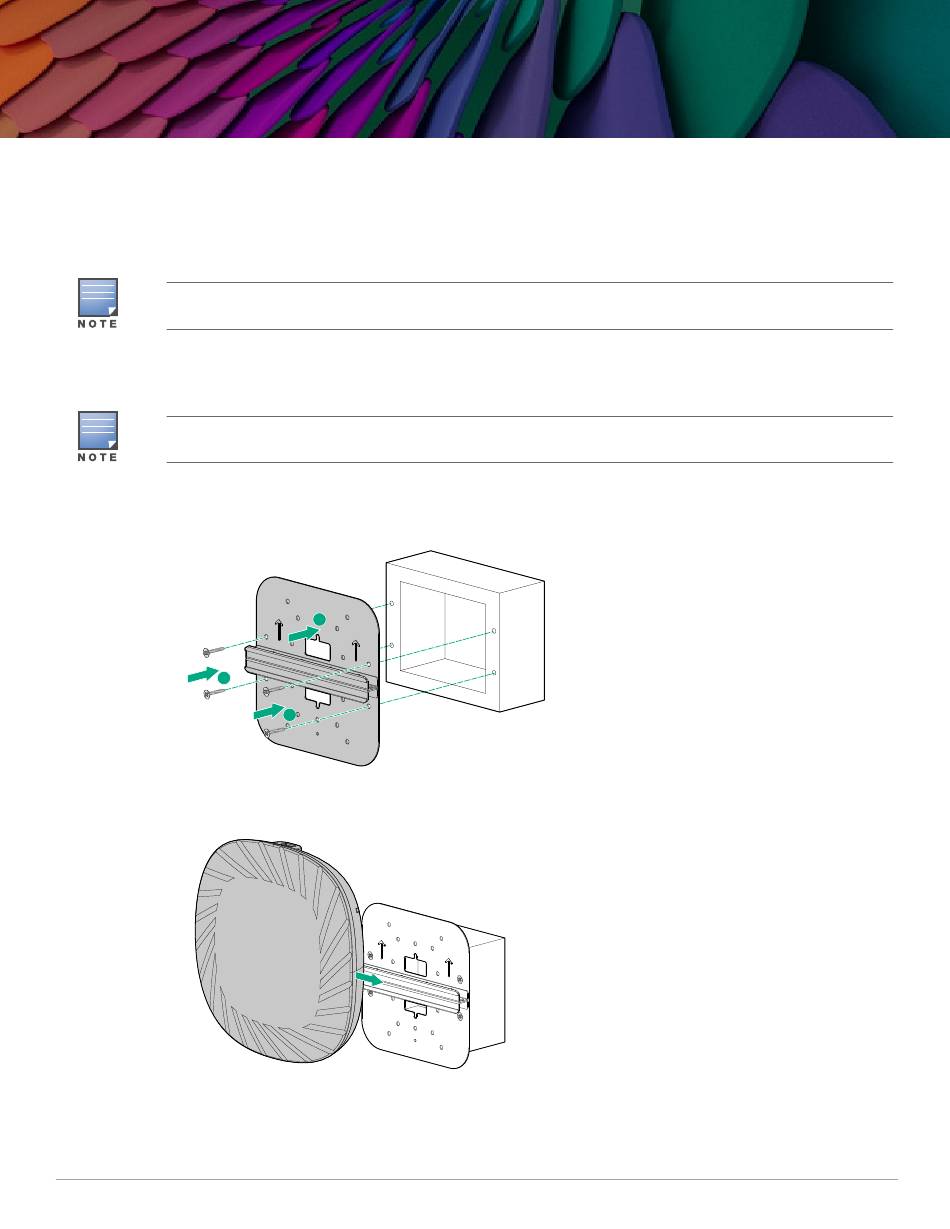

Wall and Ceiling Installation
This mount kit supports multiple AP models and Bridges. All installation images show the AP-535. This mount kit
works with multiple utility boxes.
1. Place the mount on the utility box, making sure the relevant holes are aligned and the arrows on the mount
are pointing up.
Align Mount Holes with Utility Box Holes
Figure 1
2
2. Screw the mount in place.
3. Slide the device bracket onto the mount.
Slide AP Bracket on Mount
Figure 2
AP-MNT-E Mount Kit | March 2019
1
2
AP-MNT-E Mount Kit
Installation Guide
1
