AP-MNT-W4 Mount Kit
Installation Guide
The AP-MNT-W4 Mount Kit is a low-profile mount kit for attaching APs to a solid, flat surface, such as a wall or the
ceiling. The low-profile design means that there will be limited space, about 11.5mm, between the back of the AP
and the mount surface. For APs with straight entry Ethernet ports, an Ethernet cable with an angled plug can be
used, or an adapter cable and coupler are provided. APs with side-entry Ethernet ports can use this mount kit
without use of an angled plug or adapter cable and coupler.
Package Contents

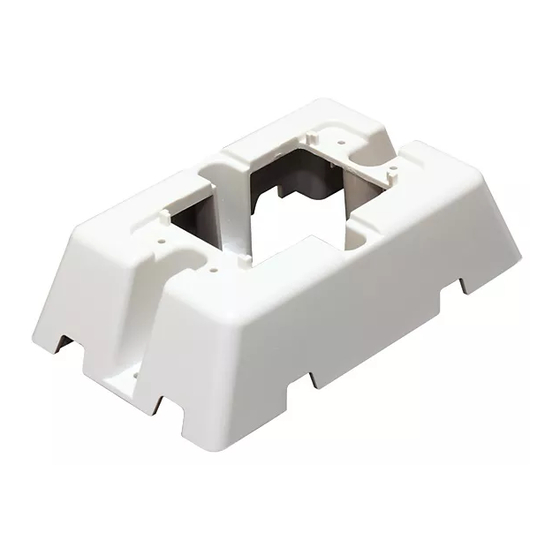

Plastic Mount Adapter

RJ45 Coupler

RJ45 Cable

Screws and plastic anchors are not included in this mount kit.
Wall Mount Installation
This mount kit supports multiple AP models. All installation images show the AP-345.
Adapter-to-Solid Surface Option
1. Attach the plastic mount adapter to any solid surface, such as a wall or ceiling, as shown in
a. Install any necessary wall anchors. Wall anchors are not included in this kit.
b. Align the screw holes in the mounting bracket with the previously installed anchors or demarcated screw
points.
c. Insert the screws to secure the mounting adapter. Screws are not included in this kit.
Figure 1
2. Attach necessary cables and/or antennas to the AP.
3. Attach the AP to the secured mounting adapter as shown in
a. Align the AP with a mounting adapter, placing the AP so that it's mounting tabs are at an angle of
approximately 30 degrees to the adapter.
0512044 | April 2018
Attaching the Adapter to the Wall
Figure 2.
Figure 1.
1
