AP-503H-MNT2 Mount Kit
Installation Guide
The AP-503H-MNT2 is designed to secure 503H Series access points to a dual-gang wall box according to the
installation procedure provided in this guide.
A #1 Phillips and T8H screwdriver are required for installation.
Package Contents
Double gang wall mount bracket
Side cover
(x4) #6-32x1 Phillips drive screws
(x2) M2.5 x 6.5 T8H Security Type Tamper Proof Torx screw
Installation
This mount kit supports dual gang wall boxes for the 503H Series access points.
1. If the wall box is not already exposed, unscrew and remove the existing wall plate, as shown in
Figure 1
2. If needed, detach any RJ45 cables by unclipping the connectors from the wall plate.
3. Align the screw holes on the mounting bracket with the corresponding holes on the wall box.
0512214-01 | August 2020

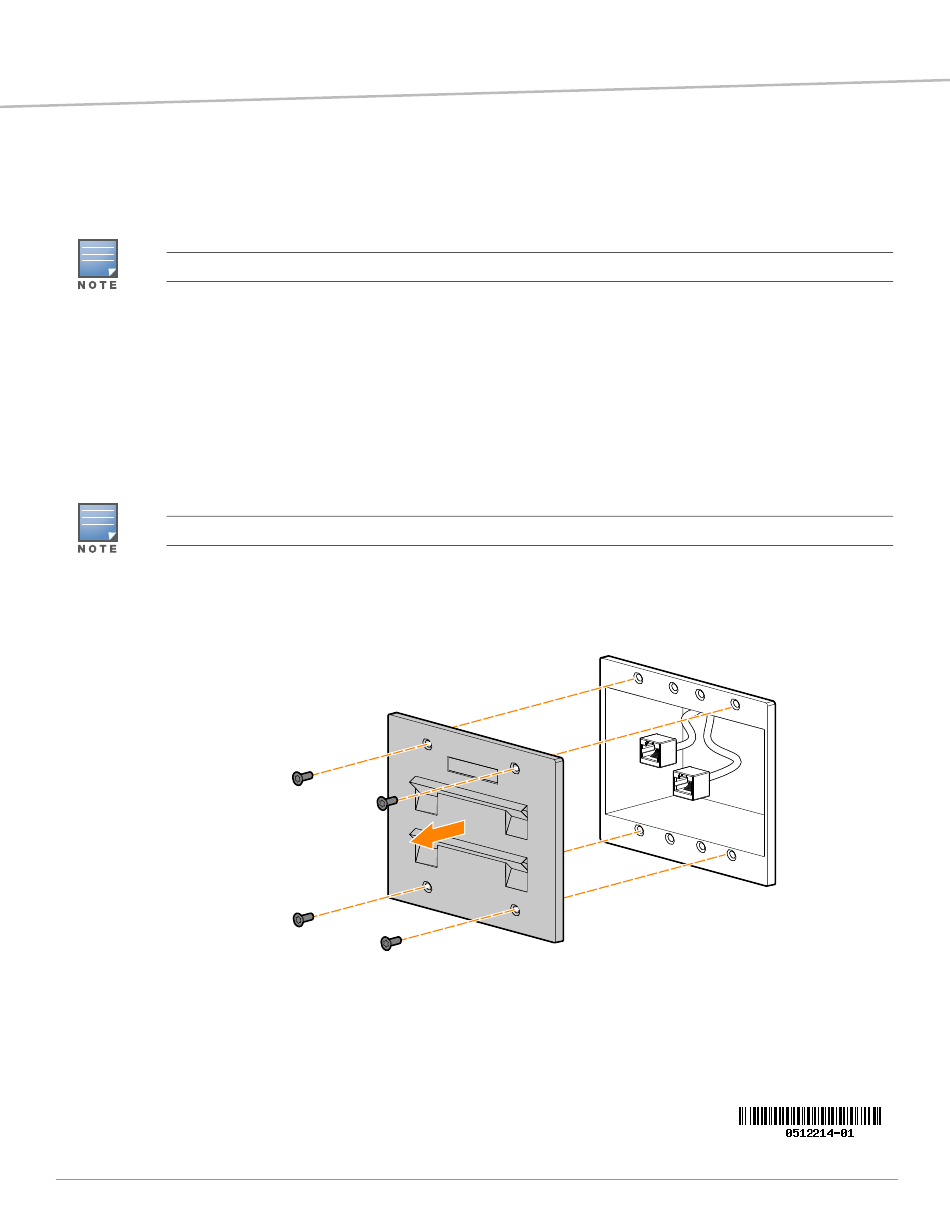

Remove Existing Wall Plate
Figure
1.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HPE Aruba AP-503H Series
Summary of Contents for HPE Aruba AP-503H Series
- Page 1 AP-503H-MNT2 Mount Kit Installation Guide The AP-503H-MNT2 is designed to secure 503H Series access points to a dual-gang wall box according to the installation procedure provided in this guide. A #1 Phillips and T8H screwdriver are required for installation. Package Contents Double gang wall mount bracket ...
- Page 2 4. Screw the wall mount onto the wall box using the #6-32x1 Phillip screws, as shown in Figure 5. Attach an active Ethernet cable to the E0 port located on the back of the access point. Attach Wall Mount to Single Gang Wall Box Figure 2 6.
- Page 3 Figure 4 Plug In Power Cable 8. Place side cover on the assemble and screw in the security screw, as shown in Figure Figure 5 Attach Front Cover and Screw In Security Screw | Installation Guide AP-503H-MNT2 Mount Kit...
