Summary of Contents for NSB FAN CUPID

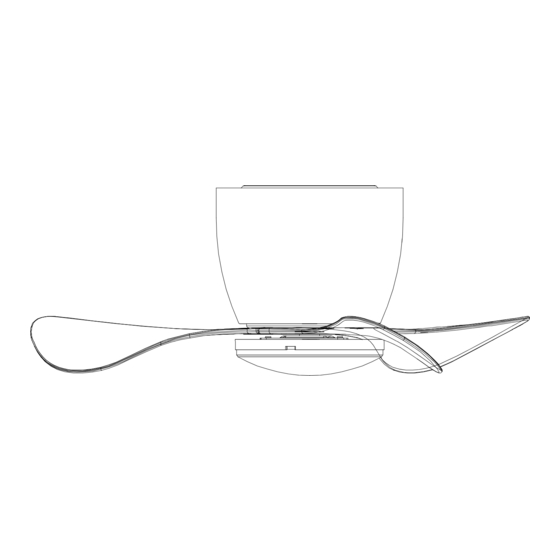

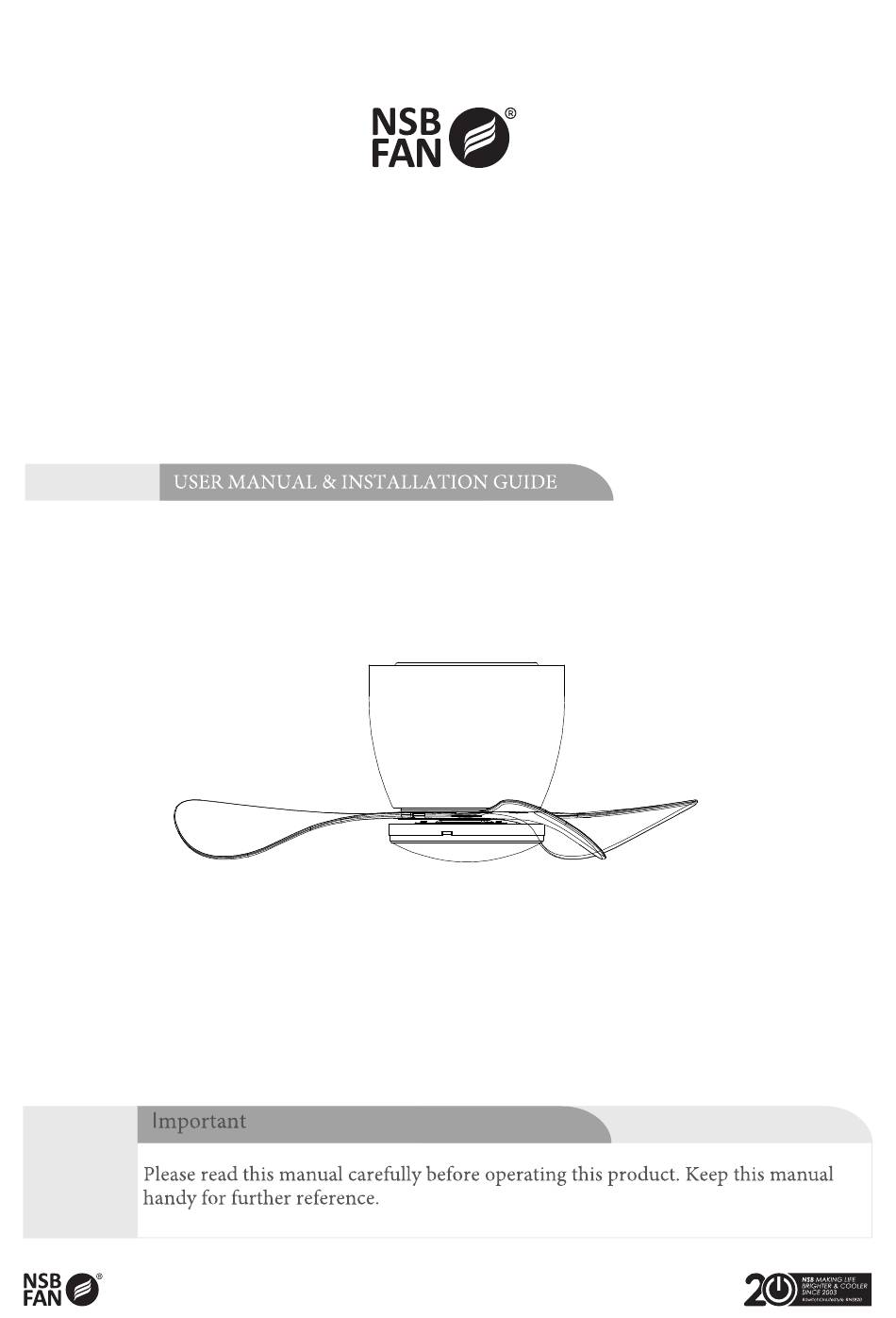

- Page 1 CUPID...
- Page 2 To avoid the possibility of causing injury to users or damage to property, please follow all the explanations as below. (b) Avoid fixing inside a dome ceiling. (a) Ceiling Fan must be mounted above 2.5m from the floor and 1 m from the wall to the Blade.
-
Page 3: Care And Maintenance
Model Fan Size 220-240V 50Hz Voltage W max Motor power Max.Speed(RPM) Nett Weigh Gross Weight with Box Color Specificationsare subject to change without prior notice. Caution (a) This appliance must be earthed. (b) Do not attempt to repair the fan. Always contact our autorized service agent for repair. (c) Be sure to use it in a dry area. - Page 4 WARNING:TURN OFF THE MAIN SWITCH AT THE DB (ELECTRICAL DISTRIBUTION BOX) STEP1: Assemble suspension system figure A. STEP : Power connection a) Connect the electrical wiring according to the Diagram F below brown brown brown brown AC-IN-L blue AC-IN-N blue blue Yellow Green Yellow Green...
- Page 5 STEP : Fan blade installation insert STEP : a) According to Figure align the lamp plate with the screw hole and lock it with the screw. Put in the LED lamp, connect the power cord, and fasten the lamp cover.
- Page 6 Step 2)Within the first 20 seconds, continue pressing the button with and start step 1)and step 2) again. turbo The NSB Fan Club without feeling the wind) children. The 1-6 speed change randomly to feel the gentle cool breeze effect.
-
Page 7: Automatic Search
1) Search for TUYA APP in the mobile APP Store. Download the APP and follow the following instructions 5 for seconds, Automatic Search Manually Add... - Page 8 Symptom Possible Solution Wobbles -Make sure that all the screws securing the blades are securely fastened. -Make sure that all the blades are securely fastened. -If you have installed more than one fan Make sure their distance is not -If the blades are damaged,call up the service center fora replacement but there will be charges incurred if found not due to manufacturing fault.
-
Page 9: Care Of Your Fan
To ensure safety, kindly check the following: (a) The ceiling fan is securely fixed to the main hook. (b) The safety wire is securely fixed and tightened by a screw. (c) The wiring between the power supply and ceiling fan is connected properly and correctly. (d) Make sure all the screws to secure the plastic covers are tightened properly.
