Summary of Contents for NSB FAN X LED

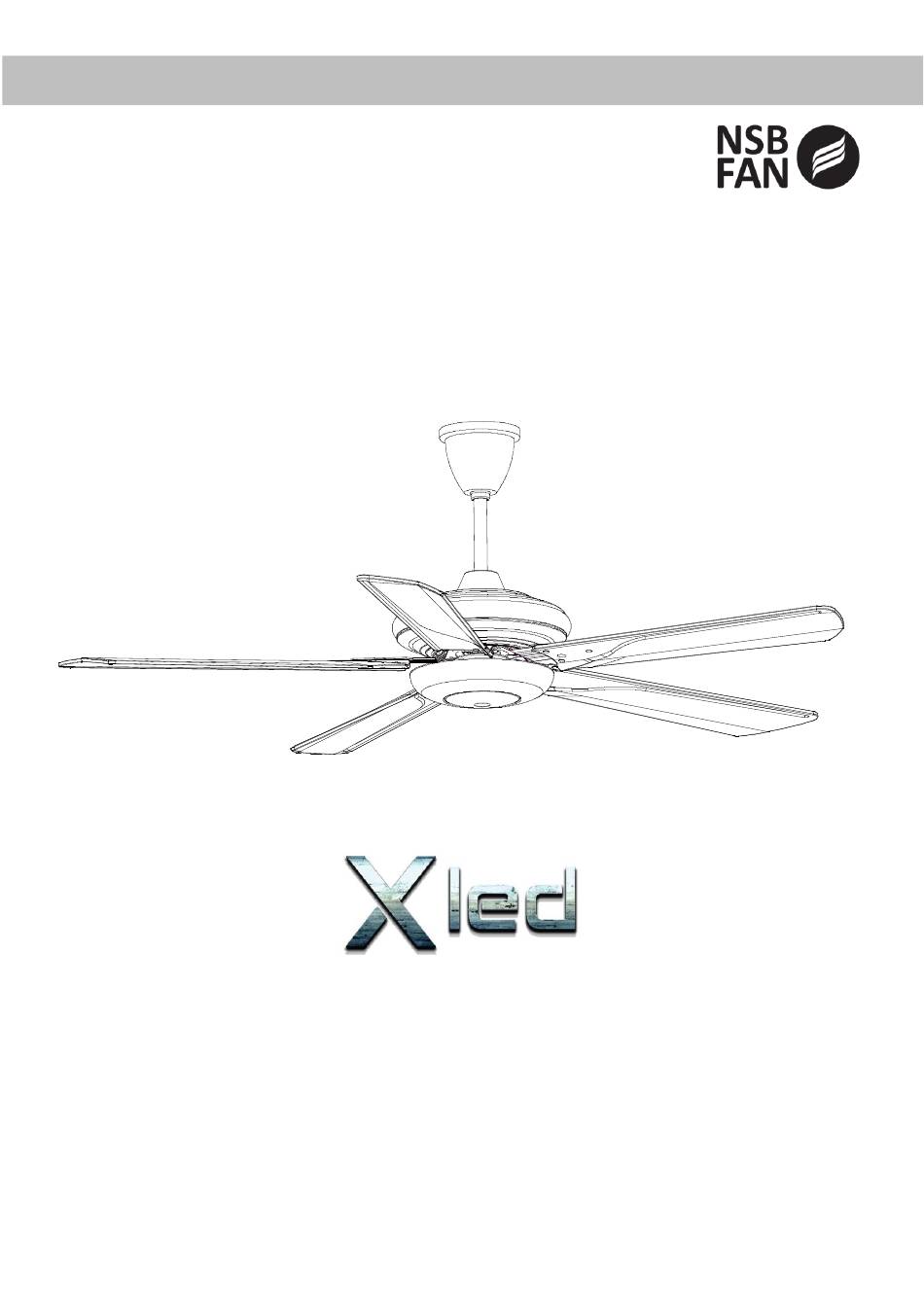

  • Page 1 Instruction Manual...
  • Page 2 Tables of Contents Safety Precaution ……………………………………………………………………………….……………….….. Parts & Accessories ……………………………………………………….……………….………………..………... Fan Installation Instruction ……………………………………….……………….………………..………………. Fan Mounting …………………………………………………….………………..………………...……….………… Blades Assembly……………………………………………………………………..………………………………… Install Light Kit ………………………………………………………………………………………………………….. Electrical Connection ………………………………………………………………………………………………….. Maintenance ………………………………………………………. ………………………………………………….. Troubleshooting ……………………………………………………………………………………………………. …. Safety Precaution IMPORTAN: PLEASE READ BEFORE INSTALLATION 1. Installation must be carried out by a qualified wiring installer 2.
  • Page 3 Parts & Accessories 01 Canopy x1 02 Cover yoke x1 03 Down rod x1 04 Motor x1 05 LED Light Kit x1 06 Blade x5 07 Blade holder screws x10 08 Wire nut x3 09 Lead wire x2 10 Balancing kits x1...
  • Page 4 Fan Installation Instruction IMPORTANT: SWITCH OFF THE ELECTRICAL MAINS THE CIRCUIT BREAKER FUSE BOX. Follow the steps below to hang your fan properly. 1. Insert the downrod through the canopy and yoke cover 2. Through the lead wire and safety cable out the top of downrod. 3.
  • Page 5 Fan Mounting 1. “J” Hook mounted ,When mounting the fan, ensure that the safety cable is loop across the “J”hook. 2. “U” Hook mounted Remove the bolt, stop pin, nut, washer and rubber pulley from the downrod. Place the rubber pulley onto “U” hook and fix back the bolt, stop pin, nut and washer. Stop 3.
  • Page 6 Blades Assembly 1. Insert the blade screws through the blade then secure the blade to the motor by tightening the 2 screws 2. Repeat this process to install the other blades to the motor Install Light Kit 1. Connect the plugs together wires from housing assembly to the wires from light kit. 2.
  • Page 7 Electrical Connection 1. Before installing the fan turn off the power supply. 2. With the two pieces of lead wires from the screw pack, connect the wire to the fan. 3. All electrical connections must be in accordance with local and national electrical code standards.
  • Page 8 Maintenance Due to fan’s natural movement, connections may get loose after a period of usage. To ensure a proper and safety usage, We are highly recommended to inspect and tighten all connections every 6 months. CLEANING Clean your fan periodically to prolong its new appearance. Basic cleaning procedures are as follows: 1.
