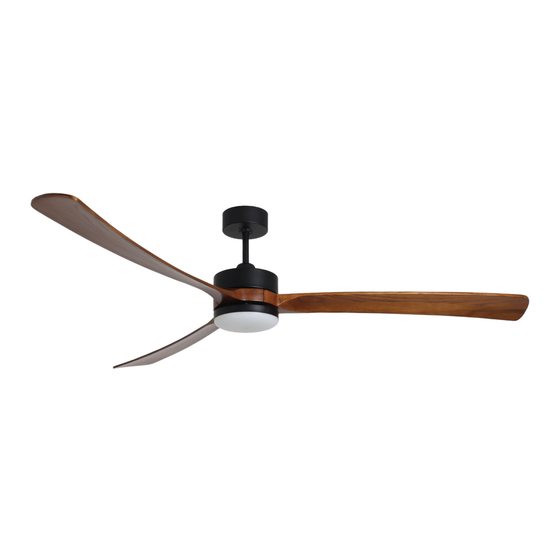

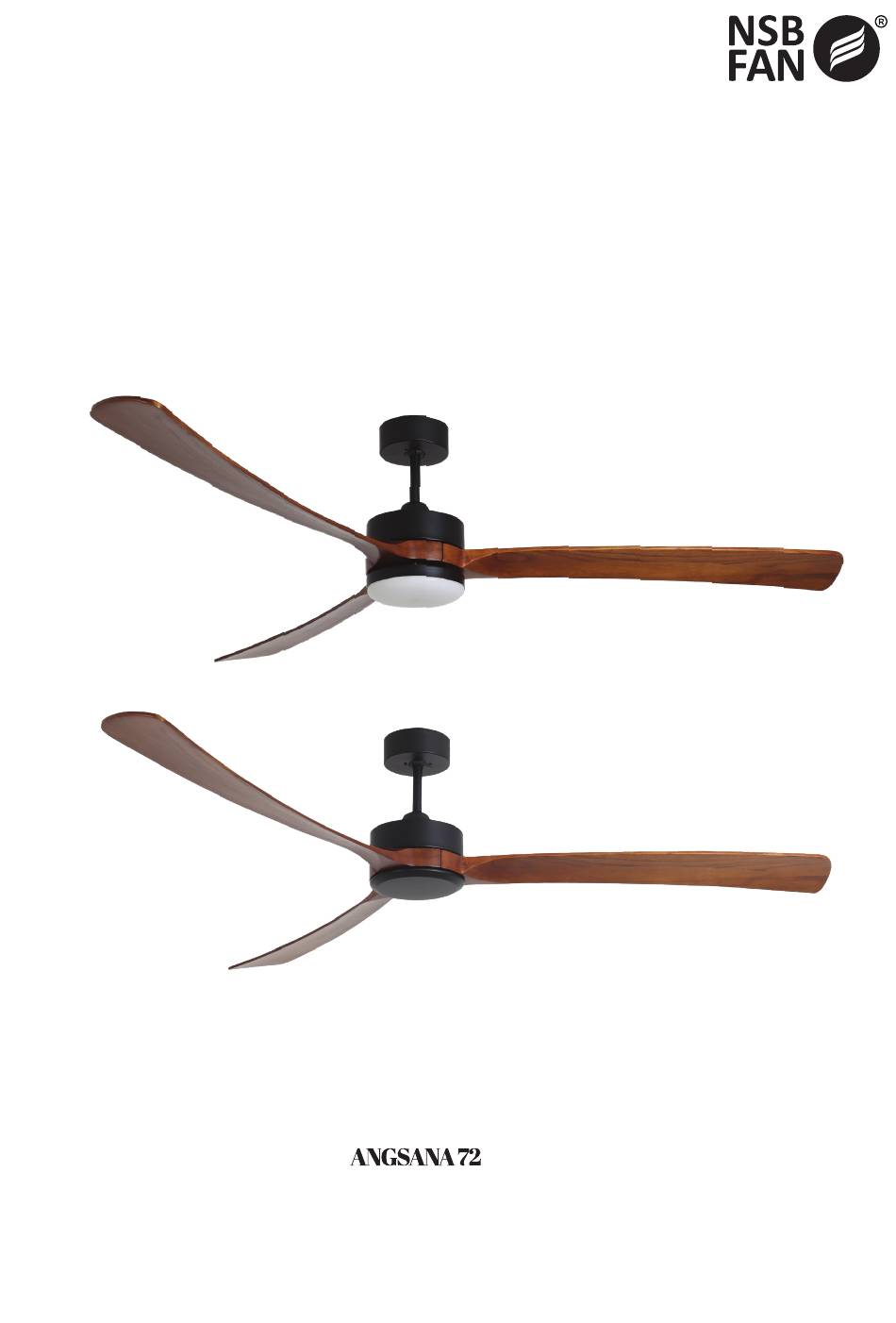

- Page 1 INSTRUCTION MANUAL CEILING FAN DC MOTOR | PAULOWNIA WOOD | LED GX53...
- Page 2 SAFETY PRECAUTION IMPORTAN: PLEASE READ BEFORE INSTALLATION 1. Installation must be carried out by a qualified wiring installer 2. Turn off the electrical mains at the circuit breaker fuse box 3. Use power supply 220-240V/50Hz. 4. The ceiling mounting must be able to with hold a min of 16kg. 5.
- Page 3 PARTS & ACCESSORIES Fig.1 Mounting bracket Blade kits × 3 × 3 Canopy × 1 Expansion bolta × 3 Downrod × 1 Blade screws × 7 Yoke cover × 1 Motor × 1 Balancing kits × 1set Botton cover × 1 Remote ×...
- Page 4 PARTS & ACCESSORIES Fig.2 Blade kits × 3 Mounting bracket × 3 Canopy × 1 Expansion bolts × 3 Downrod × 1 Coupling cover × 1 Blade screws × 7 Motor × 1 Balancing kits × 1set Light kit × 1 Remote set ×...
- Page 5 FAN INSTALLATION INSTRUCTION 1. Remove the ball joint and pin(A B) by loosening the set screws and parts screws from the down rod.(Fig.3) 2. Carefully feed the fan wires up through the down rod.(Fig.4) 3. Assemble the down rod into the motor coupling housing, line up the coupling holes with the down rod holes and insert the pin(B).
- Page 6 IINSTALL THE HANGER 6. Secure the mouting bracket to the concrete ceiling or structure that is capable of carrying a load of at least 40kg, with expansion bolt provided.(Fig.5) 7. The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the nearest objects or walls.
- Page 7 ELECTRICAL CONNECTION Warning : To avoid possible electric shock, turn off the electricity at the main fuse box or circuit panel before the fan electrical connection. For safety and best installation result please consult a qualified electrician. 10. Move Ground Wires and Motor Wires away from the center of the Hanger Bracket.
- Page 8 BLADE INSTALLTION 13.Insert the blade screws through the blade kit and blade then secure the blade to themotor by tightening the 2 screws. 14.Repeat this process to install the other blades to the motor. 15.Finally install the bottom cover to the light kit housing by rotating it clockwise.
- Page 9 MAINTENANCE Due to fan’s natural movement, connections may get loose after a period of usage. To ensure a proper and safety usage, We are highly recommended to inspect and tighten all connections every 6 months. CLEANING Clean your fan periodically to prolong its new appearance. Basic cleaning procedures are as follows: 1.
