- Page 1 NSB FAN Instruction Manual Model: Veera...

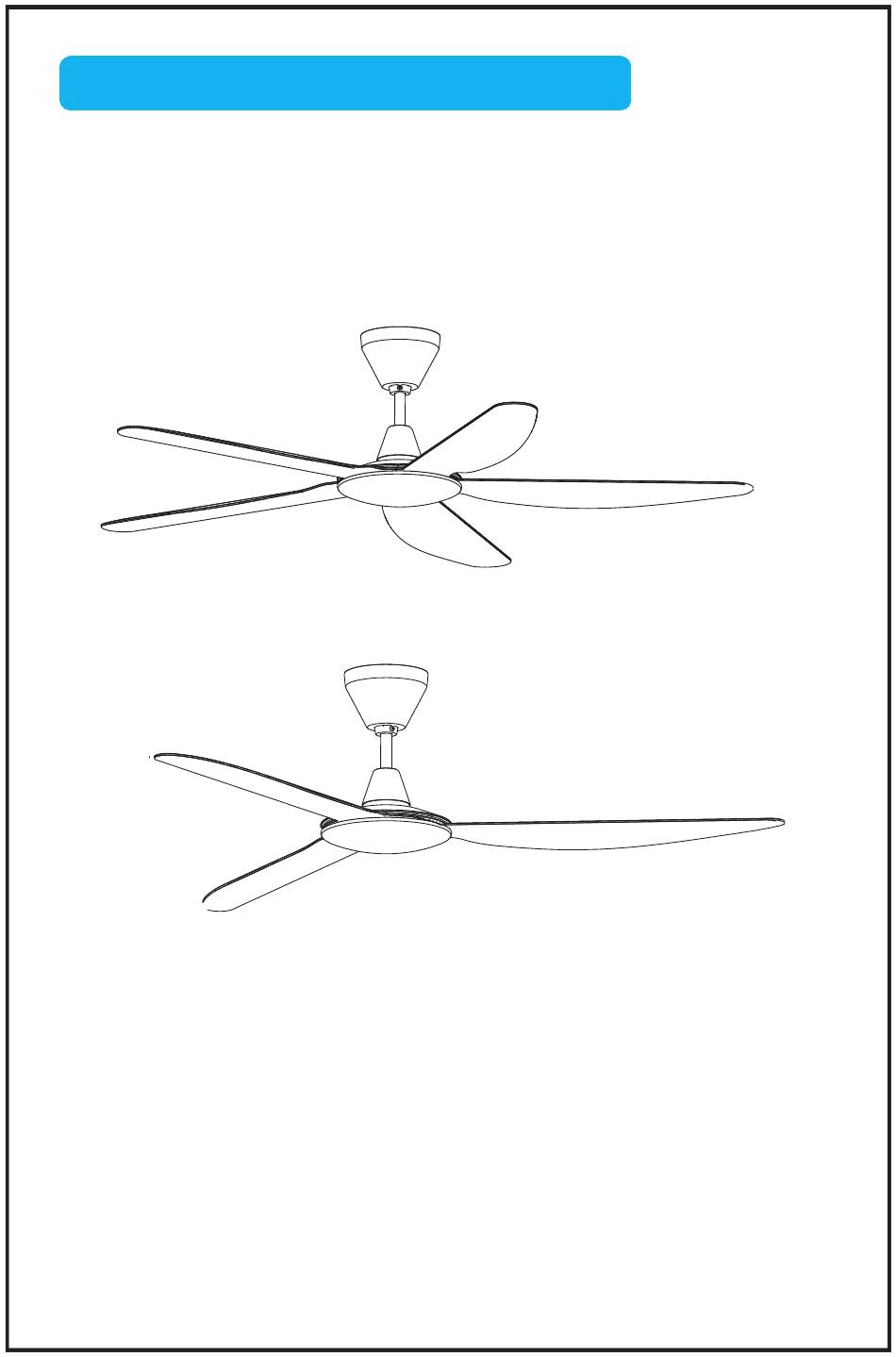

- Page 2 Contents page Parts and accessories Contents page Page Safety precaution and warnings ............Parts and accessories ............3 - 6 Installation procedures ............Circuit diagram ............Installation procedures / Fan blades installation procedures....Remote control ............Power supply connections / Maintenance ..........
- Page 3 Inatallation procedures Inatallation procedures IMPORTANT: SWITCH OFF ELECTRICAL MAINS AT THE Step 3 - Remove clevis pin, nut, washer, spring washer, from bolt, remove bolt and rubber pulley from down rod. Place rubber pulley onto ceiling fan MINIATURE CIRCUIT BREAKER BOX. hook, insert flap to rubber pulley and align holes.
- Page 4 Inatallation procedures Inatallation procedures Step - 4 Tie safety wire across the hook as shown Step 6 - Wire up wires as shown Step 5 - Firmly screw safety wire with spring washer onto down rod Circuit diagram ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENT. ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY.
- Page 5 Inatallation procedures Remote control Step 7 - Tighten canopy with screw provided. Leave a gap of 3mm - 5mm 2 X 1.5V AAA batteries are provided. Insert batteires into remote control. between canopy and ceiling. Fan baldes installation procedures Step 8 - Tighten fan blades with screws provided. Each blade uses 3 pieces of screws and 3 washers.
- Page 6 Power supply connections Technical specifications Reminder: USE ONLY NSB FAN, VEERA’S REMOTE CONTROL TO CONTROL Reminder: FAN’S SPEED. DO NOT CONNECT FAN TO DIMMER SWITCH Reminder: OR WALL REGULATOR. MCB Fuse box On / off switch Maintenance Due to fan’s natural movement, connects may get loose after a period of usage, to ensure proper and safety usage, it is highly recommended to inspect and tighten all connections every 6 months.
- Page 7 How to use balancing kit PREFACE Fan wobble, may due to irregular fan blades and / or fan blades holder. Improper assemble may also cause ceiling fan to wobble. This balancing kit can be used to rectify the wobbling problems. Dynamic blade balancing kit for ceiling fan.
- Page 8 NSB FAN VEERA If technical assistance is required, please contact NSB FAN customer service. NSB Home Appliances Sdn Bhd Careline number: - 1800 880 672 (NSB)
