- Page 1 INSTALLATION INSTRUCTION CEILING FAN TYPE :Ovio+ 60” VOLTAGE :220~240V, FREQUENCY : 50Hz SAVE THIS MANUAL FOR FUTURE REFERENCE You have chosen the best. Your ceiling fan will provide year after year satisfaction and comfort.
- Page 2 I. SAFETY TIPS 1. Read all instructions and safety information carefully and save this manual for future reference. 2. To avoid possible electric shock, turn off the electricity at the main fuse box or circuit panel (switch) before you begin the fan installation or before servicing the fan or installing fan accessories.
- Page 3 II. PART AND ACCESSORIES Fig. 1 Mounting bracket x 1 Canopy x 1 Screw for Hanger bracket x 2 Downrod x 1 Cover x 1 Motor x 1 Blade x 3 Bottom cover x 1 Wire nut x 3 Wall plugs for screw x 3 Balancing kits x 1 set Motor screws for blades x 7 Blade kits x 3...
- Page 4 III. FAN INSTALLATION INSTRUCTION 1. The hanging bracket must be securely fastened to a structural ceiling member. 2. Slide the canopy on the downrod. Thread the power leads from the fan through the canopy, and downrod (take extra care not to pull power wires damage). 3.
- Page 5 Ⅳ. HANGING THE FAN MOTOR ASSEMBLY The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the nearest objects or walls. Secure the hanging bracket to the concrete ceiling or structure that is capable of carrying a load of at least 40kg, with two long screws provided Fig.4 8.
- Page 6 V. FAN ELECTRICAL CONNECTION Warning : To avoid possible electric shock, turn off the electricity at the main fuse box or circuit panel before the fan electrical connection. For safety and best installation result, please consult a qualified electrician. 1. Power supply wires are connected to the control receiver. These wires are to be connected to the supply wires from the ceiling.
- Page 7 Ⅵ. INSTALL CANOPY COVER When the connection is completed, slide the canopy up to the mounting bracket and screws securely. 10. Loosen the 2 screws from the bottom of the mounting bracket. Fig. 7 11. Slide the canopy up to the mounting bracket and place the key hole on the canopy over the screw on the mounting bracket, turn the canopy until it locks in place at the narrow section of the key holes and secure it by tightening the two set screws.
- Page 8 Ⅸ. FAN MAINTENANCE 1. The fan’s natural movements may cause some connections to work loose. A clicking or rattling noise is a certain sign of loosening screws. Check the support connections, brackets, and the blade attachment twice a year, and tighten all screws as necessary. 2.
Need help?
Do you have a question about the Ovio+ 60 and is the answer not in the manual?
Questions and answers

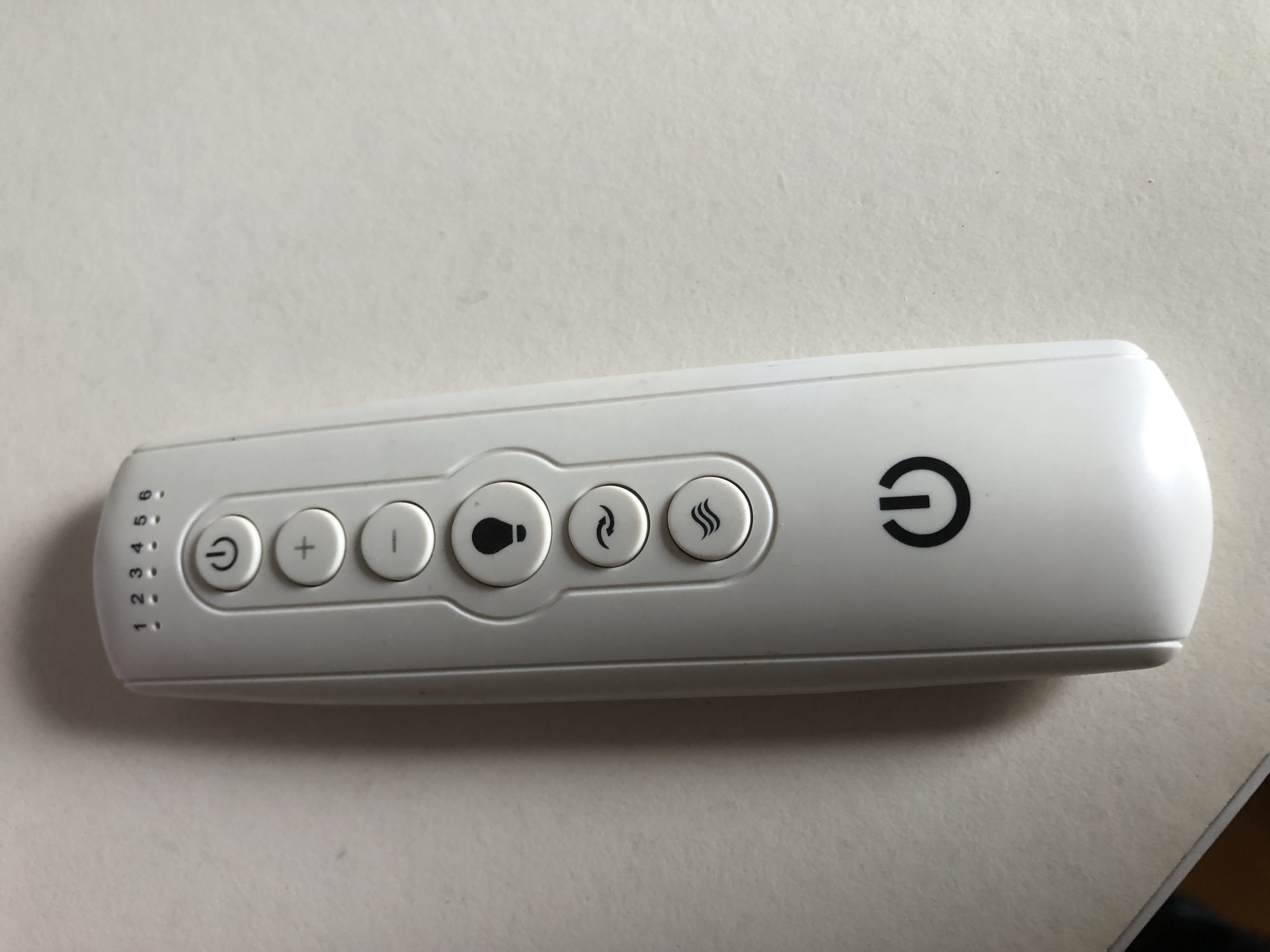

I bought two ovio fans but both also having same remote control with frequency set at No.3, this will affect each other when both fans are under operating. So how to change one of the fans to different frequency so that both fans do not affect each other when under operating?
