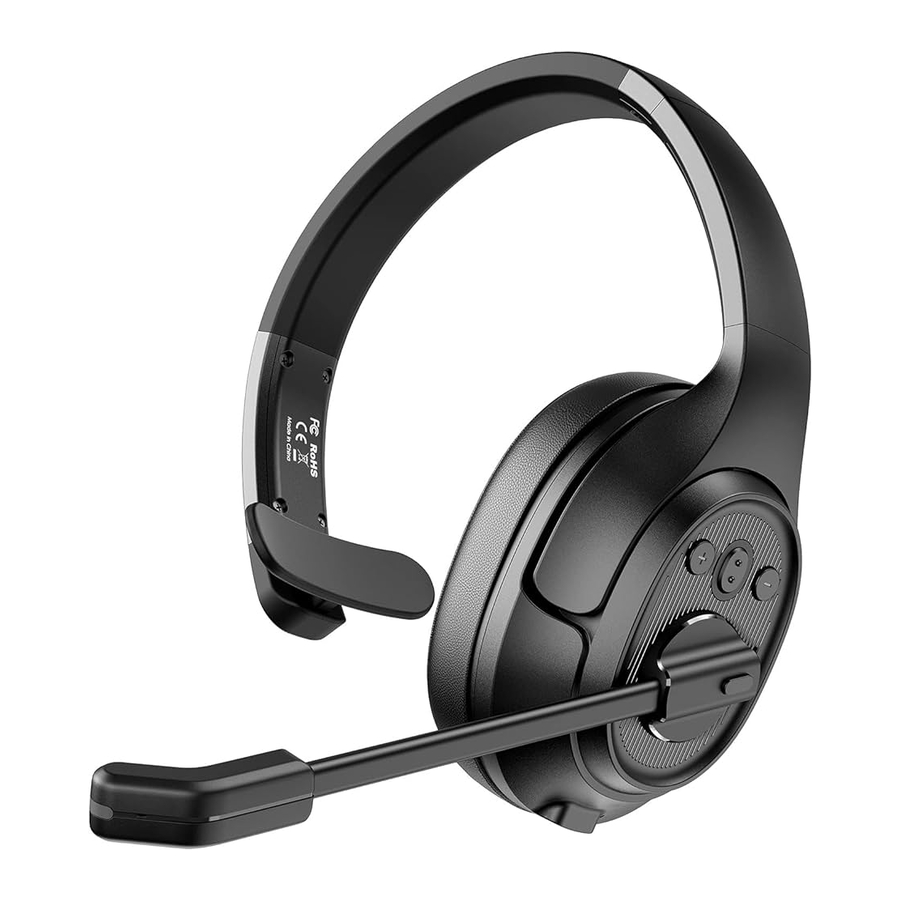

EKSA H1 - Bluetooth Wireless Headset Manual

Package Contents

1. EKSAtelecom H1
2. Wireless Headset
3. Type-C Charging Cable
4. Carry Pouch User Manual

Specifications

Bluetooth Version: 5.0
Effective Wireless Range: 30 m / 99 ft
(Max 50 m / 164 ft without obstacles)

Music Time: ≈57 hours (70% volume)
Talk Time: ≈30 hours (70% volume)
Charging Time: ≈1.5 hours

Speaker Diameter: 40 mm
Impedance: 32 Ω ± 15%
Sensitivity: 114 ± 3 dB
Frequency Response: 20 Hz – 20 kHz

Size: 2.7 mm * 1.85 mm
Sensitivity: -25 ± 1 dB
Frequency Response: 100 Hz – 10 kHz
Impedance: 2.2 kΩ
Polar Pattern: Omnidirectional
Mic: EKSAtelecom VoicePure Technology

Product Overview

1. Call Indicator
2. EKSAtelecom VoicePure Technology
3. Type-C Charging Port
4. Volume +
5. Bluetooth Indicator
6. Multi-Function Button (MFB)
7. Volume -
8. Mic Mute Button
9. Charging Indicator

Operation Guide

Multi-Function Button

	Press for 3 seconds: Headphone on/off
	Click: Play/Pause
	Triple Click: Voice Assistant/Siri

Volume Button

	Click: Volume + / -
	Press for 2 seconds to next/previous track

Mic Mute Button

Click: Microphone on/off

Call Functions

Call Handling

Redial

Audio Switching

Three-Way Calling

Bluetooth Pairing

1. Turn on EKSAtelecom H1, until its Bluetooth indicator flashes alternately between red and blue, indicating that the headset is in pairing mode.

2. Turn on the Bluetooth of your device, activate the search feature, and select "EKSA-H1". After pairing, the Bluetooth indicator flashes slowly in blue light with a voice prompt "your headset is connected", confirming a successful connection.


Note:

1. Keep the distance between the EKSAtelecom H1 and your device within 1 meter.
2. If necessary, the pin code to complete pairing is "0000".
3. While in pairing state, if a connection cannot be established within 10 minutes, the headset will turn off automatically.
4. When the headset is turned on again, it will connect to the last connected device automatically.
5. Compatibility issues may arise when connecting directly to a computer via Bluetooth. Preferably with an adapter (not included).

3. To connect to a new device, turn off the Bluetooth of the currently paired device and follow the above steps to connect successfully to a new device.
   .

Dual Pairing

1. After successfully connecting the EKSAtelecom H1 to device A, turn off the Bluetooth of device A. The headset's Bluetooth indicator flashes in red and blue alternately to signify pairing mode.

2. Turn on the Bluetooth of device B, activate search mode, and connect to "EKSA-H1".

3. Turn on the Bluetooth of device A to connect with "EKSA-H1". This puts both devices A and B in a simultaneous connection with "EKSA-H1".


Reset

The Bluetooth indicator flashes alternately in red and blue.

When EKSAtelecom H1 is in connected/pairing mode, press and hold the "volume +" and "volume -" buttons simultaneously for 6 seconds until the LED lights up in red and blue, indicating the pairing information is cleared.

Charging

1. When the battery is less than 10%, the headset will give a voice prompt "battery low" every 3 minutes. Please charge it as soon as possible.
2. When EKSAtelecom H1 is not in use, please charge it at least once every 2 months.
3. Please use the original charging cable for charging. Charging voltage can't exceed 5 V.
