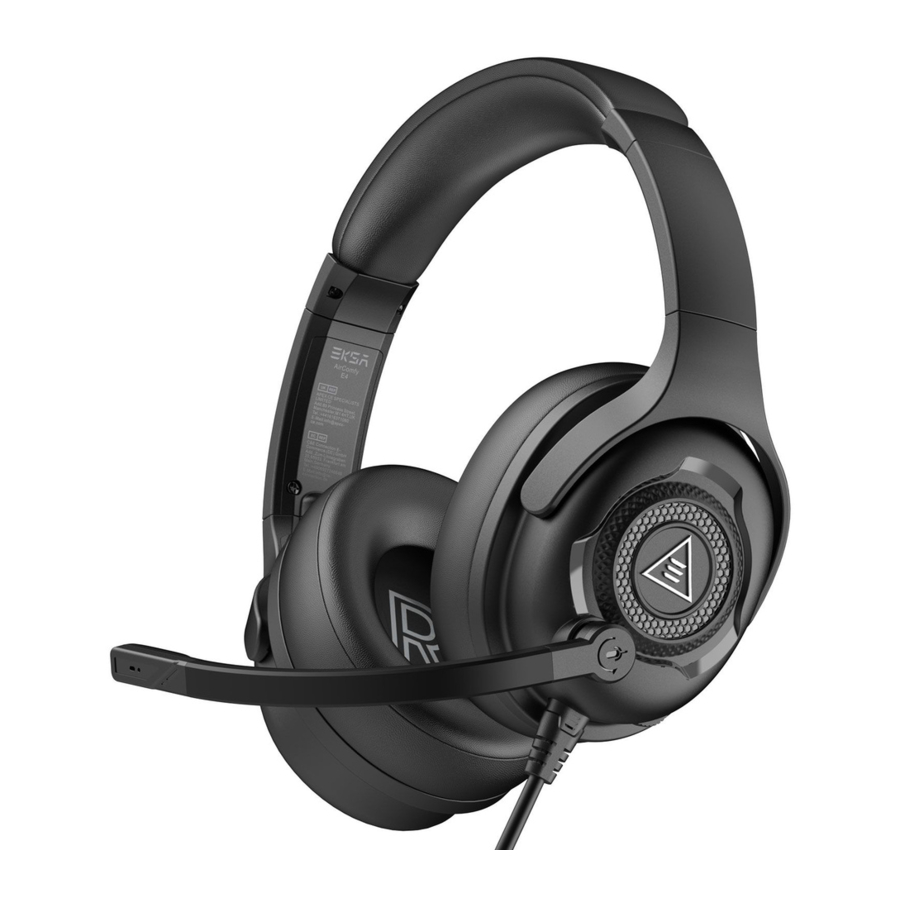

EKSA AirComfy E4 - Headphones for Gaming Manual

Package Contents

1. EKSA AirComfy GamingHeadset
2. Y Splitter Extension Cable
3. Carry Pouch
4. User Manual

Specifications

Connection Type: 35 mm Audio Cable (2 m / 6 56 ft)
Driver Diameter: 50 mm
Impedance: 32 Ω ± 15%
Sensitivity: 103 ± 3 dB
Frequency Response: 20 Hz - 20 kHz
Weight: ~263 g

Size: 6.0 mm * 2.7 mm
Sensitivity -48 ± 4 dB
Impedance: 22 KΩ
Polar Pattern: Unidirectional

Product Overview

1. Leather Head Beam
2. Adjustable Headband
3. Soft Memory Earmuffs
4. Adjustable Microphone
5. Mic Mute Button
6. Volume Control Wheel
7. 35 mm Audio Cable
8. Y Splitter for Separate Mic and Headphone Ports

Operation Guide

Volume Control Wheel:

Scroll upwards: Volume +

Scroll downwards: Volume -

Mic Mute Button:

Click: Microphone on/off

How to Use

PlayStation@ 4

To get the best when using a PS@L. please directly connect your PS@L controller with the 3 5 mm audio cable, and follow the steps below.

Sound Settings:

Xbox One@ SIX

To work on the NEW version of the Xbox One@S/X controller, you can directly connect your headset to the controller via the 3 5 mm audio cable

Note:

1. The headset is not compatible With Xbox' 360.
2. Old version Xbox@ One needs a Microsoft adapter (Not included)

Guide for Xbox@ Users

The controller has a 3 5 mm jack: no adapter is required

The controller doesn't have a 35 mm jack. a Microsoft adapter is required (Not included)

PC

Microphone Settings

Mac

Microphone Settings

FAQ

Q1: I cannot use the headset's microphone when connected to my computer. How do I resolve this?

A:

1. Go to Control Panel > Hardware and Sound > Sound Disable the onboard microphone on your computer, and make the Headset Microphone default.

2. Check that the microphone is not muted

Q2: I cannot hear anything from the microphone. How do I resolve this?

A1: Checkthat the headset is plugged correctly into the device Check your audio settings to make sure the speakers and microphone are enabled and not muted, or the volume is at an adequate level.

A2:

1. Wipe off the stains or dust on the 3 5 mm interface
2. Reconnect the headset to your device via the 35 mm audio cable, and check whether the microphone works properly now.


Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download EKSA AirComfy E4 - Headphones for Gaming Manual
