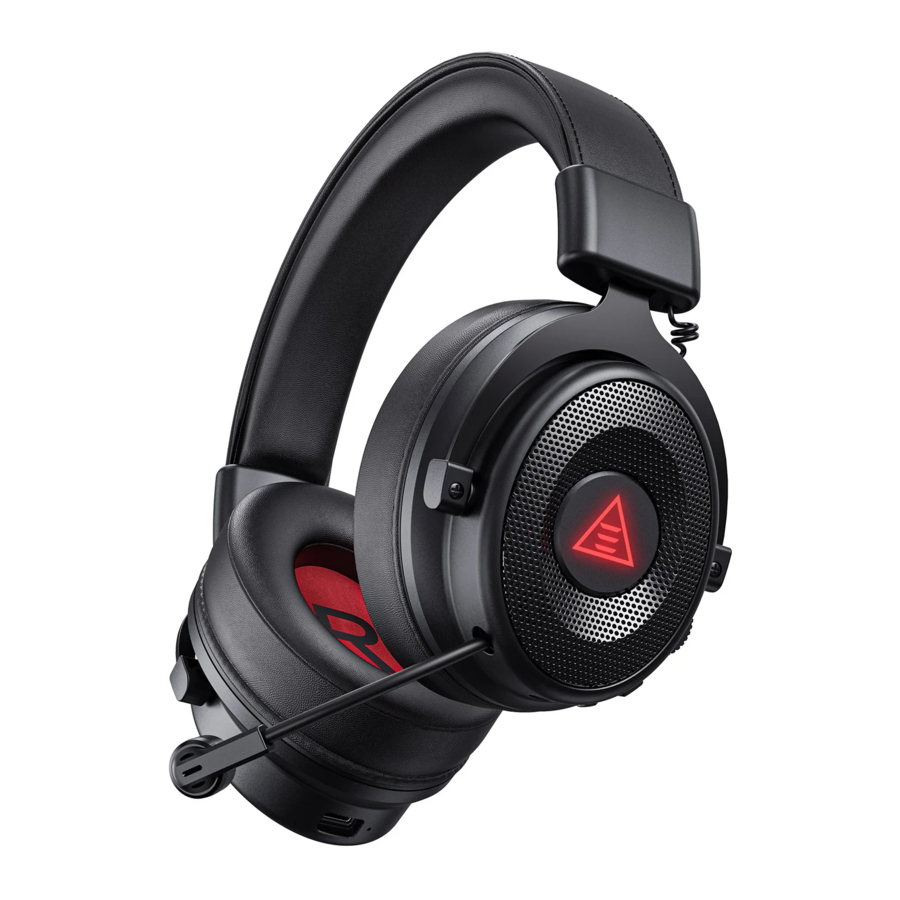

EKSA E900 - Gaming Headset Manual

Package List

1 x EKSA E900 Gaming Headset
1 x Detachable Microphone
1 x 3.5mm Audio Cable
1 x 3.5mm Cable Splitter
1 x Operating Instruction
1 x Safety Instruction
1 x Carry Pouch

At a Glance

1. Leatherette headband
2. Adjustable steel arm headband
3. Replaceable earmuffs
4. Detachable microphone
5. Volume up/down dial
6. Microphone mute button
7. 3.5mm audio cable
8. PC splitter cable for separate mic and audio jacks

Usage (PlayStation 4)

For optimal use with PlayStation 4 (PS4 ), connect audio jack on the headset directly to the PS4 game controller and follow operations below.

For 3.5mm Audio Cable

Usage (Xbox One S/X)

To work on the old version of the Xbox One controller, you need a Microsoft adapter (sold separately). To work on the new version of the Xbox One S/X controller, you can directly connect the E900 headset to the controller via 3.5mm jack.

Note: The headset isn't compatible with Xbox 360.

Information for Xbox User

For the Xbox One S/X controller

The controller has a 3.5mm jack: Headset adapter not required

For the Xbox One controller (old version )

The controller has no 3.5mm jack: Microsoft stereo headset adapter required

Usage (PC)

PC Sound Setting:

Q&A

Q: Why can't I use the microphone?
A:

1. You need to disable the computer's onboard mic by accessing your sound devices in the hardware section of the control panel. And choose the mic of the headset.
2. Check whether the mute switch on the microphone is on.

Q: What if the microphone is silent?
A1: Please make sure micro: phone is not muted.
A2:

1. Wipe off the dirt and reinsert the 3.5mm, interface.
2. Connect the headset directly to the phone to test if it is good.

Product Parameters

Headset:
Interface Type: 3.5mm.
Diver Diameter: Φ50mm
Sensitivity: 118dB±3dB
'Speaker Impedance: 32Ω
Frequency Range: 20Hz~20KHz

Microphone:
Sensitivity: -42±3dB
Size: ∮6.0*2.7MM
Microphone Impedance: 2.2KΩ
Supply Voltage: 3V
Current Consumption: max 0.5mA.

Global:
+852 6940 4955(Mon to Fri 9:00 am-6:30 pm, UTC +8 HKT)
info@eksa.net
www.eksa.net/warranty
