EKSA H5 - Wireless Headset Manual

Package Contents

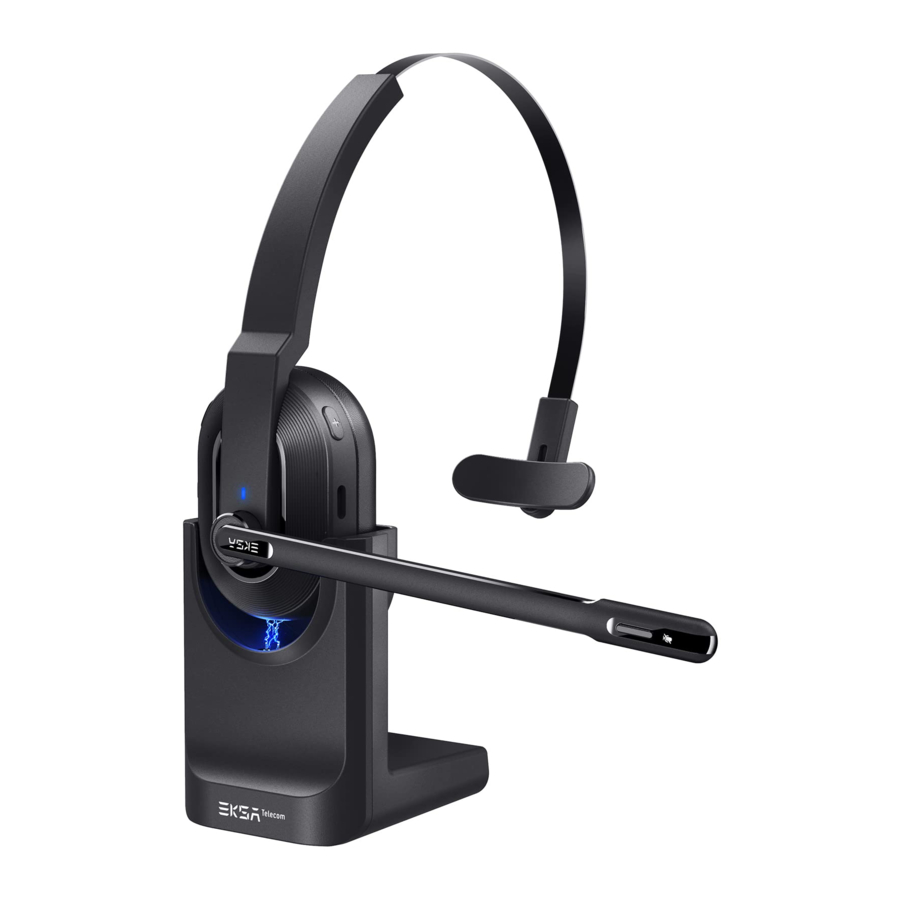

  1. EKSAtelecom H5 Wireless Headset
  2. EKSA PC Adapter
  3. Type-C Charging Cable
  4. Charging Stand
  5. Carry Pouch

Specifications


Headset Bluetooth Version: 5.0
Adapter Bluetooth Version: 5.2
Effective Wireless Range: 10 m / 32 ft


Music Time: ≈45 hours (70% volume)
Talk Time: ≈25 hours (70% volume)
Charging Time: ≈1.5 hours


Speaker Diameter: 30 mm
Impedance: 32 Ω ± 15%
Sensitivity: 125 ± 3 dB
Frequency Response: 20 Hz – 20 kHz


Size: 2.7 mm * 1.85 mm
Sensitivity: -25 ± 1 dB
Frequency Response: 100 Hz – 10 kHz
Impedance: 2.2 kΩ
Polar Pattern: Omnidirectional
Mic: EKSAtelecom VoicePure Technology

Product Overview

Product Overview

  1. EKSAtelecom VoicePure Technology
  2. Bluetooth & Charging Indicator
  3. Charging Contacts
  4. Volume + / next track
  5. Type-C Charging Port
  6. Volume - / previous track
  7. Multi-Function Button (MFB)
  8. Mic Mute Button
  9. Type-C Charging Port
  10. Charging Indicator
  11. EKSA PC Adapter
  12. Charging Contacts

Operation Guide

Multi-Function Button

Press for 3 seconds: Headphone on/off
Click: Play/Pause
Triple Click: Voice Assistant/Siri

Volume Button

Volume Button - Step 1 Click: Volume + / -
Volume Button - Step 2 Press for 2 seconds to next/previous track

Mic Mute Button

Mic Mute Button Click: Microphone on/off

Call Functions

Call Handling

Call Handling

Redial

Redial

Audio Switching

Press for 2 seconds:
During a call, you can switch your audio device.

Three-Way Calling

Three-Way Calling

Bluetooth Pairing

Mobile Phone

  1. Turn on EKSAtelecom H5, until its Bluetooth indicator flashes alternately between red and blue, indicating that the headset is in pairing mode.
    Mobile Phone - Step 1
  2. Turn on the Bluetooth of your device, activate the search feature, and select "EKSA-H5". After pairing, the Bluetooth indicator flashes slowly in blue light with a voice prompt "your headset is connected", confirming a successful connection.
    Mobile Phone - Step 2

warningNote:

  1. Ensure that the distance between the EKSAtelecom H5 and the device you want to pair should be kept within 1 meter.
  2. If necessary, the pin code to complete pairing is "0000".
  3. While in pairing state, if a connection cannot be established within 10 minutes, the headset will automatically turn off.
  4. When the headset is turned on again, it will connect to the last connected device automatically.
  1. To connect to a new device, turn off the Bluetooth of the currently paired device and follow the above steps to connect successfully to a new device.
    Mobile Phone - Step 3

Bluetooth Pairing

PC

If you want to connect the headset to a PC, you can use the EKSA PC adapter provided in the package. Then, you can enjoy the call function and compatibility of the third-party software of the PC. Follow the steps below to get it done.

  1. Plug the EKSA PC adapter into your PC's USB port. The adapter will turn on automatically with a name of "EKSA PC Adapter" displaying on your computer.
    PC - Step 1
    USB-A interface
    PC - Step 2
    Type-C interface
  2. When enabled, the indicator on the EKSA PC adapter will flash a blue light, which indicates that it is in pairing mode. Then, put the headset on pairing mode and place it as close to the EKSA PC adapter as possible (within 8 inches). The headset will automatically connect to the EKSA PC adapter.

Note: It takes about 20 seconds to establish a connection between the headset and a PC for the first time. Suppose the connection is unsuccessful, please unplug the adapter and plug it back into the PC. Then restart the headset's pairing mode and reconnect to your computer.
PC - Step 3
USB-A interface

PC - Step 4
Type-C interface

  1. After the headset is successfully connected, the Bluetooth indicator on the headset will slowly flash a blue light while the EKSA PC adapter's indicator will always be blue.

Note: When the EKSA PC adapter is not in use, please insert the adapter into the storage hole of the charging stand to avoid misplacing it.

Dual Pairing

  1. After successfully connecting the EKSAtelecom H5 to device A, turn off the Bluetooth of device A. The headset's Bluetooth indicator flashes in red and blue alternately to signify pairing mode.
    Dual Pairing - Step 1
  2. Turn on the Bluetooth of device B, activate search mode, and connect to "EKSA-H5"
    Dual Pairing - Step 2
  3. Turn on the Bluetooth of device A to connect with "EKSA-H5". This puts both devices A and B in a simultaneous connection with "EKSA-H5".
    Dual Pairing - Step 3

Reset

Reset

The Bluetooth indicator flashes alternately in red and blue.

When EKSAtelecom H5 is in connected/pairing mode, press and hold the "volume + " and "volume - " buttons simultaneously for 6 seconds until the LED lights up in red and blue, indicating the pairing information is cleared.

Charging

Charging

  1. When the battery is less than 10%, the headset will give a voice prompt "battery low" every 3 minutes. Please charge it as soon as possible.
  2. When EKSAtelecom H5 is not in use, please charge it at least once every 2 months.
  3. Please use the original charging cable for charging. Charging voltage can't exceed 5 V.
