EKSA E1000 - Professional Gaming Headset Manual

Introduction

Designed specifically for USB interface devices, the EKSA E1000 gaming headset is a professional gaming headset with 7.1 surround sound, noise cancelling microphone and adjustable headband. We also equipped it with RGB Lights for a better gaming experience.

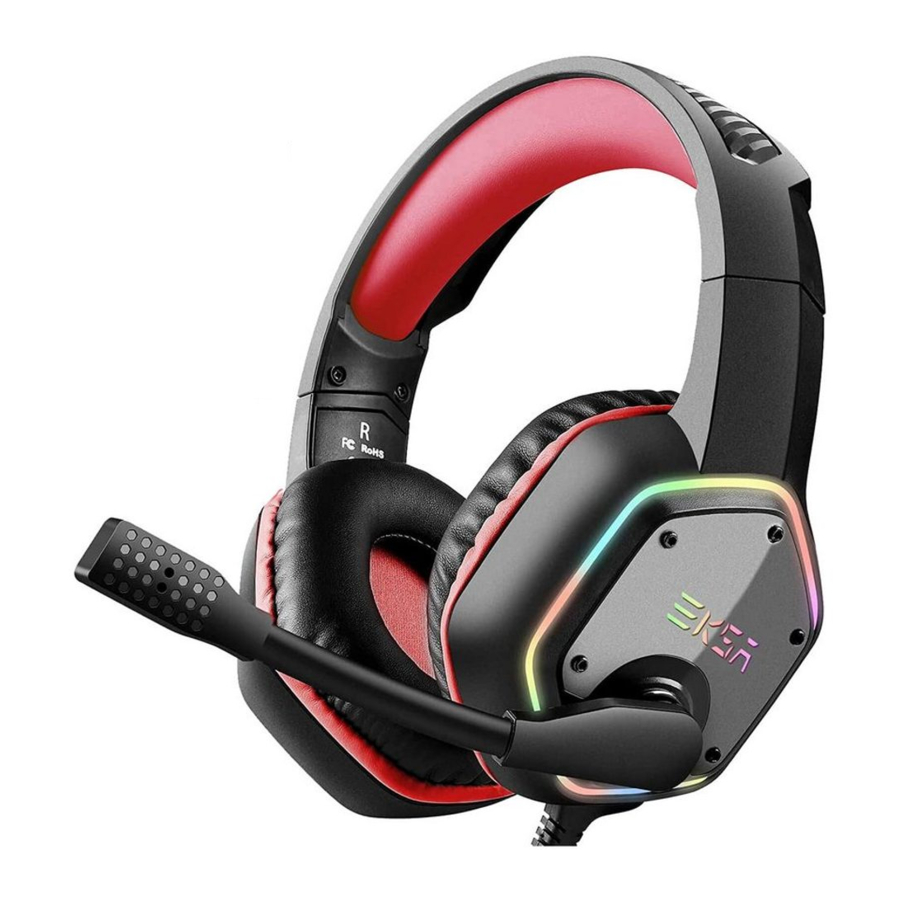

Overview

Overview

  1. 50mm audio speaker
  2. Protein leather earmuff
  3. Adjustable headband
  4. RGB Lights
  5. Adjustable microphone
  6. Mic mute control button
  7. Audio volume control
  8. USB connector

Specification Parameters

Mic. dimention Ф6.0*2.7mm
Microphone sensivity -42±3db
Mic. directionality Omnidirectional
Transducer Moving-coil
Speaker size Ф50mm
Frequency range 20-20K Hz
Impedance 32
Headset jack USB
Cable lenght 2.2M

Package Contents

1*E1000 7.1 Gaming Headsets
1*User Guide
1*Easy User Manual
1*Easy User Manual

The 120° rotatable microphone can pick up your voice from your mouth at the right position. And high sensitive microphone with upgrade noise reduction tech can reduce distracting background noise and pick up your voice clearly.
Rotatable microphone

The adjustment can be made on either side of the headset as shown by sliding it outwards to achieve a comfortable fit.
Headset adjustment

Operating Your Gaming Headsets

Usage (PlayStation 4)

Insert the USB plug directly to the Playstation 4 Console and follow these steps:

  1. Navigate to the Settings Menu and select it.
  2. Highlight the ''Devices '' menu option and select it.
  3. Scroll down to ''Audio Devices'' and select it.
  4. Choose ''Output to Headphones'' and select ''All Audio''.
    Usage (PlayStation 4)

For Windows PC/Laptop

Step 1:

  1. Insert the USB headset plug into the USB port on the Laptop.
  2. Open your ''Sound'' settings from ''Control Panel'' and select ''Hardware and Sound'' and then select ''Sound''. (You can also right-click your sound icon on the system tray and select Playback devices).

Step 2:
In the Playback tab, select ''USB Audio Devices'' from the list and click ''Set as Default Device''.
For Windows PC/Laptop

For Mac

  1. Insert the USB connector into the USB port on the Mac.
  2. In "System Preferences", click on the"Sound" icon.
  3. Click on the Input tab and select the"USB Audio Device" for default sound input.
  4. Click on the Output tab and select the"USB Audio Device" for default sound output.
    For Mac

Troubleshooting

Issue Solution
If there is something wrong with the headset.
  1. Adjust the headphone volume at the volume control on the headset.
  2. Make sure the headset is not in the mic-mute state.
  3. Check the USB connection to the computer, and try a different USB port on the computer.
  4. Check the volume and microphone setting in the system and run software.
  5. Restart your system or software.
When the microphone of the headsets cannot be used.
  1. You need to disable the computer's onboard mic by accessing your sound devices in the hardware section of the control panel. And choose the mic of the headset.
  2. Check whether the mute switch on the microphone is opened or not.

Matters Needing Attention

  1. This headset can only be used on game devices with the USB interface.
    Matters Needing Attention - Step 1
  2. Please make sure microphone is not muted before using.
    Matters Needing Attention - Step 2
  3. Please make sure all the wires are in the correct position when using it.
    Matters Needing Attention - Step 3
