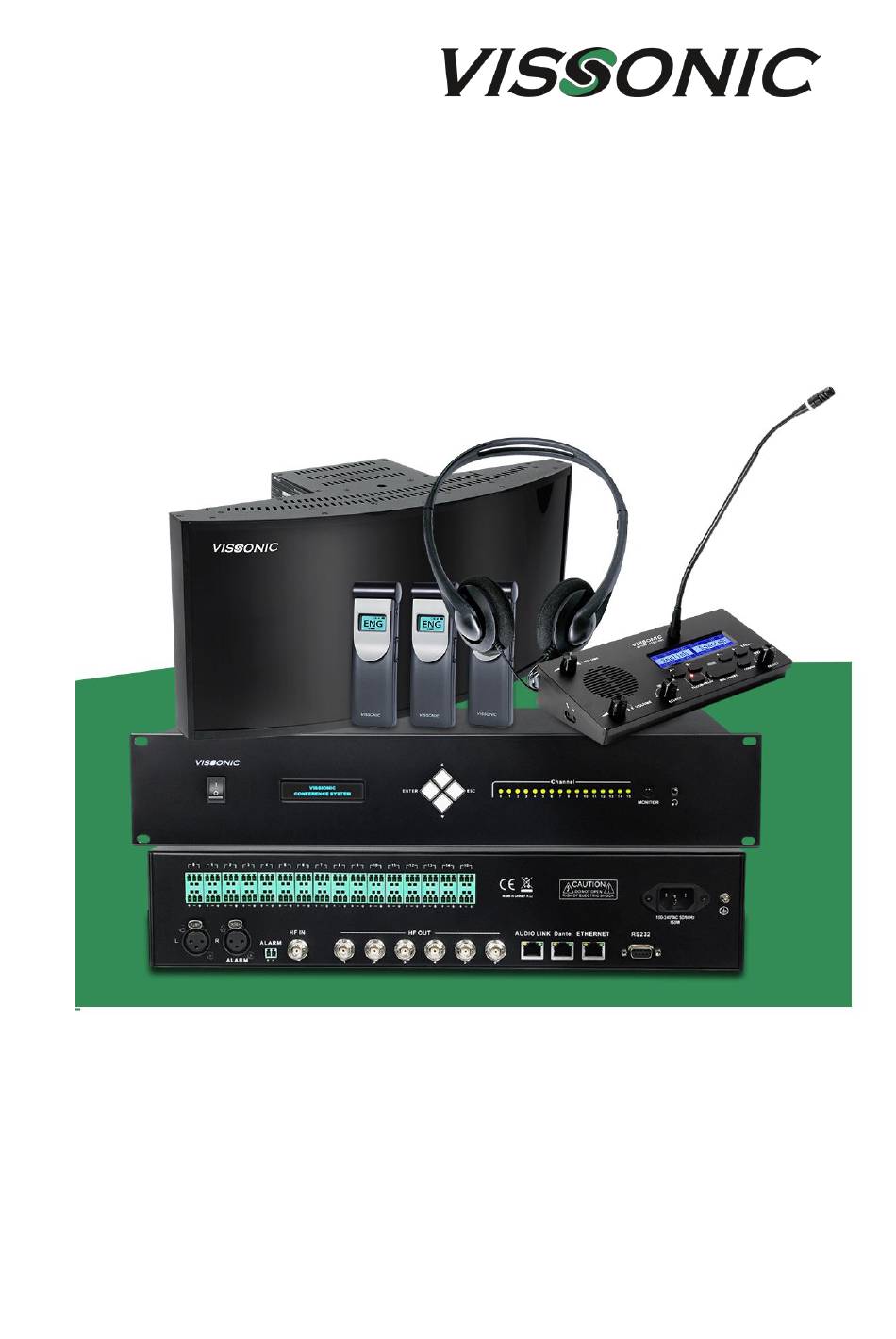

- Page 1 VLI Series Digital Infrared Language Distribution System User Manual V3.0 VISSONIC ELECTRONICS LIMITED...
- Page 2 Meanings of Signs Safety Precautions There are signs in both the user manual and the equipments to indicate the hidden risk to your and others’ personal safety and property. These signs are used to help you to operate the equipments safely and correctly, whose meanings are illustrated as bellow.
- Page 3 Important Precautions Warning To ensure the proper function of the equipment and the safety of the user, please following the under mentioned instructions during installation, use and maintenance: Installation Instructions ⚫ Please do not use the equipment in t he following environment: shaking, dusty, oily, smoky, conducting dusty, filled of corrosive gas and flammable gas.
-
Page 4: Preface
All rights related to this manual is reserved by VISSONIC Electronics Limited. No organization or person can use part or all of the content of this manual for business usage without permission from VISSONIC Electronics Limited. -
Page 5: Table Of Contents
Contents Preface ..............................3 Chapter 1 Overview ..........................6 1.1. About ............................6 1.2 Equipments ........................... 6 1.3 System Advantages ....................... 6 1.4 Factors that affect the IR radiation ..................7 1.4.1 The directivity of receiving and emitting ..............7 1.4.2 The relation between the radiator and the seats arrangement ........8 1.4.3 The surface of the walls, ceiling, floor and curtain ........... - Page 6 5.4 Operator ..........................34 5.5 Specification ........................34 5.6 Setting of the language channel ..................35 5.6.1 Connect to IR VIS-VLI700A transmitter ..............35 5.6.2 Connect to DCP 2000 controller ................36 Chapter 6 Accessories ........................38 6.1 VIS-TC50A Charger and Storage Box ................38 6.2 VIS-BTPS Battery Pack ....................
-
Page 7: Chapter 1 Overview
Chapter 1 Overview 1.1. About VIS-VLI700A-8 8 channel transmitter VISSONIC independently developed this system, which applies full-digital modulating technology. With this system, the translator simultaneously interpreting the language according to the speaker’s original voice and the translated languages are transmitted to the whole meeting hall via modulated IR and can be received by the delegated with the earphone and the IR receiver with preferred channel on the language they understand. -
Page 8: Factors That Affect The Ir Radiation
6MHZ frequency, and avoided the interference from various kinds of lighting sources. ⚫ Flexible channel selection VISSONIC has left huge flexibility to the users while designing the channels, and has provided 32 general quality audio channels. (31 different translation channel + 1 original voice). The general quality channels take smaller bandwidth and can be used to transmit audio signals. -
Page 9: The Relation Between The Radiator And The Seats Arrangement
IR receiver ‘s best receiving range radiatorcoordinate illustration Fig1-1 VISSONIC radiating panel’s cover area is a ellipse,which means as the distance gets larger,the dimension of the radiation area gets larger till a certain limit is reached.Please check the Fig.1- 2“radiating panel coordinate illustration. -
Page 10: The Surface Of The Walls, Ceiling, Floor And Curtain
Fig.1-3 installation without obstacles Fig.1-4. Direct emission and reflect Fig. 1-5 Reflect 1.4.3 The surface of the walls, ceiling, floor and curtain IR is just like visible light, and can be reflected by shining, smooth surface and absorbed by dark, rough surface. -
Page 11: The Coverage Of The Radiating Panel
100% 100% Fig. 1-7 there is difference in the reflection effects for floors of different texture 1.4.4 The coverage of the radiating panel In the system, the coverage is decided by radiating controller’s carrier wave and the radiating panel’s output power, and the coverage will be enlarged when there are more radiating panels. The radiating panels’... -
Page 12: Floor Area Of Overlapping And Multi-Path Effects
90°installation figure 1.4.5 Floor area of overlapping and multi-path effects The installed radiation board in meeting room, if was overlapping, the overall coverage may be greater than the radiation of two separate panels. Radiation intensity is greater than the area needed.(As shown in the Figure) -
Page 13: Chapter 2 Digital Infrared Transmitter
Chapter 2 Digital Infrared Transmitter 2.1 Overview VIS-VLI700A-4/-8/-16 IR transmitter is the main part of the digital IR distribution system. To transfer the simulation audio, compress code, full digital DQPSK transfer. The system can send 16 kinds of languages. IR transmitter can be installed on 19-inch standard rack, the easy storage and safekeeping. -
Page 14: Vis-Vli700A-4, Vis-Vli700A-8 ,Vis-Vli700A-16 Transmitter
2.4 VIS-VLI700A-4, VIS-VLI700A-8 ,VIS-VLI700A-16 Transmitter Front panel ① Power On/Off ② LCD display to show the setting menu ③ Menu button ④ Channel input status ⑤ Small radiator window Small window is transmitting the same infrared signal as the radiator output for monitor purpose ⑥... -
Page 15: Connection
⑪ Auxiliary audio R input Female XLR connectors for external audio inputs to connect auxiliary balanced audio signals such as music, floor language or emergency audio signal ⑫ Fire alarm linked trigger interface... -
Page 16: To The Interpreter
2.5.2 To the interpreter The transmitter can be directly connected to the interpreter unit VIS-INT64 or VIS-INT64S by AUDIOLINK, but the power adaptor is necessary for the first interpreter unit connected from the transmitter unit. The power consumption is 9W, when the speaker of interpreter unit is on. The power adaptor is DC48V 3A. -
Page 17: To Another Transmitter
When the switch is closed, the audio signal on the Aux-Right input is distributed to all output channels and overriding all other audio inputs. “ALARM” will be displayed on the LCD at this moment. -
Page 18: Controls And Indicators
2.6 Controls and indicators ⚫ Power switch ⚫ Graphic LCD with back-lighting displays status and menu of the system configuration, supporting multi language menu ⚫ Four buttons for configuration ⚫ Channel active indicators 2.7 Interconnection ⚫ 2female XLR connectors for external audio inputs to connect auxiliary balanced audio signals such as music, floor language or emergency audio signal ⚫... -
Page 19: Vis-Vli700A Ir Transmitter Operation Interface
Modulation frequency..........2 to 8 MHz Carriers 0 to 5:2 to 6 MHz, according to IEC 61603-7 Frequency response...........20 Hz to 10 kHz (-3dB) at standard quality;20 Hz to 20 kHz (-3dB)at perfect quality THD at 1 kHz.............<0.05% Isolation..............>80 dB Dynamic range............>90 dB... - Page 20 ④Press "ENTER" to access the "Channel Monitor" interface. The audio monitoring interface offers a selection of 16 channels ranging from 0 to 15 for audio monitoring. Press "▲" or "▼" keys to choose the channel number, and it supports continuous scrolling by holding down the button.
- Page 21 ⑦Press "ENTER" to access the "Download" interface, where you can choose between two modes: Run (operational mode) and Host (host upgrade mode). In the "Host" interface, press 'ENTER' to switch to "Download: Host" for host upgrade mode. Turn off and on the power to access the upgrade interface, using the rear-panel Ethernet interface.
-
Page 22: Chapter 3 Digital Infrared Radiator
Chapter 3 Digital Infrared Radiator 3.1 Overview The radiator is high power IR radiating equipment used to receive the carrier wave signal from the IR system controller and emit the signal in the form of IR. It support hand-in-hand connection and there can be maximally 30 radiating panels connected together. -
Page 23: Vis-Vli701A Front Panel
3.3VIS-VLI701A Front Panel ① POWER OUTPUT Switch for the power of the radiated signal. ② LOOP-THROUGH INPUTS Connected to the system controller's SINGNAL OUTPUTS interface or the former IR radiating panel's output interface. ③ DELAY COMPENSATION*25 Delay composition adjusting button, “+” is to delay increase, “-“ is to delay decrease. The value for adjusting will be displayed on the LCD above the button. - Page 24 If the radiator are installed highly enough, the signal intensity of the received IR signal will not decreased to zero in the shadow area, because IR can be reflected (same as the visible light). Fig.3-1 Square IR coverage When the radiator cannot be installed onto the existing ceiling, walls or bearing structures, they must be installed according to the above mentioned rules to ensure the proper signal transmission.
-
Page 25: Wiring Of The Radiator
Fig. 3-3 “IR Coverage in “blind Area” 3.4.2 Wiring of the radiator The signal’s delay can be caused by the distance difference between the system transmitter to the different radiator. In order to avoid “blind spot” , please choose the cables that are of same length. -
Page 26: Rectangle Coverage
3.4.3 Rectangle Coverage The actual required number of the radiator can only be determined by field test, but using “rectangle coverage” can ensure a very close guess. Fig.3-6 and Fig.3-7 explain what is the “rectangle coverage”, from which we can see that the rectangle coverage is smaller than the total coverage. -
Page 27: Delay Switch Settings
3.6 Delay switch Settings In section 1.4.6, there is “overlapping multi-path effect”: the receiver receive signal from two or more radiating panels, and “blind spots” can be caused due to delay difference. In order to compensate the delay difference, the delay switch on the side of the radiator can be set to increase the corresponding panel’s delay. -
Page 28: Connection Between The Radiator And The Transmitter
In determining the installation location before, need to ensure smooth airflow around the unit of radiation, radiator to avoid the phenomenon of high temperature. 3.8 Connection between the radiator and the transmitter Attention: When cascading the radiator, the BNC connector of the last radiator in the cascading chain which is left unused should be connected to a load resistance of 75Ω... -
Page 29: Interconnection
⚫ Delay compensation buttons(-/+) 3.10 Interconnection ⚫ HF input and output connectors(2 x BNC) for connection to transmitter and loop-through to other radiators 3.11 Specification Electrical and optical Modulation............DQPSK, according to IEC61603-7 Modulation frequency Carriers 0 to 5.............2 to 6 MHz, according to IEC 61603-7 Carriers 6 to 7.............Up to 8 MHz... -
Page 30: Chapter 4 Digital Infrared Receiver
5 minutes continuous signal or unplug the headphones will automatically shut down after 5 minutes. VISSONIC produces several types of digital infrared receiver: VIS-VLI703A-4 4 channels IR receiver VIS-VLI703A-8 8 channels IR receiver... -
Page 31: Vis-Vli703A-4/8/16/32 Features
② Volume knob ③ Infrared receiving window ④ LCD screen to display the language name, channel number, signal intensity, volume level, battery level etc. ⑤ Power switch ⑥ Chanel selector button ⑦ Charging contact 4.3 VIS-VLI703A-4/8/16/32 features ⚫ Compliant to IEC 61603-7 and IEC 60914 ⚫... -
Page 32: Controls And Indicators
4.5 Controls and Indicators ⚫ LCD displays channel number, language name, battery capacity, signal intensity and volume Power switch ⚫ On/Off Button； ⚫ Slider-type volume adjuster； ⚫ Channel selector buttons； 4.6 Interconnections ⚫ 3.5mm(0.14 inch)Headphone output jack ⚫ Charging contacts 4.7 Specification... -
Page 33: Chapter 5 Interpreterunit
Chapter 5 InterpreterUnit The VIS-INT64 interpreter unit is a fully functional translation unit, which can carry 63+1 languages simultaneously, and realize the direct translation and indirect translation of these languages. 5.1 Features ⚫ Digital audio technology, built-in high-speed DSP processing. -
Page 34: Descriptions Of Panel Display
④IN-input channel selection knob. ⑤OUT-Output channel selection knob. ⑥FLOOR-RELAY-Sounds and indirect translation switch. ⑦MIC ON/OFF--microphone switch. ⑧COUGH-cough elimination button.Press and hold in translation status,a temporary interruption to prevent cough being passed,release to return to normal translation. ⑨A,B–input channel shortcuts.Select an input channel and press A or B button for 3 seconds,the button becomes the channel shortcut key,you can quickly select input channel. -
Page 35: Operator
5.4 Operator Translation unit can be set to the operator unit, for the convenience of intercom management. Translation unit is set to operator as follows: Before power translation unit, press and hold the translation unit "CALL" button, release the button until operator set, translation unit is set to operator. -
Page 36: Setting Of The Language Channel
Display.................320x64 dot (blue white) Connector................2 x Ø 3.5 mm earphone jack, 2 x Ø 3.5 mm Microphone jack,2xRJ45 port,1x2.5mm adapter port Mechanical Dimension. h x w x d (mm)..........280X128X55 Weight..................1.5kg Color..................Black 5.6 Setting of the language channel 5.6.1 Connect to VIS-VLI700A IR transmitter ①Press the "CALL"... -
Page 37: Connect To Dcp 2000 Controller
④Press "floor relay" or rotate the left knob on the main screen to display the Original So und Channel when the green light is on. 5.6.2 Connect to DCP 2000 controller ①The main interface displays the unit quantity and microphone types. - Page 38 Use "▲" and "▼" to choose language, confirm with "Enter," and repeat for other channel s. Press "ESC" to exit settings.(here's the language setting for the 1 channel) ..
-
Page 39: Chapter 6 Accessories
Chapter 6 Accessories 6.1 VIS-TC50A Charger and Storage Box VIS-TC50A Charger and Storage Box support not only charging function, but also can be used to store infrared receiver, using special design, when the receiver stored in the charging box, move, or shake the box the receiver will not be affected. -
Page 40: Vis-Btps Battery Pack
6.2 VIS-BTPS Battery Pack The large-capacity rechargeable battery pack provides a continuous and stable power supply for the all-digital infrared receiving unit, ensuring uninterrupted operation for a long time. Specification Material................lithium battery pack Voltage ................V Capacity................1600mAh Dimensions Width ×Depth....×Height (mm) ....48 × 29 × 15 Weight................45 g... - Page 41 Technical Parameters Unit interface………………………… ..2-channel plug Frequency response ………………………… 80Hz – 2KHz Sensitivity............90dB Signal to noise ratio ........>80dB Distortion............< 0.1dB Impedance............32 Ω Dynamic range..........> 85 dB Output power...........100mW...
-
Page 42: Chapter 7 Frequently Seen Malfunction And Maintenance
Chapter 7 Frequently seen malfunction and maintenance ①Host power indicator does not light Check the power switch is closed, equipment power input is a good contact. A: switching power supply there are two key characters, a "O" and "I" word, when the "O" word side of subsidence, "I"...
