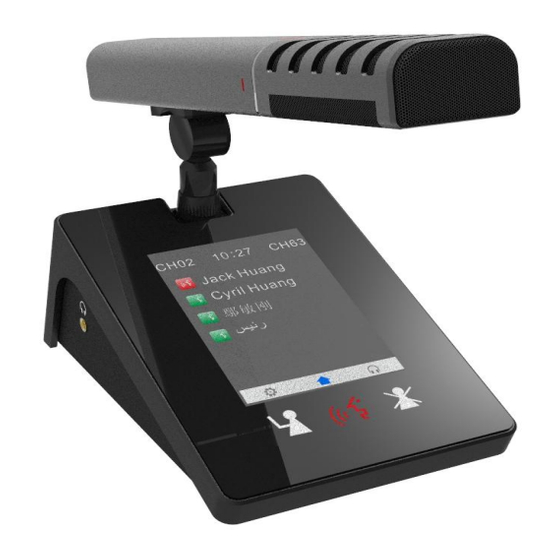

Multimedia digital conference unit with touch screen
Hide thumbs Also See for VIS-DMD-T:
Table of Contents

Advertisement

Quick Links

Download this manual

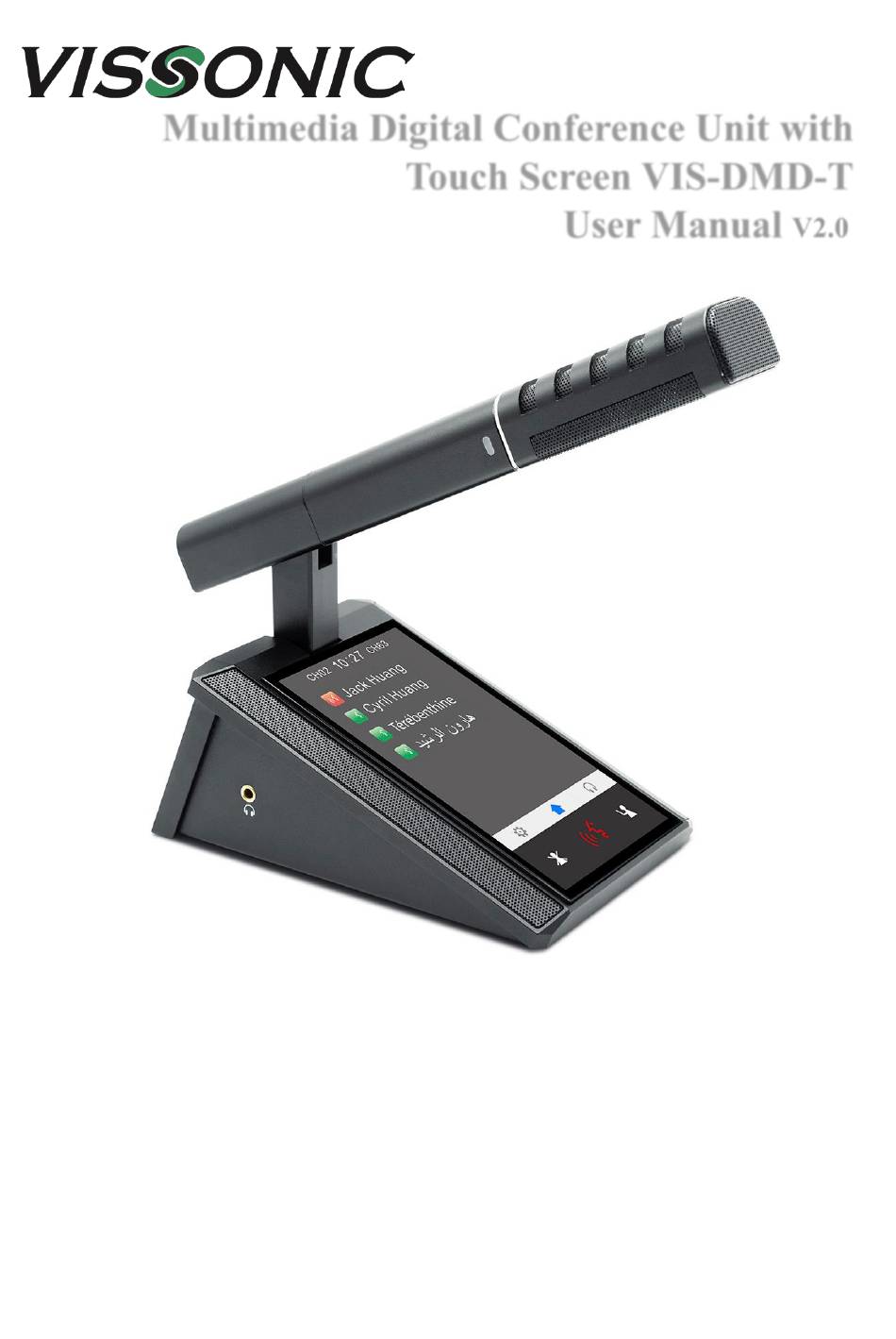

Multimedia Digital Conference Unit with
Touch Screen VIS-DMD-T
User Manual
V2.0
VISSONIC Electronics Limited
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIS-DMD-T and is the answer not in the manual?

Questions and answers

Related Manuals for vissonic VIS-DMD-T

Summary of Contents for vissonic VIS-DMD-T

  • Page 1 Multimedia Digital Conference Unit with Touch Screen VIS-DMD-T User Manual V2.0 VISSONIC Electronics Limited Page 1...
  • Page 2 Important note ◆ Only after cutting down all external power source, can install, wiring operation begin, or it may cause Warning electric shock or equipment damage. In order to ensure the reliable performance of the ◆ This product grounds by the grounding wires. To equipment and the safety of the user, please observe avoid electric shocks, grounding wires and the earth the following matters during the process of...
  • Page 3 All rights related to this manual is reserved by VISSONIC Electronics Limited. This manual is protected by the “Copyright Law of the People's Republic of China” and other IPR protection laws, no disperse or copy is accepted without paper permission from VISSONIC Electronics Limited.

  • Page 4: Table Of Contents

    VISSONIC Electronics Limited Catalog 1. Product Overview ..............................5 1.1 Product description and layout ........................5 1.2 Product connection diagram ........................... 8 2. Basic functions ................................. 9 2.1 Home screen information display ........................9 2.2 Speech timing and request ..........................10 2.3 Unit language and luminance settings ......................

  • Page 5: Product Overview

    Dual user. By chairman unit, you can use the touch screen on the VIS-DMD-T unit to manage different aspects of the meeting. It allows you to start, pause meetings, view request-to-speak lists, approve request, view addresser profiles and speaking times, and even record meetings, easily start and stop voting etc.
  • Page 6 ● Easily expand functions by setting software modules. Functions ● The design is compact, modern and with latest VISSONIC technology. ● Adopt standard CAT5e with RJ45 connector as the connection cable, which is convenient for standardized engineering wiring installation and maintenance.
  • Page 7 VISSONIC Electronics Limited Chairman unit with priority button and approve to speak button. • Connection Pluggable microphone connection base Two 3.5mm stereo Headphone jacks Two RJ45 connectors Technical parameters General parameters Screen size: 109.22 mm (5.0 inches) Resolution: 800x480 Screen type: Capacitive multi-touch...

  • Page 8: Product Connection Diagram

    VISSONIC Electronics Limited In order to fully configure, manage and use the device, the CLEANON SYSTEM management software of CLEANON is required. Provide the following standard authorizations: VIS-CLEACON SETUP Conference basic setting software module VIS-CLEACON MIC Microphone control software module...

  • Page 9: Basic Functions

    VISSONIC Electronics Limited 2. Basic functions Settings interface: Click the settings button to enter the settings menu. You can set the unit language, luminance, EQ, unit information, vote, and service. 2.1 Home screen information display The home screen displays two interpretation channels that can be used by two users. The dual display of digital time and dial time, as well as the date display, make the appearance of the unit more concise and attractive.

  • Page 10: Speech Timing And Request

    VISSONIC Electronics Limited clicking the interpretation button on the right, you can enter the interpretation channel setting interface. 2.2 Speech timing and request When you click the microphone-enabling button, the microphone-enabling interface displays the speech time of the conference participants in real time. When the microphone is disabled, the information of the addresser and addresser in the request list can be displayed.

  • Page 11: Unit Eq Settings And Unit Information Display

    VISSONIC Electronics Limited 2.4 Unit EQ settings and unit information display "EQ" settings provide 8-band equalizer adjustment and +/-12dB sensitivity adjustment. The settings can be enabled or disabled and can also be reset with one key if the settings are disturbed.
  • Page 12 VISSONIC Electronics Limited When you turn on the conference processor, the initialization message of "Initializing..." will be displayed on the screen. After 3 seconds, the home screen menu will be displayed. Home screen The information displayed on the home screen is shown in the figure above, including unit (indicating the number of conference microphone units connected to the system from "0001"...
  • Page 13 VISSONIC Electronics Limited On the home screen, you can press the "△" button to quickly enter the screen for setting the maximum number of microphones allowed. Menu Parameter Description Active MIC 1, 2, 4, 6 Limits number delegates' microphones allowed to be turned on.

  • Page 14: Unit Id Settings, Unit Type Settings, And Authority Settings

    VISSONIC Electronics Limited 3. Unit ID settings, unit type settings, and authority settings 3.1 Editing unit ID Press and hold the "ESC" button on the host panel for 2 seconds. The system will enter the ID editing status. Click the microphone-enabling button of the unit in turn (the button turns red, and the ID starts from No. 1 by default and increases by 1 when the button is pressed once) until the last unit.

  • Page 15: Unit Authority Settings

    VISSONIC Electronics Limited T y p e : O f f - > O f f 3.3 Unit authority settings Log in to the upper computer management software of the conference system. In the management mode, right-click the unit icon and click "Personnel authority" to set unit authority, such as ID, speaking, vote, and sign-in authority.

  • Page 16: Optional Functions

    VISSONIC Electronics Limited 4. Optional functions 4.1 IC card sign-in and information display function (software license model: VIS-LIDEN) Sign-in by NFC card allows accurate identification of user image, name, position, etc. (Add user details in the system management software. Refer to 5.2 - 5.3.) 4.2 Voting function (software license model: VIS-LVOTE)
  • Page 17 VISSONIC Electronics Limited Voting for rating Voting for ballot Sign-in The results of the election, rating, ballot, and sign-in are displayed in real time, and the data is displayed in bar charts, which is more intuitive and reliable. The chairperson unit can start and end the voting, and the voting authority of units can be customized.

  • Page 18: Dual 64-Channel Selector Software Module (Software License Model: Vis-Llge)

    VISSONIC Electronics Limited 4.3 Dual 64-channel selector software module (software license model: VIS-LLGE) Enter the host menu "Interpretation" to set relevant parameters of the interpretation unit. Select the number of channels to be opened, the corresponding language of the channel, and the serial number of the interpretation booth.

  • Page 19: Dual-User Software (Software License Model: Vis-Ldual)

    VISSONIC Electronics Limited The microphone unit can choose two interpretation channels for dual users at the same time. There is a 3.5mm headphone jack on each side of the unit, so you can listen to the interpretation of two channels in the interface.

  • Page 20: Upper Computer Software Settings

    VISSONIC Electronics Limited 5. Upper computer software settings 5.1 Software connection The computer and conference host are connected to the same network, and the default IP address of the conference host is 192.168.10.100. Set the computer IP address to a static one, and keep it in the same network segment as the conference host.

  • Page 21: Basic Configuration

    VISSONIC Electronics Limited 5.2 Basic configuration Basic configuration 1. Vote settings Select settings such as "Sign in required", "Vote with names", and "First choice". Multiple choices are supported. 2. Vote mode settings You can choose to start or end a vote, election or rating.

  • Page 22: Display Of Person Requesting To Speak

    VISSONIC Electronics Limited In the personnel information list, you can set the information of each conference participant, including the name, gender, nationality, language, institution, department, position, certificate number, and image. The information can be uploaded to the microphone unit, electronic nameplate, or other devices for display.
  • Page 23 VISSONIC Electronics Limited The dynamic text function is an important embodiment of statistical conference results. The dynamic text can bind relevant information in multiple modes. It dynamically displays the information change and is an important conference element to reflect the change of relevant parameters in the conference process.

  • Page 24: Debugging

    VISSONIC Electronics Limited 6. Debugging Generally, you do not need to set the host and unit. After the system is connected, the conference system is ready to use. The unit can display the current time. After the host is connected to the audio system, there is sound output.
  • Page 25 VISSONIC Electronics Limited 5. Press "ENTER" to confirm the current parameter "6", and make the parameter take effect. It will be displayed as Active MIC:6. 6. Press "ESC" to return to the home screen. Page...
