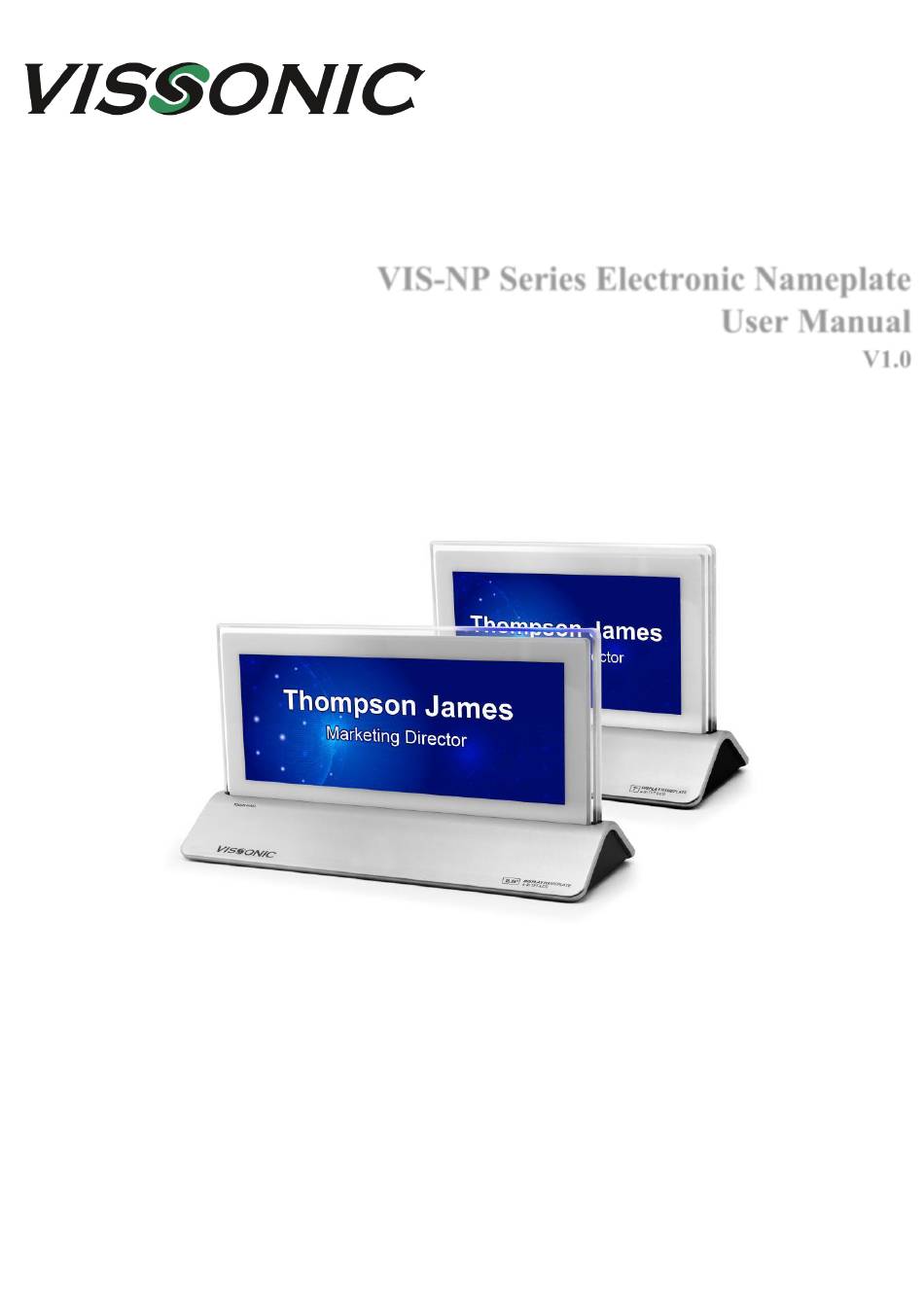

- Page 1 广 VIS-NP Series Electronic Nameplate User Manual V1.0 VISSONIC Electronics Limited - 1 - VISSONIC ELECTRONICS LIMITED...
- Page 2 Please contact qualified service personnel. ■ General information indications Information that may lead to an unsuccessful operation or setting and other relevant information needed to be noticed is listed. - 1 - VISSONIC ELECTRONICS LIMITED...
- Page 3 ◆Explosive electrolytic capacitors: It may cause explosion when electrolytic capacitor on the circuit board burns; ◆Please collect and process separately, it cannot be put in the life garbage. ◆Please process it as industrial waste, or process it in accordance with local environmental regulations. - 2 - VISSONIC ELECTRONICS LIMITED...
- Page 4 Please use the latest product manual. VISSONIC Electronics Limited possesses the copyright of this manual. This manual is protected by the Copyright Law of the People's Republic of China and other intellectual property laws. No part or all of this manual may be copied or modified without permission.
-
Page 5: Table Of Contents
Contents User Manual ................................. - 1 - V1.0 ..................................- 1 - VISSONIC Electronics Limited ..........................- 1 - Chapter One System overview ..........................- 5 - Chapter Two Devices .............................. - 6 - 2.1 Conference controller ..........................- 6 - 2.2 Features .............................. -
Page 6: Chapter One System Overview
② Once the number of Nameplate exceeds 22, ✓ Control 2(PC) ✓ you need to use POE switches to expand the CAT5e network cable ✓ HDMI cable number and usage. ✓ POE Switch VIS-SWICH12 ✓ 10"Nameplate VIS-NP10T VISSONIC ELECTRONICS LIMITED - 5 -... -
Page 7: Chapter Two Devices
6. Provides ubiquitous wireless control. 7. Provides advanced function setting and control on-site. 8. Manages conference discussions, electronic nameplates, sign-in, audio recordings, and video recordings. 9. Creates conferences and schedules each seat in advance. VISSONIC ELECTRONICS LIMITED - 6 -... -
Page 8: Host Panel Introduction
12. UPLINK Ethernet port - The IP address of the port on the left is configured by default for connecting to the network. 13. Ground screw - Connects the processor unit to the ground 14. Power port - System power input. The switching power supply is AC100V to 240V 50/60Hz. VISSONIC ELECTRONICS LIMITED - 7 -... -
Page 9: Controller Specifications
24 × status indicators HDMI BOOT X1 button 1 × power switch with indicator Power switch Dominant frequency Memory 16 G (eMMC) Power supply AC 100–240V 50/60 Hz Dimension (mm) 483(L) × 180(W) × 44. 5(H) VISSONIC ELECTRONICS LIMITED - 8 -... -
Page 10: 7" Dual-Screen Electronic Nameplate
3. Supports a resolution of 1024x600. 4. High refresh rate, preventing screen flicking during photographing. 5. Supports both POE and independent power supply (DC 12V). 6. Supports local and wireless control, and batch entry of information. VISSONIC ELECTRONICS LIMITED - 9 -... -
Page 11: Panel Dimensions
Figure 2.5 Dimensional drawing of the 7" electronic nameplate panel 1. 7" LCD, with a resolution of 1024x600 2. Reset button for clearing the nameplate binding information 3. 100M Ethernet interface, standard PoE power supply 4. DC 12V power supply VISSONIC ELECTRONICS LIMITED - 10 -... -
Page 12: Specifications Of The 7-Inch Dual-Screen Electronic Nameplate
Display color Brightness 450 nl Dominant frequency 1.3 G Memory 1 GB Storage 16 GB PoE power supply Rj45 interface Power supply interface DC 12V 1050 g Weight Dimension 225(L) × 100(W) × 150(H) VISSONIC ELECTRONICS LIMITED - 11 -... -
Page 13: 10" Dual-Screen Electronic Nameplate
3. An integrally formed aluminum alloy base, and a plexiglass transparent frame, bringing a stylish appearance. 4. 10" TFT dual-screen display, 10-bit true color enabling vivid design in red, green, and blue, display of participants' names, positions, and other information. VISSONIC ELECTRONICS LIMITED - 12 -... -
Page 14: Panel Dimensions
1. 10" LCD, touch screen with a resolution of 1600x600 2. 10" LCD, with a resolution of 1600x600 3. Reset button for clearing the nameplate binding information 4. 100M/1000M Ethernet interface, supporting standard PoE power supply 5. DC 12V power supply VISSONIC ELECTRONICS LIMITED - 13 -... -
Page 15: Specifications Of The 10-Inch Dual-Screen Electronic Nameplate
Brightness 450 nl Dominant frequency Memory Touch screen 10" capacitive touch screen Storage 16 GB PoE power supply Rj45 interface Power supply interface DC 12V 1500 g Weight Dimension 271(L) × 104(W) × 146(H) - 14 - VISSONIC ELECTRONICS LIMITED... - Page 16 POE switch. Attention please：The system provides two ways to connect to the controller ,choose one of the two. ① Connect the host to controller 1; ② Connect the host to controller 2. VISSONIC ELECTRONICS LIMITED - 15 -...
-
Page 17: Chapter Three Software Description
On the login page of the electronic nameplate conference system: (1) Enter the user name. The administrator account is admin. (2) Enter the user password. The administrator account password is admin. (3) You can select the system language. VISSONIC ELECTRONICS LIMITED - 16 -... -
Page 18: Login To The Home Page Of The Electronic Nameplate Conference System
On the home page of the electronic nameplate conference system: (1) You can view the indexes. (2) You can view the daily, weekly, and monthly data. (3) You can view the booked conferences and conference rooms VISSONIC ELECTRONICS LIMITED - 17 -... - Page 19 (1) Click "System Setting". (2) Select "Server Config". (3) On the "Basic Settings" tab, you can change the address, gateway, and terminal language. Through time settings, you can synchronize the time of the controller. VISSONIC ELECTRONICS LIMITED - 18 -...
-
Page 20: User Management
(4) The nameplates scanned by auto-discovery will be listed. (5) You can click the nameplate flash icon to locate a nameplate. (6) You can click the bind icon to bind a nameplate. After you click "OK", the nameplate is bound successfully. VISSONIC ELECTRONICS LIMITED - 19 -... -
Page 21: Terminal Device
You can click the edit icon to change the nameplate name or click the unbind icon to unbind the nameplate. (2) You can click "Unpair All Terminals" to unbind all the nameplates in batches. 3.8 Nameplate template (1) Click "Templates". (2) Click "Add Templates". VISSONIC ELECTRONICS LIMITED - 20 -... -
Page 22: Setting The Nameplate Template
(6) You can click the title, subtitle, name, and ID to change their attributes in the attribute area on the right. (7) After editing the attributes, click "Save". The template will be added successfully. - 21 - VISSONIC ELECTRONICS LIMITED... -
Page 23: Adding A Conference Room
(5) After adding a region, building, or floor, you can perform the edit, add, or delete operation. The add operation is to add a floor or room to a building. (6) Rooms can be added individually. VISSONIC ELECTRONICS LIMITED - 22 -... -
Page 24: Editing A Conference Room
(6) You can select multiple seats to align them with one click, or manually set the layout. (7) Click the seat to configure the code. The code is user-defined. (8) Drag the terminal to the seat. (9) Click "Save". The conference room layout will be successfully edited. VISSONIC ELECTRONICS LIMITED - 23 -... -
Page 25: Conference Reservation
3.12 Conference reservation (1) Click "Bookings". (2) Click "Add Meetings". (3) Fill in the conference information. You can select a conference room that has been added. VISSONIC ELECTRONICS LIMITED - 24 -... - Page 26 (4) After adding a conference, you can edit , delete , or publish the conference. VISSONIC ELECTRONICS LIMITED - 25 -...
-
Page 27: Conference Preparation
(4) Edit the participant information. You can select a nameplate template. If no template is selected, the default one is the nameplate template you selected in the process of conference information editing. (5) The smart allocation and dry run functions are available. VISSONIC ELECTRONICS LIMITED - 26 -... -
Page 28: Conference Sign-In
(1) The sign-in function is available only after a conference has been started. (2) Fill in the relevant information. Then, click "Save". The countdown is calculated seconds. (3) Click "Start Checkin" at the bottom right corner to complete the check-in. VISSONIC ELECTRONICS LIMITED - 27 -... -
Page 29: Conference Process
During a conference, you can suspend, end, or delay the conference, change seat management, and perform sign-in. (2) The sign-in function can be repeatedly enabled. The signed-in participants will not be displayed. VISSONIC ELECTRONICS LIMITED - 28 -... -
Page 30: Suspend The Conference
(1) If you want to rest during the meeting, you can choose to suspend the meeting. Click the button in the lower left corner, set the name of the meeting, and click OK to suspend the meeting. VISSONIC ELECTRONICS LIMITED - 29 -... -
Page 31: Archiving A Conference
3.17 Archiving a conference (1) After the conference, click "Archive" to download and archive the conference summary. - 30 - VISSONIC ELECTRONICS LIMITED...
