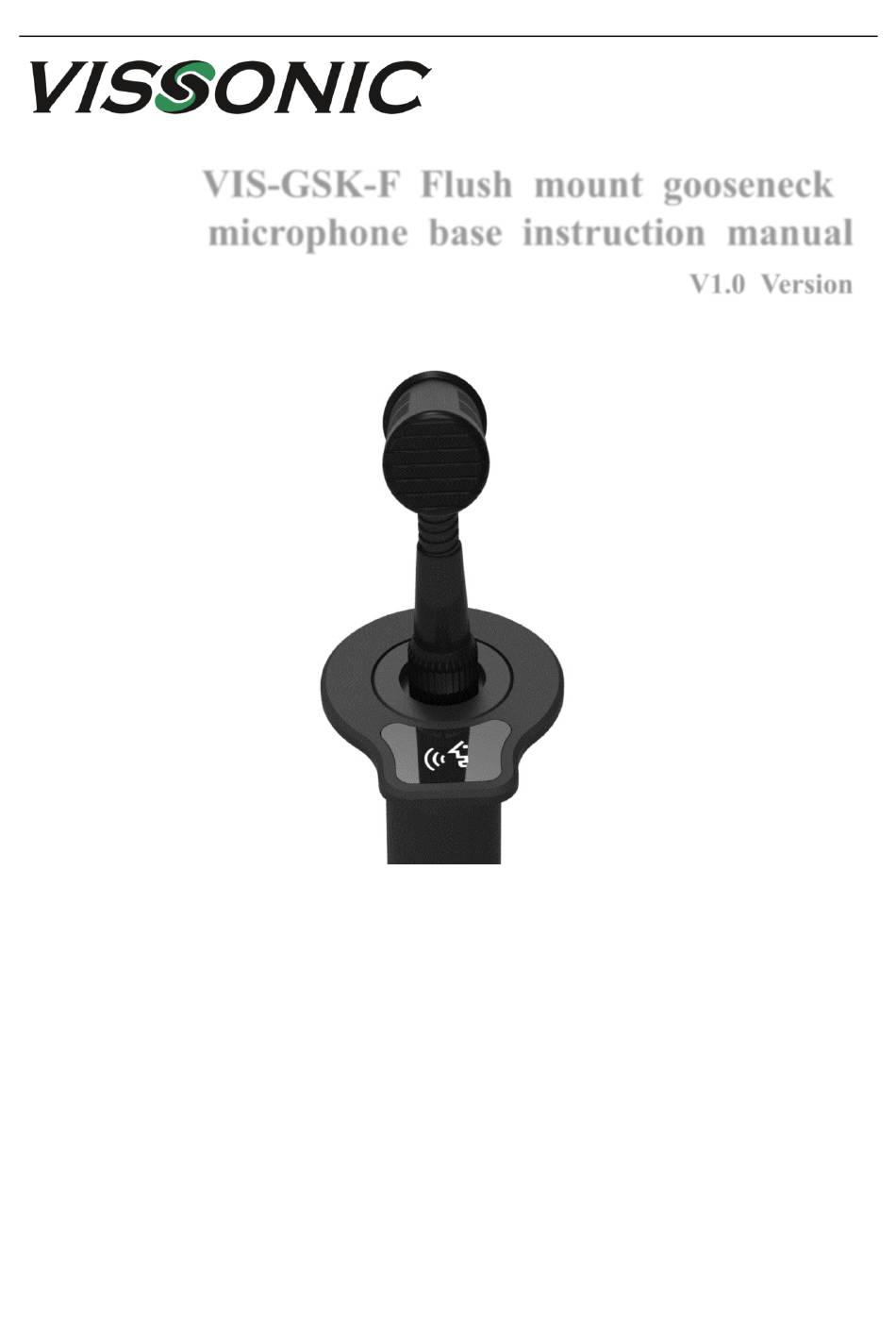

- Page 1 VIS-GSK-F Flush mount gooseneck microphone base instruction manual V1.0 Version VISSONIC ELECTRONICS LIMITED - 1 - VISSONIC ELECTRONICS LIMITED...
- Page 2 Please contact the qualified service personnel. ■ General information instructions It lists the factors leading to the unsuccessful operation or set and the relevant information to pay attention to - 2 - VISSONIC ELECTRONICS LIMITED...
- Page 3 ◆Electrolytic explosion: the burning of electrolytic capacitor on circuit boards may lead to explosion; ◆Please collect and process according to the classification, do not put into life garbage; ◆Please process it as industrial waste, or according to the local environmental protection regulations. - 3 - VISSONIC ELECTRONICS LIMITED...
- Page 4 Please use the latest product manual. The copyright of the manual belongs to VISSONIC Electronics Co., Ltd. This manual is protected by "The Copyright Law of the People's Republic of China" and other intellectual property laws and regulations. It is not allowed to copy part or all of the manual without permission, and it is not allowed to modify this manual.
-
Page 5: Table Of Contents
2.2.2 Microphone connection: ....................... 14 3. Technical parameters ............................15 3.1 Technical indicators ..........................15 3.1.1 Flush mount base .......................... 15 3.1.2 Multifunctional connection box ....................16 3.2 Audio interface ............................16 4. Ordering information ............................17 v VISSONIC ELECTRONICS LIMITED... -
Page 6: Product Overview
1.1 Product description and layout VIS-GSK-F is a built-in gooseneck microphone base that can be connected to a full range of VIS-M microphones. And when not in use, the microphone can be removed when it is not applicable. The base is small and exquisite, with touch buttons to switch the microphone. -
Page 7: Open Hole Dimension
1.2 Open hole dimension Blueprint Dimension: Diameter of the microphone body: 22mm Touch button diameter: 15mm The distance between the main body and the button center: 21.75mm 7 VISSONIC ELECTRONICS LIMITED... -
Page 8: Application Solution
2. Application Solution 2.1 Full digital network conference system application Through the multifunctional connection box independently developed by VISSONIC, it can convert analog audio signals into digital audio signals and connect to the CLEACON all-digital network conference system. It can have... -
Page 9: System Component
VISSONIC CLEACON series of digital units, and can Mixed with CLEACON series digital units, it can be freely matched, has good compatibility and high flexibility. It can be used in large, medium and small meeting rooms, and can be used in various scenarios such as lecture halls, schools, government, and corporate training rooms. -
Page 10: Connection
⚫ VIS-GSK-F embedded gooseneck microphone base and VIS-BAIB touch switch control panel ③ ⚫ Analog audio line (XLR or phoenix connector optional) ④ ⚫ Touch switch control line and light control line ⑤ ② ① ⑤ ④ ③ 2.1.2 Connection: ①... -
Page 11: Multifunctional Connection Box
Picture of microphone connection 2.1.3 Multifunctional connection box Connection Diagram 11 VISSONIC ELECTRONICS LIMITED... -
Page 12: Work With Vis-Fs100-A Feedback Suppressor Or Vis-Dsp8 Sound Processor
48VDC power indicator and audio signal indicator. 2.2 Work with VIS-FS100-A feedback suppressor or VIS-DSP8 sound processor VIS-GSK-F flush mount gooseneck microphone connected to VIS-FS100-A automatic feedback suppressor is economical, simple, and beautiful for low profile design, suitable for classrooms, training rooms, podiums and other scenes. -
Page 13: System Composition
⚫ Analog audio cable (XLR or Phoenix type optional)① Cable Length: 50cm, can be extended ⚫ VIS-GSK-F flush mount gooseneck microphone base with mount nut② ⚫ VIS-BDSP touch switch control panel③ ⚫ Cable for GPIO port(optional) Cable Length: 50cm, can be extended... -
Page 14: Microphone Connection
② Insert the control cable of the touch button into the bottom socket of the base; ③ Connect the audio cable with the feedback suppressor or mixer, or sound processor (requires phantom power); ④ Fix the gooseneck mic to the base 14 VISSONIC ELECTRONICS LIMITED... -
Page 15: Technical Parameters
3.1.1 Flush mount base Output impedance....360 Ω; Control : High potential when pressed......(DC +5V); Low potential when not pressed......(DC 0V); LED indicator : High Electric potential (DC +5V) ....red; Low Electric potential (DC 0V) ....white; 15 VISSONIC ELECTRONICS LIMITED... -
Page 16: Multifunctional Connection Box
⚫ High speed microphone input....70dB SPL ⚫ Maximum microphone input....100dB SPL ⚫ Speaker rated output....70dB SPL at 0.5m ⚫ Sensitive....-46 dBV/Pa ⚫ Color....Black ⚫ Weight....500g ⚫ Dimension (mm)....120Lx100Wx28H 3.2 Audio interface Type Signal Description return External 16 VISSONIC ELECTRONICS LIMITED... -
Page 17: Ordering Information
Shield/Ground Phoenix Shield/Ground 4. Ordering information Hardware ⚫ VIS-GSK-F....Embedded gooseneck microphone base ； ⚫ VIS-MDA....Square dual head double backup microphone ； ⚫ VIS-M220....220mm gooseneck microphone (black) with windproof sponge cover ； ⚫ VIS-M330....330mm gooseneck microphone (black) with windproof sponge cover ；...
