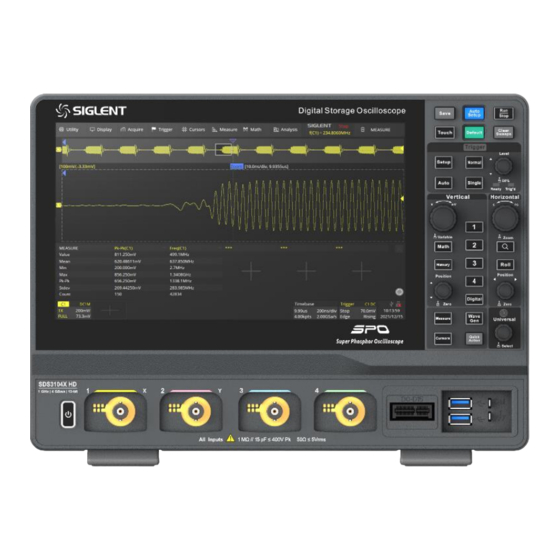

Page 1 SDS3000X HD Series Digital Oscilloscope User Manual EN01A...
Page 3: Table Of Contents
SDS3000X HD Series Digital Oscilloscope User Manual Contents Introduction ......................... 1 Important Safety Information .................... 2 General Safety Summary ................... 2 Safety Terms and Symbols ..................4 Working Environment ....................5 Cooling Requirements ....................6 Power and Grounding Requirements ................. 6 Cleaning........................
Page 4 SDS3000X HD Series Digital Oscilloscope User Manual 6.3.1 Power Supply ....................24 6.3.2 LAN ........................ 24 6.3.3 USB Peripherals..................... 24 6.3.4 Auxiliary Output ....................24 6.3.5 Waveform Generator ..................24 6.3.6 Probes ......................25 6.3.7 Logic Probe ....................26 Remote Control ......................... 27 Web Browser ......................
Page 5 SDS3000X HD Series Digital Oscilloscope User Manual 12.1 Turn on/off a Channel ....................48 12.2 Channel Setup ......................49 Digital Channels ........................ 54 13.1 Overview ........................54 13.2 Enable/Disable the Digital Channels ................ 56 13.3 Digital Channel Setup ....................57 Horizontal and Acquisition Setup ...................
Page 6 SDS3000X HD Series Digital Oscilloscope User Manual 16.6 Trigger Source ......................95 16.7 Holdoff ........................96 16.8 Trigger Coupling ....................... 97 16.9 Noise Reject ......................98 16.10 Zone Trigger ......................99 Serial Trigger and Decode ..................... 103 17.1 Overview ......................... 103 17.2...
Page 7 SDS3000X HD Series Digital Oscilloscope User Manual 17.9.3 I2S Serial Decode ..................129 17.10 MIL-STD-1553B Trigger and Serial Decode ............130 17.10.1 MIL-STD-1553B Signal Settings ..............130 17.10.2 MIL-STD-1553B Serial Trigger ..............130 17.10.3 MIL-STD-1553B Serial Decode ..............132 17.11 SENT Trigger and Serial Decode ................
Page 8 SDS3000X HD Series Digital Oscilloscope User Manual Math ..........................170 20.1 Overview ......................... 170 20.2 Arithmetic ........................ 172 20.2.1 Addition / Subtraction / Multiplication / Division ........... 172 20.2.2 Identity / Negation ..................172 20.2.3 Average / ERES ................... 173 20.2.4...
Page 9 SDS3000X HD Series Digital Oscilloscope User Manual 27.1 Overview ......................... 213 27.2 Mode ........................214 Histogram ........................216 28.1 Overview ......................... 216 28.2 Region Setting ......................218 Power Analysis ....................... 220 29.1 Overview ......................... 220 29.2 Power Quality ......................221 29.3...
Page 10 SDS3000X HD Series Digital Oscilloscope User Manual 33.3 Save and Recall Instances ..................264 33.4 Quick Save and Screenshot ................... 267 Utility ..........................268 34.1 System Information ....................268 34.2 System Setting ....................... 269 34.2.1 Language ..................... 269 34.2.2 Screen Saver ....................269 34.2.3...
Page 11: Introduction
SDS3000X HD Series Digital Oscilloscope User Manual Introduction A digital oscilloscope is a multi-functional instrument for displaying, analyzing, and storing electrical signals. It is an indispensable tool for designing, manufacturing, and maintaining electronic equipment. This user manual includes important safety and installation information related to the SDS3000X HD series of oscilloscopes and includes simple tutorials for the basic operation of the instrument.
Page 12: Important Safety Information
SDS3000X HD Series Digital Oscilloscope User Manual Important Safety Information This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition. General Safety Summary Carefully read the following safety precautions to avoid personal injury and prevent damage to the instrument and any products connected to it.
Page 13 SDS3000X HD Series Digital Oscilloscope User Manual Identification of Normal State of Equipment. After the equipment is started, there will be no alarm information and error information at the interface under normal conditions. The curve of the interface will scan from left to right freely; if there is a pop- up window or button during the scanning process or there is an alarm or error prompt, the device may be in an abnormal state.
Page 14: Safety Terms And Symbols
SDS3000X HD Series Digital Oscilloscope User Manual Safety Terms and Symbols When the following symbols or terms appear on the front or rear panel of the instrument or in this manual, they indicate special care in terms of safety. This symbol is used where caution is required. Refer to the accompanying information or documents to protect against personal injury or damage to the instrument.
Page 15: Working Environment
SDS3000X HD Series Digital Oscilloscope User Manual Working Environment The design of the instrument has been verified to conform to EN 61010-1 safety standard per the following limits: Environment The instrument is used indoors and should be operated in a clean and dry environment with an ambient temperature range.
Page 16: Cooling Requirements
SDS3000X HD Series Digital Oscilloscope User Manual Degree of Pollution The oscilloscopes may be operated in environments of Pollution Degree II. Note: Degree of Pollution II refers to a working environment that is dry and non-conductive pollution occurs. Occasional temporary conductivity caused by condensation is expected.
Page 17: Cleaning
SDS3000X HD Series Digital Oscilloscope User Manual The instrument includes a grounded cord set containing a molded three-terminal polarized plug and a standard IEC320 (Type C13) connector for making line voltage and safety ground connections. The AC inlet ground terminal is connected directly to the frame of the instrument. For adequate protection against electrical shock hazards, the power cord plug must be inserted into a mating AC outlet containing a safety ground contact.
Page 18: Abnormal Conditions
SDS3000X HD Series Digital Oscilloscope User Manual Abnormal Conditions Do not operate the scope if there is any visible sign of damage or has been subjected to severe transport stresses. If you suspect the scope’s protection has been impaired, disconnect the power cord and secure the instrument against any unintended operation.
Page 19: Informations Essentielles Sur La Sécurité
SDS3000X HD Series Digital Oscilloscope User Manual Informations essentielles sur la sécurité Ce manuel contient des informations et des avertissements que les utilisateurs doivent suivre pour assurer la sécurité des opérations et maintenir les produits en sécurité. Exigence de Sécurité...
Page 20 SDS3000X HD Series Digital Oscilloscope User Manual électrique doit être retirée pendant l'entretienLa ligne ne doit pas être mise sous tension tant que l'entretien de l'équipement n'est pas terminé et que l'entretien n'est pas confirmé. Identification de l'état normal de l'é quipement.
Page 21: Termes Et Symboles De Sé Curité
SDS3000X HD Series Digital Oscilloscope User Manual Termes et symboles de sé curité Lorsque les symboles ou termes suivants apparaissent sur le panneau avant ou arrière de l'instrument ou dans ce manuel, ils indiquent un soin particulier en termes de sécurité.
Page 22: Environnement De Travail
SDS3000X HD Series Digital Oscilloscope User Manual Environnement de travail La conception de l'instrument a été certifiée conforme à la norme EN 61010-1, sur la base des valeurs limites suivantes: Environnement L'instrument doit être utilisé à l'intérieur dans un environnement propre et sec dans la plage de température ambiante.
Page 23 SDS3000X HD Series Digital Oscilloscope User Manual Installation (overvoltage) Category Definitions Définition de catégorie d 'installation (surtension) La caté gorie II d'installation (surtension) est un niveau de signal applicable aux terminaux de mesure d' équipement relié s au circuit source.Dans ces bornes, des mesures préventives sont prises pour limiter la tension transitoire à...
Page 24: Exigences De Refroidissement
SDS3000X HD Series Digital Oscilloscope User Manual Exigences de refroidissement Cet instrument repose sur un refroidissement à air forcé avec des ventilateurs internes et des ouvertures de ventilation. Des pré cautions doivent être prises pour éviter de restreindre le flux d'air autour des ouvertures (trous de ventilateur) de chaque côté...
Page 25: Nettoyage
SDS3000X HD Series Digital Oscilloscope User Manual Avertissement: risque de choc électrique! Toute interruption du conducteur de terre de protection à l'intérieur ou à l'extérieur de la porté e ou la déconnexion de la borne de terre de sécurité crée une situation dangereuse.
Page 26: Conditions Anormales
SDS3000X HD Series Digital Oscilloscope User Manual Conditions anormales Utilisez l'instrument uniquement aux fins spécifiées par le fabricant. N'utilisez pas la lunette s'il y a des signes visibles de dommages ou si elle a été soumise à de fortes contraintes de transport.
Page 27: First Steps
SIGLENT shall not be responsible for any defect, damage, or failure caused by any of the following: Attempted repairs or installations by personnel other than SIGLENT.
Page 28: Document Conventions
SDS3000X HD Series Digital Oscilloscope User Manual Document Conventions For convenience, text surrounded by a box border is used to represent the button of the front panel. For example, Default represents the "Default" button on the front panel. Italicized text with shading is used to represent the touchable or clickable menu/button/region on the touch screen.
Page 29: Getting Started
SDS3000X HD Series Digital Oscilloscope User Manual Getting Started Mechanical Dimensions i n t .s ig le n t. co m...
Page 30: Adjust The Supporting Legs
SDS3000X HD Series Digital Oscilloscope User Manual Adjust the Supporting Legs Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards for stable placement as well as easier operation and observation of the instrument. Power on...
Page 31: Shut Down
SDS3000X HD Series Digital Oscilloscope User Manual Shut down Press the power button to turn off the oscilloscope. Or follow the steps below: Utility > Shutdown Note: The Power button does not disconnect the oscilloscope from the AC power supply. The only way to fully power down the instrument is to unplug the AC power cord from the outlet.
Page 32: Quick Start
SDS3000X HD Series Digital Oscilloscope User Manual Quick Start Front Panel Overview A. Touch Screen Display: The display and major functions area. See the "Touch Screen Display" chapter for more details B. Front Panel: Includes knobs and buttons. See the "Front Panel" chapter for more details C.
Page 33: Rear Panel Overview
SDS3000X HD Series Digital Oscilloscope User Manual Rear Panel Overview A. Ext Trigger Input B. Auxiliary Out: Outputs the trigger indicator. When Mask Test is enabled, outputs the pass / fail signal C. 1000M LAN Port: Connect the port to the network for remote control D.
Page 34: Connecting To External Devices/Systems
SDS3000X HD Series Digital Oscilloscope User Manual Connecting to External Devices/Systems 6.3.1 Power Supply The standard power supply for the instrument is 100~240 V, 50/60 Hz. Please use the power cord provided with the instrument to connect it to AC power.
Page 35: Probes
See chapters ”Arbitrary Waveform Generator” and “Bode Plot” for more relative information. 6.3.6 Probes The SDS3000X HD series oscilloscope supports active probes and passive probes. The specifications and probe documents can be obtained at int.siglent.com, www.siglentna.com, or www.siglenteu.com. Probe Compensation When a passive probe is used for the first time, you should compensate it to match the input channel of the oscilloscope.
Page 36: Logic Probe
SDS3000X HD Series Digital Oscilloscope User Manual 6.3.7 Logic Probe To connect the logic probe: Insert the probe, with the correct side facing up, until you hear a “click”. To remove the logic probe: Depress the buttons on each side of the probe, then pull out it.
Page 37: Remote Control
SDS3000X HD Series Digital Oscilloscope User Manual Remote Control The SDS3000X HD provides a LAN port and a USB Device port which can be used for remote control in multiple ways. Web Browser A built-in web server provides an approach to interact with the oscilloscope by a web browser. It doesn’t require any additional software to be installed on the computer.
Page 38: Other Connectivity
SDS3000X HD Series Digital Oscilloscope User Manual Below is the instrument control interface: A. Display and control area of the instrument. The display in this area is a copy of the instrument display. Using the mouse to operate in the area is equivalent to directly operating the touch screen display of the instrument.
Page 39: Touch Screen Display
SDS3000X HD Series Digital Oscilloscope User Manual Touch Screen Display Overview The entire SDS3000X HD display is a capacitive touch screen. Use your fingers to touch, drag, pinch, spread, or draw a selection box. Many controls that display information also work as “buttons” to access other functions.
Page 40: Menu Bar
SDS3000X HD Series Digital Oscilloscope User Manual Trigger Level Line (Vertical) and Trigger Delay Indicator (Horizontal) show the trigger position of the waveform. Cursors show where measurement points have been set. Move the cursors to quickly reposition the measurement point.
Page 41: Grid Area
SDS3000X HD Series Digital Oscilloscope User Manual Grid Area The grid area displays the waveform traces. Traces can be moved by dragging and re-scaled by pinch and spread. The area is divided into 8 (vertical) * 10 (horizontal) grids. The best display effect can be obtained by adjusting the waveform intensity and graticule.
Page 42: Channel Descriptor Box
SDS3000X HD Series Digital Oscilloscope User Manual Channel Descriptor Box Channel Descriptor boxes include analog channels (Cx), digital channels (D), math (Fx), and memory (Mx). They are located under the grid area, showing the parameters of the corresponding traces. Touching the boxes creates a dialog box. See chapter “Vertical Setup” for more details. Below is an example for analog channel 1: A.
Page 43 SDS3000X HD Series Digital Oscilloscope User Manual Vertical Offset: The offset of the channel in the vertical direction. When the vertical offset is 0, the channel offset indicator is located in the middle of the vertical axis. Probe Attenuation Factor: Set the probe attenuation factor to match the actual attenuation of the probe.
Page 44: Timebase And Trigger Descriptor Boxes
SDS3000X HD Series Digital Oscilloscope User Manual Timebase and Trigger Descriptor Boxes The Timebase Descriptor box shows the parameters of the timebase. See chapter “Horizontal and Acquisition Setup” for more information. Trigger delay Horizontal scale (timebase) # Samples Sample Rate Trigger delay: The time offset of trigger position.
Page 45 SDS3000X HD Series Digital Oscilloscope User Manual DC: All the signal’s frequency components are coupled to the trigger circuit for high-frequency  bursts or where the use of AC coupling would shift the effective trigger level.  AC: The signal is capacitively coupled. DC levels are rejected. See the datasheet for details of the cut-off frequency.
Page 46: Dialog Box
SDS3000X HD Series Digital Oscilloscope User Manual Dialog Box The dialog box on the right side of the screen is the main area for setting the parameters of the selected function. A. Title bar. Touching the bar can hide the dialog box, and touching again can open the dialog box.
Page 47 SDS3000X HD Series Digital Oscilloscope User Manual Let’s use the operation of setting the “deskew” of a channel as an example: If the expected value is 65 ns, input “65” on the virtual keypad, and then choose the units n to complete the operation. On...
Page 48: Touch Gestures
SDS3000X HD Series Digital Oscilloscope User Manual Touch Gestures Waveforms, cursors, and trigger levels can be adjusted and a rectangular zone can be drawn by touch gestures in the grid area. Drag the waveform left and right to move it on...
Page 49: Mouse And Keyboard Operation
SDS3000X HD Series Digital Oscilloscope User Manual Touch and drag the cursor to move it Touch and drag the cursor information region to move the pair of cursors simultaneously Draw a rectangular box to create a zone or a histogram region. At the beginning of the gesture keep the angle close to 45°...
Page 50: Front Panel
SDS3000X HD Series Digital Oscilloscope User Manual Front Panel Overview The front panel is designed to operate the basic functions without having to open the software menu. Most of the front panel controls duplicate functionality available through the touch screen display but the operation is more quickly achieved.
Page 51: Vertical Control
SDS3000X HD Series Digital Oscilloscope User Manual Vertical Control A. When a channel is disabled, push its channel button to turn it on. When a channel is turned on but not activated, push the button to activate it. When the channel is turned on and activated, push the button to disable it B.
Page 52: Horizontal Control
SDS3000X HD Series Digital Oscilloscope User Manual Horizontal Control A. Rotate to adjust the horizontal scale (time/div); push to enable Zoom; push again to switch between the main window and zoom window. B. Push to enable Zoom. Push again to exit Zoom mode.
Page 53: Run/Stop Button
SDS3000X HD Series Digital Oscilloscope User Manual Run/Stop Button Press the button to switch the acquisition state between Run and Stop. When the state is Run, the button is illuminated in green. When the state is Stop, the button is illuminated in red.
Page 54: Other Buttons
SDS3000X HD Series Digital Oscilloscope User Manual Other Buttons Enables/Disables measurements and recalls the MEASURE dialog box. Performs a quick screenshot save or saves the currently save type file to the storage path. See the section "Save Button" for details.
Page 55: Multiple Approaches To Recall Functions
SDS3000X HD Series Digital Oscilloscope User Manual 10 Multiple Approaches to Recall Functions The oscilloscope can recall functions through different approaches. 10.1 Menu Bar If you are familiar with common computer programs, you may first choose to access a function by the drop-down menu from the menu bar at the top of the display.
Page 56: Shortcut Button On The Front Panel
SDS3000X HD Series Digital Oscilloscope User Manual 10.3 Shortcut Button on the Front panel Most of the functions of the oscilloscope can be recalled directly by the shortcut buttons on the front panel. See the chapter "Front Panel" for details.
Page 57: Quickly Capture The Signal
SDS3000X HD Series Digital Oscilloscope User Manual 11 Quickly Capture the Signal This is an example of how to acquire a signal quickly. In this example, we assume the signal is connected to channel 1 and channel 1 is turned off.
Page 58: Vertical Setup
SDS3000X HD Series Digital Oscilloscope User Manual 12 Vertical Setup 12.1 Turn on/off a Channel From the Front Panel When a channel is disabled, push its channel button to turn it on. When a channel is turned on but not activated, push the button to activate it. When the channel is turned on and activated, push the...
Page 59: Channel Setup
SDS3000X HD Series Digital Oscilloscope User Manual 12.2 Channel Setup Touch the channel descriptor box, a quick dialog will pop up. Vertical scale and offset can also be set from this dialog box. A. Touch the region to set the vertical scale with the universal knob or virtual keypad B.
Page 60 SDS3000X HD Series Digital Oscilloscope User Manual Activating a channel recalls the channel dialog box, displaying more parameters: A. Turn channel on/off B. Coupling (DC, AC, or GND) C. Bandwidth limit (Full, 200 MHz, or 20 MHz) D. Probe settings including attenuation (1X, 10X, 100X, or custom) and probe check.
Page 61 SDS3000X HD Series Digital Oscilloscope User Manual Bandwidth Limit Full bandwidth passes through signals with high-frequency components, but it also means that noise with high-frequency components can pass through. When the frequency component of the signal is very low, better signal-to-noise ratios (SNR) can be obtained by turning on a bandwidth limit. The SDS3000X HD provides two hardware bandwidth limit options: 20 MHz and 200 MHz.
Page 62 SDS3000X HD Series Digital Oscilloscope User Manual Impedance  1 MΩ: When a passive probe with high impedance is connected, the impedance must be set to 1 MΩ, otherwise the signal will not be detected.  50 Ω: Suitable for high-frequency signals transmitted through 50 Ω coaxial cables or active probes.
Page 63 SDS3000X HD Series Digital Oscilloscope User Manual Before invert After invert Trace When the trace is hidden, the channel waveform is no longer displayed on the screen, while the acquisition is still running in the background. Trace visible Trace hidden...
Page 64: Digital Channels
The equipment shall be used only for the purposes specified by the manufacturer. The SPL2016 probe is used only for SIGLENT's special series of oscilloscopes. Protection mechanisms can be compromised if the way the devices connected by the SPL2016 are not used for their intended purpose.
Page 65 SDS3000X HD Series Digital Oscilloscope User Manual SDS3000HD-16LA Option The software option adds the following functions to the oscilloscope:  Digital channel acquisition and analysis -- Acquire and analyze the signals connected to the digital logic probe, including waveform display, save, parameter measurement, etc.
Page 66: Enable/Disable The Digital Channels
SDS3000X HD Series Digital Oscilloscope User Manual 13.2 Enable/Disable the Digital Channels Turning on or off the digital channels is similar to analog channels. Digital data can be stored as waveform files. Horizontal cursors and most horizontal measurements also apply to digital waveforms.
Page 67: Digital Channel Setup
SDS3000X HD Series Digital Oscilloscope User Manual 13.3 Digital Channel Setup Touch the digital descriptor box, then the quick menu of digital channel settings pops up above the descriptor box. In the menu height and position of digital channels can be set: A.
Page 68 SDS3000X HD Series Digital Oscilloscope User Manual A. Turn on/off the digital channels B. Labels can be set to data, address, or custom characters. C. Logic threshold of D7~D0. The oscilloscope will automatically set the threshold according to the specified logic family, or the user can set the threshold manually using the Custom option.
Page 69 SDS3000X HD Series Digital Oscilloscope User Manual The configurable logical level includes TTL, CMOS, LVCMOS 3.3 V, LVCMOS 2.5 V, and Custom. The setting range of the custom threshold is -10.0 V to + 10.0 V. Bus Setting Press the Digital button on the front panel or touch the Digital descriptor box on the bottom to open the Digital dialog box, touch Bus to open the Digital Bus dialog box.
Page 70 SDS3000X HD Series Digital Oscilloscope User Manual Bus Data Setting The bus data setting supports setting the digital channel data by bit. Touch Data to open the bus data setting dialog. In this dialog, the mapping relationship between the bus bits and the digital channels is shown as Bit.x[Dy].
Page 71: Horizontal And Acquisition Setup
SDS3000X HD Series Digital Oscilloscope User Manual 14 Horizontal and Acquisition Setup 14.1 Timebase Setup The timebase setup is used to adjust the scale and offset of the X (horizontal) axis. This setting applies to all analog, digital channels, and all math traces except FFT.
Page 72: Acquisition Setup
SDS3000X HD Series Digital Oscilloscope User Manual 14.2 Acquisition Setup 14.2.1 Overview Touch Acquire Menu on the quick menu of the timebase settings, or touch the menu bar Acquire > Menu to recall the Acquire dialog box on the right side.
Page 73 SDS3000X HD Series Digital Oscilloscope User Manual X Interpolation Sinc Interpolation Acq Mode: "Fast" is the default setting. The SDS3000X HD provides a very high waveform update rate in fast mode. "Slow" mode will slow down the waveform update on purpose.
Page 74: Acquisition
SDS3000X HD Series Digital Oscilloscope User Manual Single-channel mode: Only one of C1/C2/C3/C4 is turned on. Dual-channel mode: One of C1&C3 or C2&C4 are turned on. Quad- channel mode: Three or four of C1/C2/C3/C4 are turned on. XY Mode: A frame of data input by C1 is used as the x-axis, and a frame of data input by C2 is used as the y-axis to display the relationship between the two signals.
Page 75 SDS3000X HD Series Digital Oscilloscope User Manual a high waveform update rate when the acquisition mode is set to average. You can reset the accumulated average by pushing the Clear Sweeps button on the front panel. Normal mode Average mode (128)
Page 76: Memory Management
SDS3000X HD Series Digital Oscilloscope User Manual 0.055*Sample rate 0.028*Sample rate 0.014*Sample rate 0.007*Sample rate 0.0035*Sample rate 0.0017*Sample rate 14.2.3 Memory Management Memory Management controls how the instrument stores the acquired samples. Auto: The default acquisition setting. After setting the maximum memory in the Auto mode, the oscilloscope automatically adjusts the sample rate and memory depth according to the time base.
Page 77: Roll Mode
SDS3000X HD Series Digital Oscilloscope User Manual 14.2.4 Roll Mode Press the Roll button on the front panel to enter roll mode. In this mode, the waveform moves across the screen from right to left, similar to a strip chart recorder. The horizontal delay control of the waveform will be disabled when roll mode is active.
Page 78 SDS3000X HD Series Digital Oscilloscope User Manual Sequence N-1 Example: Input a pulse sequence with a period of 50 ms to C1. The rise time of the pulse is 2 ns, while fall time is 100 ns; pulse width is 108 ns, and amplitude is 1.6 Vpp. Press the AutoSetup button on the front panel.
Page 79 SDS3000X HD Series Digital Oscilloscope User Manual the current time base). Wait patiently until the acquisition completes, then all the waveforms satisfying the trigger conditions are displayed on the screen. In Sequence mode, there is no waveform displayed on the screen until the acquisition is completed.
Page 80: History
SDS3000X HD Series Digital Oscilloscope User Manual 14.3 History Touch Analysis > History to recall the history dialog box. A. Turn on or off history mode B. Specify the frame index C. Set the playing mode D. Play backward, pause, and play forward E.
Page 81 SDS3000X HD Series Digital Oscilloscope User Manual Observing the 5412th frame captured by Sequence in history mode Touch the List area, turn on the list, in which the time label corresponding to the 5412th waveform is displayed. The time resolution is microseconds. Time label types include AcqTime or Delta T , AcqTime corresponds to the absolute time of the frame, synchronized with the real-time clock of the oscilloscope;...
Page 82 SDS3000X HD Series Digital Oscilloscope User Manual In addition to manually specifying a frame, history mode supports autoplay: Press the softkey to replay the waveform from the current frame to the first. Press the softkey to stop replay. Press the softkey to replay the waveform from the current frame to the last.
Page 83: Zoom
SDS3000X HD Series Digital Oscilloscope User Manual 15 Zoom The SDS3000X HD supports waveform zoom in the horizontal and vertical directions. Press down the horizontal knob or the button on the front panel to turn on the zoom function. When the Zoom function is on, the waveform area is divided into upper and lower parts. The area of about 1/3 height above is the main window, and the area of about 2/3 height below is the zoom window.
Page 84 SDS3000X HD Series Digital Oscilloscope User Manual Vertical setting Horizontal setting When the zoom window is activated, the zoom area can be expanded or compressed by rotating the horizontal and vertical scale knob. Rotating the horizontal and vertical position knob to move the position of the region.
Page 85 SDS3000X HD Series Digital Oscilloscope User Manual Adjust the horizontal position of the waveform by dragging left and right in the gray area of the main window Adjust the vertical position of the waveform by dragging up and down in the gray area of the main window.
Page 86: Trigger
SDS3000X HD Series Digital Oscilloscope User Manual 16 Trigger 16.1 Overview The oscilloscope only acquires waveforms of interest (i.e. the ones that satisfy the trigger condition) and aligns all trigger events at the trigger position to form a stable waveform display. The trigger is one of the most important features of an oscilloscope since we can only analyze a signal that we can trigger reliably and stably.
Page 87: Trigger Setup
SDS3000X HD Series Digital Oscilloscope User Manual 16.2 Trigger Setup Touch the trigger descriptor box to display the quick menu of trigger settings. The trigger setup dialog box is displayed on the right side of the screen. A. Touch the level region and rotate the Level knob on the front panel to adjust the trigger level;...
Page 88: Trigger Level
SDS3000X HD Series Digital Oscilloscope User Manual Trigger Related Label Trigger level Indicator Horizontal 0 position Horizontal 0 position Indicator (out of screen) Indicator 16.3 Trigger Level Both analog and digital triggers must have a correct trigger level value. The oscilloscope judges whether a waveform satisfies the trigger condition when it crosses the trigger level.
Page 89: Trigger Mode
SDS3000X HD Series Digital Oscilloscope User Manual 16.4 Trigger Mode The trigger mode determines how the oscilloscope acquires waveforms. Auto: An internal timer triggers the sweep after a preset timeout period if no trigger has been found so that the oscilloscope continuously updates the display whether a trigger happens or not. Auto mode is suitable for unknown signals or DC signals.
Page 90: Trigger Type
SDS3000X HD Series Digital Oscilloscope User Manual 16.5 Trigger Type 16.5.1 Overview The trigger modes of the SDS3000X HD are digital designs. Compared with analog trigger circuits, digital triggers can not only greatly optimize trigger precision and trigger jitter, but also support multiple trigger types and complex trigger conditions.
Page 91: Edge Trigger
SDS3000X HD Series Digital Oscilloscope User Manual 16.5.2 Edge Trigger Edge trigger distinguishes the trigger points by seeking the specified edge (rising, falling, alternating) and trigger level. The trigger source and slope can be set in the trigger dialog box.
Page 92 SDS3000X HD Series Digital Oscilloscope User Manual Adjust Upper/Lower Level The slope trigger requires upper and lower trigger levels. When the trigger type is slope trigger, touch the trigger descriptor box, and the pop-up quick menu will show two levels.
Page 93: Pulse Trigger
SDS3000X HD Series Digital Oscilloscope User Manual 16.5.4 Pulse Trigger Trigger on a positive or negative pulse with a specified width. Trigger source, polarity (positive, negative), limit range, and time value can be set in the trigger dialog box. Less than a time value (≤) -- Trigger when the positive or negative pulse time of the input signal is lower than the specified time value.
Page 94: Video Trigger
SDS3000X HD Series Digital Oscilloscope User Manual 16.5.5 Video Trigger Video trigger can be used to capture the complicated waveforms of most standard analog video signals. The trigger circuitry detects the vertical and horizontal interval of the waveform and produces a trigger based on the video trigger settings you have selected.
Page 95 SDS3000X HD Series Digital Oscilloscope User Manual (line value)/1(1:1) (line value)/2 (2:1) 1,2, 3, 4,5,6,7,8 (line value)/4(4:1) 1,2, 3, 4,5,6,7,8 (line value)/8(8:1) 1,2, 3, 4,5,6,7,8 Line value: The number of lines set in the Of Lines (300 ~ 2000). In the custom video trigger type, the corresponding "Of Fields" varies with the selection of the “Interlace”...
Page 96 SDS3000X HD Series Digital Oscilloscope User Manual 1 to 313 1 to 312 HDTV 720P/50 , 720P/60 1 to 750 HDTV 1080P/50 , 1080P/60 1 to 1125 HDTV 1080i/50 , 1080i/60 1 to 563 1 to 562 To gain familiarization with the video trigger, try these two examples: ...
Page 97: Window Trigger
SDS3000X HD Series Digital Oscilloscope User Manual Custom video trigger supports video signals with frame rates of 25, 30, 50, and 60 Hz respectively, and the specified row is within the range of 300 to 2000. The following describes how to trigger a "Custom"...
Page 98: Interval Trigger
SDS3000X HD Series Digital Oscilloscope User Manual out of the waveform amplitude range, the oscilloscope will trigger on the rising edge only.  If the lower trigger level is within the waveform amplitude range while the upper trigger level is out of the waveform amplitude range, the oscilloscope will trigger on the falling edge only.
Page 99: Dropout Trigger
SDS3000X HD Series Digital Oscilloscope User Manual Trigger source, slope (rising, falling), limit range, and time value can be set in the trigger dialog box. Holdoff, coupling, and noise reject can be set in interval trigger, see the sections "Holdoff", "Trigger Coupling"...
Page 100: Runt Trigger
SDS3000X HD Series Digital Oscilloscope User Manual 16.5.9 Runt Trigger Runt trigger looks for pulses that cross one threshold but not another as shown in the figure below:  A positive runt pulse across through the low level but not the high level.
Page 101 SDS3000X HD Series Digital Oscilloscope User Manual Logic (AND, OR, NAND, NOR), source, limit range, and time value can be set in the trigger dialog box. Source Setting Touch the Source Setting area to recall the following dialog box and set up for each channel separately.
Page 102: Qualified Trigger
SDS3000X HD Series Digital Oscilloscope User Manual The logical setting of analog channels The logical setting of digital channels Limit Range This setting is particularly useful to filter the hazard signals of combinational logic. Holdoff can be set in pattern trigger, see the section "Holdoff" for details.
Page 103: Nth Edge Trigger
SDS3000X HD Series Digital Oscilloscope User Manual Falling) of the qualified source; when the type is “Edge with Delay”, a time limit condition is available. Touch the Qualified Setting region to set the qualified source and threshold; Touch the Edge Setting region to set the edge trigger source, threshold, and slope.
Page 104: Setup/Hold Trigger
SDS3000X HD Series Digital Oscilloscope User Manual Touch the SourceB Setting region to set the edge trigger source, threshold, and slope. Touch the Limit Range and Upper/Lower Value region to set the delay time condition. 16.5.14 Setup/Hold Trigger Clock source and data source need to be set in the setup/hold trigger setting. The set-up time starts when the data signal crosses the trigger level and ends when the specified clock edge arrives.
Page 105: Trigger Source
SDS3000X HD Series Digital Oscilloscope User Manual 16.6 Trigger Source The trigger sources supported by each trigger type are different. See the table below for details: Trigger Type C1~C4 EXT, EXT/5 AC Line D0~D15 √ √ √ √ Edge √...
Page 106: Holdoff
SDS3000X HD Series Digital Oscilloscope User Manual 16.7 Holdoff Holdoff is an additional condition for triggers and can be used to stabilize the triggering of complex waveforms (such as a pulse series). It can be set to a time or number of events.
Page 107: Trigger Coupling
SDS3000X HD Series Digital Oscilloscope User Manual Last Trig Time --The initial position of holdoff is the time of the last trigger. In the example above, the last trigger position is at the second rising edge of the pulse sequence and the second holdoff starts from that point.
Page 108: Noise Reject
SDS3000X HD Series Digital Oscilloscope User Manual 16.9 Noise Reject Noise Reject adds additional hysteresis to the trigger circuitry. By increasing the trigger hysteresis, the noise immunity becomes better but the trigger sensitivity degrades. Noise Reject = Off Noise Reject = On...
Page 109: Zone Trigger
SDS3000X HD Series Digital Oscilloscope User Manual 16.10 Zone Trigger The SDS3000X HD includes a zone trigger to help isolate elusive glitches. There are two user-defined areas: Zone1 and Zone2. Users can set the property of each zone as “intersect” or “not intersect” as an additional condition to further isolate the interesting event quickly.
Page 110 SDS3000X HD Series Digital Oscilloscope User Manual When the finger moves out of the screen, a menu pops up for selecting the zone and setting the zone properties: Once a zone is created, it can be moved by dragging. Just touch and hold the zone box and use a dragging gesture.
Page 111 SDS3000X HD Series Digital Oscilloscope User Manual Select C1 as the source, turn on zone1, Select C1 as the source, turn on zone1, and set the property as "Intersect" and set the property as "Not Intersect" Dialog Box Touch Zone > Zone Setting to recall the dialog box.
Page 112 SDS3000X HD Series Digital Oscilloscope User Manual enabling the persistence display, as shown in the figure below: In this case zone trigger is a quick and simple way to capture the waveform. Enable the zone trigger, and draw a box to intersect with the bus contention part, as shown in the figure below:...
Page 113: Serial Trigger And Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17 Serial Trigger and Decode 17.1 Overview The SDS3000X HD supports serial bus trigger and decoding on the following serial bus protocols: I2C, SPI, UART, CAN, LIN, FlexRay, CAN FD, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429.
Page 114 SDS3000X HD Series Digital Oscilloscope User Manual A. Set the list of decode result B. Select the bus to set, Bus1 and Bus2 C. Turn on/off the bus D. Set the bus display format (Binary, Decimal, Hex, and ASCII) E. Select the serial bus protocol Touch to set the signal, including the mapping relation between channels and bus signals, and the thresholds.
Page 115: I2C Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.2 I2C Trigger and Serial Decode This section covers triggering and decoding I2C signals. Please read the following for more details: "I2C Signal Settings", "I2C Trigger" and "I2C Serial Decode". 17.2.1 I2C Signal Settings Connect the serial data signal (SDA) and the serial clock signal (SCL) to the oscilloscope, set the mapping relation between channels and signals, and then set the threshold level of each signal.
Page 116: I2C Trigger
SDS3000X HD Series Digital Oscilloscope User Manual Copy Setting Touch the Protocol Copy in the decode dialog box to synchronize the settings between the trigger and decode. A. Copy the decode settings to trigger B. Copy the trigger settings to decode C.
Page 117 SDS3000X HD Series Digital Oscilloscope User Manual Restart -- The oscilloscope will be triggered when another “Start” occurs before a “Stop". No Ack -- The oscilloscope will be triggered when the SDA line is high during any SCL’s ACK bit.
Page 118 SDS3000X HD Series Digital Oscilloscope User Manual Frame (Start: 7-bit address: R/W: Ack: Data: Ack: Data2) -- If all bits match, then trigger on the Ack bit followed by the Data2. 10 Address & Data -- If all bits match, then trigger on the Ack bit followed by the Data.
Page 119 SDS3000X HD Series Digital Oscilloscope User Manual If you set the trigger condition to 7 address & data or 10 address & data:  Address can be selected in the hexadecimal range of 0x00 to 0x7F (7-bit) or 0x3FF (10-bit). If the address is selected as "0xXX (7-bit address)"...
Page 120: I2C Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.2.3 I2C Serial Decode The layout of the touch screen display when I2C decode is enabled is as follows: A. The waveform display area shows the original waveforms of the bus signals B. The bus display shows the decoding result of the bus. At most two buses can be decoded at the same time.
Page 121 SDS3000X HD Series Digital Oscilloscope User Manual List  TIME -- The horizontal offset of the current data frame head relative to the trigger position.  Address -- Address value. For example, "0x2AB" means that address = 2AB with acknowledgement.
Page 122: Spi Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.3 SPI Trigger and Serial Decode This section covers triggering and decoding SPI signals. Please read the following for more details: "SPI Signal Settings", "SPI Trigger" and "SPI Serial Decode". 17.3.1 SPI Signal Settings Connect the CLK, MOSI, MISO, and CS signals to the oscilloscope and set the mapping relation between channels and signals.
Page 123 SDS3000X HD Series Digital Oscilloscope User Manual  Clock Timeout -- It is not necessary to specify the source and the threshold level for the CS signal. The only parameter for the CS signal is the timeout Limit, which is the minimum time that the clock signal must be held idle before the oscilloscope acquires valid data.
Page 124 SDS3000X HD Series Digital Oscilloscope User Manual If the data width is set to be greater than 8 bits (such as 16 bits), measure the clock idle time between 8-bit data packets as 11.28 us, and then set the timeout time to a value between 11.28 and 150 us.
Page 125: Spi Trigger
SDS3000X HD Series Digital Oscilloscope User Manual 17.3.2 SPI Trigger The trigger condition for the SPI trigger is mainly about data. Touch Trigger Setting in the dialog box to set data: A. Trigger Type: MISO or MOSI B. Set the trigger position type. When set to Any, it will trigger on the specified data.
Page 126: Uart Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.4 UART Trigger and Serial Decode This section covers triggering and decoding UART signals. Please read the following for more details: "UART Signal Settings", "UART Trigger" and "UART Serial Decode". 17.4.1 UART Signal Settings Connect the RX and TX signals to the oscilloscope, set the mapping relation between channels and signals, and then set the threshold level of each signal.
Page 127: Uart Trigger
SDS3000X HD Series Digital Oscilloscope User Manual 17.4.2 UART Trigger Touch Trigger Setting in the dialog box to set the trigger condition: A. Source Type: RX or TX B. Trigger Condition: Start, Stop, Data or Error C. When the "trigger condition" is Data, set the compare type to =, >, <...
Page 128 SDS3000X HD Series Digital Oscilloscope User Manual In the list view:  Time -- The horizontal offset of the current data frame head relative to the trigger position.  RX -- Receive data.  RX Err -- Receive error type.
Page 129: Can Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.5 CAN Trigger and Serial Decode This section covers triggering and decoding CAN signals. Please read the following for more details: "CAN Signal Settings", "CAN Trigger" and "CAN Serial Decode". 17.5.1 CAN Signal Settings Connect the CAN_H and CAN_L signals to the oscilloscope set the mapping relation between channels and signals, and then set the threshold level of each signal.
Page 130: Can Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.5.3 CAN Serial Decode The configuration of CAN decoding is similar to that of I2C decoding. On the bus:  ID is displayed in green.  LEN (data length) is displayed in light yellow.
Page 131: Lin Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.6 LIN Trigger and Serial Decode This section covers triggering and decoding LIN signals. Please read the following for more details: “LIN Signal Settings”, “LIN Trigger” and “LIN Serial Decode”. 17.6.1 LIN Signal Settings Connect the LIN signal to the oscilloscope, and then set the threshold level of the signal.
Page 132: Lin Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.6.3 LIN Serial Decode The configuration of LIN decoding is similar to that of I2C decoding. On the bus:  ID is displayed in green  LEN (data length) and CHK are displayed in blue ...
Page 133: Flexray Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.7 FlexRay Trigger and Serial Decode This section covers triggering and decoding FlexRay signals. Please read the following for more details: "FlexRay Signal Settings", "FlexRay Trigger" and "FlexRay Serial Decode". 17.7.1 FlexRay Signal Settings Connect the FlexRay signal to the oscilloscope, and then set the threshold level of the signal.
Page 134: Flexray Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.7.3 FlexRay Serial Decode The configuration of FlexRay decoding is similar to that of I2C decoding. On the bus:  The signatures (CAS/MTS, WUP) are displayed in yellow-green.  TSS transmission start sequence, displayed in yellow-green. The null frame indicator, the Sync frame indicator, and the Startup frame indicator are displayed in the frame and displayed in pink.
Page 135: Can Fd Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.8 CAN FD Trigger and Serial Decode This section covers triggering and decoding CAN FD signals. Please read the following for more details: "CAN FD Signal Settings", "CAN FD Trigger" and "CAN FD Serial Decode".
Page 136: Can Fd Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual  Error -- The oscilloscope triggers on the error frame.  Error Frame  Stuff Bit Error  CRC Mismatch Error: The oscilloscope triggers when the calculated CRC does not match the transmitted CRC.
Page 137: I2S Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.9 I2S Trigger and Serial Decode This section covers triggering and decoding I2S signals. Please read the following for more details: "I2S Signal Settings", "I2S Trigger" and "I2S Serial Decode". 17.9.1 I2S Signal Settings Connect the WS, BCLK, and Data signals to the oscilloscope, set the mapping relation between channels and signals, and then set the threshold level of each signal.
Page 138: I2S Trigger
SDS3000X HD Series Digital Oscilloscope User Manual 17.9.2 I2S Trigger Touch Trigger Setting in the I2S trigger dialog box to set the trigger conditions: A. Audio Variant: Audio-I2S, Audio-LJ, Audio-RJ B. Trigger Condition: Data, Mute, Clip, Glitch, Rising Edge, Falling Edge C.
Page 139: I2S Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual  Touch Duration to set the value by the universal knob or virtual keypad. The range is 1- 64 frames.  Clip -- Trigger on the clipped signal. Clip signal: Volume is greater than the set value and duration reaches the set value.
Page 140: Mil-Std-1553B Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.10 MIL-STD-1553B Trigger and Serial Decode This section covers triggering and decoding MIL-Standard 1553B signals. Please read the following for more details: "MIL-STD-1553B Signal Settings" and "MIL-STD-1553B Serial Decode". 17.10.1 MIL-STD-1553B Signal Settings Connect the MIL-STD-1553B signal to the oscilloscope, set the mapping relation between channels and signals, and then set the threshold level of each signal.
Page 141 SDS3000X HD Series Digital Oscilloscope User Manual  Mode Command -- Trigger on the specified mode command without DW. TxCmd + Mode Code, TxStat can be specified, and the response time should be less than 14us.  Mode Command_Data (Xmit) -- Trigger on the specified mode command (transmit) with DW.
Page 142: Mil-Std-1553B Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual  Non Contig. Data -- The oscilloscope triggers when there is a gap between DW.  Sync Error -- The oscilloscope triggers when the message format is not satisfied. When a command word or status word is expected to appear during message transmission, but a data word appears, it is considered an error.
Page 143: Sent Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.11 SENT Trigger and Serial Decode This section covers triggering and decoding SENT signals. Please read the following for more details: "SENT Signal Settings", "SENT Trigger" and "SENT Serial Decode". 17.11.1 SENT Signal Settings Connect the SENT signal to the oscilloscope, set the mapping relation between channels and signals, and then set the threshold level of each signal.
Page 144 SDS3000X HD Series Digital Oscilloscope User Manual Start -- The oscilloscope will be triggered at the start of the message (after 56 synchronization ticks). You can select the type of message: Fast Channel Message, Slow Channel Message, or any. Fast Channel -- The oscilloscope will be triggered on a Fast Channel Message when the Status &...
Page 145 SDS3000X HD Series Digital Oscilloscope User Manual The serial message frame contains 21 bits of payload data. Two different configurations can be chosen determined by the configuration bit (serial data bit #3, serial communication nibble No. 8): Frame (enhanced serial message with 4bits ID) -- 16-bit data and 4-bit message ID, the configuration bit is 1.
Page 146: Sent Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual If you set the trigger condition to Slow Channel:  ID can be selected in the hexadecimal range of 0x0 to 0xF (short serial / enhanced serial with 4 bits ID）or 0x00 to 0xFF（enhanced serial with 8 bits ID）.
Page 147 SDS3000X HD Series Digital Oscilloscope User Manual For Slow Channel:  ID is displayed in green  DATA are displayed in white  CRC is displayed in blue In the list view:  Time -- The horizontal offset of the current data frame head relative to the trigger position.
Page 148 SDS3000X HD Series Digital Oscilloscope User Manual  Data -- Data values  CRC -- Cycle redundancy check  Pause -- Pause ticks  Error -- Error type 1 3 8 i n t . s i g l e n t . c o m...
Page 149: Manchester Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.12 Manchester Serial Decode This section covers decoding Manchester signals. Please read the following for more details: "Manchester Signal Settings" and "Manchester Serial Decode". 17.12.1 Manchester Signal Settings Connect the Manchester signal to the oscilloscope, set the mapping relation between channels and signals, and then set the threshold level of the signal.
Page 150: Manchester Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.12.2 Manchester Serial Decode The configuration of Manchester decoding is similar to that of I2C decoding. On the bus:  SYNC is displayed in pink  The header is displayed in green ...
Page 151: Arinc 429 Trigger And Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual 17.13 ARINC 429 Trigger and Serial Decode This section covers triggering and decoding ARINC 429 signals. Please read the following for more details: "ARINC 429 Signal Settings", “ARINC 429 Trigger” and "ARINC 429 Serial Decode".
Page 152: Arinc 429 Serial Decode
SDS3000X HD Series Digital Oscilloscope User Manual Word Start -- The oscilloscope triggers at the start of the word. Word End -- The oscilloscope triggers at the end of the word. Label -- The oscilloscope triggers when the specified label value appears.
Page 153 SDS3000X HD Series Digital Oscilloscope User Manual In the list view:  Time -- The horizontal offset of the current data frame head relative to the trigger position.  Label -- Octal format, used to indicate data type.  SDI -- Indicate the origin/destination of data.
Page 154: Cursors
SDS3000X HD Series Digital Oscilloscope User Manual 18 Cursors 18.1 Overview Cursors are important tools when measuring signals. Rapid measurements can be performed using cursors in both horizontal and vertical directions. The cursor types include X1, X2, X1-X2, Y1, Y2, and Y1-Y2, used to indicate X-axis values (time or frequency) and Y-axis values (amplitude) on a selected waveform (C1~C4/F1~F4/M1~M4/Histogram).
Page 155 SDS3000X HD Series Digital Oscilloscope User Manual Cursors Mode  Manual -- Manually sets the cursors’ position. Cursors type (horizontal, vertical, horizontal + vertical) is available in this mode.  Track -- The cursor type is automatically set to "horizontal + vertical". In this mode, only horizontal cursors are adjustable, while the vertical cursors automatically attach to the cross-point of the cursor and the source waveform.
Page 156 SDS3000X HD Series Digital Oscilloscope User Manual Cursors Type X (horizontal) -- Vertical dotted lines that measure horizontal time (when the source is an FFT waveform, X cursors measure frequency). X cursors (time) X cursors (frequency)  X1 -- The left (default) vertical dotted line. It can be manually moved to any horizontal position on the screen.
Page 157 SDS3000X HD Series Digital Oscilloscope User Manual  Y2 -- The lower (default) horizontal dotted line. It can be manually moved to any vertical position on the screen.  Y1- Y2 -- The difference between Y1 and Y2. After this option is selected, turn the universal knob to move both Y1 and Y2 simultaneously.
Page 158 SDS3000X HD Series Digital Oscilloscope User Manual  Fixed Position -- When the timebase is changed, the X cursors remain fixed to the grid position on the display. Y cursors reference:  Fixed Offset -- When the vertical scale is changed, the value of Y- cursors remain fixed.
Page 159 SDS3000X HD Series Digital Oscilloscope User Manual Fixed position, timebase is changed to 100 ns/div, the grid number of X cursors (-1div, 2div) remains fixed. The value of X1 and X2 is changed to -100 ns, 200 ns. Fixed delay, timebase is changed to 100 ns/div, the value of X cursors (-50 ns, 100 ns) remains fixed.
Page 160: Select And Move Cursors
SDS3000X HD Series Digital Oscilloscope User Manual 18.2 Select and Move Cursors The cursors can be selected and moved directly by gestures and the universal knob on the front panel, in addition, they can be selected in the cursor’s value dialog box.
Page 161 SDS3000X HD Series Digital Oscilloscope User Manual Universal Knob Move the cursor position by turning the universal knob on the front panel. Press the knob to select different cursor lines. For example, if the current cursor is X1, press to select X2, and press again to select X1-X2.
Page 162: Measurement
SDS3000X HD Series Digital Oscilloscope User Manual 19 Measurement 19.1 Overview The SDS3000X HD features a strong automatic measurement list. These parameters can be automatically measured without cursors and include common measurements such as rise time, fall time, peak-peak, and period. The SDS3000X HD can also measure multiple channels at the same time, showing up to 5 parameter measurements with statistics while in the M1 display mode and up to 12 parameters in the M2 mode.
Page 163 SDS3000X HD Series Digital Oscilloscope User Manual Press the Measure button on the front panel or touch Measure > Menu to open the dialog box. A. Enable/disable measure B. Set the mode of measure: Simple or Advanced. "Simple" shows the specified basic measurement parameters of the selected channel.
Page 164: Set Parameters
SDS3000X HD Series Digital Oscilloscope User Manual 19.2 Set Parameters Touch Type in the measure dialog box, or touch in the measurement parameters and statistics display area to open the parameter selection window: A. Set the source of the current setting.
Page 165 SDS3000X HD Series Digital Oscilloscope User Manual In the parameter selection area, the channel corresponding to Source A is specified first, and then the channel corresponding to Source B . Finally, the measurement parameter is selected. For example, to activate the skew between C1 and C2, you can follow the following steps: Source A >...
Page 166 SDS3000X HD Series Digital Oscilloscope User Manual To remove Period from the “Favorite” tab: Advanced > Type > Favorite > Period > Delete from favorite 1 5 6 i n t . s i g l e n t . c o m...
Page 167: Type Of Measurement
SDS3000X HD Series Digital Oscilloscope User Manual 19.3 Type of Measurement 19.3.1 Vertical Measurement Vertical measurement includes 19 parameters:  Max: Highest value in the input waveform  Min: Lowest value in the input waveform  Pk-Pk: Difference between maximum and minimum data values ...
Page 168 SDS3000X HD Series Digital Oscilloscope User Manual  Overshoot (FOV): Overshoot following a falling edge; 100%* (base-min)/amplitude  Overshoot (ROV): Overshoot following a rising edge; 100%*(max-top)/amplitude  Preshoot (FPRE): Overshoot before a falling edge. Equal to 100 %*( max-top)/amplitude. ...
Page 169: Horizontal Measurement
SDS3000X HD Series Digital Oscilloscope User Manual 19.3.2 Horizontal Measurement Horizontal measurement includes 17 parameters:  Period: Time between the middle threshold points of two consecutive like-polarity edges.  Freq: Reciprocal of the period  Time@max: First time of maximum value ...
Page 170: Miscellaneous Measurements
SDS3000X HD Series Digital Oscilloscope User Manual  Fall Time: Duration of falling edge from upper threshold to lower threshold  10-90%Rise: Duration of rising edge from 10-90%  90-10%Fall: Duration of falling edge from 90-10%  CCJ: The difference between two...
Page 171: Delay Measurement
SDS3000X HD Series Digital Oscilloscope User Manual 19.3.4 Delay Measurement Delay measurement measures the time difference between two channels. It includes 14 delay parameters:  Phase: Phase difference between two edges  Skew: Time of source A edge minus time of nearest source B edge ...
Page 172: Trend
SDS3000X HD Series Digital Oscilloscope User Manual 19.4 Trend After adding a measurement parameter, a Trend can be used to observe the long-term change of the selected measurement value over time. A. Measurement parameter display area B. Trend plot display area C.
Page 173: Track
SDS3000X HD Series Digital Oscilloscope User Manual 19.5 Track The measure values VS. time plot of a horizontal parameter (e.g. frequency, rise time) in one frame can be observed when the Track is enabled. The upper limit of the statistic number in a frame is set in Statistics > AIM Limit , which means the values exceeding the limit will not be shown in the track plot.
Page 174 SDS3000X HD Series Digital Oscilloscope User Manual In M2 mode, up to 12 parameter measurements are displayed at a time. When statistics are enabled, they are distributed on the right side of the measurement item. Touch a row to add or replace a measurement.
Page 175: Measurement Statistics
SDS3000X HD Series Digital Oscilloscope User Manual 19.7 Measurement Statistics Measurement statistics are based on the total number of captured waveforms. In Roll mode, measurement statistics increase over time. Touch Statistics Setting in the measure dialog box to recall the Statistics Config dialog box: A.
Page 176: Statistics Histogram
SDS3000X HD Series Digital Oscilloscope User Manual When the oscilloscope detects the trace under test is clipped, an extra overflow indicator will appear after the measurement value: Waveform clipped at the top Waveform clipped at the bottom Waveform clipped at both top and bottom 19.8...
Page 177: Simple Measurements
SDS3000X HD Series Digital Oscilloscope User Manual B. Histogram display area. The X-axis represents measured values and Y-axis represents the probability. C. Current measurement point. Different measurement sources may indicate different colors of indicator points D. Count of statistics E. Current value The bin that includes the maximum value and the probability of a value falling into it G.
Page 178: Threshold
SDS3000X HD Series Digital Oscilloscope User Manual A. Set the amplitude calculation strategy. When set to Auto, the amplitude calculation strategy will be selected automatically according to the input signal to ensure the accuracy of the measured value B. Set the top value calculation strategy. When set to...
Page 179: Hardware Frequency Counter
SDS3000X HD Series Digital Oscilloscope User Manual A. Set measurement threshold source B. Set the type of threshold C. Set the upper value D. Set the middle value E. Set the lower value Return to the previous menu Threshold Type Percent: Set according to the percentage of the waveform.
Page 180: Math
SDS3000X HD Series Digital Oscilloscope User Manual 20 Math 20.1 Overview The SDS3000X HD supports 4 math traces and multiple operators. Arithmetic operators: Addition (+), subtraction (-), multiplication (x), division (/), average, ERES, identity, negation, maxhold, minhold; Algebra operators: differential (d/dt), integral (∫dt), square root (√), absolute (|y|), sign, exp, ln, interpolate;...
Page 181 SDS3000X HD Series Digital Oscilloscope User Manual Math Operation Unit V, A, or U* Addition (+) or *(used when the units of two sources are not Subtraction (-) consistent) Multiplication (x) V∧2, A∧2, or W None, Ω (Resistance unit Ohms), S (conductance unit...
Page 182: Arithmetic
SDS3000X HD Series Digital Oscilloscope User Manual 20.2 Arithmetic The SDS3000X HD supports Addition, Subtraction, Multiplication, Division, Average, ERES, Identity, Negation, Max-hold, and Min-hold. 20.2.1 Addition / Subtraction / Multiplication / Division The SDS3000X HD can perform arithmetic operations including addition, subtraction, multiplication, or division on any two analog input channels, and the values of Source A and Source B are computed point-by-point.
Page 183: Average / Eres
SDS3000X HD Series Digital Oscilloscope User Manual 20.2.3 Average / ERES Average / ERES can be set in acquisition mode and arithmetic function as well, but with different compute methods. Average and ERES in acquisition mode is computed by hardware with a higher speed and sampling rate than computed by software in the arithmetic mode.
Page 184: Algebra
SDS3000X HD Series Digital Oscilloscope User Manual 20.3 Algebra The SDS3000X HD can perform algebraic operations including differential (d/dt), integral (∫dt), square �� root (√), absolute(|x|), sign, exp (�� ), exp10 (10 ), ln, lg and interpolate (Intrp). 20.3.1 Differential The differential (d/dt) operator is used to calculate the derivative of the selected source.
Page 185: Square Root
SDS3000X HD Series Digital Oscilloscope User Manual In addition, the integral operation can be performed within a specified gate. Click Analysis > Analysis Gate to enable the gate function, then set Gate A and Gate B to define the gate. See "Analysis Gate"...
Page 186: Absolute
SDS3000X HD Series Digital Oscilloscope User Manual 20.3.4 Absolute Absolute (|x|) calculates the absolute value of the selected trace. 20.3.5 Sign In mathematics, the sign function or signum function (from signum, Latin for "sign") is an odd mathematical function that extracts the sign of a real number.
Page 187: Exp/Exp10
SDS3000X HD Series Digital Oscilloscope User Manual 20.3.6 exp/exp10 �� The exponential operation includes the exponential operation �� based on constant e and the �� exponential operation 10 based on 10. �� For example: y(x) = �� 20.3.7 ln/lg Logarithmic operation includes logarithm base e (ln) and logarithm base 10 (lg). In logarithmic operation, if the waveform value is negative (the waveform is below the ground level), the result is displayed as zero.
Page 188: Interpolate
SDS3000X HD Series Digital Oscilloscope User Manual 20.3.8 Interpolate Between the adjacent sampling points, the waveform is interpolated according to the selected interpolation method and interpolation coefficient. Touch Acquire > Interpolation to set the interpolation method, and the interpolation coefficient can be set to 2, 5, 10, or 20.
Page 189: Filter
SDS3000X HD Series Digital Oscilloscope User Manual 20.4 Filter The filter operation in the SDS3000X HD provides FIR (Finite Impulse Response) filtering with the following types: Low pass, High pass, Bandpass, and Band Reject. The filters have up to 200 taps which can reach roll-off as fast as 0.01*fs.
Page 190 SDS3000X HD Series Digital Oscilloscope User Manual ≥0.02fs ≥0.01fs ≥0.01fs fs/2 Bandpass Band reject Take a Low pass filter as an example. It requires that the corner frequency (fc) is not less than 0.01*fs (i.e. fc ≥ 0.01*fs), and the 0.01*fs wide roll-off does not exceed the 1st Nyquist zone (i.e. (fs/2) - fc ≥...
Page 191: Frequency Analysis
SDS3000X HD Series Digital Oscilloscope User Manual 20.5 Frequency Analysis The result of FFT (Fast Fourier Transform) calculations is the frequency spectrum of the source signal. The horizontal axis of the FFT display is labeled using frequency (Hz) units instead of time (seconds).
Page 192 SDS3000X HD Series Digital Oscilloscope User Manual  When N is greater than 2 Mpts, FFT first decimates N by D and then takes the first 2 Mpts for the calculation. In this case, FFT sample rate = sample rate in time domain/D.
Page 193 SDS3000X HD Series Digital Oscilloscope User Manual For example, for a two-tone signal with a very close frequency interval, it is suitable to use a Rectangle window with the best frequency resolution. For the case where the accuracy of amplitude measurement is critical, it is recommended to select the Flattop window with the best amplitude resolution.
Page 194 SDS3000X HD Series Digital Oscilloscope User Manual Split Mode, Zoom off Split Mode, Zoom on Full-Screen Mode Exclusive Mode FFT Mode  Normal: Displays the FFT result of each frame directly.  Max-Hold: Holds the maximum value in the historic frame on the display until cleared. This mode is suitable for detecting discontinuous waves, such as sporadic pulse signals, or frequency hopping signals.
Page 195 SDS3000X HD Series Digital Oscilloscope User Manual Touch Vertical or Horizontal in the math dialog box to recall the FFT vertical or horizontal settings dialog box: A. Set the vertical scale and reference level B. Set the unit (dBVrms, Vrms, and dBm).
Page 196 SDS3000X HD Series Digital Oscilloscope User Manual Touch Scale to set the vertical scale of the FFT waveform by the universal knob or the virtual keypad. It can also be set by the scale knob shared by Decode, Digital, Math, and Ref on the front panel.
Page 197 SDS3000X HD Series Digital Oscilloscope User Manual When the FFT tool Peaks is selected, the dialog box is as follows: A. Turn on or off the table. Turn on the table, the peaks searched with the limit of Search Threshold and Search Excursion will be displayed in a table B.
Page 198 SDS3000X HD Series Digital Oscilloscope User Manual Note: The FFT dialog box is longer than the display. Slide the dialog box area up and down by gestures, or scroll the mouse wheel to the view non-displayed areas. The following shows the peaks of the FFT waveform:...
Page 199: Formula Editor
SDS3000X HD Series Digital Oscilloscope User Manual 20.6 Formula Editor Touch Formula Editor in the operation setting page to recall the editor: A. Formula display text box B. Text box operation area, which can clear and modify the entered formula C.
Page 200: Memory
SDS3000X HD Series Digital Oscilloscope User Manual 21 Memory Analog channels (Cx), zoom (Zx), math (Fx), memory waveforms (Mx), and waveforms in files can be imported to available memory waveforms (M1/M2/M3/M4) and displayed on the screen for comparison with the current waveforms. Differing from reference traces which are displayed data, the memory traces are in the format of raw data, which can be used as the source of Math and Decoding functions and can provide more accurate measurements than a reference waveform.
Page 201 SDS3000X HD Series Digital Oscilloscope User Manual A. Select the location of the memory (M1 ~ M4) B. Select the source (Cx / Zx / Fx / Mx / File) C. Import the trace of the selected source in the location set in D.
Page 202: Analysis Gate
SDS3000X HD Series Digital Oscilloscope User Manual 22 Analysis Gate 22.1 Overview SDS3000X HD supports analysis gate and can perform measurement, mathematical operations, decoding, and other analysis functions on waveforms within the gate. Users can manually open the analysis gate based on actual testing scenarios. It should be noted that when the storage depth is greater than 40Mpts, the analysis gate will be automatically opened and cannot be manually closed at this time.
Page 203 SDS3000X HD Series Digital Oscilloscope User Manual The descriptions of the analysis gate dialog box are as follows: A. Open the gate setup interface B. Select the source (Analog & Digital or M1-M4) C. Switch on/off the gate D. Set the reference position type of gate cursors (Delay or Position) E.
Page 204: Gate Setup
SDS3000X HD Series Digital Oscilloscope User Manual analog and digital channels memory waveform Gate Reference  Delay -- When the horizontal scale is changed, the gate cursor value remains fixed  Screen position -- When the horizontal scale is changed, the gate cursor remains fixed to the grid position on the display 22.2...
Page 205: Search
SDS3000X HD Series Digital Oscilloscope User Manual 23 Search The SDS3000X HD can search for the specified events in a frame. The location of the events is displayed with white triangle indicators. In YT mode or Roll mode with the acquisition stopped, up to 1000 events are supported.
Page 206 SDS3000X HD Series Digital Oscilloscope User Manual Touch the menu Analysis > Search to recall the search dialog box and turn on it. A. Turn on/off the search function B. Go to the Setup Menu C. Synchronize the current trigger settings to the search settings.
Page 207 SDS3000X HD Series Digital Oscilloscope User Manual Setup Menu Select and set the search type in the Setup Menu . The SDS3000X HD provides five search conditions: Edge, Slope, Pulse, Interval, and Runt. Search Type Setup Description Edge Slope: Rising, Falling, Either...
Page 208: Navigate
SDS3000X HD Series Digital Oscilloscope User Manual 24 Navigate Touch the menu Analysis > Navigate to recall the navigate dialog box. The SDS3000X HD provides three navigate types: Search Event, Time, and History Frame. Navigate by Time The oscilloscope automatically adjusts the trigger delay according to the direction set by the user.
Page 209 SDS3000X HD Series Digital Oscilloscope User Manual Touch the Event List Switch area to turn on or off the list. The list contains time labels for each event. Touching a row in the list automatically jumps to the corresponding event. This operation is equivalent to specifying an event in the Event Num area.
Page 210 SDS3000X HD Series Digital Oscilloscope User Manual The following is an example of an occasional runt signal to demonstrate how to quickly locate and find events of interest by using the combination of Search and Navigate: The input signal is a 5 V periodic square...
Page 211 SDS3000X HD Series Digital Oscilloscope User Manual Turn on the Zoom function to observe the full view of the frame and the detail of the third dwarf pulse at the same time: Press the Run/Stop button on the front panel to stop the acquisition, and then follow the steps Navigate >...
Page 212 SDS3000X HD Series Digital Oscilloscope User Manual 2 0 2 i n t . s i g l e n t . c o m...
Page 213: Mask Test
SDS3000X HD Series Digital Oscilloscope User Manual 25 Mask Test 25.1 Overview Users can create masks and define the rule used to evaluate Pass/Fail operations. An event violating the rule is defined as a failure and a pulse can be generated from the "Aux Out" port on the back panel.
Page 214 SDS3000X HD Series Digital Oscilloscope User Manual Perform Analysis > Mask Test to open the Mask Test dialog box: A. Turn on/off the test B. Select the source (C1~C4) C. Select the rule (All In, All Out, Any In, and Any Out) D.
Page 215: Mask Setup
SDS3000X HD Series Digital Oscilloscope User Manual 25.2 Mask Setup Touch Mask Setup in the Mask Test dialog box to set the mask. There are two methods to create a mask, one is by setting horizontal and vertical values, and the other is by drawing a polygon mask.
Page 216: Mask Editor
SDS3000X HD Series Digital Oscilloscope User Manual Set the values for Mask X and Mask Y (in divisions of display graticule), and then perform Create Mask to generate the mask. The horizontal and vertical adjustment range is 0.08~4.00 div. X = 0.2 div, Y = 0.2 div X = 1 div, Y = 1 div Saving and recalling mask files (*.msk) is similar to the operation of setup files, see the chapter...
Page 217 SDS3000X HD Series Digital Oscilloscope User Manual E. Coordinate edit area. Set the X ordinate and Y ordinate by the virtual keypad and then touch the “Input” button the perform the ordinate update Display or hide the coordinates of the polygon vertices on the display G.
Page 218: Pass/Fail Rule
SDS3000X HD Series Digital Oscilloscope User Manual Select a polygon 25.3 Pass/Fail Rule The Pass/Fail rule is specified at the Type region in the Mask Test dialog box.  All In: All data points must be inside the mask to pass the test. Even a single point outside the mask will cause a failure.
Page 219: Dvm
SDS3000X HD Series Digital Oscilloscope User Manual 26 DVM 26.1 Overview The DVM (Digital Voltage Meter) function can be used to measure parameters such as DC and AC amplitudes. The SDS3000X HD measures the specified parameter of the input signal and can display it in various formats, including Bar, Histogram, and Trend.
Page 220: Mode
SDS3000X HD Series Digital Oscilloscope User Manual Touch the menu Analysis > DVM to open the DVM dialog box: A. Turn on or off the DVM B. Select the source (C1~C4) C. Select the Mode: DC Mean, DC RMS, AC RMS, Peak-Peak, and Amplitude D.
Page 221: Diagrams
SDS3000X HD Series Digital Oscilloscope User Manual  DC Mean: Average of the data  DC RMS: Root mean square of the data at DC coupling  AC RMS: Root mean square of the data at AC coupling  Peak-Peak: Difference between maximum and minimum data value ...
Page 222 SDS3000X HD Series Digital Oscilloscope User Manual Trend The trend diagram indicates the trend of the measured values over time. Touch Trend in the DVM dialog box to display it. A. Mode B. Trend display area C. Extend the range of time. Touch it to expand the time range.
Page 223: Counter
SDS3000X HD Series Digital Oscilloscope User Manual 27 Counter 27.1 Overview The counter is used to measure the frequency and period of a signal or count the events happening within it. The counter is asynchronous to the acquisition system of the oscilloscope. It can work well even if the acquisition of the oscilloscope is stopped (indicated by a red-colored Run/Stop button) Touch the menu Analysis >...
Page 224: Mode
SDS3000X HD Series Digital Oscilloscope User Manual Max -- The maximum of all historical counts Stdv -- The standard deviation of all historical counts, used to judge the distribution of historical count parameters Count -- Number of counts obtained Level -- Counter level Press the Clear Sweeps button or touch Reset Statistics in the measure dialog box to clear and restart statistics.
Page 225 SDS3000X HD Series Digital Oscilloscope User Manual A. Turn on or off the gate B. Select the gate type: Level or After Edge C. Gate source display area. C1 and C2 are gate sources of each other, C3 and C4 are gate sources of each other D.
Page 226: Histogram
SDS3000X HD Series Digital Oscilloscope User Manual 28 Histogram 28.1 Overview The SDS3000X HD supports waveform histograms for observing probability distributions of the waveform in the specified region. The statistics can be performed in both horizontal and vertical directions. The histogram continues to update as long as the acquisition is active.
Page 227 SDS3000X HD Series Digital Oscilloscope User Manual Horizontal Vertical Both Region Setting See section “Region Setting” for details. Histogram Statistics When histogram statistics is turned on, the oscilloscope will show the statistical parameters of the histogram on the display. int.siglent.com...
Page 228: Region Setting
SDS3000X HD Series Digital Oscilloscope User Manual Sum -- Total samples falling in the histogram region Peak -- Samples in the highest bin Max -- Maximum value of the samples Min -- Minimum value of the samples Pk-Pk -- Maximum - Minimum...
Page 229 SDS3000X HD Series Digital Oscilloscope User Manual When the finger moves out of the touch screen, a menu pops up. Select "Histogram" in the menu: After the region is created, it can be moved by dragging gesture. Dialog Box Touch Histogram > Region Setting to recall the dialog box.
Page 230: Power Analysis
Transient Response, PSRR, Power Efficiency, Output Ripple, etc. Full use of the Power analysis requires a differential voltage probe like the SIGLENT DPB series, a current probe like the SIGLENT CP series, the SIGLENT DF2001A deskew fixture, and the power analysis activation license (part number SDS3000HD-PA).
Page 231: Power Quality
SDS3000X HD Series Digital Oscilloscope User Manual 29.2 Power Quality The specific measurement parameters of power quality analysis include active power, apparent power, reactive power, power factor, power phase angle, voltage effective value, current effective value, voltage crest factor, and current crest factor of power input of a switching power supply.
Page 232 SDS3000X HD Series Digital Oscilloscope User Manual Touch Signal to recall signal settings dialog box: A. Set the input voltage source B. Set the input current source C. Set the periods displayed D. View the connection guide E. Return to the previous menu Connection Guide Touch Signal >...
Page 233: Current Harmonics
SDS3000X HD Series Digital Oscilloscope User Manual 29.3 Current Harmonics Current harmonics are used to analyze the input current harmonics. An FFT of the selected channel is performed to get the harmonic components. The signal settings and connection guide are the same as the power quality test.
Page 234 SDS3000X HD Series Digital Oscilloscope User Manual  Pass/Fail State -- Determine whether the measured value is passed or failed according to the selected standard. The rows in the table or the bars in the bar chart are rendered in different colors based on the pass / fail state.
Page 235: Inrush Current
SDS3000X HD Series Digital Oscilloscope User Manual 29.4 Inrush Current A large current far greater than the stable current may flow through at the moment of switching on a power supply. The large current is called the inrush current. The current waveform when switching on...
Page 236: Switching Loss
SDS3000X HD Series Digital Oscilloscope User Manual 29.5 Switching Loss Switch loss analysis can be used to calculate the power dissipated in the switching period. Deskew Calibration A relatively small skew can cause a large measurement error of switching loss, especially during the on phase when the voltage is close to zero and the non-on phase when the current is close to zero.
Page 237 SDS3000X HD Series Digital Oscilloscope User Manual C. Connect the voltage and current probes to the oscilloscope input channel D. Touch Signal to enter the signal setting menu. Select the corresponding input channel, and then touch Auto Deskew to perform the calibration. When the process completes, a message will pop up indicating whether the deskew operation was successful or not.
Page 238 SDS3000X HD Series Digital Oscilloscope User Manual A. Set the voltage reference, i.e. the switch level at the edge of the input switch. This value is a percentage of the maximum switching voltage. Adjusting the value to ignore background noise. This value is used to determine the threshold hysteresis of the switch edge B.
Page 239: Slew Rate
SDS3000X HD Series Digital Oscilloscope User Manual 29.6 Slew Rate The slew rate measures the change rate of voltage or current during switching. Connection Guide Touch Signal > Connection Guide to recall the connection guide of slew rate, as shown in the figure below.
Page 240: Modulation
SDS3000X HD Series Digital Oscilloscope User Manual 29.7 Modulation Modulation analysis measures the control pulse signal of the switching device (MOSFET) and observes the pulse width, duty, period, frequency, and other trends of the control pulse signal in response to different events.
Page 241: Turn On/Turn Off
SDS3000X HD Series Digital Oscilloscope User Manual 29.9 Turn On/Turn Off Turn-on analysis determines the time taken for the power supply to reach 90% of its steady-state output. Turn-off analysis determines the time taken for the power supply to fall to 10% of its maximum output voltage.
Page 242 SDS3000X HD Series Digital Oscilloscope User Manual T1 = When the input voltage finally falls to a certain percentage (usually 10%) of its maximum amplitude T2 = When the output DC voltage finally falls to a certain percentage (usually 10%) of its...
Page 243: Transient Response
SDS3000X HD Series Digital Oscilloscope User Manual 29.10 Transient Response Transient response analysis can determine the response speed of the output voltage of the power supply to the change of the output load. This time starts from the first time that the output voltage exits the stable band and ends at the last time that the output voltage enters the stable band.
Page 244: Psrr
SDS3000X HD Series Digital Oscilloscope User Manual Connection Guide Touch Signal > Connection Guide to recall the connection guide of transient response, as shown in the figure below. Please follow the instructions in this figure for connection. Touch the icon on the top right of the guide to close.
Page 245: Power Efficiency
SDS3000X HD Series Digital Oscilloscope User Manual 29.12 Power Efficiency Power efficiency analysis can test the overall efficiency of the power supply by measuring the output power and input power. This analysis is only supported on 4-channel models because all of the input voltage, input current, output voltage, and output current are necessary for the measurement.
Page 246 SDS3000X HD Series Digital Oscilloscope User Manual Note: Perform a Deskew operation between the voltage and current input channels before the test. See section “Switching Loss” for more details on deskewing. The test steps are as followed: In the Input Setup menu, assign correct channels to Input Voltage and Input Current . Set Duration as the expected observed duration, then the oscilloscope will automatically set the timebase according to it.
Page 247 SDS3000X HD Series Digital Oscilloscope User Manual Voltage and current waveforms on the MOSFET at power-up SOA, in which the mask is created according to the voltage limit, current limit, and power limit. The result shows “Pass” because all the stresses are within the mask.
Page 248: Bode Plot
At this time, either the SIGLENT SAG1021I arbitrary waveform generator or one of a SIGLENT SDG series arbitrary function generators are supported. During the sweep, the oscilloscope configures the generator output frequency and amplitude and then compares the input signal to the output of the DUT.
Page 249 SDS3000X HD Series Digital Oscilloscope User Manual A. Turn on/off the Bode plot B. Configure the Bode plot (DUT, AWG connection, sweep parameters) C. Turn on/off the operation D. Set display parameters, including coordinate axis, trace visibility, and cursors E. Data list. Open the data list of the Bode plot to view...
Page 250: Configuration
SDS3000X HD Series Digital Oscilloscope User Manual 30.2 Configuration 30.2.1 Connection A. DUT input and output channels B. Channel gain. When it is set to Auto, the oscilloscope will automatically adapt the vertical scale according to the signal amplitude; when it is set to Hold, it will always keep the vertical scale before the test operation C.
Page 251 SDS3000X HD Series Digital Oscilloscope User Manual D. Set the number of sweep points. The larger the number of points, the higher the sweep resolution E. Set the amplitude of the sweep signal Set the offset of the sweep signal G.
Page 252 SDS3000X HD Series Digital Oscilloscope User Manual Touch Nodes to set the signal node number through the universal knob, or touch ▲ to increase the nodes and ▼ to decrease. Touch the cell in the table area to set the frequency and amplitude of the corresponding node. Touch to activate the cell, adjust the value through the universal knob, or touch the cell again to call up the virtual keypad for setting.
Page 253: Display
SDS3000X HD Series Digital Oscilloscope User Manual 30.3 Display Bode plot display settings include amplitude, phase, cursors, trace visibility and waveform type. Amplitude Set the amplitude coordinate axis of the Bode plot. Touch Display > Amplitude to recall the amplitude setting dialog box: A.
Page 254 SDS3000X HD Series Digital Oscilloscope User Manual Cursors SDS3000X HD can use the cursor to measure the Bode plot curve. The cursor of the Bode plot is similar to the ordinary cursor, see the chapter "Cursors" for details. Touch Display > Cursors to recall the cursor setting dialog box.
Page 255: Data Analysis
SDS3000X HD Series Digital Oscilloscope User Manual 30.4 Data Analysis With the data list, cursor measurement, and automatic measurement functions, the Bode plot curve can be analyzed in detail. The data list provides the information of each scanning point. The cursors can be used to flexibly measure the change of each position of the curve.
Page 256 SDS3000X HD Series Digital Oscilloscope User Manual Data List Touch Data to recall the data setting dialog box: A. Turn on/off the data list B. Set the selected row in the list. Adjust the universal knob to set, or directly touch the list display area to select a specific line.
Page 257 SDS3000X HD Series Digital Oscilloscope User Manual E. Clear the current measurement Close the measurement configuration window For example, to add UF measurements for C2 and GM measurements for C3, follow the steps below: Measure > Position > Source > UF Measure >...
Page 258: Display
SDS3000X HD Series Digital Oscilloscope User Manual 31 Display Display settings include display type of waveform, color, persistence, grid type, trace brightness, graticule brightness, etc. Touch the menu Display > Menu to recall the display dialog box. A. Switch the waveform display type to Vectors (line display) or Dots B.
Page 259 SDS3000X HD Series Digital Oscilloscope User Manual  Dots: Displays the raw samples directly. Vector Display Dot Display Note: In the Run state, due to the high waveform update rate of the oscilloscope, the waveform displayed is the superposition of multiple frames. Therefore, what is seen using the dots display is not the discrete sampling points, but the display effect similar to equivalent sampling.
Page 260 SDS3000X HD Series Digital Oscilloscope User Manual Dots display in Run state Color Grade Color grade uses color temperature to map the probability of the waveforms. The greater the probability that the waveform appears in a pixel, the warmer the color of the pixel. The smaller probability, the colder the color temperature of that pixel.
Page 261 SDS3000X HD Series Digital Oscilloscope User Manual Set Persist With persistence, the oscilloscope updates the display with new acquisitions but does not erase the results of previous acquisitions in the specified period. All previous acquisitions are displayed with reduced intensity. New acquisitions are shown in their normal color with normal intensity. In...
Page 262 SDS3000X HD Series Digital Oscilloscope User Manual Full Grid Light Grid 2 5 2 i n t . s i g l e n t . c o m...
Page 263 SDS3000X HD Series Digital Oscilloscope User Manual No Grid Color Setting The color setting supports user-defined trace colors. Touch the color rectangle box to set in the pop- up palette page. Touch the Default area to restore the default color for all channels.
Page 264 SDS3000X HD Series Digital Oscilloscope User Manual Axis Label Setting Turn on the axis label, the horizontal axis label will be displayed at the bottom of the grid, and the vertical axis label will be displayed at the left of the grid. There are two display modes of axis: moving and fixed.
Page 265 SDS3000X HD Series Digital Oscilloscope User Manual Fixed mode int.siglent.com 2 55...
Page 266: Arbitrary Waveform Generator
SDS3000X HD Series Digital Oscilloscope User Manual 32 Arbitrary Waveform Generator 32.1 Overview The SDS3000X HD supports an external arbitrary waveform/function generation when purchasing SAG1021I and activated using option SDS3000HD-FG. The AWG functions include:  6 basic waveforms: Sine, Square, Ramp, Pulse, Noise, and DC ...
Page 267: Output
SDS3000X HD Series Digital Oscilloscope User Manual 32.2 Output For safety, pressing the Wave Gen button does not automatically turn on the output of AWG. To turn on the output, touch Output in the AWG dialog box after pressing Wave Gen . When the output is enabled, the Wave Gen button lights up.
Page 268: Other Setting
Common, Math, Engine, Window, and Trigo. Stored waveforms are located in the Stored menu. Users can edit arbitrary waveforms using SIGLENT EasyWaveX PC software, send the stored waveforms to the instrument through the remote interface, or import the stored waveforms through a U disk.
Page 269: System
SDS3000X HD Series Digital Oscilloscope User Manual  Auto Steps: In this mode, the adjustment can only be performed with C1 of the oscilloscope. Connect the output of AWG to C1 of the oscilloscope, press Auto , and the AWG will start to automatically adjust.
Page 270 SDS3000X HD Series Digital Oscilloscope User Manual detailed operation. Touch Upgrade to start the upgrade progress. A progress bar shows the percentage finished. After the upgrade, the SAG1021I will be removed from the system, and the oscilloscope prompts "Upgrade completed. Please reconnect the AWG device."...
Page 271: Save/Recall
SDS3000X HD Series Digital Oscilloscope User Manual 33 Save/Recall The SDS3000X HD supports saving setups, screenshots, and waveform data files to internal storage, external USB storage devices (e.g. U disk), or network storage. Saved setups and waveforms can be recalled as needed.
Page 272 SDS3000X HD Series Digital Oscilloscope User Manual available sources include C1 ~ C4, F1 ~ F4 and M1 ~ M4 (except for FFT). To Default Key The oscilloscope provides two options for the default setting. When the Default Type is set to “Factory”, the factory default setting will be recalled by pressing the Default button on the front panel;...
Page 273: File Manager
SDS3000X HD Series Digital Oscilloscope User Manual 33.2 File Manager The SDS3000X HD's file manager has a similar style and operation to the Windows© operating systems. A. Address bar B. Navigation panel C. File list D. Toolbar E. File type Close the file manager Table 33.1 Description of icons in the file manager...
Page 274: Save And Recall Instances
SDS3000X HD Series Digital Oscilloscope User Manual Root directory Paste Save Rename Save as Delete Recall Move 33.3 Save and Recall Instances Save the screenshot to the path “Udisk0\sds3khd\” in the format of BMP First, Insert the U disk. Secondly, set the parameters of the Save operation: ...
Page 275 SDS3000X HD Series Digital Oscilloscope User Manual Once saved, the new BMP file is visible in the file manager: In step 4, if Save is selected instead of Save As , the system saves the file as the default file name SDS3xx4XHD_BMP_n.bmp, where n is an integer incrementing from 1.
Page 276 SDS3000X HD Series Digital Oscilloscope User Manual Note: A saved picture can be browsed on the oscilloscope by opening it in the File Manager. Recall the setup file "track.xml" stored in path “Udisk0\sds3khd\” First, insert the U disk with the file "track.xml" stored folder “\sds3khd\”.
Page 277: Quick Save And Screenshot
SDS3000X HD Series Digital Oscilloscope User Manual Fourth, touch the Recall icon and wait for the oscilloscope to finish recalling the setup. 33.4 Quick Save and Screenshot Users can use the Save button to quickly save files of the specified type (including screenshots).
Page 278: Utility
SDS3000X HD Series Digital Oscilloscope User Manual Utility 34.1 System Information Operate Utility > Menu > System Info to check the system status. System information includes the contents shown below. 2 6 8 i n t . s i g l e n t . c o m...
Page 279: System Setting
SDS3000X HD Series Digital Oscilloscope User Manual 34.2 System Setting 34.2.1 Language The SDS3000X HD supports multiple languages, including Simplified Chinese, Traditional Chinese, English, French, Japanese, German, Spanish, Russian, Italian, Portuguese, and so on. Operate Utility > Menu > System Setting > Language , and select the language in the list.
Page 280: Reference Position Setting
SDS3000X HD Series Digital Oscilloscope User Manual screenshots, history frames, and so on. Operate Utility > Menu > System Setting > Date/Time to open the Date/Time dialog box: Touch the text box of Hour, Minute, Second, Day, Month, and Year to edit these fields. Touch the Modify Date/Time button to perform the change.
Page 281 SDS3000X HD Series Digital Oscilloscope User Manual Vertical Ref  Fixed Offset: When the vertical scale is changed, the vertical offset remains fixed. As the vertical scale is changed, the waveform expands/contracts around the main X-axis of the display ...
Page 282 SDS3000X HD Series Digital Oscilloscope User Manual Fixed position, timebase is changed to 5 ns/div, the grid number of delay (2div) remains fixed, while the horizontal delay changes to -10 ns Fixed delay, timebase is changed to 5 ns/div, the horizontal delay value remains fixed,...
Page 283: I/O Setting
5900 to 5999. 34.4 Install Options The SDS3000X HD provides a few options to enhance its functionality. Contact your local SIGLENT sales representative or SIGLENT technical support to get the corresponding option key. Perform the following steps to install the option: Utility >...
Page 284 SDS3000X HD Series Digital Oscilloscope User Manual A. Option information display area. When the option is not activated, the license type is displayed as "Temporary" and can be tried up to 30 times. B. Select the option to install. C. The option key input area, touch or click the text box and enter the key by the virtual keyboard.
Page 285: Maintenance
SDS3000X HD Series Digital Oscilloscope User Manual 34.5 Maintenance 34.5.1 Upgrade The firmware is upgradeable through external USB memory devices/U disk. Make sure the U disk contains the correct upgrade file (*.ads) and is connected to the oscilloscope before performing the upgrade.
Page 286: Self-Test
SDS3000X HD Series Digital Oscilloscope User Manual dialog. Users can choose Cancel to cancel the upgrade or Reboot to restart the oscilloscope immediately and continue the upgrade. Otherwise, the oscilloscope will restart automatically to finish the upgrade. After the reboot, check if the version number is in "System Information".
Page 287 SDS3000X HD Series Digital Oscilloscope User Manual Press the "Single" button to switch to red and green display mode. Observe whether there is any color distortion, bad pixels, or scratches on the screen. Press the "Run/Stop" button to exit the screen test mode.
Page 288 SDS3000X HD Series Digital Oscilloscope User Manual Knob test: Turn each knob clockwise, counter-clockwise, and press down. Observe whether the value on the corresponding knob (default 0) on the screen increases or decreases in real-time and whether the knob lights up when it is pressed.
Page 289: Self-Calibration
The oscilloscope will not respond to any operation until the self-cal is finished. After the self-cal is completed, touch the screen or press any button to exit. 34.5.4 Developer Options This function is used for internal development by SIGLENT. int.siglent.com 2 79...
Page 290: Service
SDS3000X HD Series Digital Oscilloscope User Manual 34.6 Service 34.6.1 This oscilloscope complies with LXI version 1.5, defined in LXI device specification 2016, which can be used to quickly build automated test systems. Touch LXI to recall the LXI status box as below: Touch LAN Reset to restore the LAN defaults to your oscilloscope.
Page 291 SDS3000X HD Series Digital Oscilloscope User Manual A. Select "Auto Connect" to automatically connect to the server after each startup. B. Select the drive letter. C. Set the server path. Enter the path in the text box, and select “Remember Settings”...
Page 292: Web Server
SDS3000X HD Series Digital Oscilloscope User Manual A. Password setting area. B. Reset the password. C. When selected, file share service will take effect, otherwise it will not take effect. D. Check to automatically start up the share file at every power on.
Page 293: Save Button
SDS3000X HD Series Digital Oscilloscope User Manual 34.7 Save Button Push the Save button on the front panel to perform the specified save action. The default is to save a screenshot as a picture (.bmp/.png/.jpg). Touch Utility > Save Button to set the file type and path.
Page 294: Troubleshooting
Check whether the power switch is on. Check whether the fuse is burned out. If the fuse needs to be changed, please contact SIGLENT timely and return the instrument to the factory for replacement by the maintenance personnel authorized by SIGLENT.
Page 295 Make sure that the U disk system format is FAT32. Restart the instrument and then insert the USB storage device to check it. If the USB storage device still cannot be used normally, please contact SIGLENT. int.siglent.com 2 85...
Page 296 DC power supplies, electronic loads and other general purpose test instrumentation. Since its first oscilloscope was launched in 2005, SIGLENT has become the fastest growing manufacturer of digital oscilloscopes. We firmly believe that today SIGLENT is the best value in electronic test & measurement. Headquarters: SIGLENT Technologies Co., Ltd...

This manual is also suitable for:

Sds3104x hd Sds3054x hd Sds3034x hd

SIGLENT SDS3000X HD Series User Manual

1 Introduction

2 Important Safety Information

Informations Essentielles Sur la Sécurité

3 First Steps

4 Document Conventions

5 Getting Started

6 Quick Start

7 Remote Control

8 Touch Screen Display

9 Front Panel

10 Multiple Approaches to Recall Functions

11 Quickly Capture the Signal

12 Vertical Setup

13 Digital Channels

14 Horizontal and Acquisition Setup

15 Zoom

16 Trigger

17 Serial Trigger and Decode

18 Cursors

19 Measurement

20 Math

21 Memory

22 Analysis Gate

23 Search

24 Navigate

25 Mask Test

26 DVM

27 Counter

28 Histogram

29 Power Analysis

30 Bode Plot

31 Display

32 Arbitrary Waveform Generator

33 Save/Recall

34 Utility

35 Troubleshooting

Quick Links

Need help?

Questions and answers

Related Manuals for SIGLENT SDS3000X HD Series

Summary of Contents for SIGLENT SDS3000X HD Series
