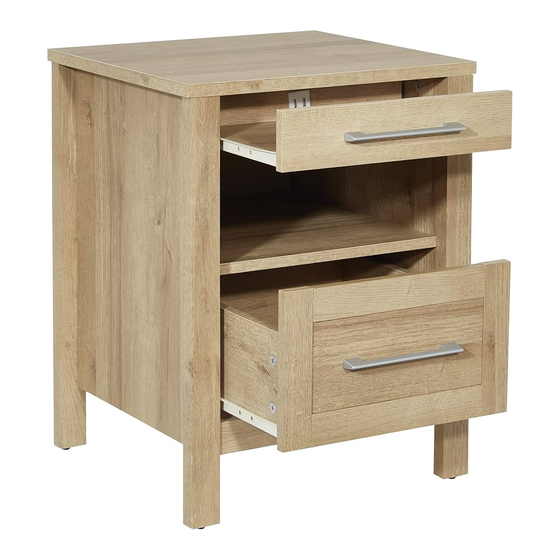

Nightstand with 2 usb ports

Advertisement

Quick Links

November, 2022
SK24NS
NIGHTSTAND WITH 2 USB PORTS
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SK24NS and is the answer not in the manual?

Questions and answers

Summary of Contents for OSP Home Furnishings SK24NS

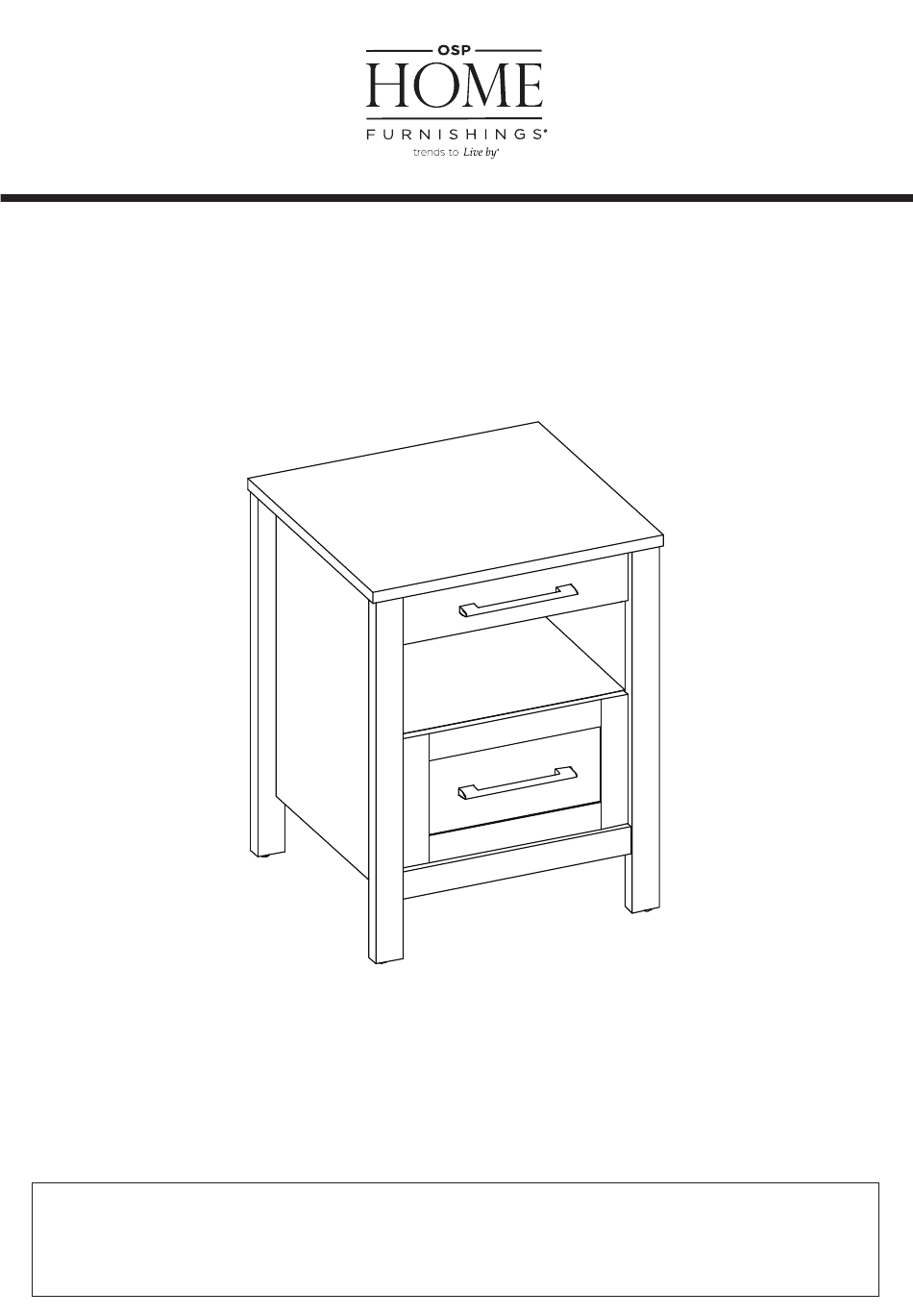

  • Page 1 November, 2022 SK24NS NIGHTSTAND WITH 2 USB PORTS Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
  • Page 2 1-800-950-7262, Monday through Friday 8:00 a.m. - 3:30 p.m. Pacific Time. To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At its option OSP Home Furnishings will: ®...
  • Page 3 PARTS (1) Table Top (1 PC) (2) Front Bottom Panel (1 PC) (4) Right Side Panel (1 PC) (3) Rear Bottom Panel (1 PC) (6) Divider Panel (1 PC) (5) Left Side Panel (1 PC) (8) Left Front Leg (1 PC) (7) Right Front Leg (1 PC) (10) Rear Left Leg (1 PC) (9) Rear Right Leg (1 PC)
  • Page 4 PARTS (13) Rear Support (1 PC) (14) Rear Panel (1 PC) (16) Right Drawer Side Panel (1 PC) (15) Drawer Front (1 PC) (18) Rear Drawer Panel (1 PC) (17) Left Drawer Side Panel (1 PC) (19) Botton Drawer Panel (1 PC) (21) Front Drawer Sliding (1 PC) (21) Botton Drawer Sliding (1 PC)
  • Page 5: Hardware List

    HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Cam Bolt Ø7 x 32mm 34 PCS Cam Nut Ø15 x 10mm 36 PCS Plastic Cap Ø17.5mm 6 PCS Dowel Ø6 x 30mm 33 PCS Sticker Cover Ø25mm 4 PCS Joint Cam Nut Ø15 x 10mm 2 PCS Joint Cam Bolt Ø7 x 42mm...
  • Page 6 SIZING REFERENCE GUIDE TOOLS REQUIRED FOR ASSEMBLY (NOT PROVIDED) CAM LOCK INSTALLATION When inserting Cam Locks, please be sure notch is facing corresponding hole. This will ensure easy fastening.
  • Page 7 STEP 1 FULLY TIGHTEN ALL CAM BOLTS (A) STEP 2 FULLY TIGHTEN ALL CAM BOLTS (A & G)
  • Page 8 STEP 3 FRONT FRONT SECURELY FASTEN ALL CAM LOCKS (B) STEP 4 FRONT FRONT FRONT FRONT Ø 6 x 9 mm FULLY TIGHTEN ALL SCREWS (I)
  • Page 9 STEP 5 FULLY TIGHTEN ALL CAM BOLTS (A) STEP 6 SECURELY FASTEN ALL CAM LOCKS (B)
  • Page 10 STEP 7 STEP 8 SECURELY FASTEN ALL CAM LOCKS (B)
  • Page 11 STEP 9 SECURELY FASTEN ALL CAM LOCKS (B) STEP 10 FULLY TIGHTEN ALL CAM BOLTS (A) & SECURELY FASTEN ALL CAM LOCKS (B)
  • Page 12 STEP 11 Ø 4 x 12 mm FULLY TIGHTEN ALL SCREWS (M) STEP 12 FULLY TIGHTEN ALL CAM BOLTS (A) & SCREWS (K)
  • Page 13 STEP 13 FULLY TIGHTEN ALL SCREWS (S) & SECURELY FASTEN ALL CAM LOCKS (B) STEP 14 FULLY TIGHTEN ALL CAM BOLTS (A)
  • Page 14 STEP 15 SECURELY FASTEN ALL CAM LOCKS (B) STEP 16 Ø6 x 12 mm Ø 6 x 9 mm Ø 6 x 19 mm FULLY TIGHTEN ALL SCREWS (H, I & O)
  • Page 15 STEP 17 STEP 18 Ø 6 x 9 mm FULLY TIGHTEN ALL SCREWS (I)
